Compatible Vehicles
- Compatible for Citroen C2 compatible for FWD type J 2003-2010
- compatible for Citroen C3 compatible for FWD type F, 2002-2010
- compatible for Citroen C3 compatible for FWD Pluriel type H, 2003-2010
Introduction
' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.
Specification
- Top mounts: Front and rear OE top mounts required
- Damping adjustable: Not available
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
- Spring rate Front: 5 kg/mm (280 lbs/in)
- Spring rate Rear: 2.5 kg/mm (140 lbs/in)
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 57-61 mm
- Spring length Front: 160 mm
- Spring length Rear: 230 mm
- Help spring rate Front: 1 kg/mm (56 lbs/in)
- Help spring length Front: 102 mm
- Spring Preload advised: 7-10 mm
- Colour: Silver body with golden spring
Dimension
- Package dimension : 61*50*20 cm
- Weight: 17850 g
Feature
- 1. 0-25mm(depends on vehicle models) lower height adjustable
- 2. Dust boot, solid rubber bump stops
- 3. Weight Saving Aluminium Components And heavy duty Steel Lower Mount Brackets
- 4. Simple install, Easy to adjust.
- 5. Use the vehicle's original upper mounts (not included in our product kit).

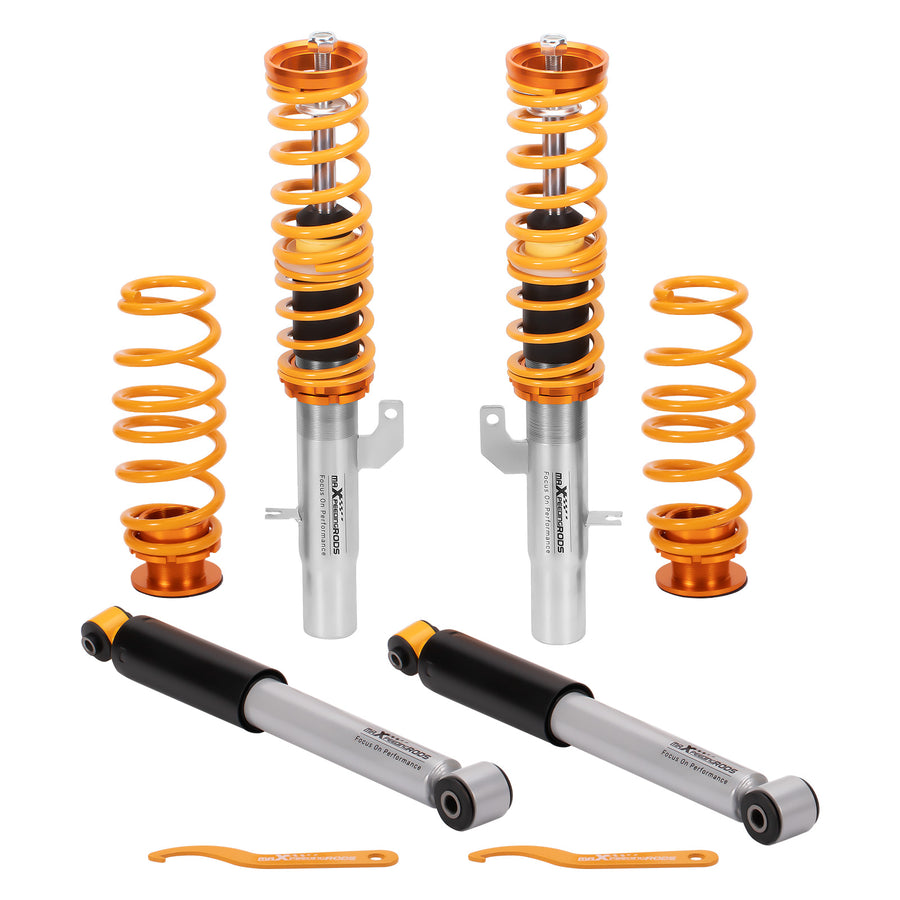

Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x C spanners
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
