H Beam 4340 EN24 Connecting Rods Conrods Con Rod compatible for Mercedes-Benz M274 2.0T

Compatible Vehicles

• Compatible for Mercedes-Benz M274 2.0TE-Class GLK-Class C-Class SLK-Class GLC-Class
• compatible for Infiniti Q50 Q60 M274 2.0T
• Details:
• 115 kW version：
• 2013–2016 W212 E200 Natural Gas Drive
• 135 kW version：
• 2013–2016 W212 E200
• 2013–present X204 GLK200
• 2014–2018 W205 C200
• 2015–present R172 SLK200
• 2016–present W213 E200
• 155 kW version：
• 2013–2016 W212 E250
• 2013–present X204 GLK250
• 2014–2018 W205 C250
• 2015–2018 W205 C350e
• 2015-present V37 Q50
• 2016–present W213 E250
• 2016–present W213 E350e
• 2016-present CV37 Q60
• 180 kW version：
• 2015–2018 W205 C300
• 2015–2018 W213 E300
• 2015–present X253 GLC300
• 2015–present R172 SLK300
• --
• Pin Type: Floating Pin Piston
• (tapered small end)

Specification

• *Type: Forged 4340 aircraft chrome moly quality steel for racing

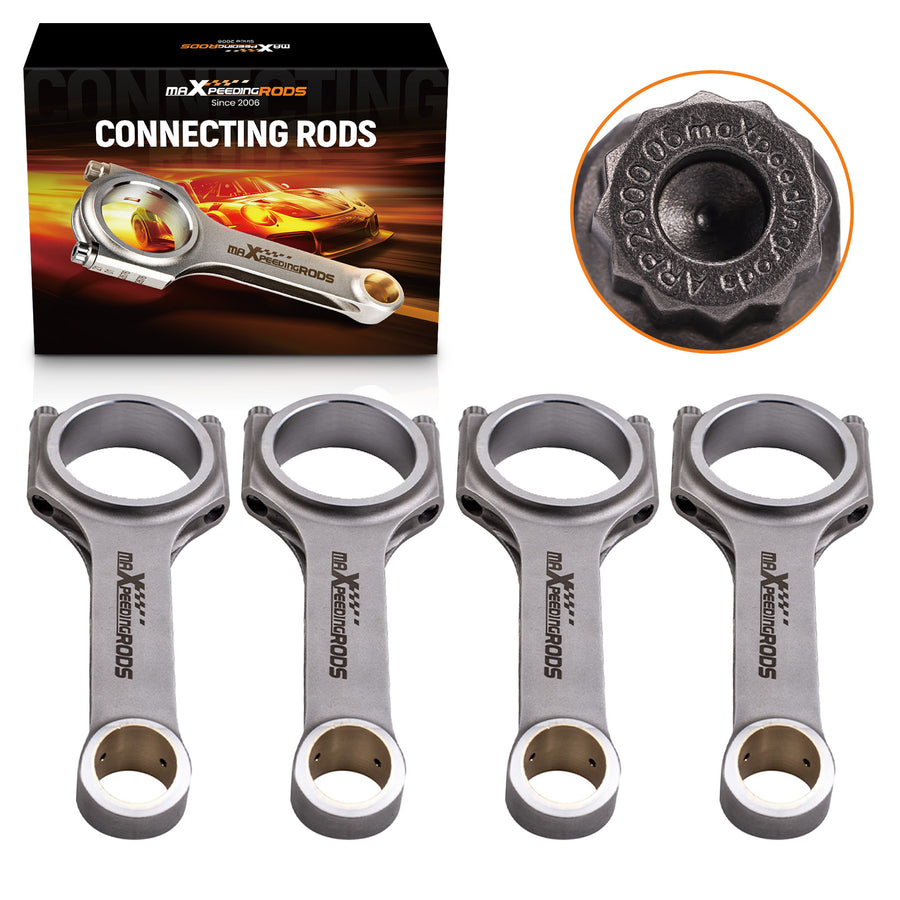

• *H-beam Conrods Quantity: 4 Pieces as showing in picture
• *Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
• *The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
• *Advertised Horsepower Rating:200HP/piece
• *Top acceleration: 9000rpm
• *package size：28CM*21CM*10CM

Dimension

• Centre to centre length:138.6mm/5.457"
• Big end diameter:51.6mm/2.031"
• Small end diameter:20mm/0.787"(tapered small end)
• Big end width:20mm/0.787"
• Small end width:20mm/0.787"

Feature

• 1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
• 2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
• 3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
• 4. H-Beam design reduces weight without compromising strength；
• 5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
• 6.High precision CNC machined,Precision rod cap alignment dowels；
• 7.Bores finished to +/- .005mm；
• 8.Balanced to within +/- 1 g per rod；
• 9. Each rod is magnetic particle tested to ensure free of flaws；
• 10.Use X-rayed, sonic tested；
• 11.Custom Service.

Note

• *There are titanium-plated upgrade models；
• *Professional installation is highly recommended ；
• *Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
