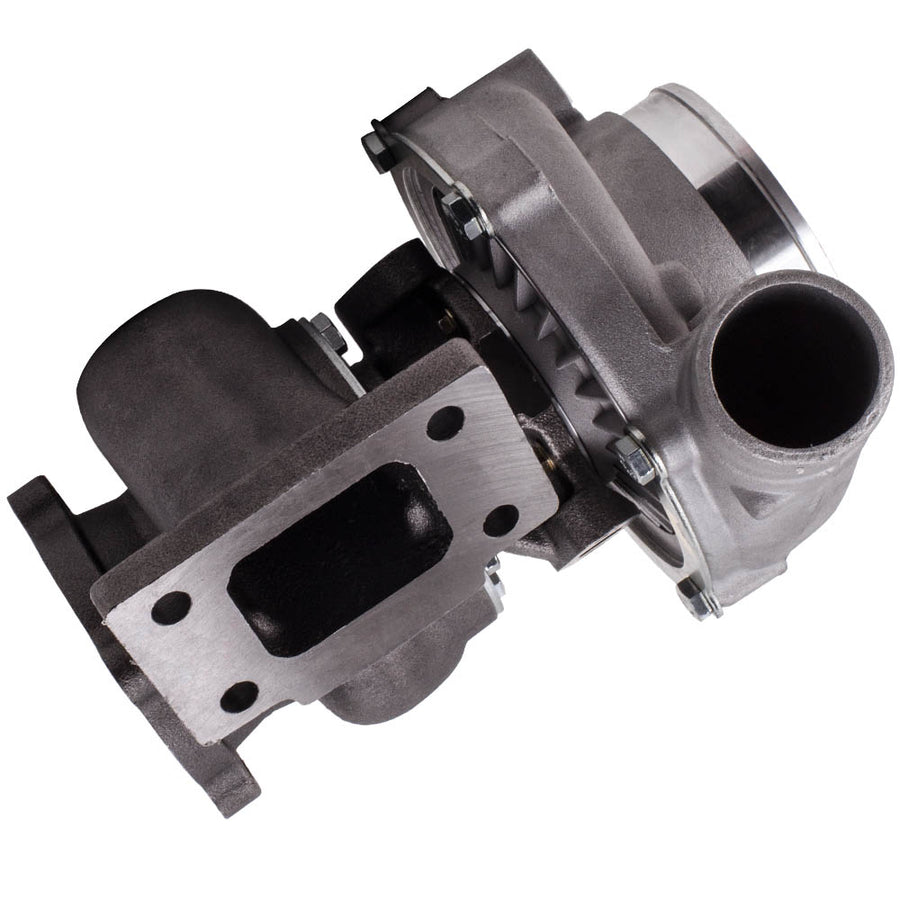

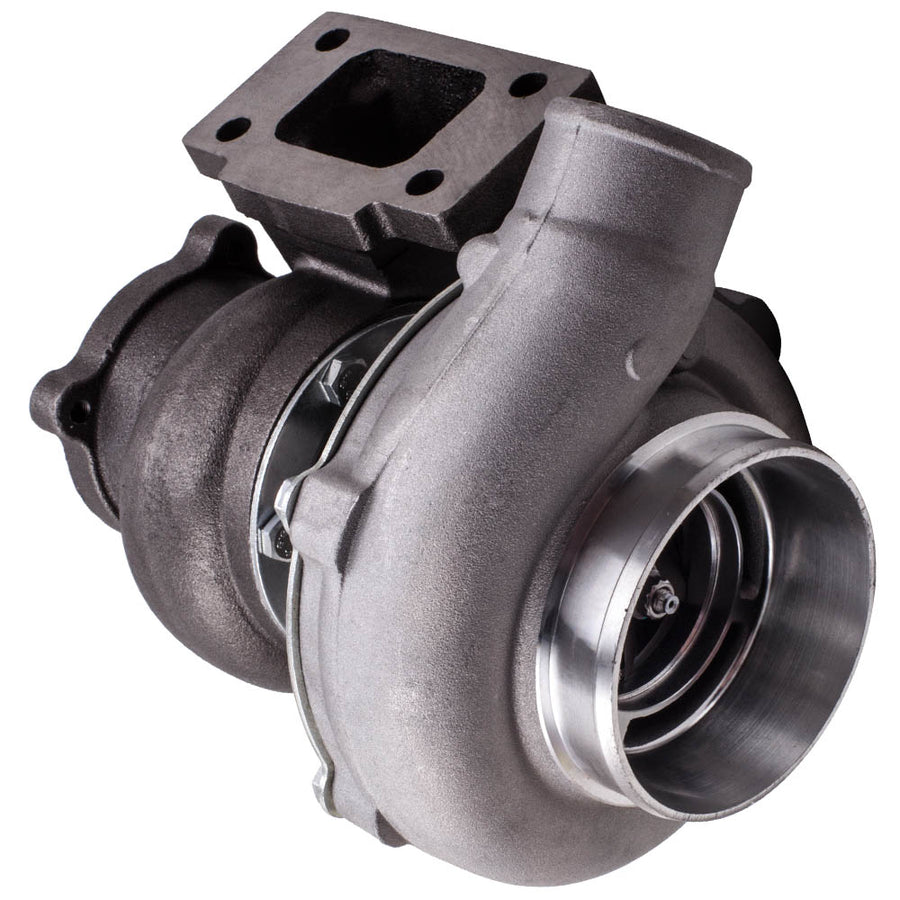

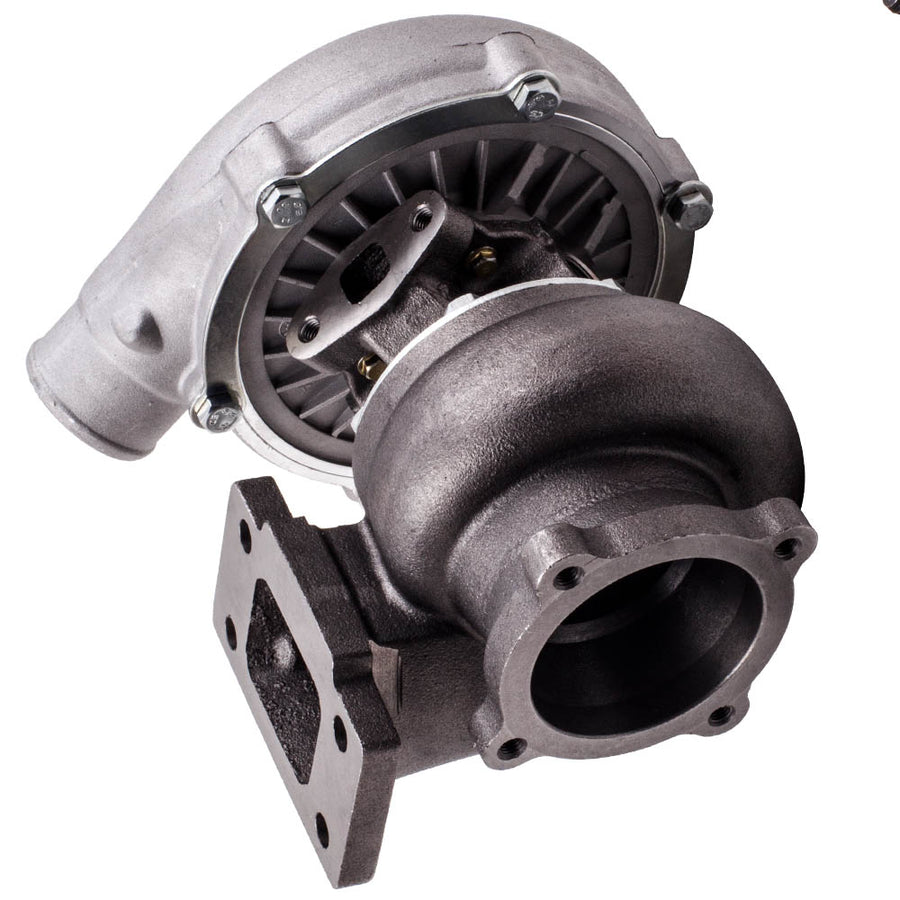

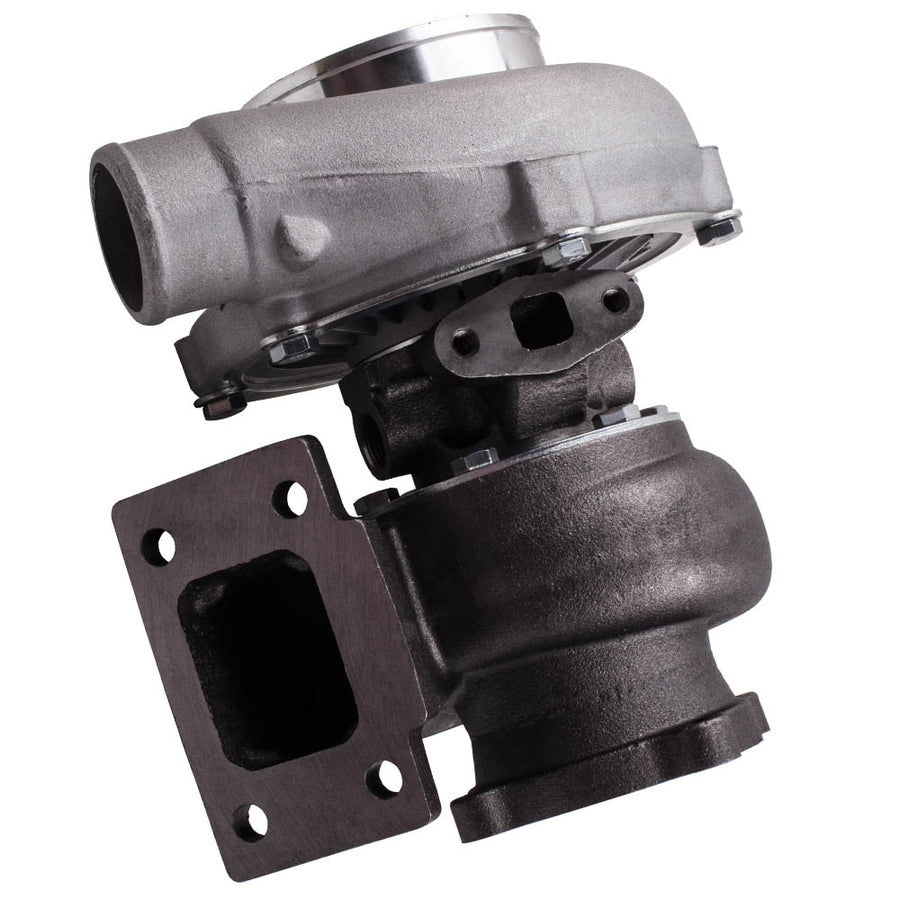

GT30 GT3037 T3 TURBOCHARGER 4-Bolt ANTI-SURGE WATER COOLED CIVIC INTEGRA

Compatible Vehicles

• Perfect for all 4/ 6 cyl 2.5L-3.0L engines

Specification

• Exhaust Inlet Flange: Standard T3 Flange
• Exhaust Outlet Flange: 4-Bolt
• Turbine Side:
• Turbine Trim: 74.2
• Turbine Inducer Diameter:64.8mm
• Turbine Exducer Diameter: 55.8mm
• Turbine A/R: 0.82
• Compressor Side:
• Compressor Trim: 48.1
• Compressor Inducer Diameter: 52.7mm
• Compressor Exducer Diameter: 76mm
• Compressor A/R:0.6
• Oil Inlet: M12*1.25 & 2*M8*1.25
• Oil Outlet: 2*M8*1.25
• Water: M18*1.5
• Horse Power: Capable of Boosting Horse Power up to 500BHP
• Cooling Type: Water + Oil Cooled
• Wastegate：Without Wastegate
• Bearing: Journal Bearing
• Thrust bearing: 270 Degrees
• Turbo Type: Individual
• Condition: 100% Brand New
• Accessories: You will get exactly as shown in the picture above
• Package Size:30 x 28 x 24cm
• Package Weight: 8750g

Feature

• *Product Material
• 1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
• 2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
• 3. Compressor housing：ZL104 aluminium with lightweight
• 4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
• *Product Performance
• 1. Cost-effective turbo increase 20-40% power for your car
• 2. Rich experience in turbo production and own factory
• 3. High-Speed oil seal ring and Precision clearance
• 4. Built for thermal stability and strength
• * Technology Advantage:
• 1. 100% balancing Test by TURBOTECHNICS VSR3
• 2. G3-min-Flow VNT Turbo testing
• 3. Advanced Actuator Tester/Programmer

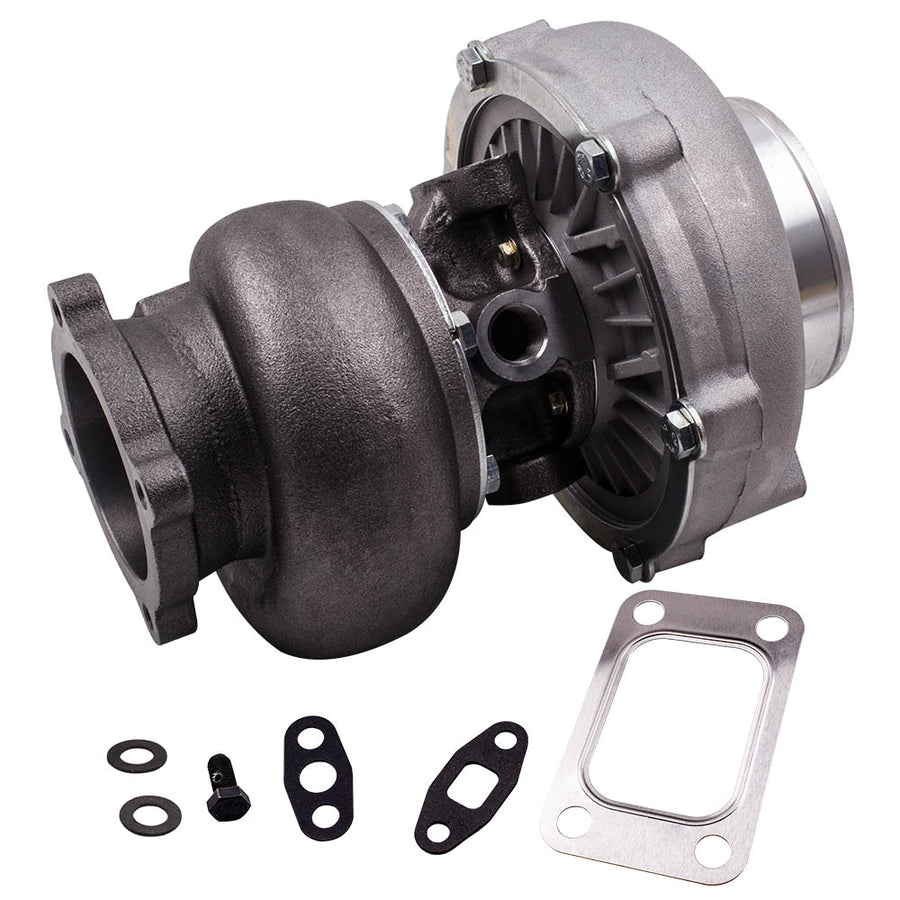

Package included

• 1xTurbocharger
• 1xFlange gasket
• 4xOil/water port gaskets
• 1xBolt

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
