GT30 GT3037 GT3076 T3 UNIVERSAL TURBO 0.82 A/R 48.1 TRIM 500BHP+Titanium Blanket

Compatible Vehicles

• Perfect for all 4/ 6 cyl 2.5L-3.0L engines

Specification

• Turbo
• Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange

Features

• Turbo
• *Product Material
• 1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

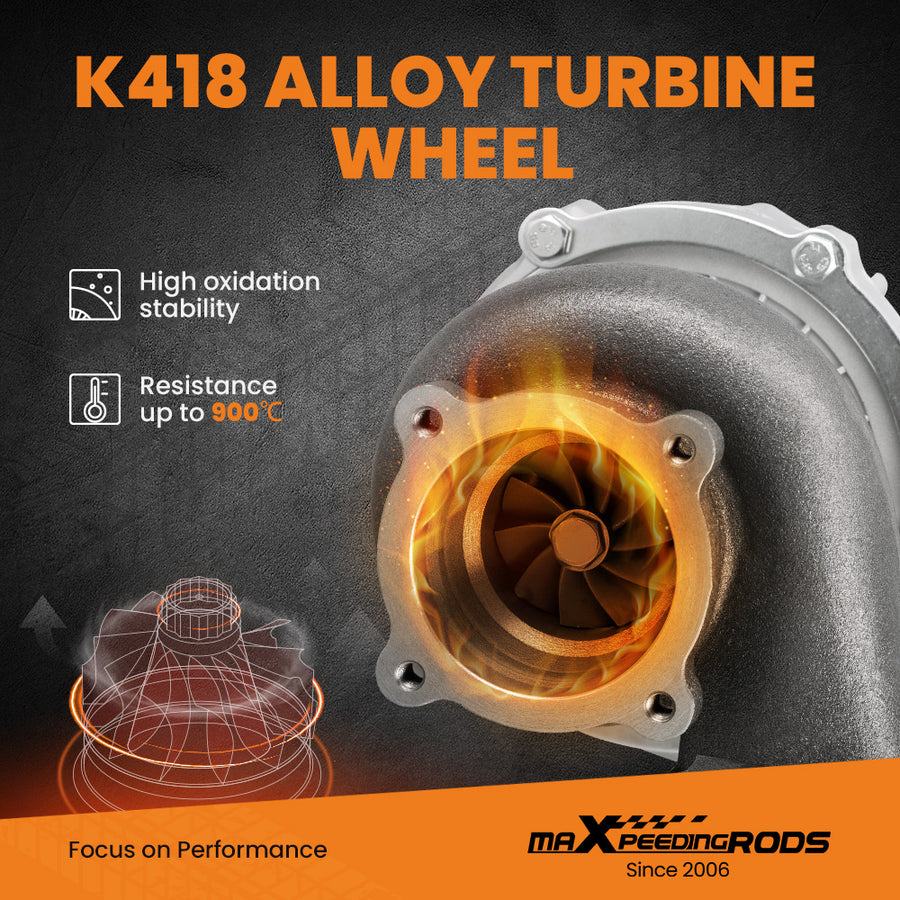

• 2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
• 3. Compressor housing: ZL104 aluminium with lightweight

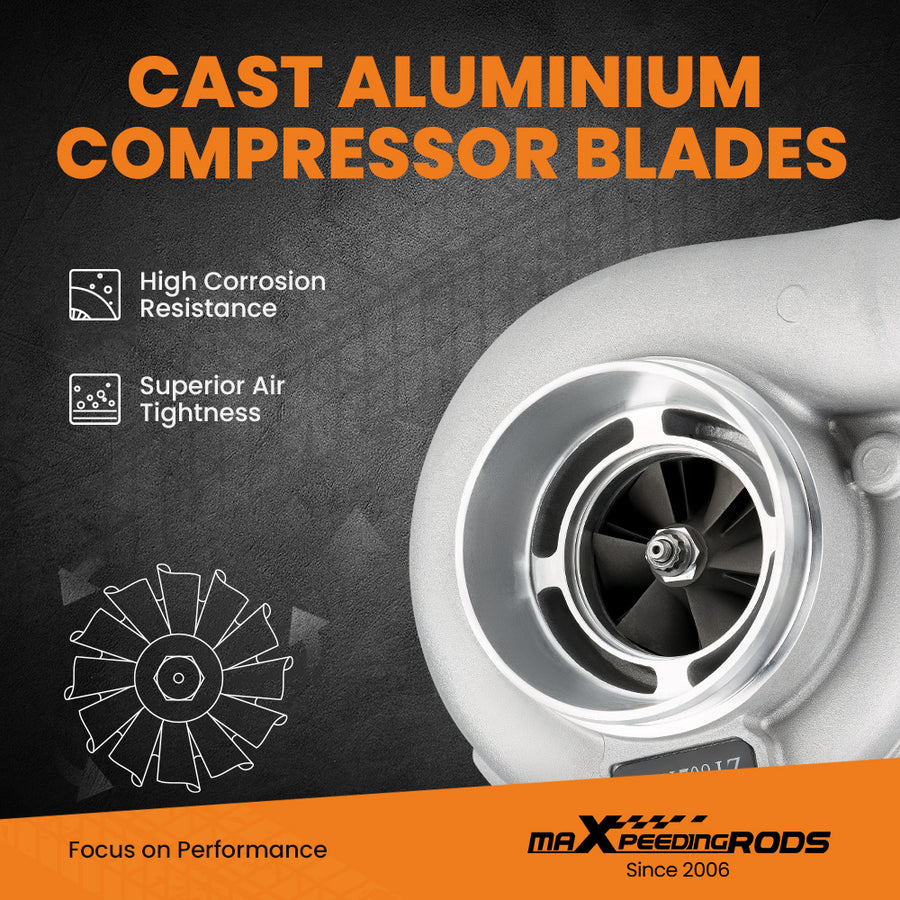

• 4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
• *Product Features
• 1. Cost-effective turbo increase 20-40% power for your car
• 2. Rich experience in turbo production and own factory
• 3. High-Speed oil seal ring and Precision clearance
• 4. Built for durability and strength
• * Technology Advantage:
• 1. 100% balancing Test by TURBOTECHNICS  VSR3
• 2. G3-min-Flow VNT Turbo testing
• 3.  Advanced Actuator Tester/Programmer

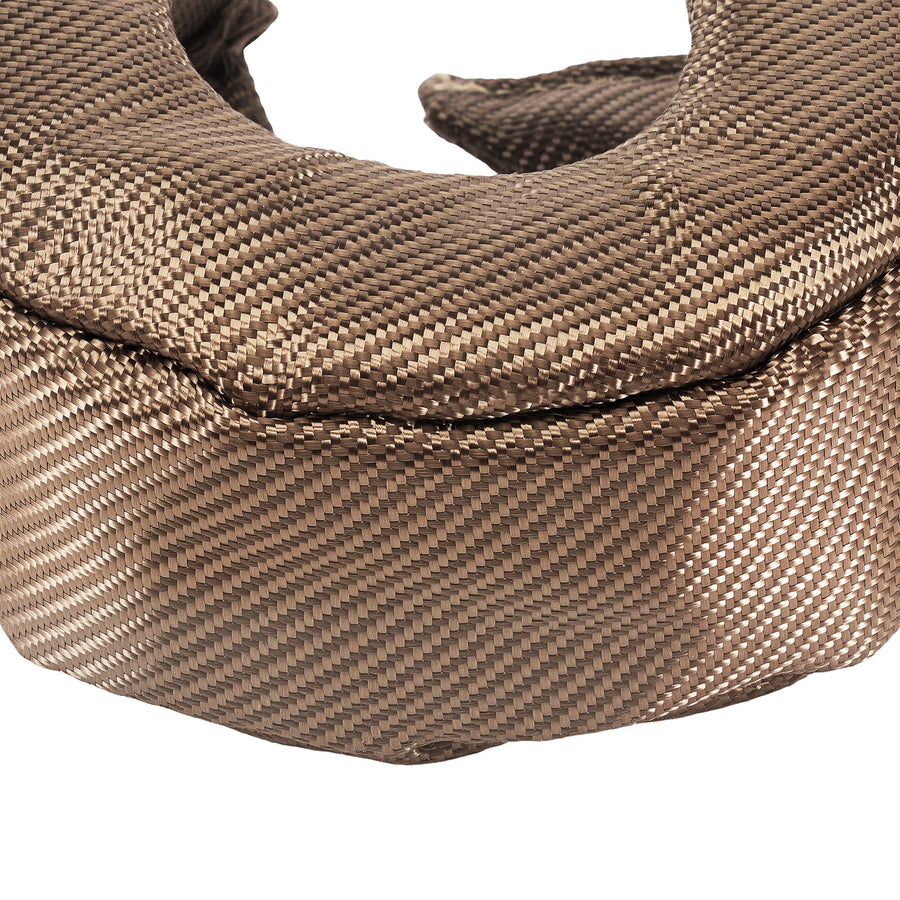

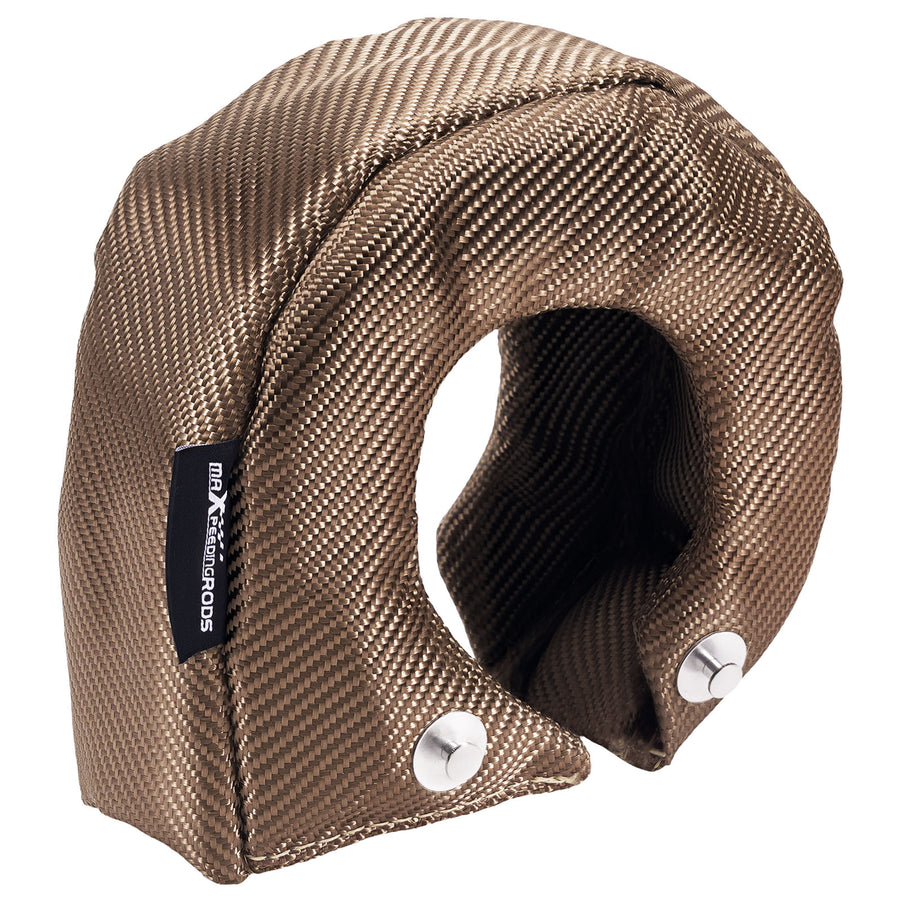

• Turbo Heat Shield
• 1. Keep crucial engine components protected from the heat of the turbo. while increasing spool time and reducing underhood temperatures.
• 2. Our high-quality basalt fibre can withstand high temperatures up to 800°C.

Condition

• 100% Brand New
• Accessories: You will get what you can see in the pictures exactly

Horse Power

• Boost Horse Power up to 500BHP
• Notice:This model is a universal turbo. Please confirm whether there is enough space in your car to install this turbo before purchasing.

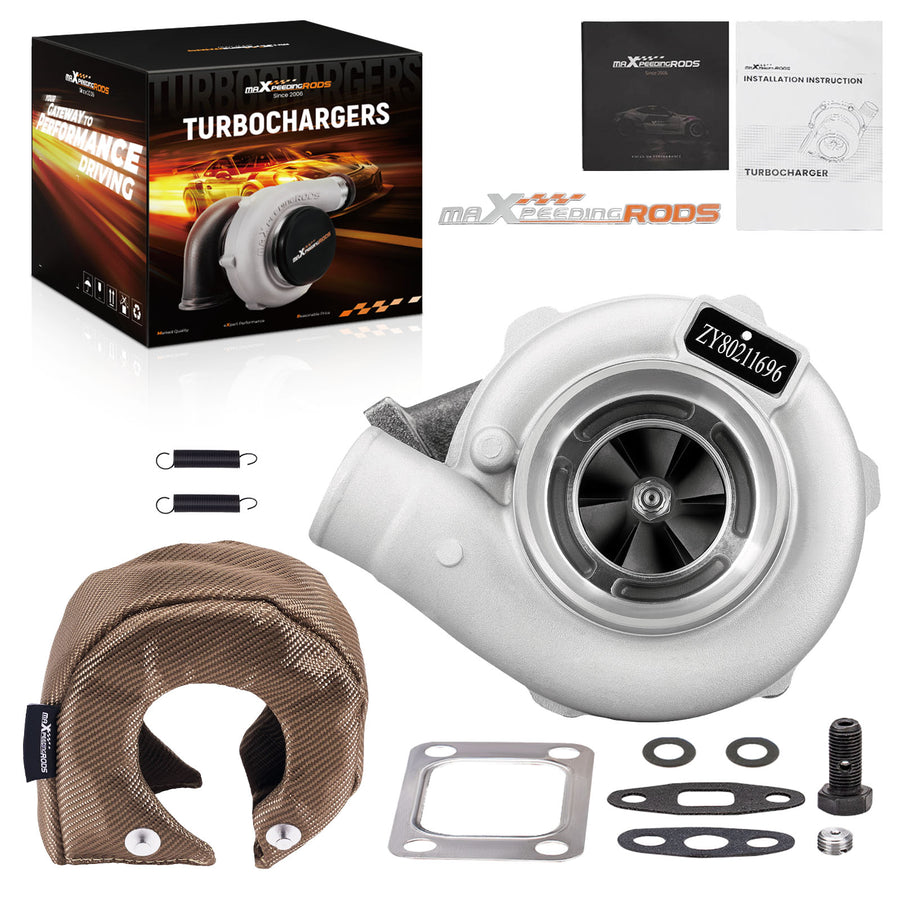

Package Included

• 1x Turbocharger
• 1x Turbo Heat Shield
• All items exactly as shown in product images

Exhaust Outlet Flange

4-Bolt Flange

Turbine Trim

74.2

Turbine Inducer Diameter

64.8mm

Turbine Exducer Diameter

55.8mm

Turbine A/R

0.82

Compressor Trim

48.1

Compressor Inducer Diameter

52.7mm

Compressor Exducer Diameter

76mm

Compressor A/R

0.6

Oil Inlet

M12*1.25 & 2*M8*1.25

Oil Outlet

2*M8*1.25

Water

M18*1.5

Wastegate

W/o Wastegate

Thrust bearing

270 Degrees

Turbo Type

Individual

Bearing

Journal Bearing

Cooling Type

• Water + Oil
• Accessories: You will get exactly as shown in the picture above

Package Size

30 x 28 x 24cm

Package Weight

• 8750g
• Turbo Heat Shield

Material

Basalt fibre/Titanium Fibre

Notice

• Turbo
• * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
• * Make sure the oil drain line is lower than the turbo itself.
• * Gasoline car must install a water cooling device to avoid overheating.
• * Ensure exhaust outlet are well sealed by welding
• * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
• * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
• * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
• Turbo Heat Shield
• * Universally fits on any T3 turbocharger.
• * The Turbo Shield is non-flammable, the product may ignite if exposed to flammable fluids.
• * Please take all necessary precautions to insure that the oil supply line and all fluid fittings are in proper working order, sealed and without leaks.
• Notice
• All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
