Compatible Vehicles
- Compatible for Kia Soul L4 1.6L 2016-2019
- compatible for Kia Soul L4 2.0L 2016-2019
Specification
- Condition: Brand New
- Type: Fuel Pump Assembly
- Drive Type: Electrical
- Fuel Type: Petrol
- Voltage(V): 12
- Flow Rate(Gallons/Hour): ≥35.7G/H
- Pressure(MPa): 0.3
- Outlet Type: SAE J2044 2099
- Outlet Quantity: 1
- Outlet Size：Ф7.89
- Material: Plastic(POM)
- Housing Material: Plastic
- Fuel Sending Unit Included: Yes
- Fuel Pressure Sensor Included: Yes
- Fuel Level Sensor Included: Yes
- Float Included: Yes
- Fuel Reservoir Included: Yes
- Fuel Strainer Included: Yes

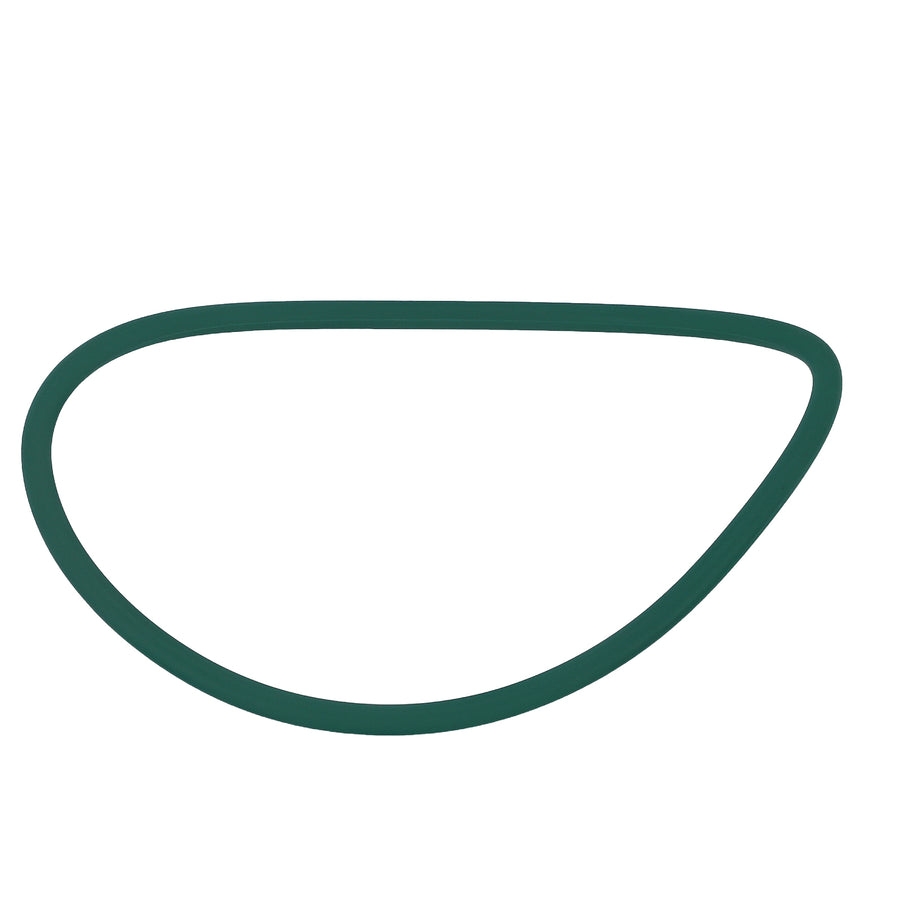

- Seal Ring Included : Yes
- Internal Or External Strainer: Internal
- Placement on Vehicle: Rear (Fuel Tank)
Feature
- Fuel Pump Assembly Product Characteristics:
- 1.High-precision automotive grade fuel tank pressure sensor
- (CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
- 2.Dual-channel long-life level sensor
- (Dual-channel dual-contact design, more stable and longer life.
- HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
- display is more accurate.)
- 3.Low level design
- (The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
- 4.High dust holding layer filter
- (Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
- Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
- 5.Platform R&D
- (Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)
- Testing:
- 100% Fuel Level Sensor Testing
- 100% Fuel Pump Assembly Drop Test
- 100% Fuel Pump Assembly Noise Test
- 100% Durability Test of Fuel Ppump Assembly
- 100% Fuel Pump Assembly Air Tightness Test
- Certifications:
- CE
- IATF16949
- IOS14001
Package included

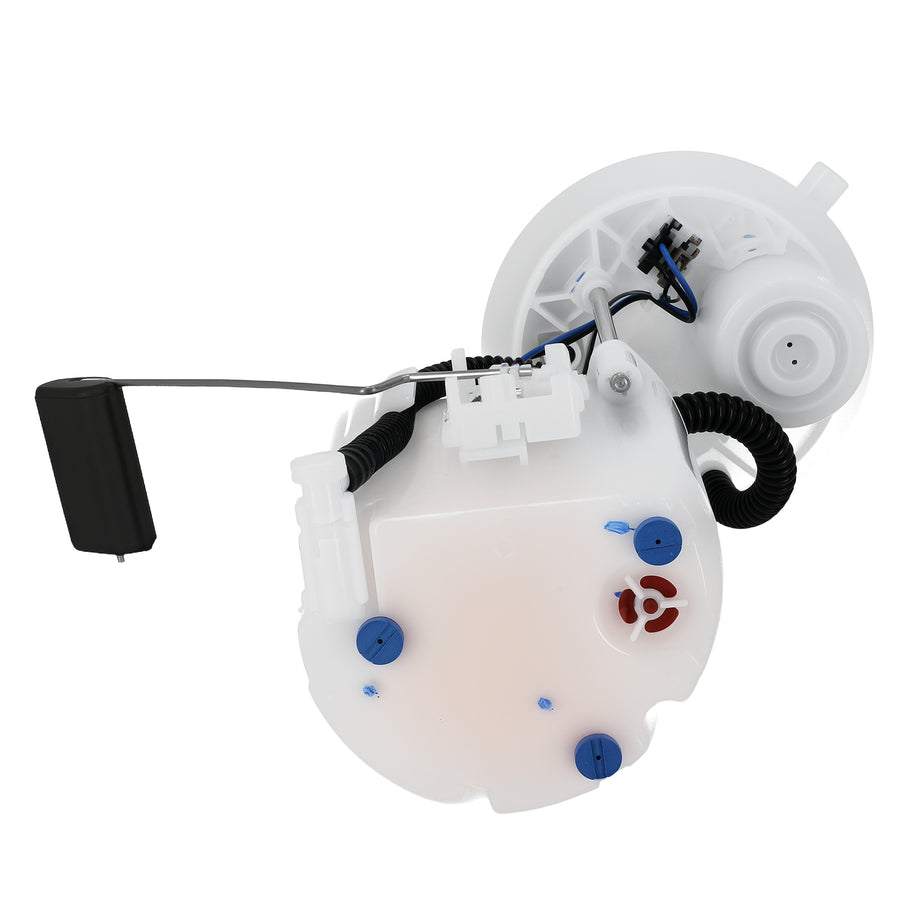

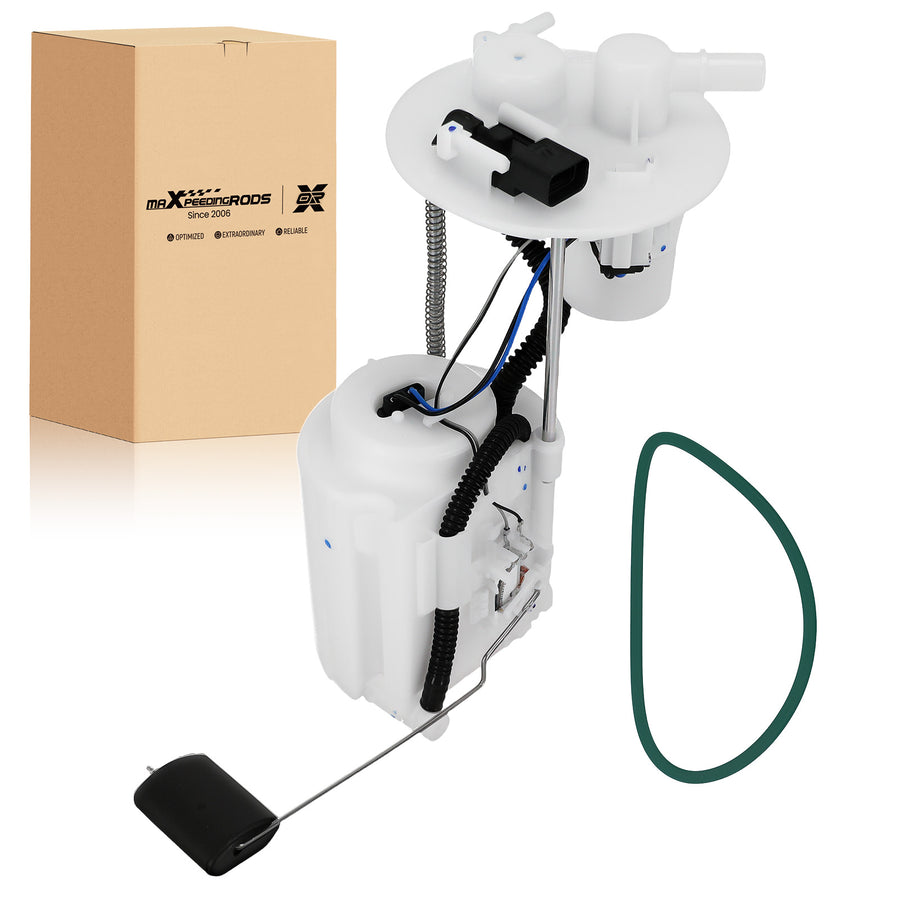

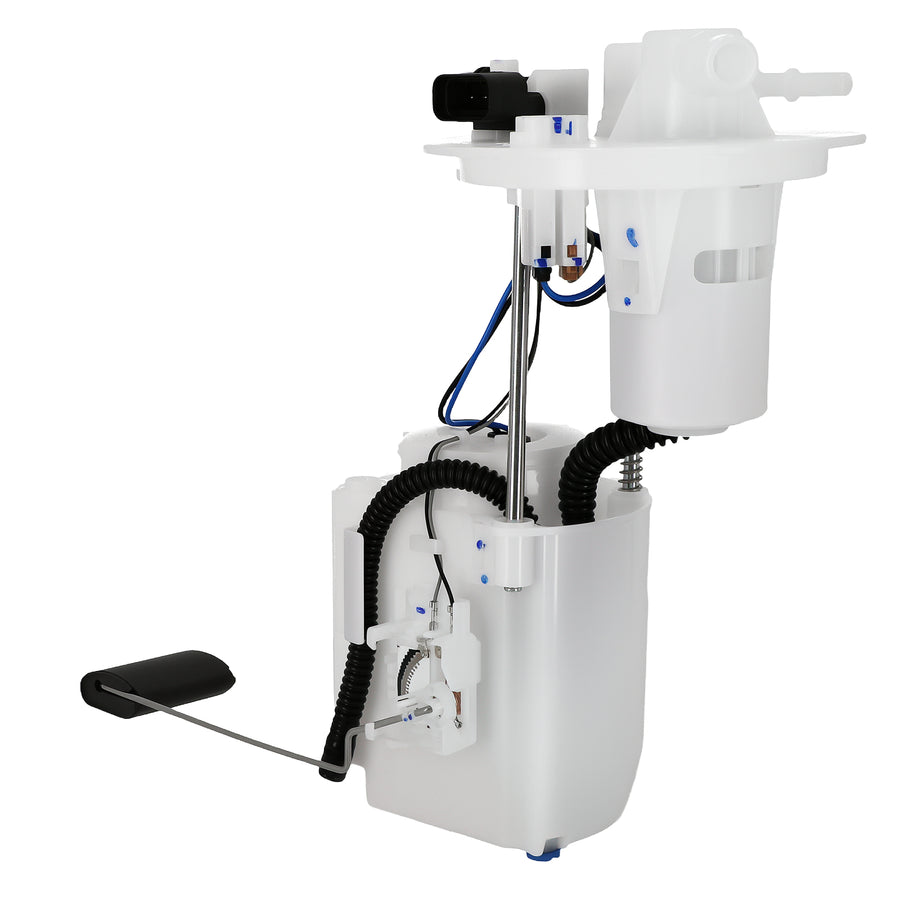

1X Fuel Pump Module Assembly (as shown in the pictures)
Note
- 1.Professional Installation Is Highly Recommended.
- 2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
- 3.Due to the different display and different light, the picture may not reflect the actual colour of the item.
OE/Part number
FG2335, 31110B2501, 31110B2550, 31120B2501, 31120B2550, 94460B2000, 94460B2500
