Compatible Vehicles
- Compatible for Suzuki VS700 GL/GLE Intruder 700 1986-1987
- compatible for Suzuki VS750 Intruder 750 1985-1991 Model f/g
- compatible for Suzuki VS1400 GLP Intruder 1400 1987-2004
- compatible for Suzuki VS1400 Boulevard S83 2005-2009
Specification
- Condition: New
- Type: Fuel Pump
- Drive Type: Electrical
- Fuel Type: Petrol
- Voltage(V): 12
- Flow Rate(Gallons/Hour): 13.2 G/H
- Pressure: 10-34 kPa
- Weight(kg): 0.422
- Inlet Type: Iron joint
- Inlet Quantity: 1
- Inlet Size：8mm
- Outlet Type: Iron joint
- Outlet Quantity: 1
- Outlet Size：8mm
- Material: iron
- Housing Material: iron
- Internal Or External Strainer: External
Feature
- Armature：
- 1. Commutator adopts imported carbon sheet, high-temperature welding, more dense, less
- spark, more wear-resistant, strong oxidation resistance, compatible with a variety of
- fuels, work efficiency increased by 10%, life expectancy increased by 50%.
- 2. Core use cold rolled non-oriented DW470 silicon steel sheet, high permeability, low coercivity, low
- hysteresis loss.
- 3. Insulation paper potect armature under more than 1000V breakdown voltage.
- 4. Temperature resistance of enameled wire: 220℃.
- 5. Over-molded armature, low fluid resistance. full-automatic production to ensure consistency.
- Pump Housing：
- 1. The selection of high-quality carbon seamless steel pipe, effectively
- Eliminate electromagnetic eddy current, reduce magnetic loss.
- 2. Bilateral chamfering, one-time full section of the inner hole processing, concenTricity 0.02mm, to ensure that the armature and tile air gap, reduce pump core
- Vibration, reduce operating noise, increase product life.
- 3. Environmental plating, strong corrosion resistance.
- Turbine Impeller：
- 1. Scoop type blade, smooth fluid running track, high oil suction efficiency, low noise,
- effective suppression of vibration.
- 2. Imported double-sided grinder grinding, high-energy wave cleaning, smoother operation.
- 3. Balance hole design, reduce the friction with the pump body, increase the life of the pump.
Package included

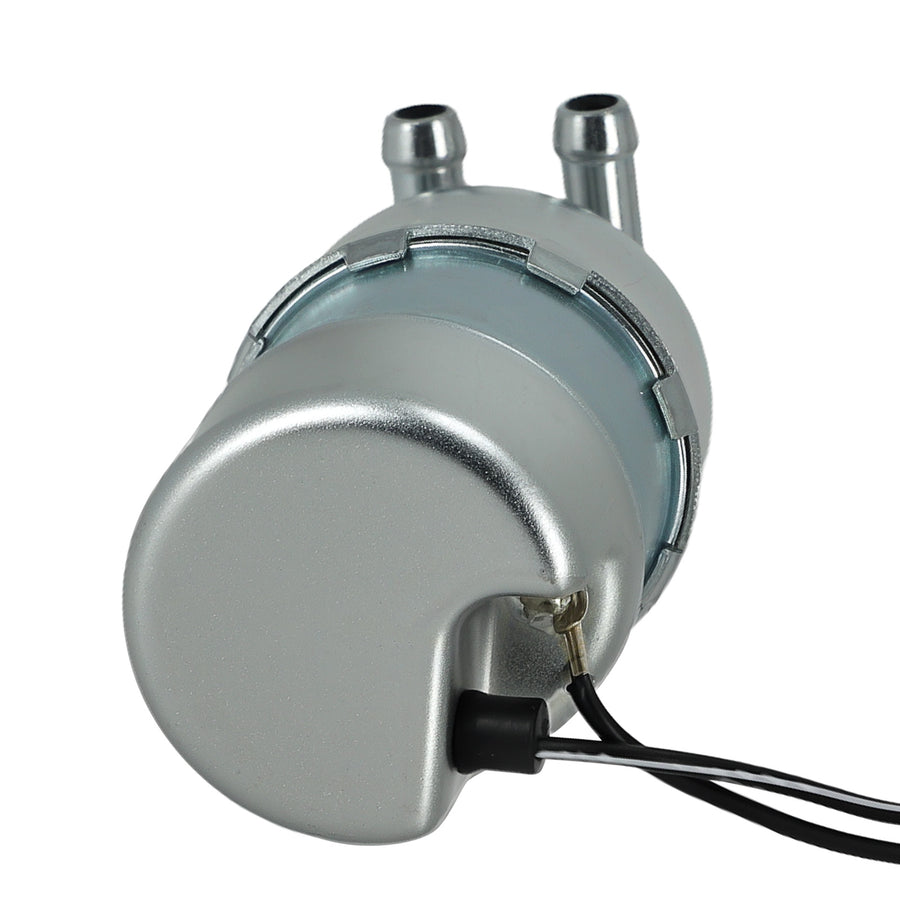

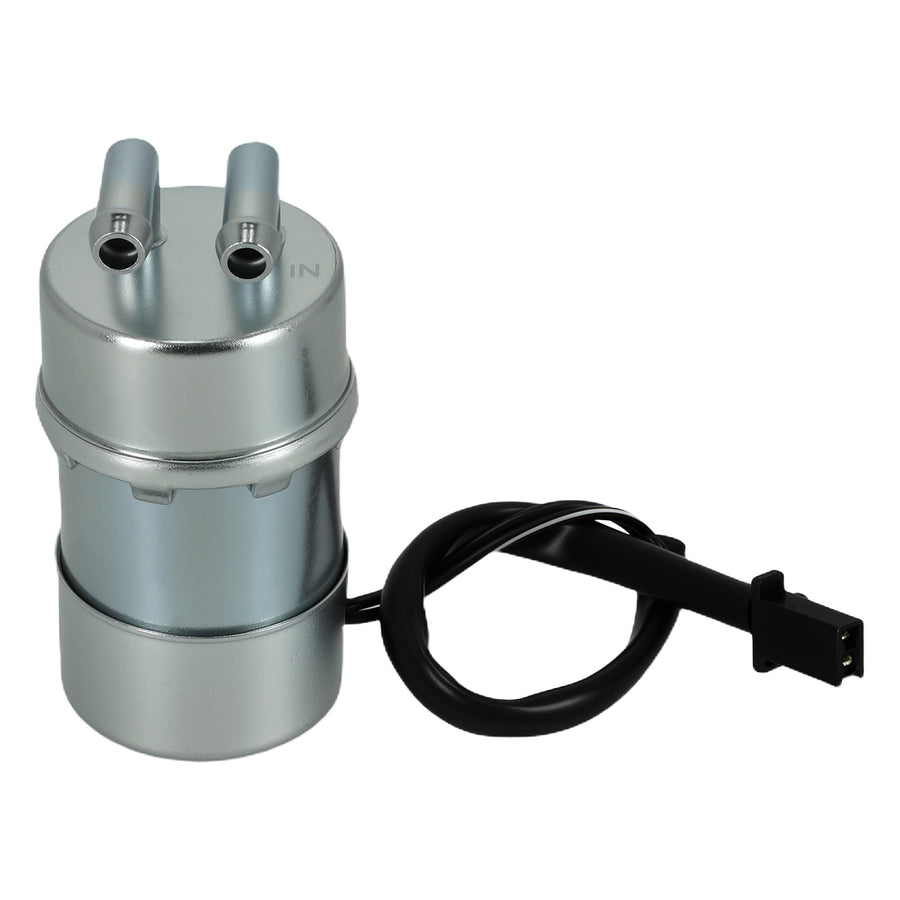

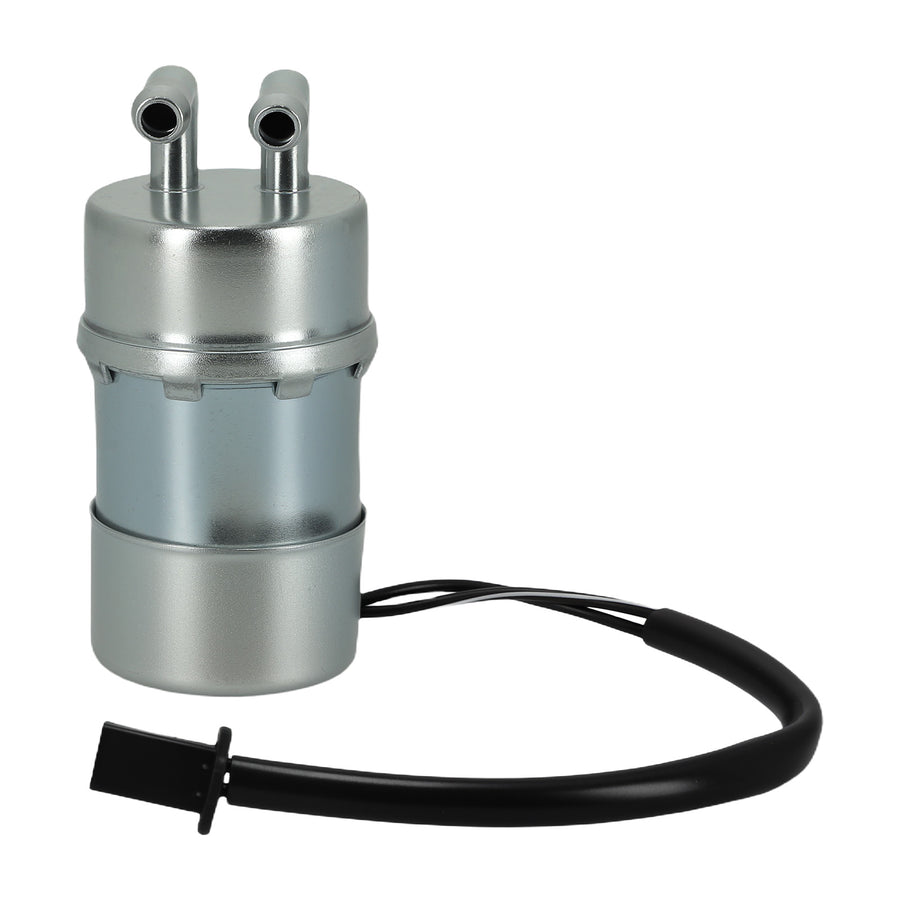

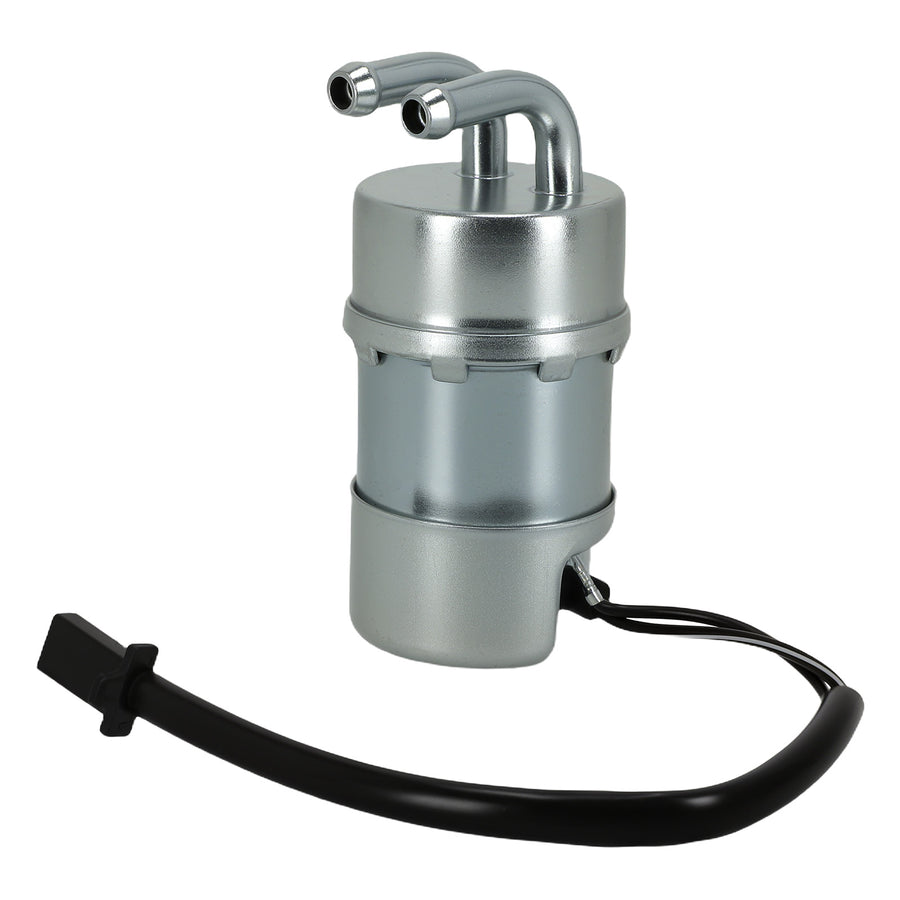

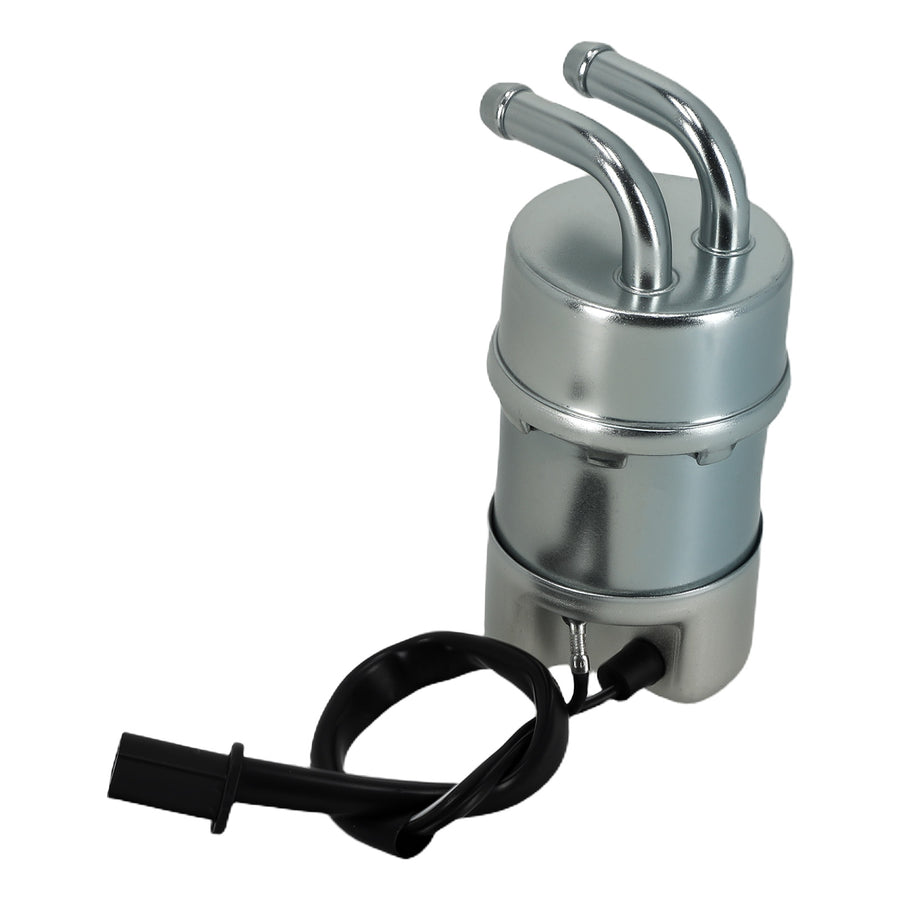

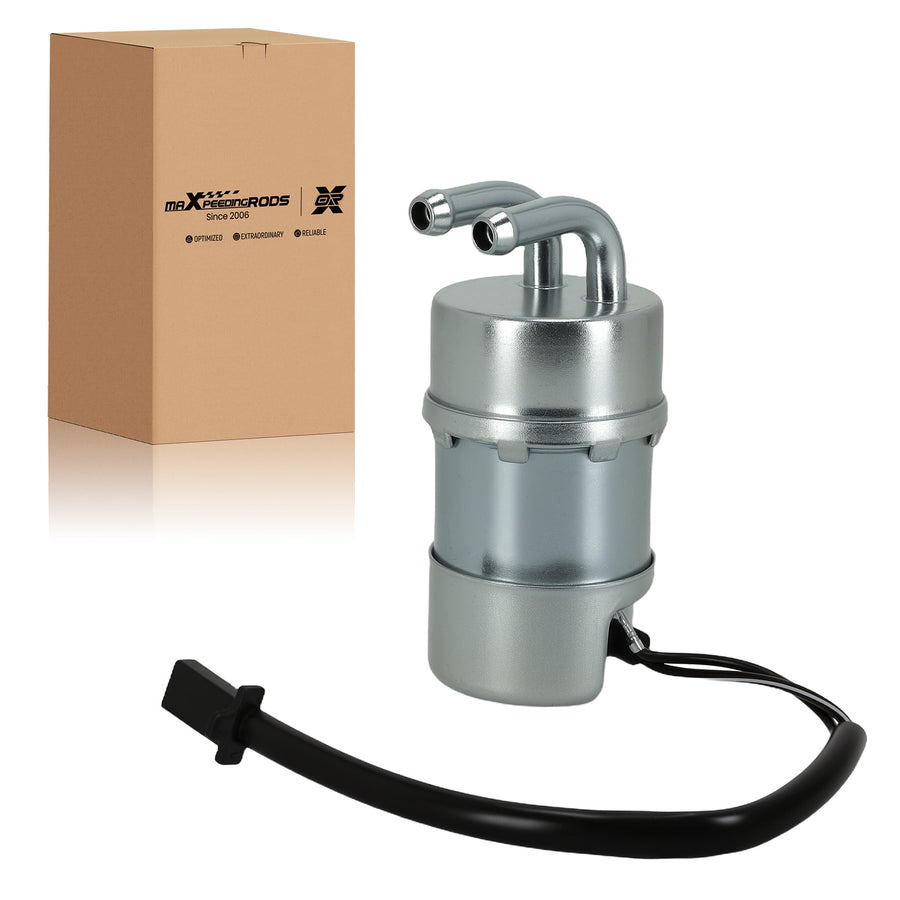

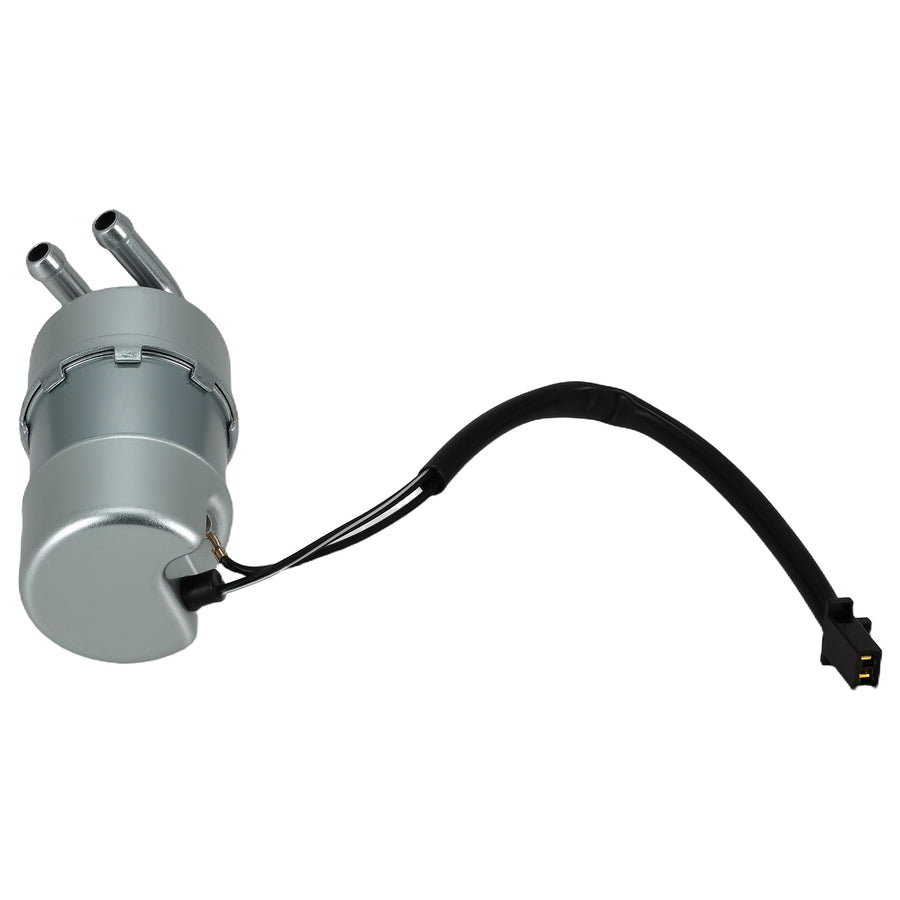

1X Fuel Pump (as shown in the pictures)
Note
- 1.Professional Installation Is Highly Recommended.
- 2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
- 3.Due to the different display and different light, the picture may not reflect the actual colour of the item.
OE/Part number
15100-38A00,15100-38A01
