Compatible Vehicles
- Compatible for Ford F-150 V6 3.7L 2011-2014
- compatible for Ford F-150 V8 4.6L 2009-2010
- compatible for Ford F-150 V8 5.0L 2011-2014
- compatible for Ford F-150 V8 5.4L 2009-2010
Specification
- Drive Type: Electrical
- Fuel Type: Gasoline
- Voltage(V): 12
- Flow Rate(Gallons/Hour): ≥53G/H
- Pressure(MPa): 0.4±0.01
- Inlet Type: /
- Inlet Quantity: 0
- Outlet Type: SAE J2044 2009
- Outlet Quantity: 1
- Material: Plastic(POM)
- Housing Material: Plastic
- Fuel Sending Unit Included: Yes
- Fuel Pressure Sensor Included: No
- Fuel Level Sensor Included: Yes
- Float Included: Yes
- Fuel Reservoir Included: Yes
- Fuel Strainer Included: Yes

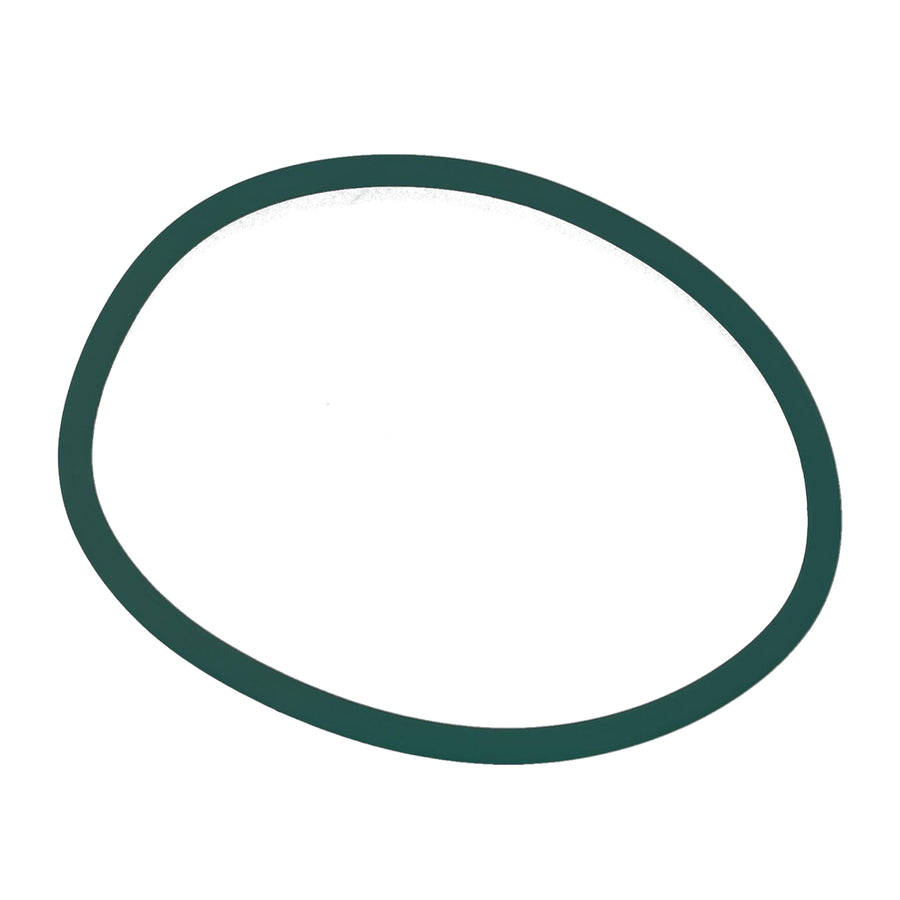

- Seal Ring Included : Yes
- Internal Or External Strainer: Internal
- Placement on Vehicle: Rear (Fuel Tank)
Feature
- 1.High-precision automotive grade fuel tank pressure sensor
- (CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
- 2.Dual-channel long-life level sensor
- (Dual-channel dual-contact design, more stable and longer life.
- HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
- display is more accurate.)
- 3.Low level design
- (The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
- 4.High dust holding layer filter
- (Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
- Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
- 5.Platform R&D
- (Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)
Package included

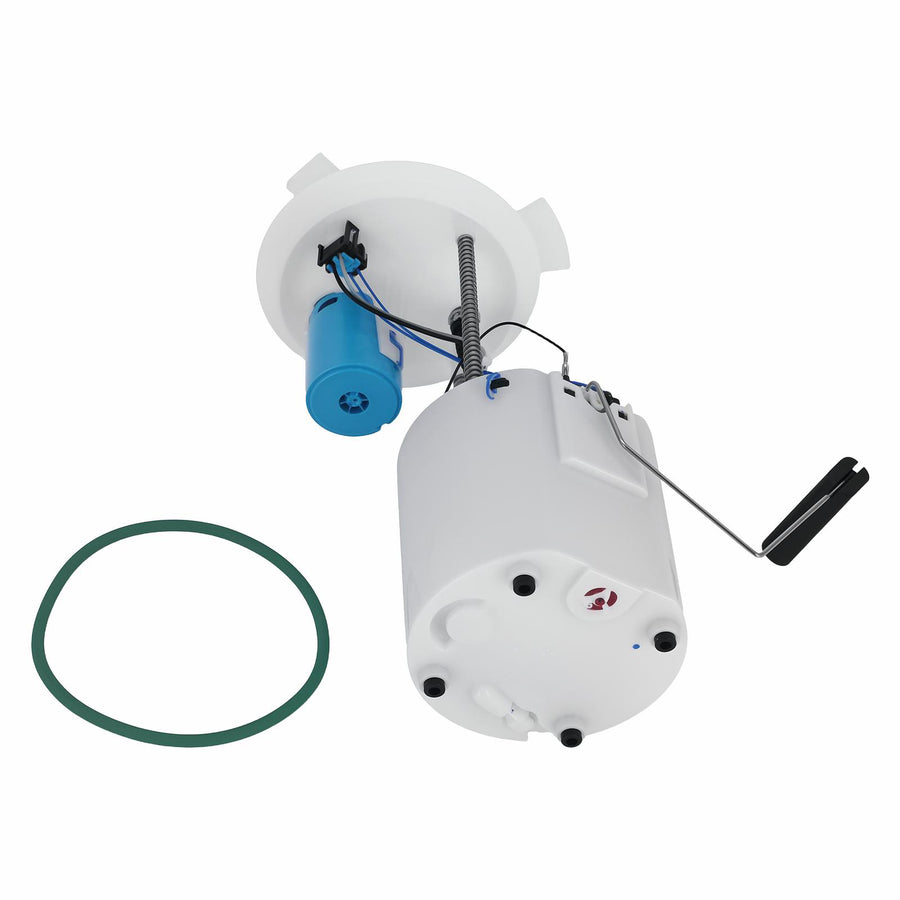

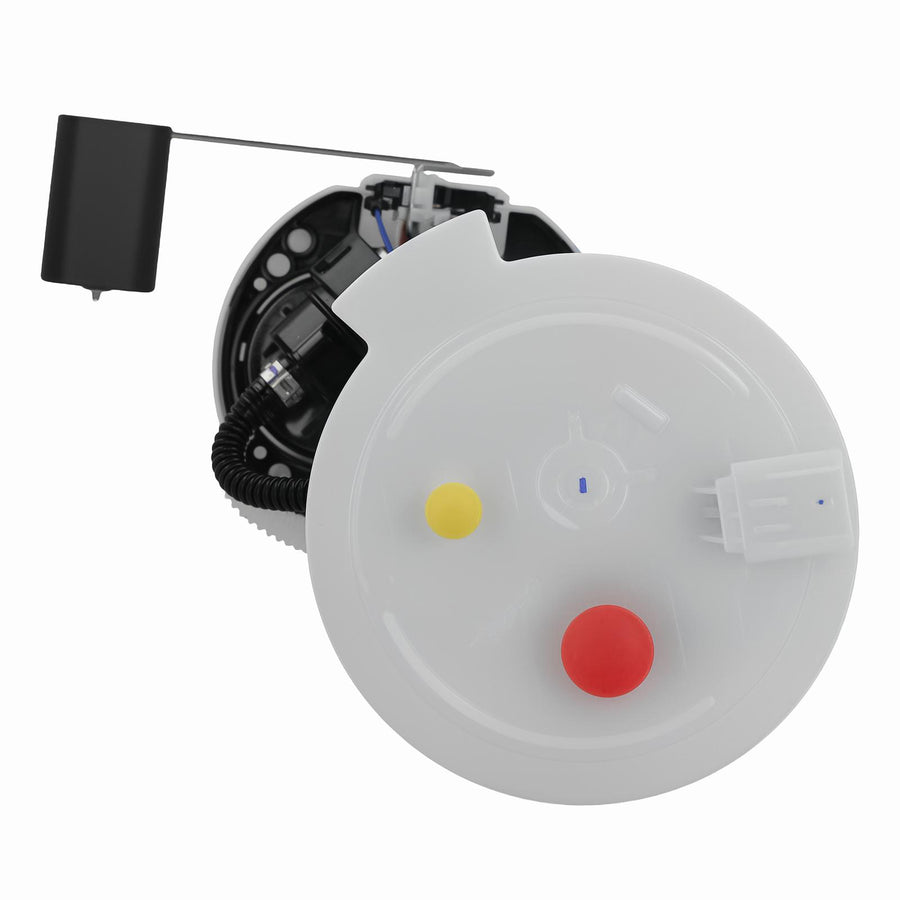

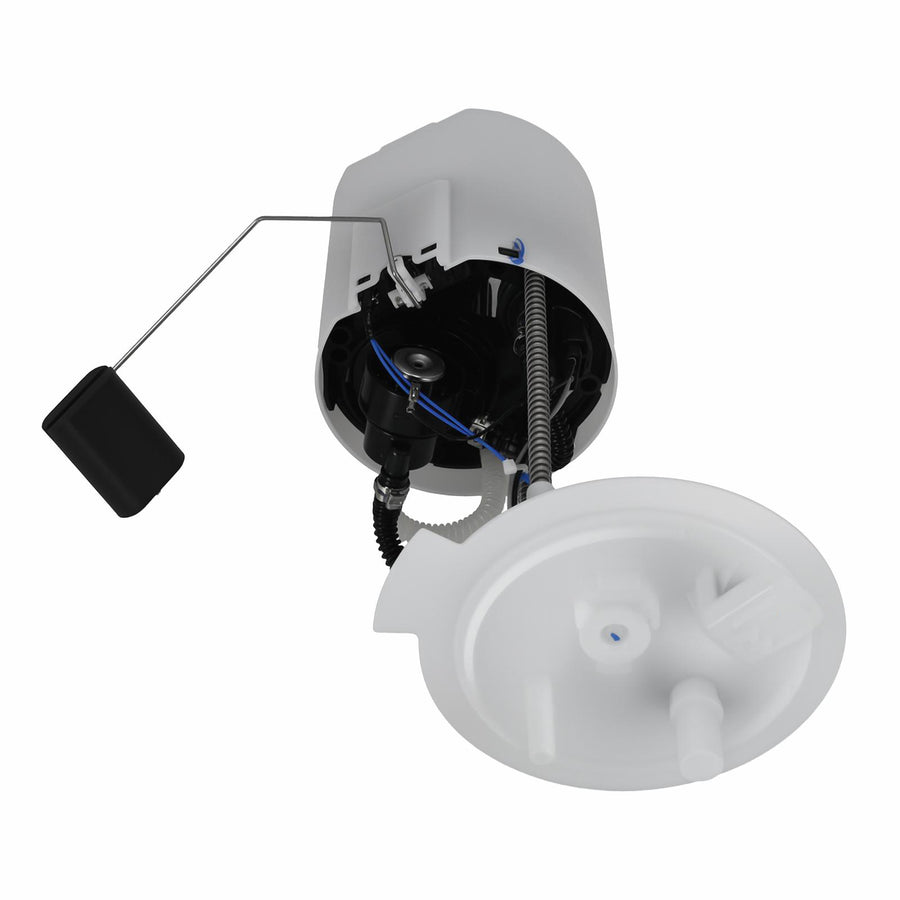

1X Fuel Pump Module Assembly (as shown in the pictures)
Note
- 1.Attached installation manual.
- 2.Professional Installation Is Highly Recommended.
- 3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
OE/Part number
E2541M,P76467M,FG1315,SP2095M,SP2096M,E2545M,9L3Z9H307E,9L3Z9H307F,A42031,F1552A,PFS490,9L3Z9H307-E
