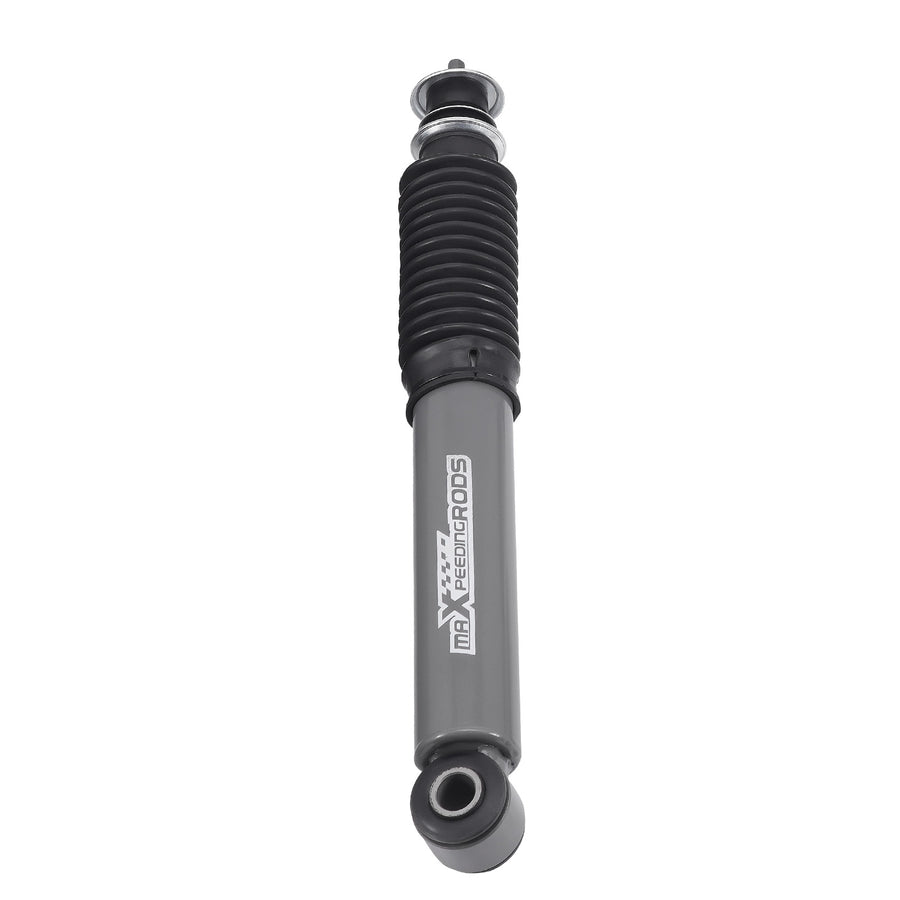

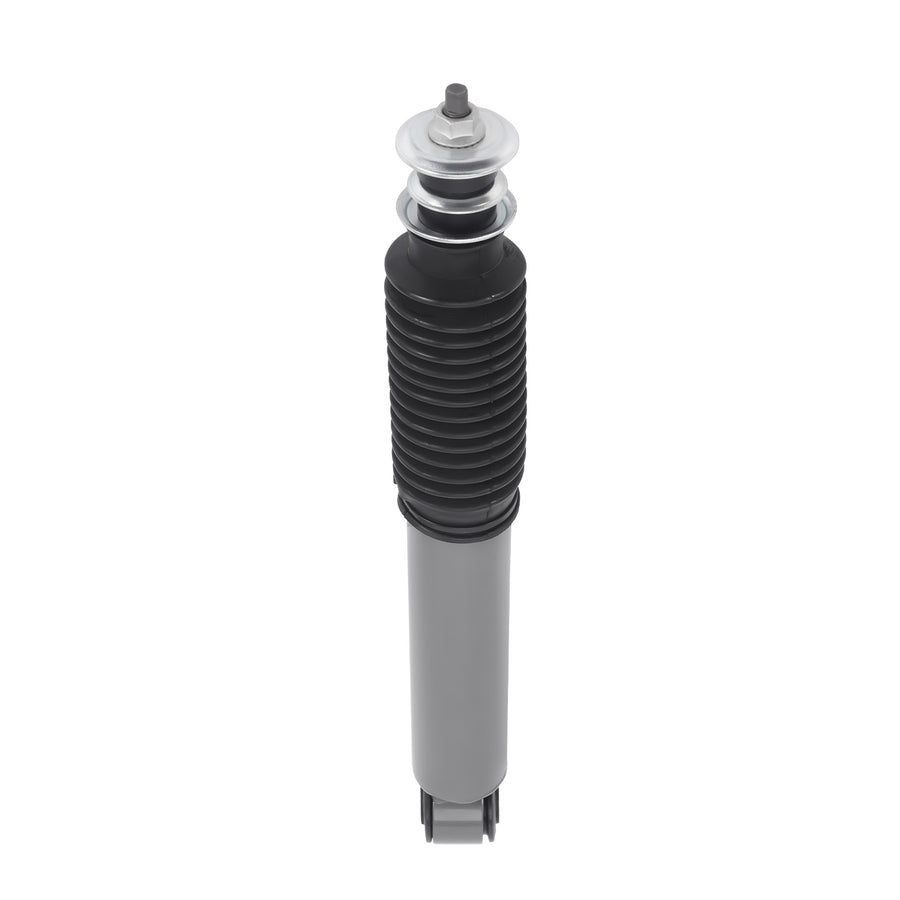

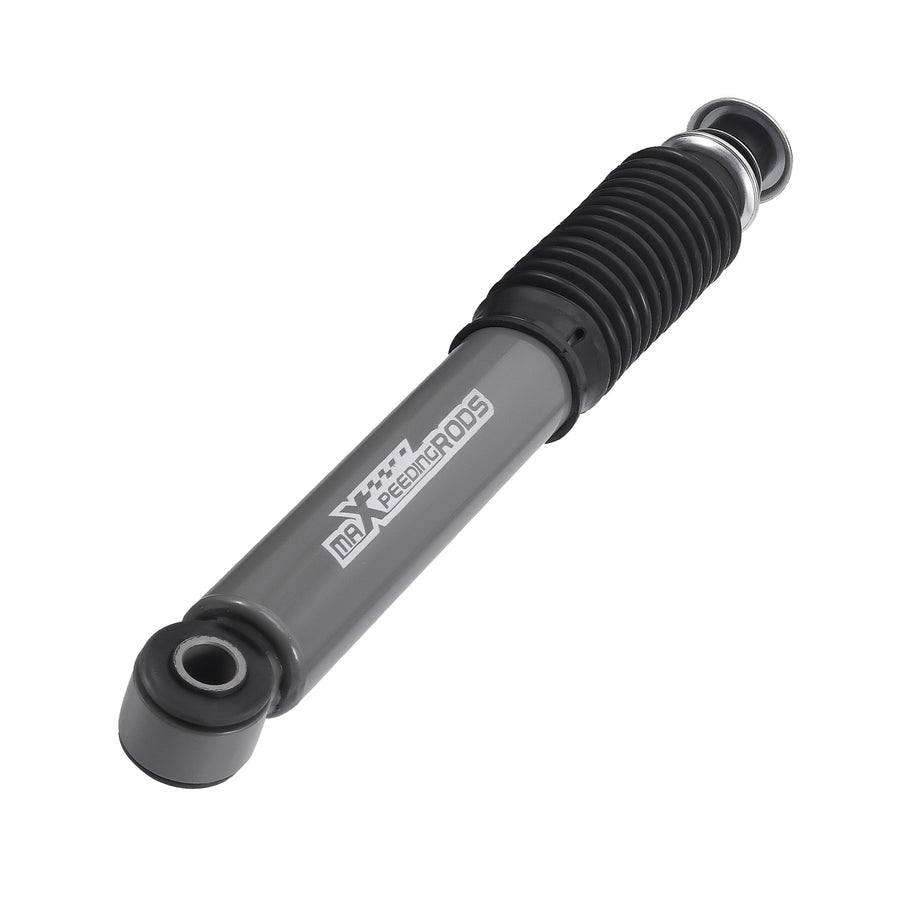

Front Lowering Shocks for 3

SKU: LKDG1-F8096-F3-NLC

Contact us for a quote

Compatible Vehicles

  • Compatible for Ford F150 & F100 2WD 1980-1996

Introduction

  • When you lowered your vehicle with shortened coil springs, the stock shocks will not be valved correctly and will sit too far down in their "stroke" to work as intended and will blow out more quickly. So you will need drop/lowering shocks.
  • They are designed to lowered vehicled and provide ride improvement and travel required.

Package Includes

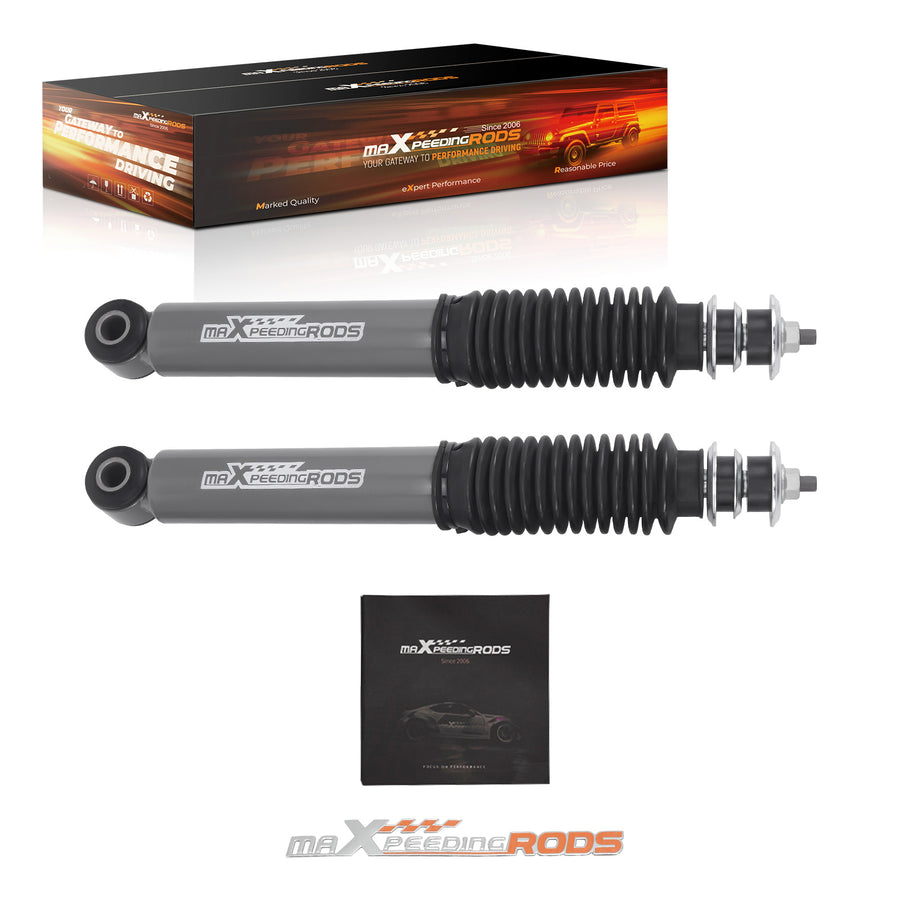

  • 2x front drop shock
  • Notice
  • All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
  • <div

Product type

Lowering shock

Compatible drop height

3" front

Finish

Powder-coated

Diameter of piston rod

F 12.5mm/0.49"

Piston diameter

F 30mm/1.18"

Outer cylinder diameter

F 45mm/1.77"

Travel range

F:104 mm/4.09“

Extended length

F:400mm/15.74"

Collapsed length

F: 296mm/11.65"

Nitrogen charged

Yes

Dust cover equipped

  • Yes
  • Feature
  • Powder coating for corrosion resistance
  • Rubber bushings for better absorption.
  • 36KN Tensile Strength.
  • Precision Welding.
  • Dust cover included prevent the shaft rod and oil seal from damaging.
