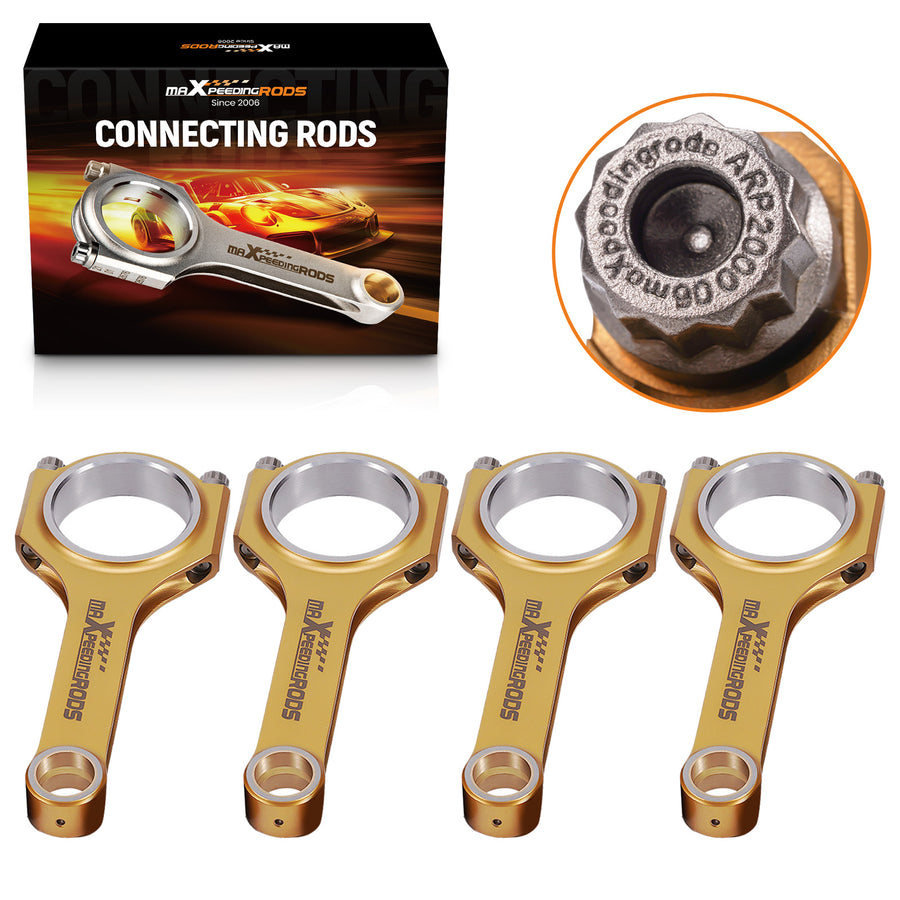

Forged Connecting Rods ARP2000 Bolts compatible for Suzuki Swift Cultus Gti 1300 G13b

Compatible Vehicles

• Compatible for Suzuki 1.3L G13b Engine

Specification

• Beam Style: H-beam Street/Strip
• Material: 4340 Chromoly Steel
• Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: Yes
• Cap Retention Style: Through-bolt
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 5/16"
• Connecting Rod Bolt Material: Alloy Steel
• Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
• Upgrade Fasteners: ARP L19 (260,000 psi) optional
• Connecting Rod Bolt Head Style: 12-point
• CNC Machined: High Precision
• Rod Cap Alignment: Precision dowels
• Bore Tolerance: ±0.005 mm
• Balancing: ±1 gram per rod
• Weight Matched Set: Yes
• Remanufactured: No
• Testing: Magnafluxed, X-rayed, Ultrasonically tested
• Heat Treated: Yes

Dimension

• Connecting Rod Length Centre to Centre: 120.00mm/4.724in
• Approximate Connecting Rod Weight: 428g
• Big End Bore Diameter: 45.00mm/1.772in
• Pin End Bore Diameter: 19.00mm/0.748in
• Big End Width: 22.00mm/0.866in
• Small End Width: 22.00mm/0.866in

Performance Ratings

• Advertised Horsepower Rating: 200HP/piece
• Advertised RPM Rating: 7,000rpm

Packaging

• Quantity: Sold as a set of 4
• Package Size: 28CM*20CM*10CM
