For GT45 T4 V-Band Flange 1.05 A/R 98mm UP TO 600+HP Turbocharger

Compatible Vehicles

• This turbo is a universal application turbo, some modification may be required based on individual vehicle.
• Perfect for all 4.0L-6.0L engine

Specification

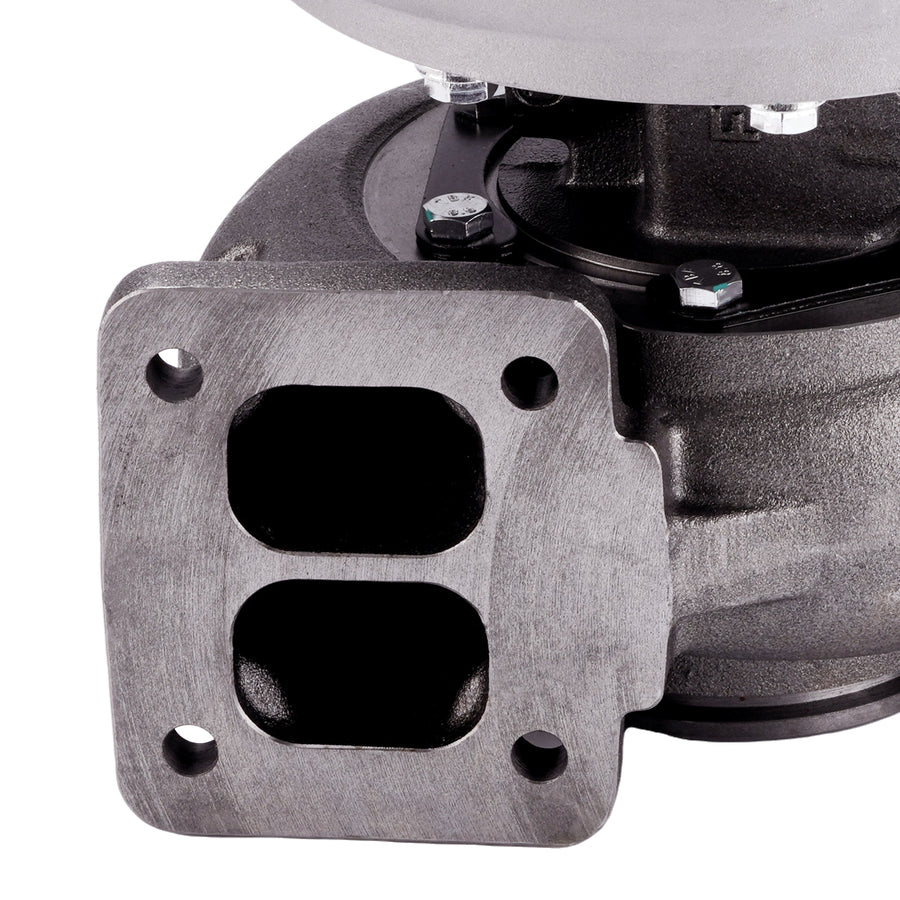

• Exhaust Inlet Flange: T4 Flange
• Exhaust Outlet Flange: V-Band Flange（ID: 82mm, OD: 111mm）
• Compressor Trim: 49.6
• Compressor Inducer Diameter: 69 mm
• Compressor Exducer Diameter: 98 mm
• Compressor Air Inlet Size: 107mm

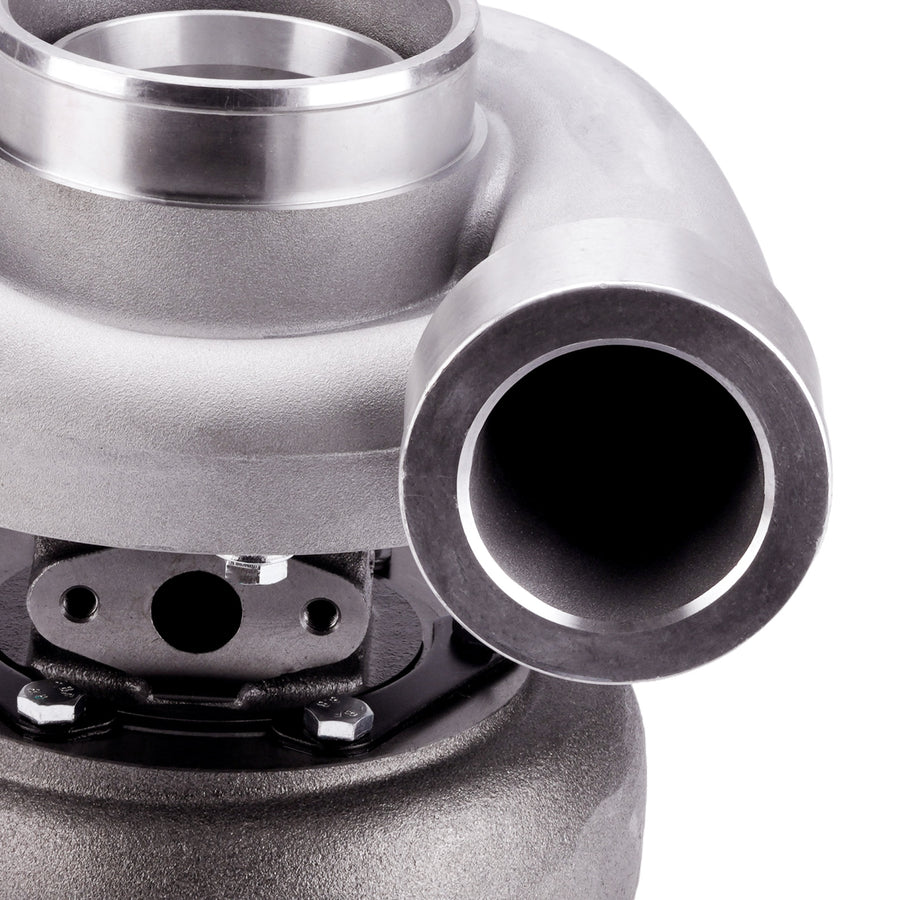

• Compressor Air outlet Size: 86.3mm
• Compressor A/R: 0.66
• Turbine Trim: 77.6
• Turbine Inducer Diameter: 88 mm
• Turbine Exducer Diameter: 77.5 mm
• Turbine A/R: 1.05

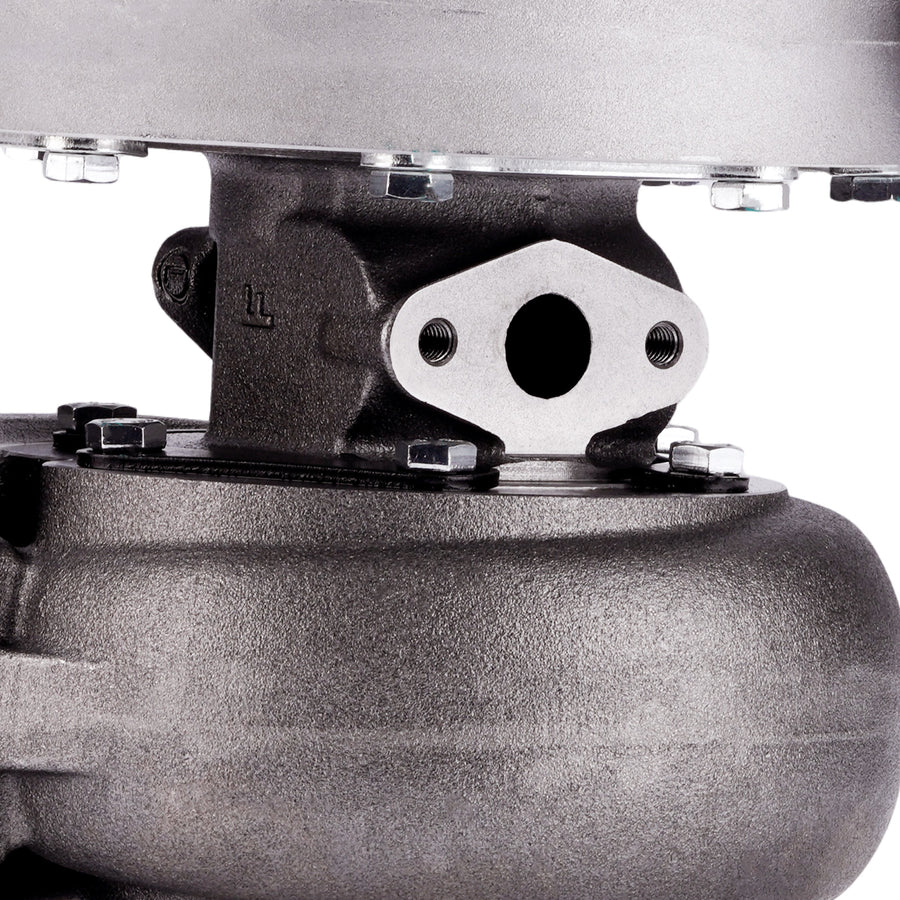

• Oil Inlet: M9 & 2*M8*1.25
• Oil Outlet: M19 & 2*M8*1.25
• Bearing Type: Wet Float
• Cooling Type: Oil Cooled
• Wastegate：Without Wastegate
• Horsepower: Up to 600+HP
• Turbo Type:Individual
• Universal Fitment:No
• Finish:Matte
• Condition: 100% Brand New
• Package Size:30x 30x 27 cm
• Package Weight: 16400g

Feature

• 1. Cost-effective Turbo increase 20-40% power for your car
• 2. Ductile Iron QT450-10 turbine housing - Temperature resistant up to 700℃
• 3. K418 Alloy turbine wheel- High oxidation stability AND resistance up to 900℃
• 4. Cast aluminium blades with good gas tightness and corrosion resistance
• 5. ZL104 aluminium compressor housing with lightweight
• 6. 100% balancing Test by TURBOTECHNICS VSR3

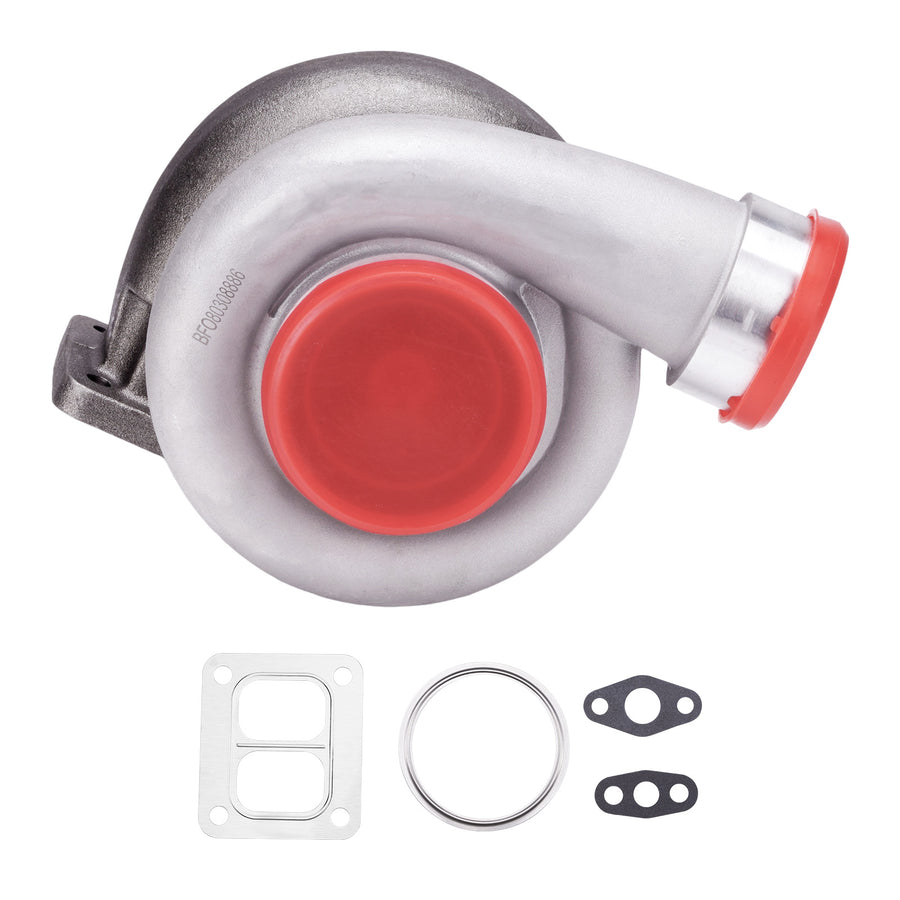

Package included

• 1xTurbocharger
• 1xAdapter
• 1xFlange gasket
• 2xOil port gaskets

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
