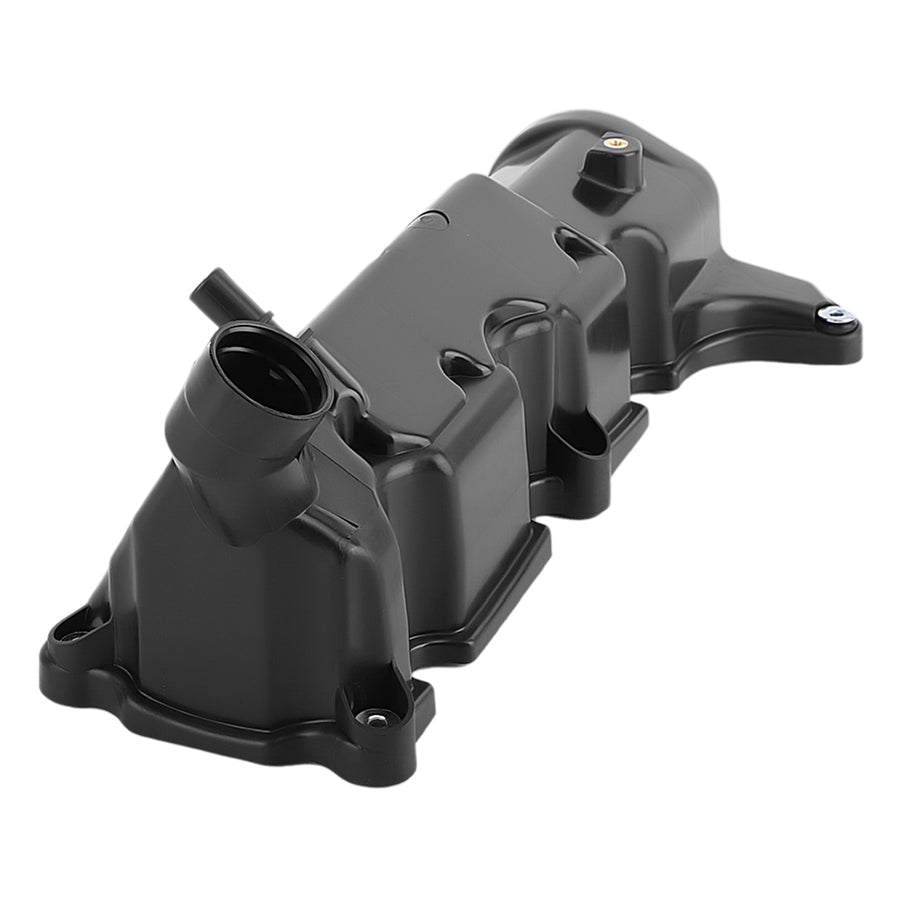

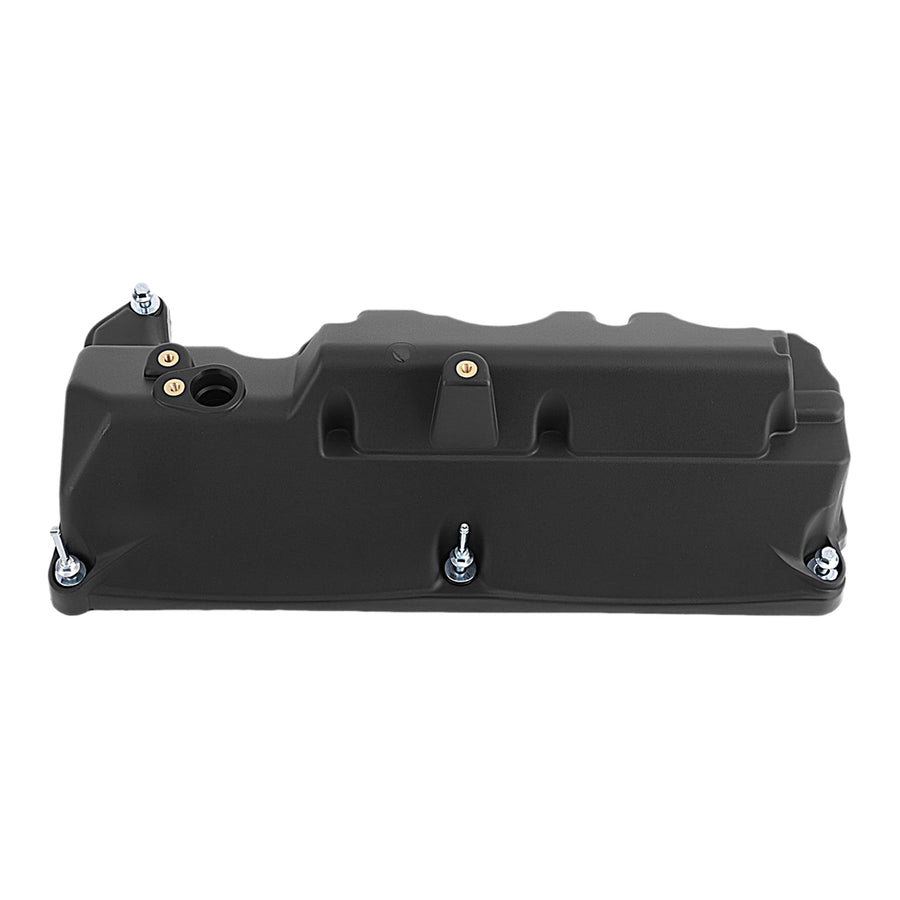

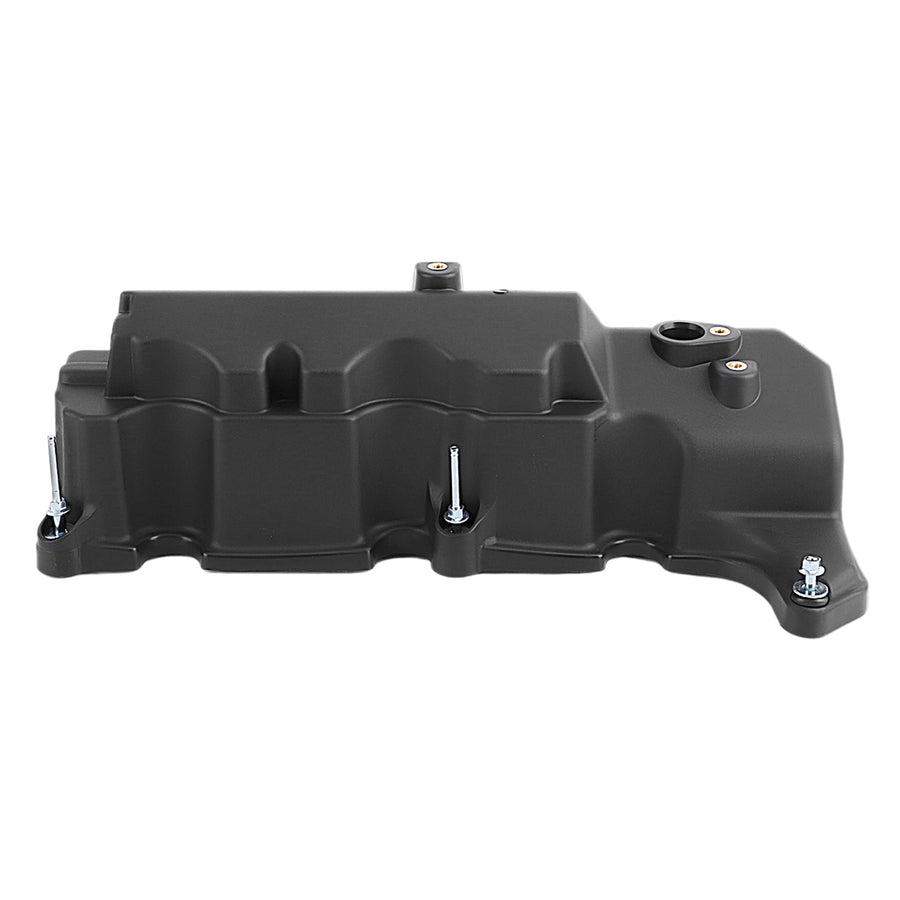

Engine Valve Cover compatible for Ford Explorer 4.0L 2006-2010 6L2Z6582AA w/ Hardware

Compatible Vehicles

• Compatible for FORD EXPLORER 4.0L 245CU. IN. V6 SOHC 06 - 10
• Compatible for FORD RANGER 4.0L 245CU. IN. V6 SOHC 06 - 11
• Compatible for MERCURY MOUNTAINEER 4.0L 245CU. IN. V6 SOHC 06 - 10

Feature

• This is a High Quality Aftermarket Parts
• This product comes with best after-sales service.

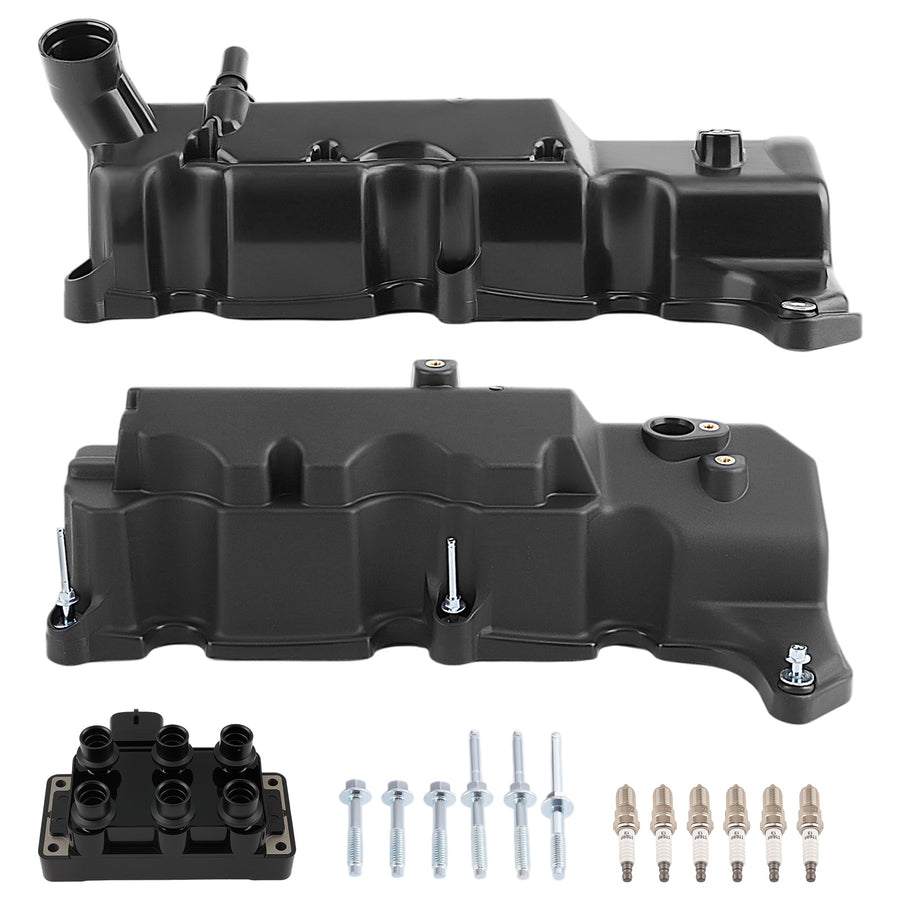

Package included

• 1 ENGINE VALVE COVER (LEFT)
• 1 ENGINE VALVE COVER (RIRHT)
• 2 VALVE COVER GASKET
• 12 MOUNTING BOLTS(Showing as the picture)
• 1x Ignition Coils & 6x Iridium Spark Plugs

Note

• Professional installation is highly recommended.
• Please double confim the compatibility as well as the OEM number before purchasing
• <div

Valve Cover

• 7L2Z6582A , 6L2Z6582AA
• 4L5Z-6582-JA , 264-989 , 4L5Z6582FA , 4L5Z-6582-FA
• 1L2Z6582BA , 1L2Z-6582-BA , 6L2Z6582AA, 4L5Z6582JA

Ignition Coil

• DGE446 , FD480 , E9DF12029AA , E9DZ12029A
• E9DZ-12029-A , F57U-12029-AA , F0TZ12029A , F1DZ12029A
• F57U12029AA , F57Z12029A , F57Z12029B , F82U12029AA , C507
• CFD480 ,0297006770, 19017113, 90TF12029A1A, DG438, DG452
• DG459, F0TZ-12029-A, F57Z-12029-A, E9DF, 6383157, FD-480T

Engine Code

T40VSEX，99EA

Cylinder Head Type

SOHC

Material

Plastic

Positions

Driver's Side, Passenger Side

Contains Oil Baffles

Yes

Grommets Included

Yes

Hardware Included

Yes

Hold Down Tabs Included

No

Oil Filler Cap Included

No

Number of Mounting Holes

12

Valve Cover Type

Tall

Terminal Quantity

4

Terminal Type

• Blade
• Primary Resistance(ohms):
• 0.5
• Secondary Resistance(K&Compatible for Omega;):
• 13.5

Insulating Grease Included

No

Voltage

12V

Attachment Method

Bolt On

Center Electrode Core Material

Nickel

Center Electrode Tip Material

• Iridium
• Gap Size (IN):
• 1.2-1.3
• Thread Diameter (MM):
• 14
• Hex Size(MM):
• 16
• Resistance(K&Compatible for Omega;):
• 3-12K&Compatible for Omega;
• Reach(mm):
• 17.5
• Installation Torque(N):
• 15N
