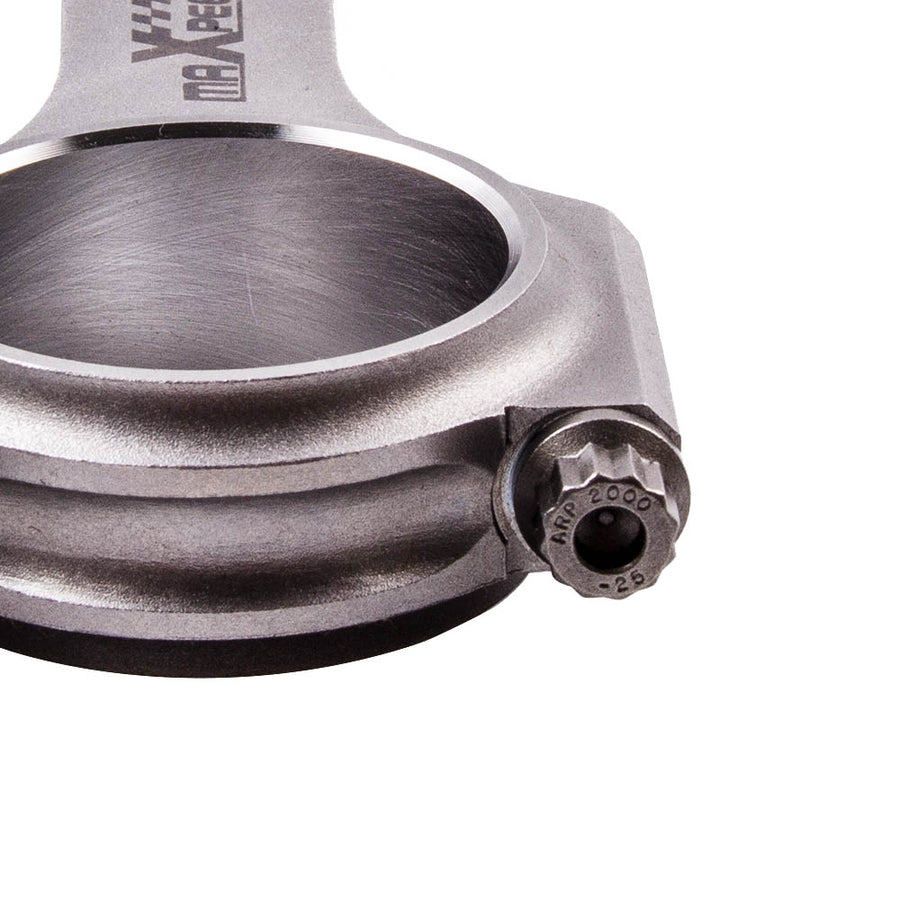

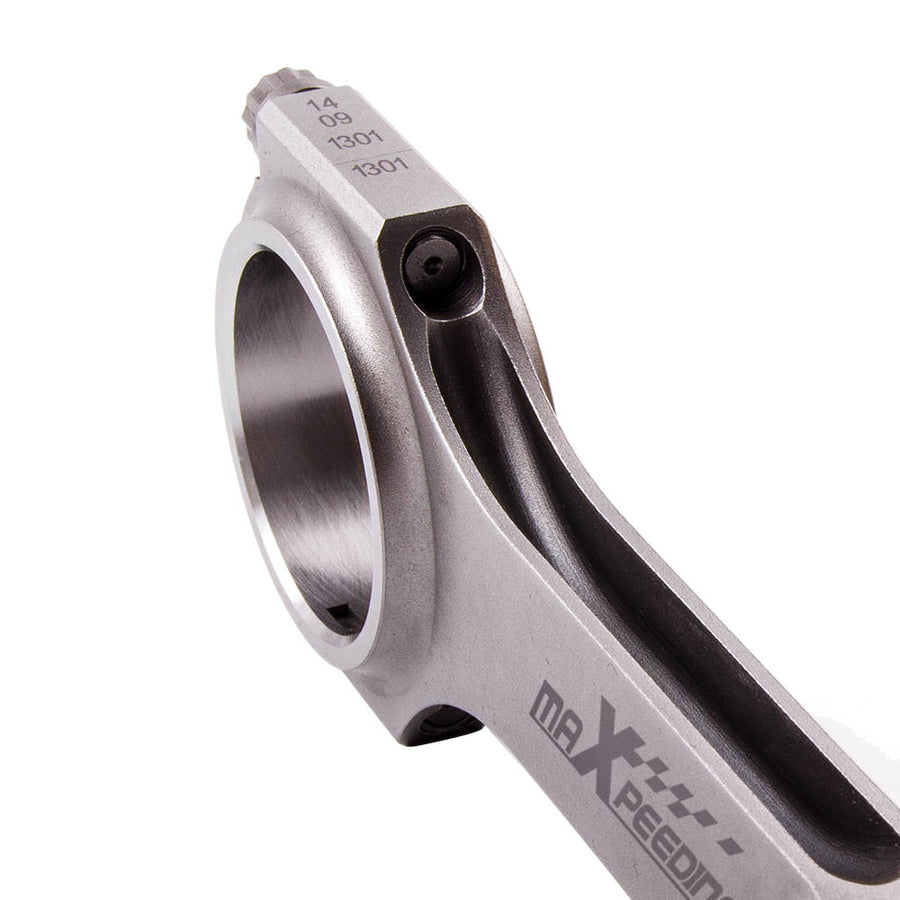

EN24 Forged H-Beam Connecting Rods+ARP Bolt compatible for Suzuki G16 A, B, D 1.6 L engine

Compatible Vehicles

• Compatible for Suzuki Sidekick (1996–1998) – Fits G16A / G16B 1.6L engine
• compatible for Suzuki Esteem (1992–1997) – Fits G16A / G16B 1.6L engine
• compatible for Suzuki Vitara (1999–2002) – Fits G16B 1.6L engine
• compatible for Suzuki X-90 (1996–1998) – Fits G16A / G16B 1.6L engine
• compatible for Suzuki Escudo (TA01R-3 / TA01-2 / TD0W-2, 1990–) – Fits G16A engine
• compatible for Suzuki Cultus (ST413, 1990–) – Fits G16A engine
• compatible for Suzuki APV (2005–Present) – Fits G16A engine
• compatible for Suzuki Baleno (1995–2002) – Fits G16B engine

Specification

• Beam Style: H-beam Street/Strip
• Material: 4340 Chromoly Steel
• Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: Yes
• Cap Retention Style: Through-bolt
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 3/8"
• Connecting Rod Bolt Material: Alloy Steel
• Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
• Connecting Rod Bolt Head Style: 12-point
• CNC Machined: High Precision
• Rod Cap Alignment: Precision dowels
• Bore Tolerance: ±0.005 mm
• Balancing: ±1 gram per rod
• Weight Matched Set: Yes
• Remanufactured: No
• Testing: Magnafluxed, X-rayed, Ultrasonically tested
• Heat Treated: Yes

Dimension

• Connecting Rod Length Centre to Centre: 139.50mm/5.492in
• Approximate Connecting Rod Weight:473g
• Big End Bore Diameter: 47.00mm/1.850in
• Pin End Bore Diameter: 19.00mm/0.748in
• Big End Width: 22.00mm/0.866in
• Small End Width: 22.00mm/0.866in

Performance Ratings

• Advertised Horsepower Rating: 200HP/piece
• Advertised RPM Rating: 9000rpm

Packaging

• Quantity: Sold as a set of 4
• Package Size: 28CM*20CM*10CM
