Compatible Vehicles
- Compatible for Ford F-250 Super Duty V10-6.8L 1999 - 2004
- compatible for Ford F-250 Super Duty V8-5.4L 1999 - 2004
- compatible for Ford F-250 Super Duty compatible for Harley-Davidson Edition V10-6.8L 2004
- compatible for Ford F-350 Super Duty V10-6.8L 1999 - 2004
- compatible for Ford F-350 Super Duty V8-5.4L 1999 - 2004
- compatible for Ford F-350 Super Duty compatible for Harley-Davidson Edition; V10-6.8L 2004
Specification
- Drive Type: Electrical
- Fuel Type: Gasoline
- Voltage(V): 12
- Flow Rate(Gallons/Hour): ≥31.7
- Pressure(MPa): 0.3
- Weight(kg): 1.30
- Inlet Type: SAE J2044 2009
- Inlet Quantity: 1
- Outlet Type: SAE J2044 2009
- Outlet Quantity: 1
- Material: Plastic
- Housing Material: Plastic
- Fuel Sending Unit Included: Yes
- Fuel Pressure Sensor Included: No
- Fuel Level Sensor Included: Yes
- Float Included: Yes
- Fuel Reservoir Included: Yes
- Fuel Strainer Included: Yes
- Seal Ring Included : Yes
- Certifications:
- CE
- IATF16949
- IOS14001
Feature
- 1.High-precision automotive grade fuel tank pressure sensor
- (CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
- 2.Dual-channel long-life level sensor
- (Dual-channel dual-contact design, more stable and longer life.
- HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
- display is more accurate.)
- 3.Low level design
- (The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
- 4.High dust holding layer filter
- (Nylon skeleton one-time injection molding process, low tempera ture resistance, low resistance, high toughness, long life.
- Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
- 5.Platform R&D
- (Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)
Package included

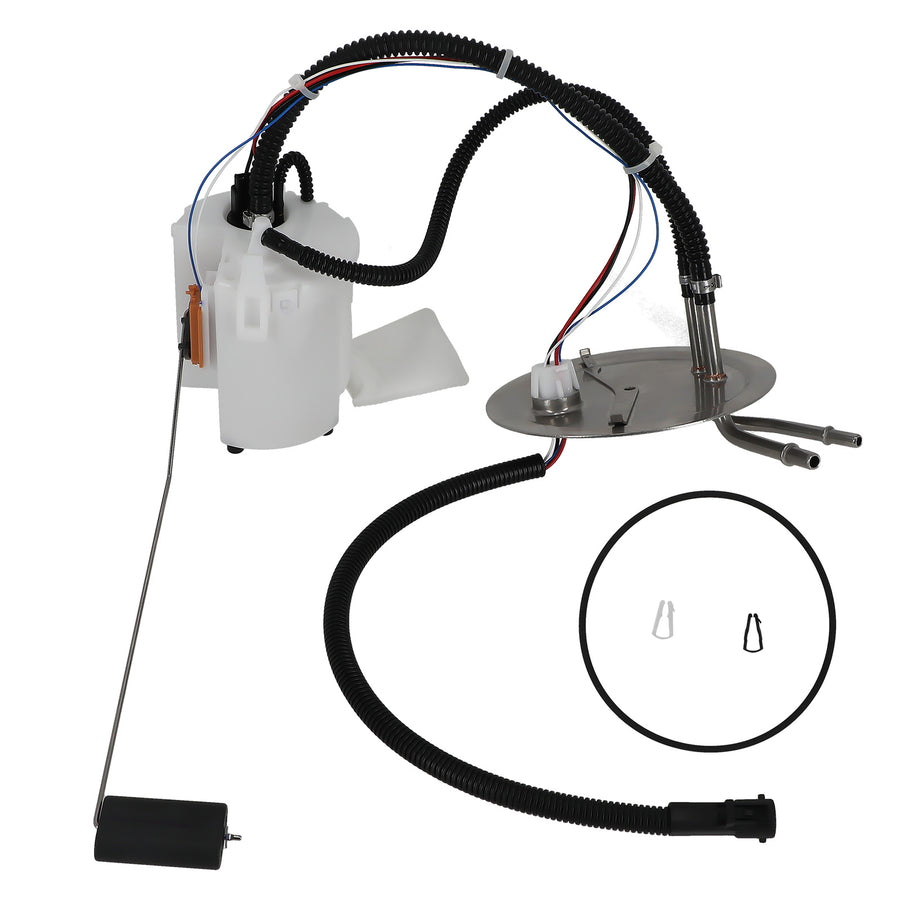

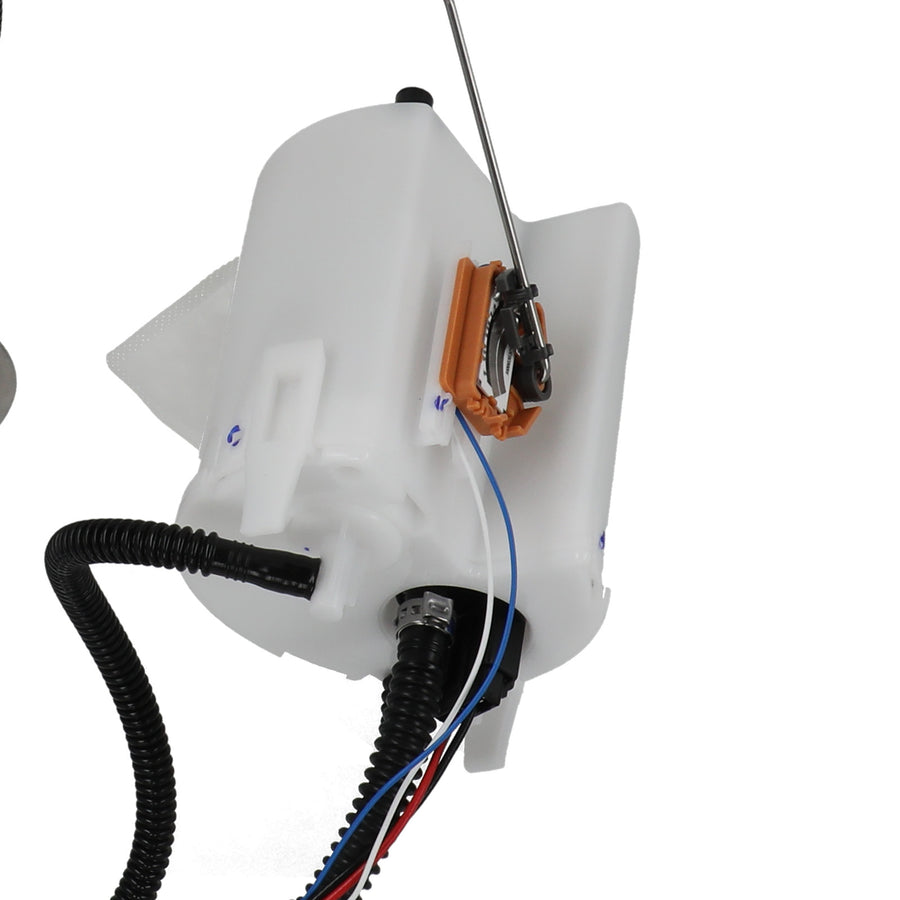

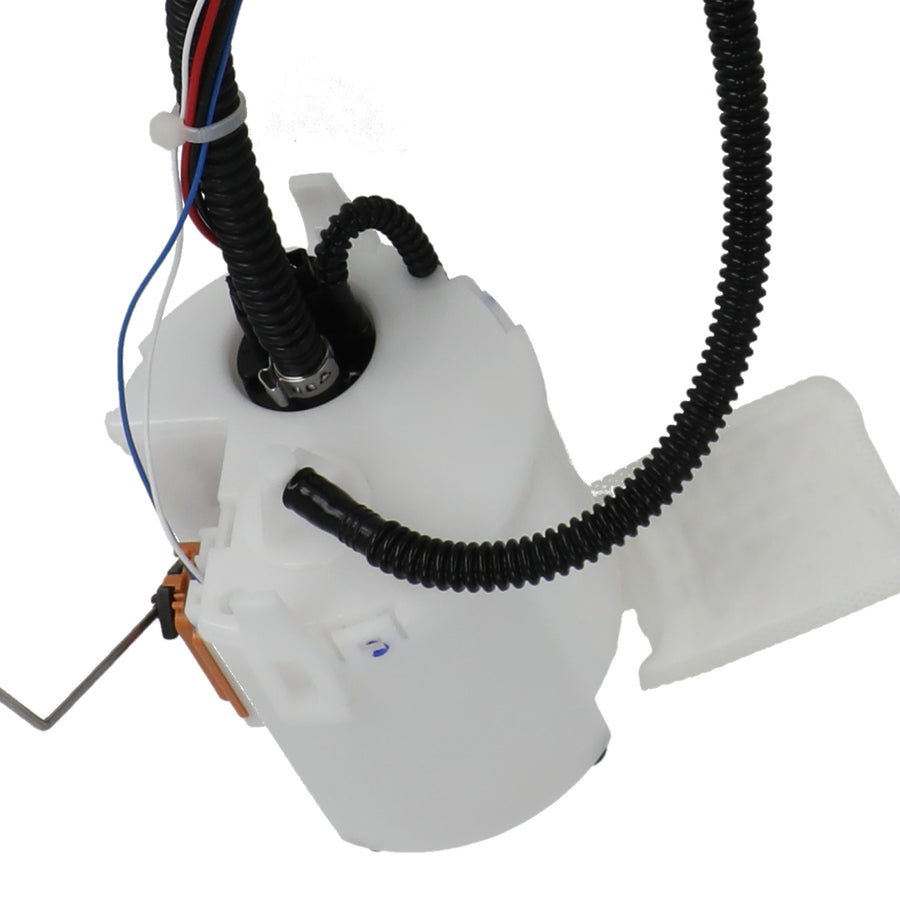

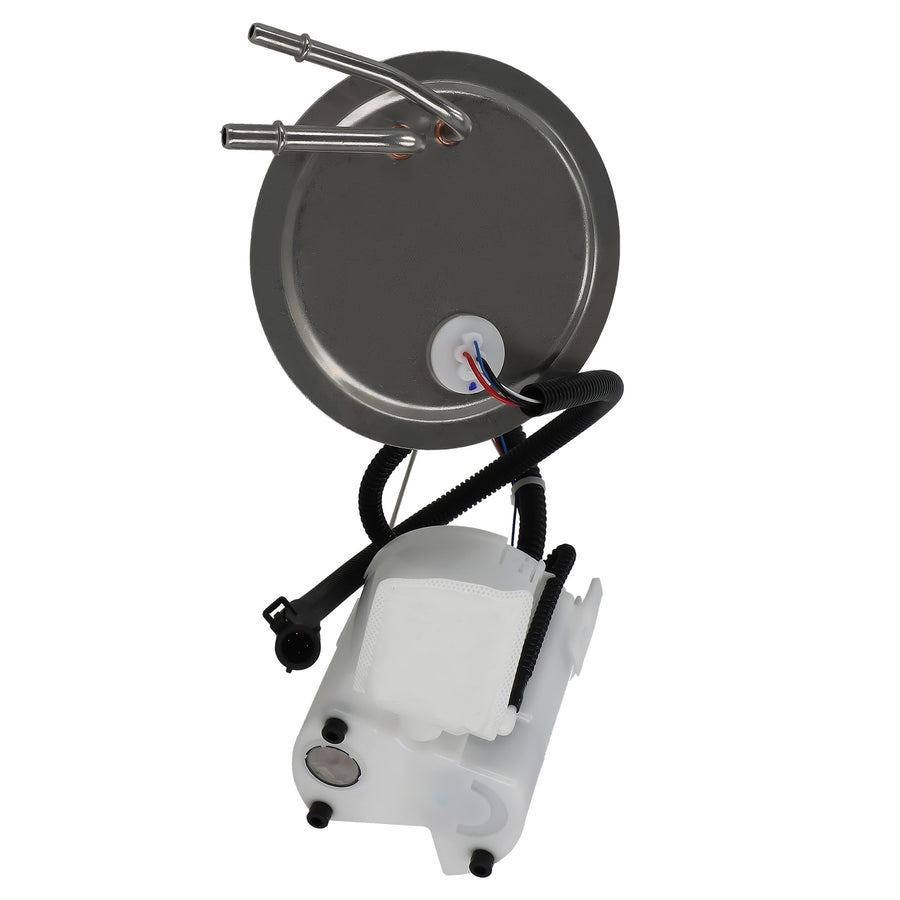

1X Fuel Pump Module Assembly (as shown in the pictures)
Note
- 1.Attached installation manual.
- 2.Professional Installation Is Highly Recommended.
- 3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
OE/Part number
- E2245M,D2245M,SP2245M,P75036M,FG0954,DFG0954,
- EP2051H,EP2052H,EP2053H,EP2057H,EP2096H,EP2097H,EP2099H,EP2100H,
- MU2020,MU2021,MU2022,P75036M,
- 3C3Z9H307GD,F81Z9H307AG,F81Z9H307AH,3C3Z9H307GC
