Compatible Vehicles
- Compatible for Chevrolet C10/R10 1973 - 1987
- Compatible for GMC C15 /C1500 / C1500 Pickup 1973-1987

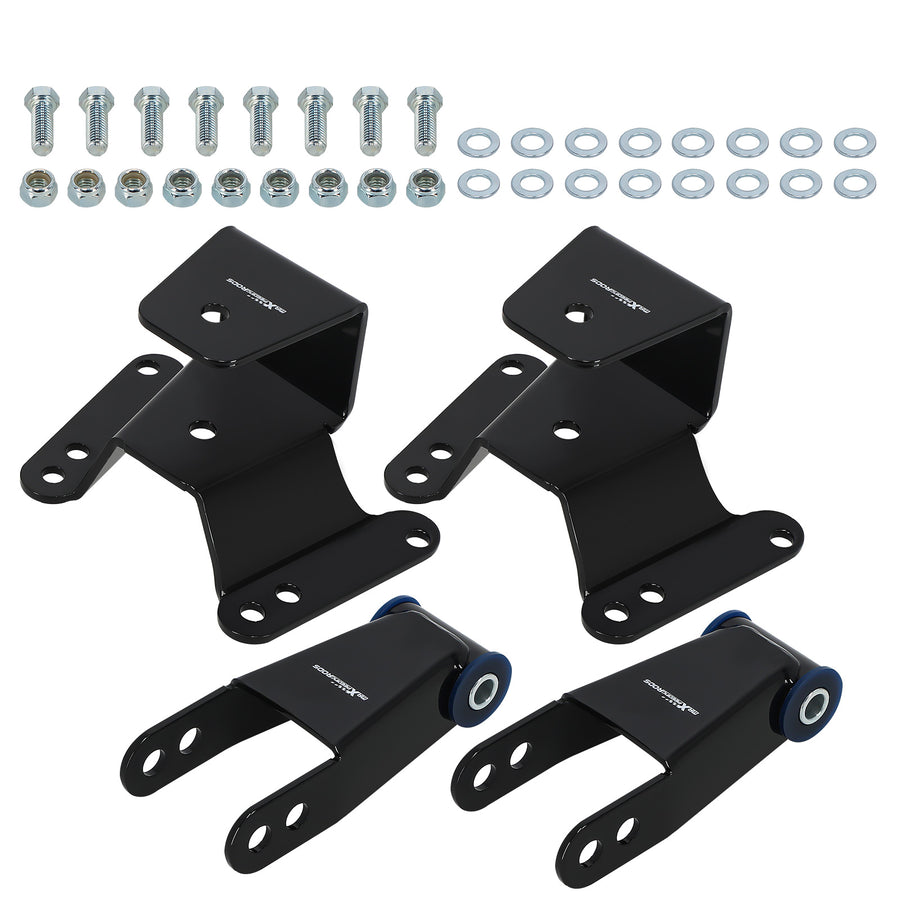

Package Includes

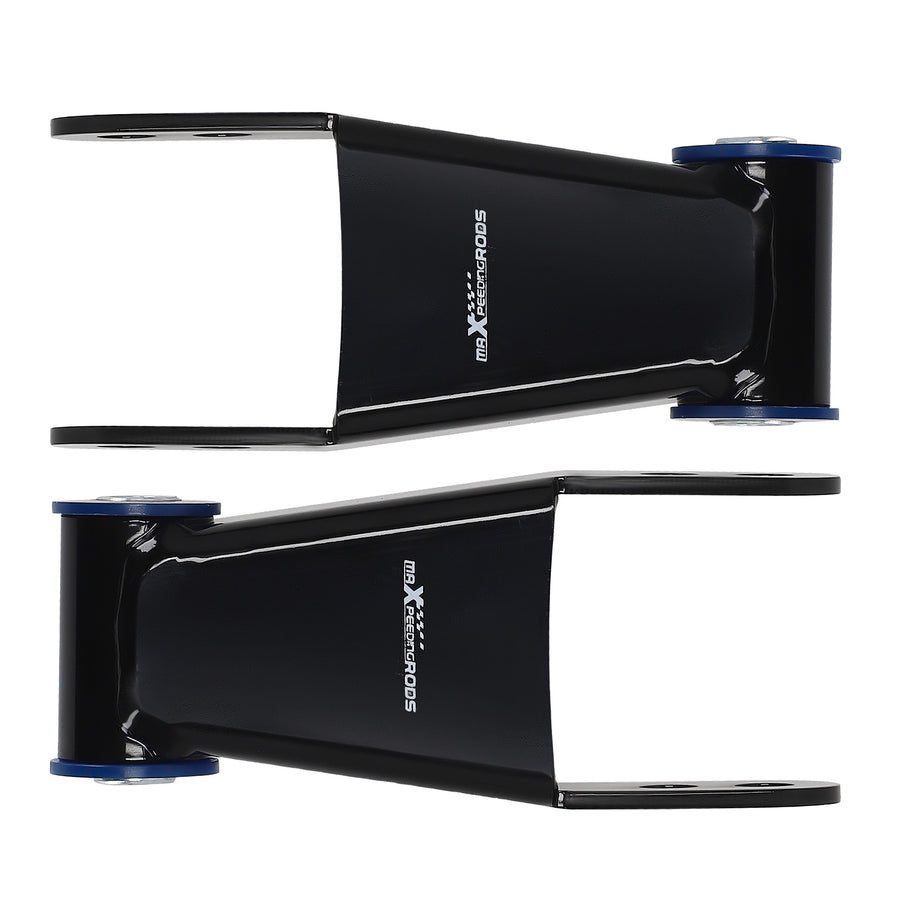

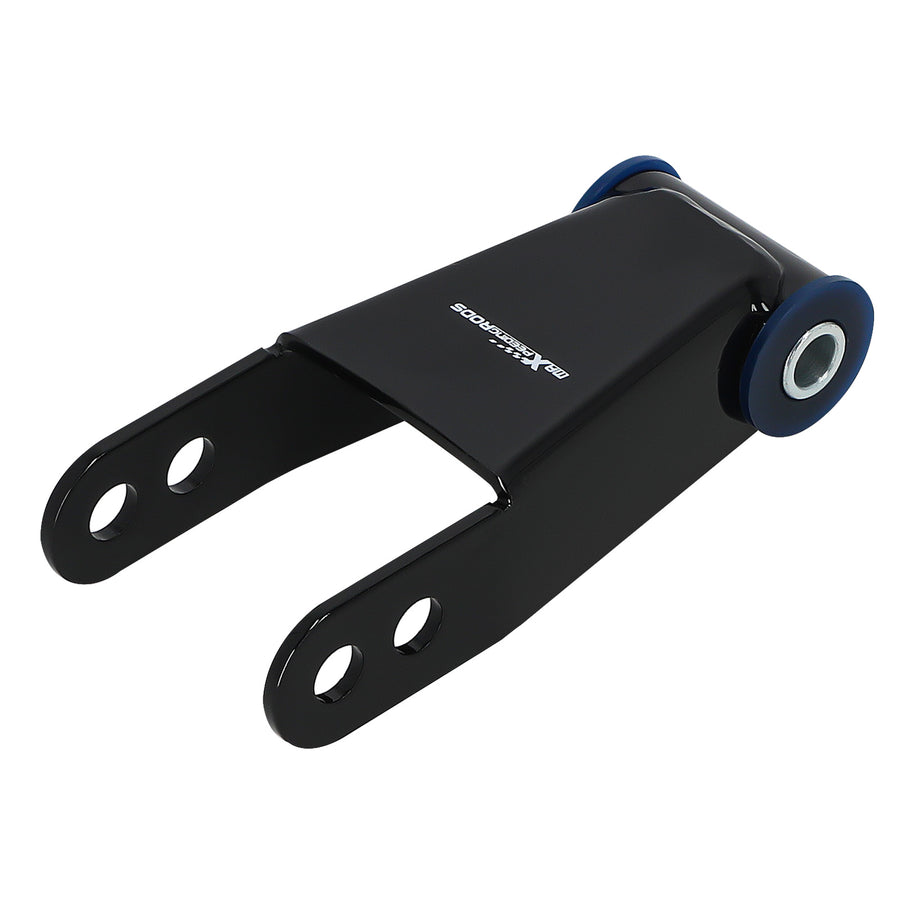

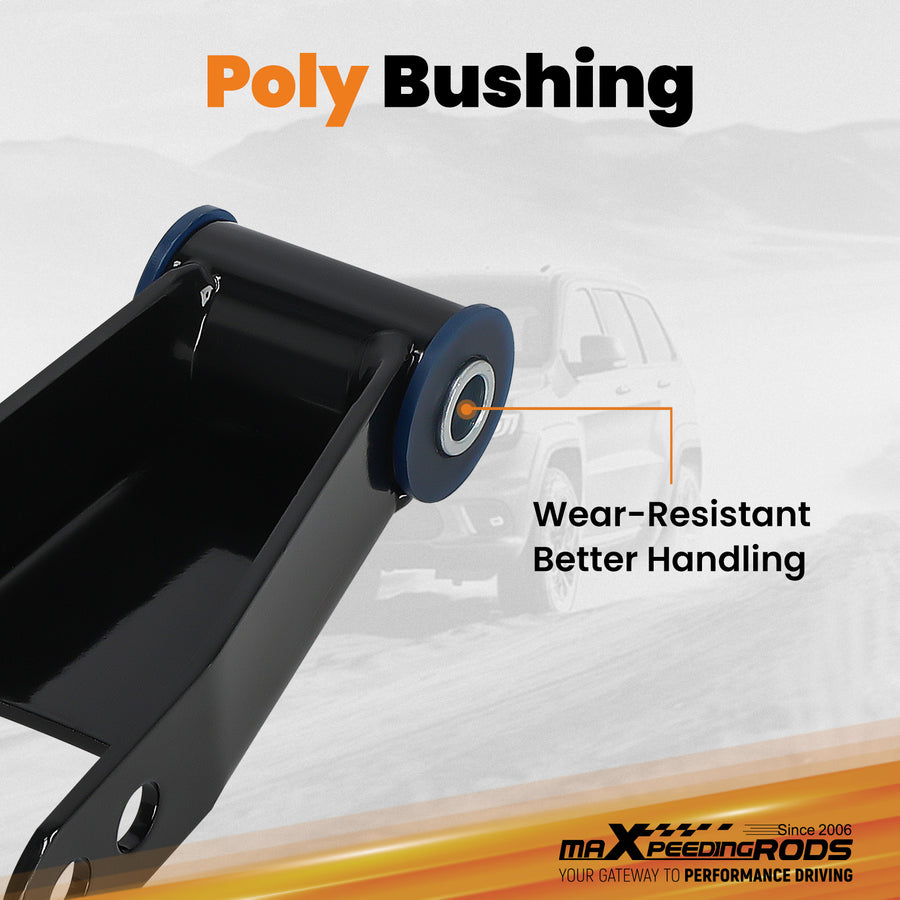

- 2x Rear Drop Shackles (1.5" / 2" Adjustable)

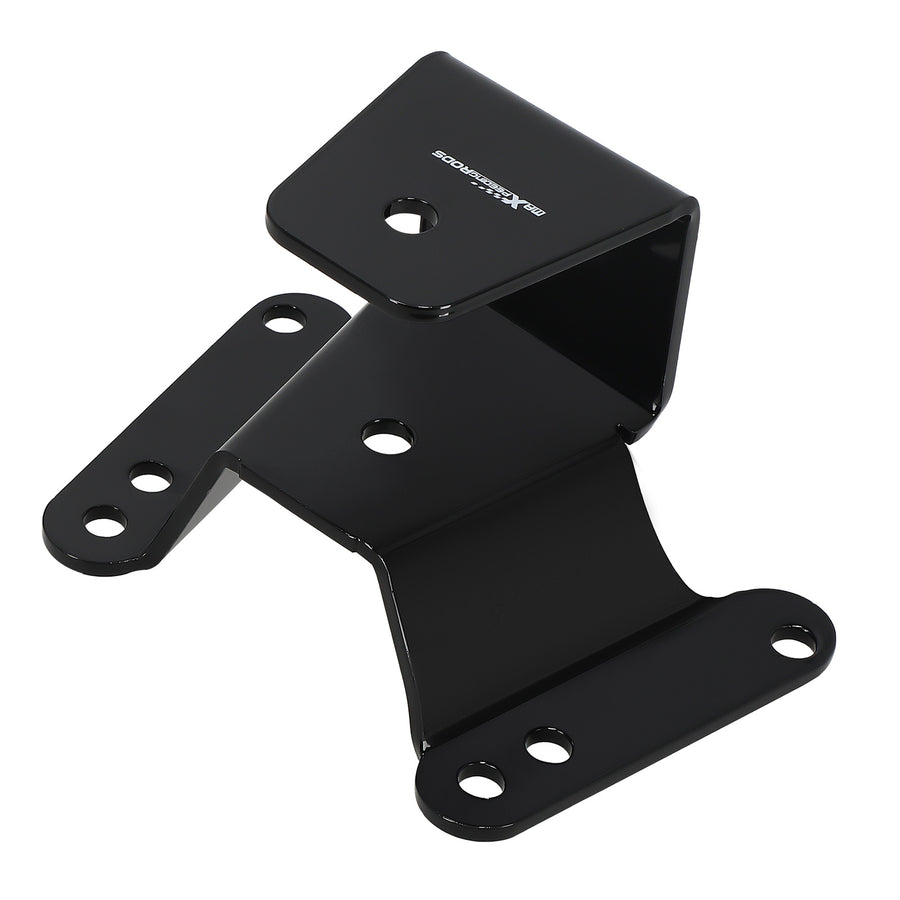

- 2x Rear 2" Drop Leaf Spring (Gunmetal Grey Steel)
- Necessary hardware included
Note
For 2WD and short box only
Placement on Vehicle
Left, Right, Rear
Drop Length
4in.
Drive Model
2WD Only
Material
Steel
Package Size
36.5*19*15.5cm
Package weight
7kg
Surface
Powder coating
Installation Tips
- How to Install a Leaf Spring Hanger?
- Replacing a leaf spring hanger is rather easy. The leaf spring hanger installation consists of a few simple steps.
- You should lift your truck with a jack and place it onto jack stands.
- Then you should remove the front leaf spring from the hanger.
- Grind off the rivets that are holding the hanger and then hammer them out.
- Bolt the leaf spring hanger kit into the frame where the previous rivet holes were.
- Bolt the leaf spring to the hanger. The tricky part of the installation will be taking the rivets off.
- How to Install or Replace Leaf Spring Shackles?
- Using a floor jack, raise the rear differential of your vehicle off the ground, Use jack stands under the frame to support the vehicle
- Lower the jack so that the suspension "droops", this will take the weight of the vehicle off the shackle and allow for removal of the mounting bolts
- Remove the lower mounting bolt from the shackle and spring and then lower the axle so that the spring drops out of the shackle
- Remove the upper mounting bolt which attaches the shackle to the mount on the frame then remove the existing shackle
- Insert the new shackle and mounting bolt.
- Leave the bolt loose to allow alignment of the shackle with the spring
- Raise the rear axle and align the spring eye with the shackle. Slowly work the spring back into the shackle, raising the jack a little at a time until the holes in the shackle and the spring eye line up.
- Install the mounting bolts through the shackle and the spring. Make sure to tighten accordingly
- Jack up the car to remove the jack stands then lower the vehicle back down
- Make sure the bolts stay tightened with weight on them
- Notice
- All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
