Compatible for Toyota Land Cruiser 1KD-FTV D4D, 3.0L, 126kW/171HP 2005-，
Compatible for Toyota Hilux 1KD-FTV D4D, 3.0L, 126kW/171HP 2005-，
Compatible for Toyota SW4 1KD-FTV D4D, 3.0L, 126kW/171HP 2005-，
Specification
Turbo Model：CT16V
Engine:1KD-FTV
Cooling Type：Oil+Water Cooled
Bearing Type: Journal Bearing / Floating Bearing
Trust bearings: 270 Degrees
Horsepower: Up to 170HP
Compressor: 2 Bolt Inlet Flange
Turbine: 3 Bolt Inlet/Outlet Flange
Compressor Wheel: 6/6 blades
Turbine Wheel: 11 blades
Maximum PSI: 10 PSI
Actuator Type: Electronic Actuator Included
Turbo Type: Individual
Universal Fitment: No
Finish: Polished
Condition: Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:29x 27 x 24 cm
Package Weight: 8350g
Feature
* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminium with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance
* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Package included

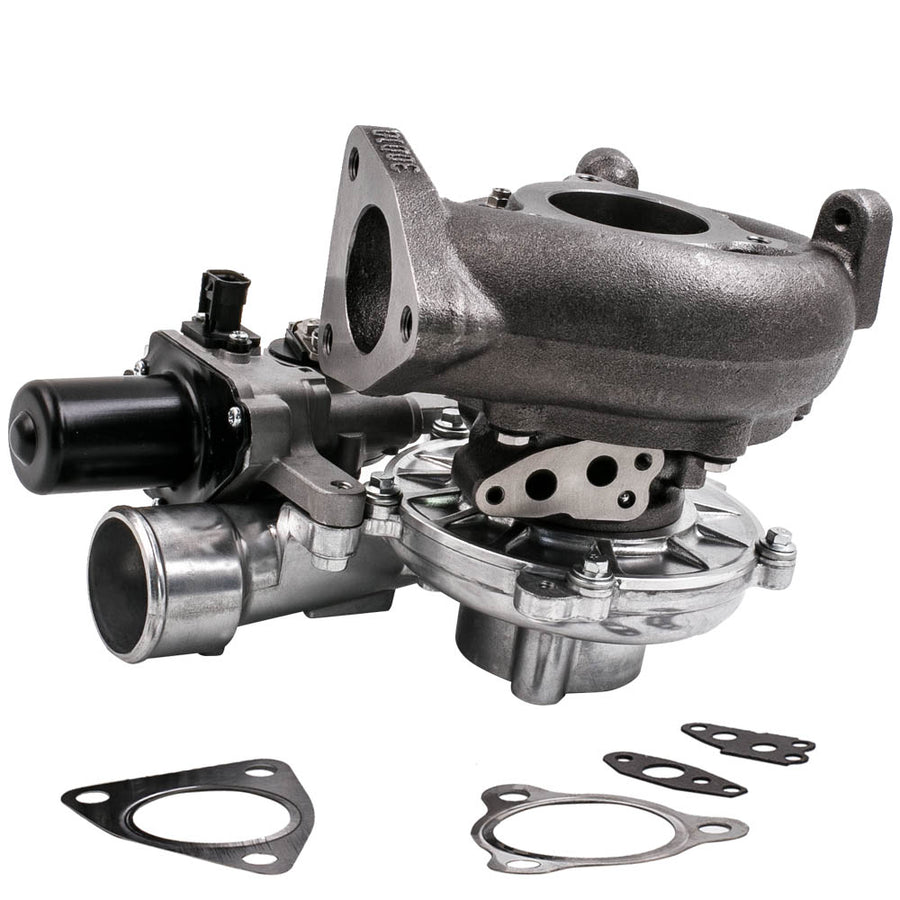

1xTurbocharger
2x Flange Gaskets
2x Oil/water Port Gaskets
Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended.
*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
