Compatible Vehicles
- Compatible for Chevrolet Silverado 1500 5.3L V8 (L59/LM7) 2007-2014
- compatible for Chevrolet Suburban 5.3L V8 (LC9) 2007-2014
- compatible for Chevrolet Tahoe 5.3L V8 (L59) 2007-2014
- compatible for Chevrolet Avalanche 5.3L V8 (LC9) 2007-2013
- compatible for Chevrolet Silverado 1500 5.3L V8 (L83/L82) 2014-2018
- compatible for Chevrolet Silverado 1500 5.3L V8 (L84) 2019-2023
- compatible for Chevrolet Suburban 5.3L V8 (L83) 2015-2020
- compatible for Chevrolet Tahoe 5.3L V8 (L83) 2015-2020
- compatible for GMC Sierra 1500 5.3L V8 (LMG) 2007-2014
- compatible for GMC Yukon/Yukon XL 5.3L V8 (LC9) 2007-2014
- compatible for GMC Sierra 1500 5.3L V8 (L83/L8B) 2014-2019
- compatible for GMC Sierra 1500 5.3L V8 (L82/L84) 2020-2023
- compatible for GMC Yukon/Yukon XL 5.3L V8 (L83) 2015-2020
- compatible for Cadillac Escalade 5.3L V8 (LH6) 2007-2014
- compatible for Cadillac Escalade 5.3L V8 (L83) 2015-2020
Specification

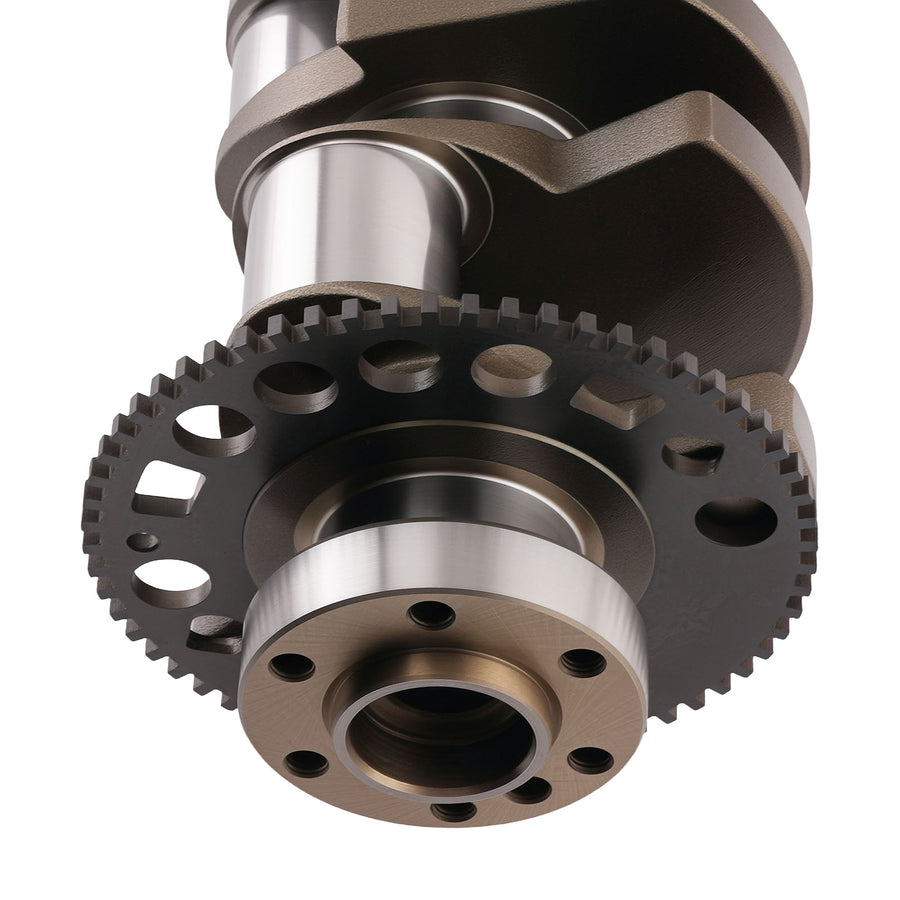

- Tooth Count: 58X
- Condition: 100% Brand New
- Fitment Type: Direct Replacement
- Engine Compatibility: Compatible for GM 5.3L, 6.0L, 6.2L LS GEN IV
- Material: Nickel-Enhanced Alloy Steel
- Full length:599.3mm
- Main shaft:65mm
- Connecting Rod:53.3mm
- Stroke:92mm
- Surface treatment method: Quenching
Feature
- Tensile strength: 950-1050 MPa
- Shaft diameter hardness: >50 HRC
- Elongation: >6.5
- Connector tolerance: 0~0.01 mm
- Diameter roughness: 0.2 μm
- Dynamic balance: 3-5 g/cm
- Hardened layer depth: 0.7 mm
- Compression test: 150 kg/mm
- Inspection machine: IDEC
Package included
- 1* Crankshaft
- Showing as the picture
Note
- Crankshafts are coated with hard oil film for Anti-Rust Coating.
- To clean hard oil film from a crankshaft, use strong solvents (like brake cleaner or degreaser) with brushes to scrub surfaces and flush oil passages, then follow up with hot water and detergent for stubborn spots, and always finish by blowing everything dry with clean compressed air to remove all moisture and residue, paying special attention to internal oil galleys by removing plugs if possible.
OE/Part number
12552216, 12588613, 12597569, 12685659, 19431873
