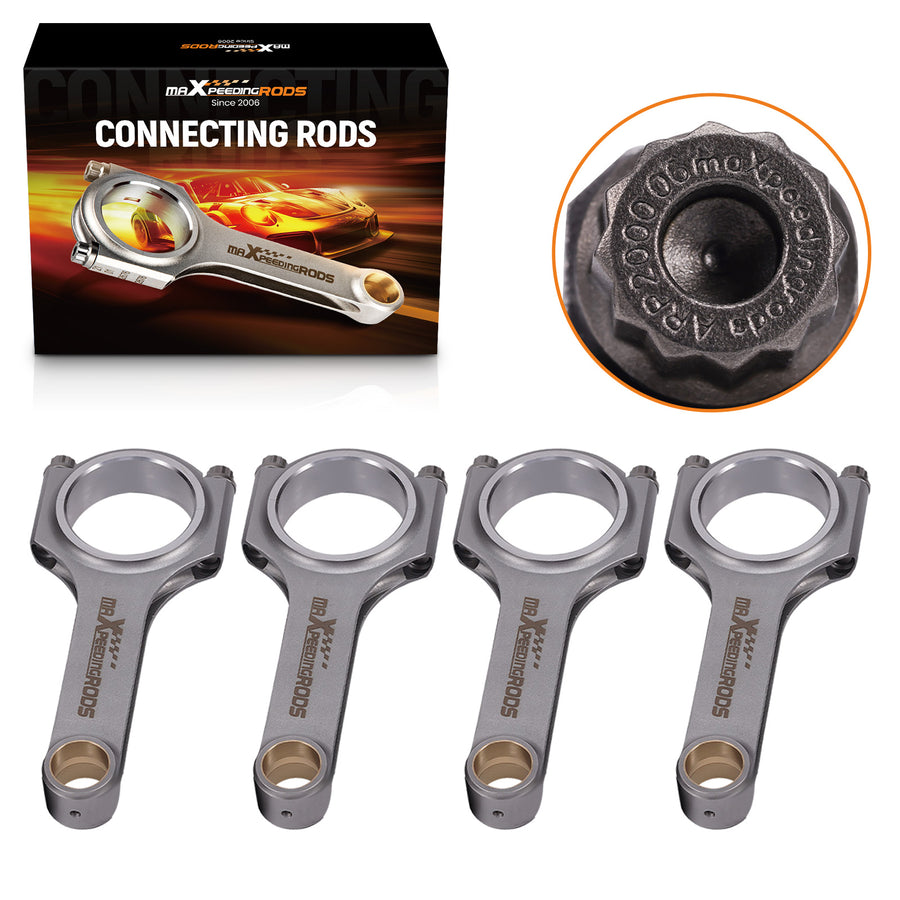

Conrods compatible for Audi RS3 TT RS 5 Cylinder 2.5L Connecting Rods
SKU: CR-RS-5
Contact us for a quote
Compatible Vehicles
Compatible for Audi RS3 TT RS 5 Cylinder 2.5L
compatible for Audi RS 3 (8PA) 2.5L TFSI (EA855) | 340 PS
compatible for Audi RS 3 (8VA) 2.5L TFSI (EA855) | 367 PS
compatible for Audi RS 3 (8VA) 2.5L TFSI (EA855EVO) | 400 PS
compatible for Audi TT RS (8J) 2.5L TFSI (EA855) | 340 PS
compatible for Audi TT RS (8J) 2.5L TFSI (EA855) | 360 PS
compatible for Audi TT RS (8S) 2.5L TFSI (EA855EVO) | 400 PS
Will fit following compatible for VW 2.5L 5 cylinder FSI engine codes: CEPA, BGP, BGQ, BPR, BRS, CBTA, CBUA.
Built in the Jetta, compatible for Golf or compatible for Audi RS3 / TTRS
Specification
TÃœV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 5 Pieces a set
Bolts:Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect
Dimension
Centre-to-Centre: 5.670"/144.00mm
Big End Bore: 1.9928"/50.6mm
Pin Size: 22mm
Big End Width: 0.862"/21.9mm
Pin Width: 0.862"/24.95mm
Note
Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
