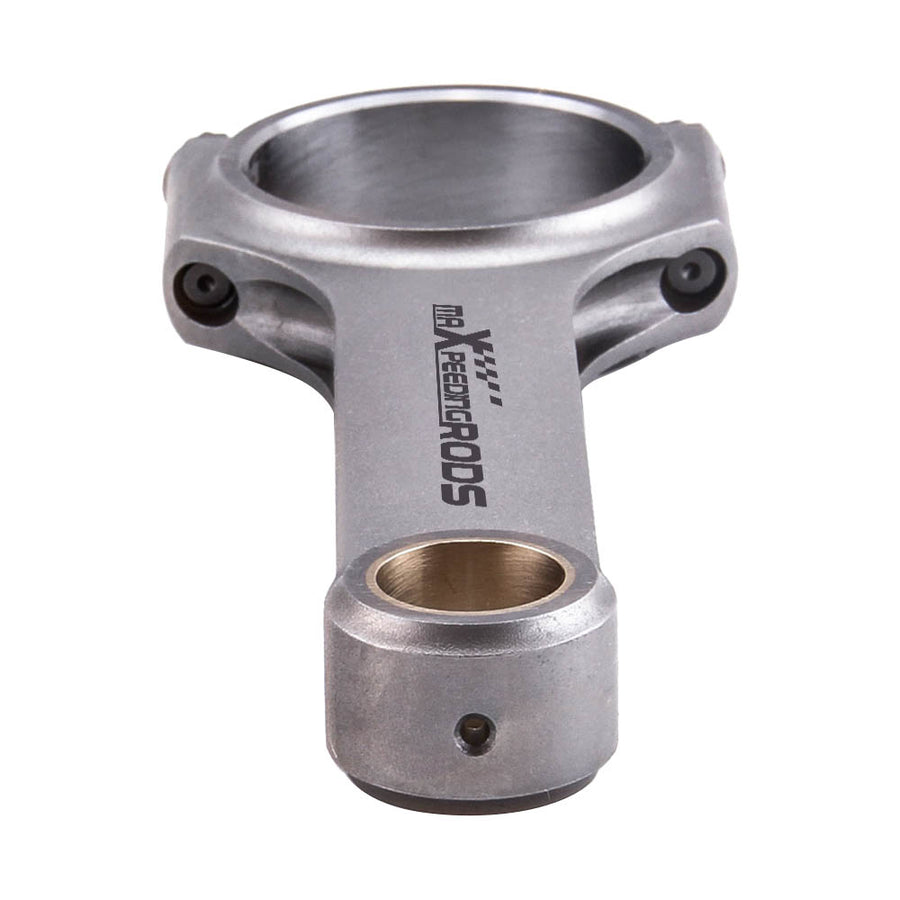

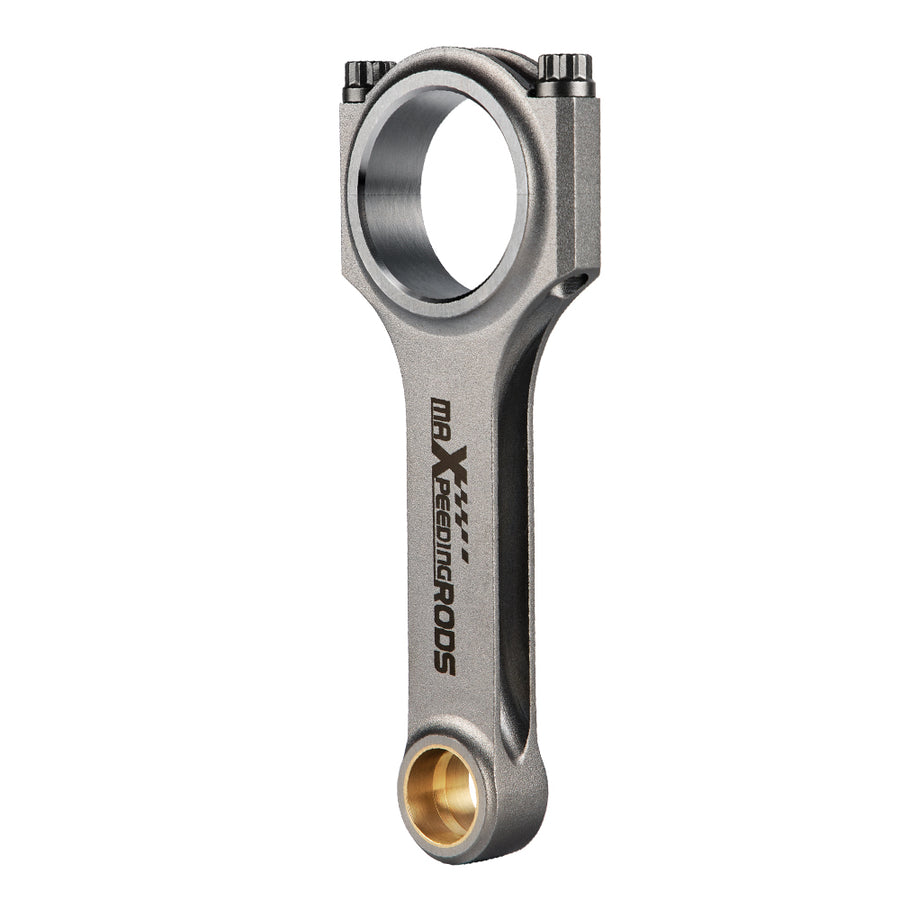

Connecting Rods Set compatible for Honda K24 Series 152mm ARP L19 Bolts 250HP Rated

Compatible Vehicles

• Compatible for Honda/Acura K24 K24A1 K24A2 K24A3 K24A4 K24A6 K24A8 K24Z 2.4L

Specification

• Beam Style: H-beam Street/Strip
• Material: 4340 Chromoly Steel
• Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: Yes
• Cap Retention Style: Through-bolt
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 3/8"
• Connecting Rod Bolt Material: Alloy Steel
• Fastener Yield Strength (psi): 260,000 psi (ARP L19)
• Connecting Rod Bolt Head Style: 12-point
• CNC Machined: High Precision
• Rod Cap Alignment: Precision dowels
• Bore Tolerance: ±0.005 mm
• Balancing: ±1 gram per rod
• Weight Matched Set: Yes
• Remanufactured: No
• Testing: Magnafluxed, X-rayed, Ultrasonically tested
• Heat Treated: Yes

Dimension

• Connecting Rod Length Center to Center: 152.00mm/5.984in
• Approximate Connecting Rod Weight: 528g
• Big End Bore Diameter: 51.00mm/2.008in
• Pin End Bore Diameter: 22.00mm/0.866in
• Big End Width: 19.80mm/0.780in
• Small end width: 19.80mm/0.780in

Performance Ratings

• Advertised Horsepower Rating: 250HP/piece
• Advertised RPM Rating: 10500rpm

Packaging

• Quantity: Sold as a set of 4
• Package Size: 28CM*20CM*10CM
