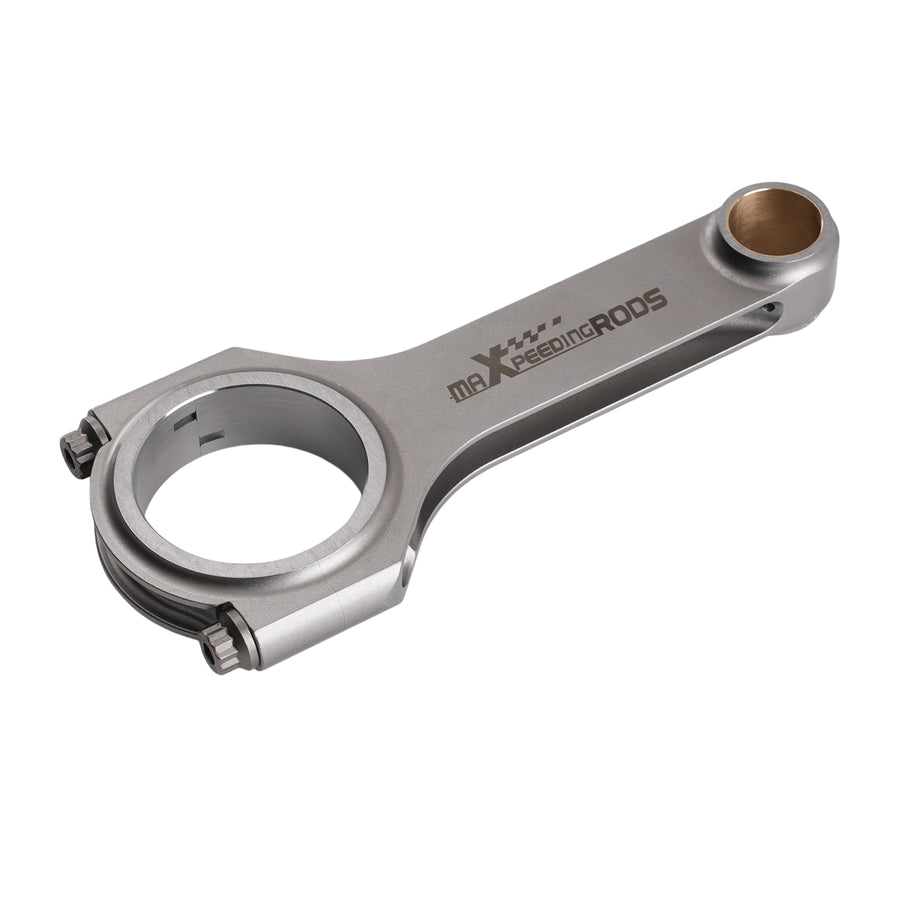

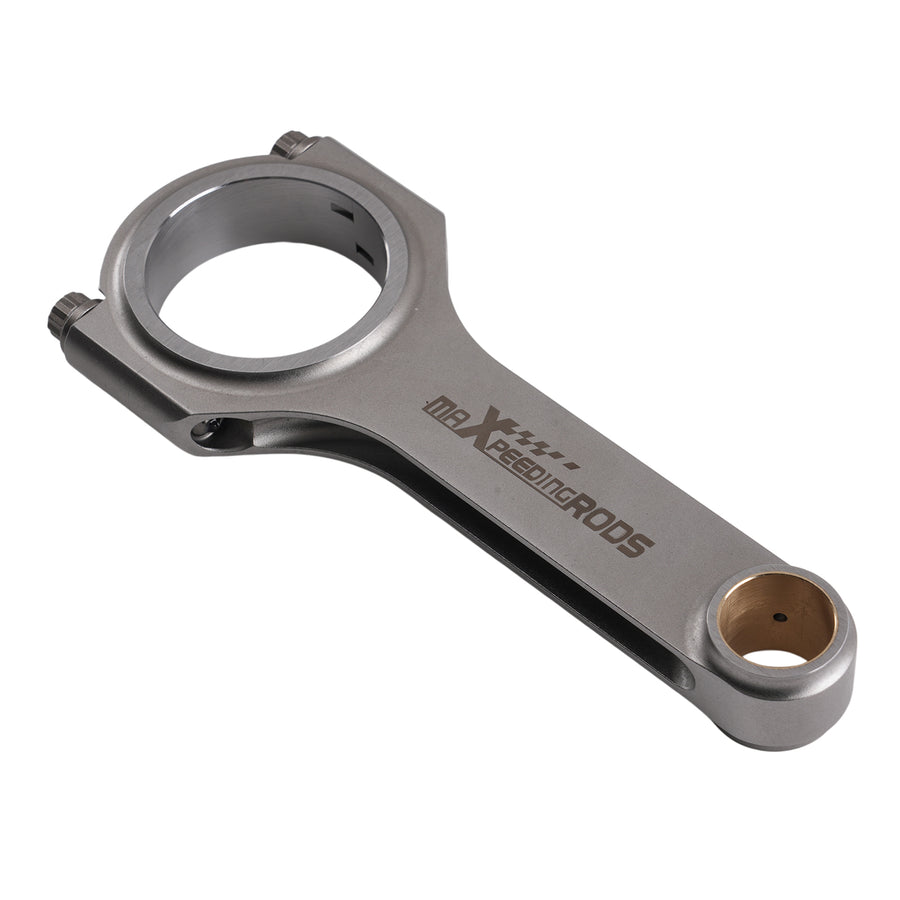

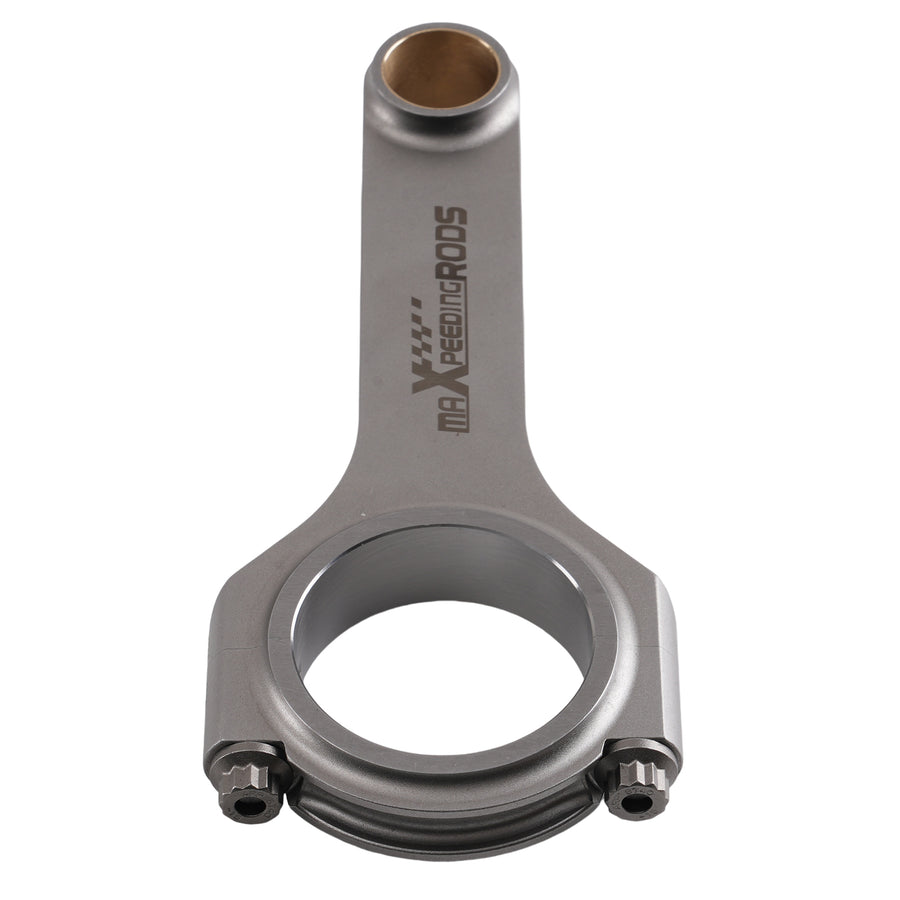

Connecting Rods 5.090 H-Beam Set compatible for Ford Mustang 289 302 5.0L V8 compatible for Windsor

Compatible Vehicles

• Compatible for Ford 289/302

Specification

• Beam Style: H-beam Street/Strip
• Material: 4340 Chromoly Steel
• Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: Yes
• Cap Retention Style: Through-bolt
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 7/16"
• Connecting Rod Bolt Material: Alloy Steel
• Fastener Yield Strength (psi): 190,000 psi (ARP 8740)
• Upgrade Fasteners: ARP L19 (260,000 psi) optional
• Connecting Rod Bolt Head Style: 12-point
• CNC Machined: High Precision
• Rod Cap Alignment: Precision dowels
• Bore Tolerance: ±0.005 mm
• Balancing: ±1 gram per rod
• Weight Matched Set: Yes
• Remanufactured: No
• Testing: Magnafluxed, X-rayed, Ultrasonically tested
• Heat Treated: Yes

Dimension

• Connecting Rod Length Centre to Centre: 129.29mm/5.090in
• Big End Bore Diameter: 56.87mm/2.239in
• Pin End Bore Diameter: 23.19mm/0.913in
• Big End Width: 21.13mm/0.832in
• Small End Width: 23.19mm/0.913in

Performance Ratings

• Advertised Horsepower Rating: 200HP/piece
• Advertised RPM Rating: 8500rpm

Packaging

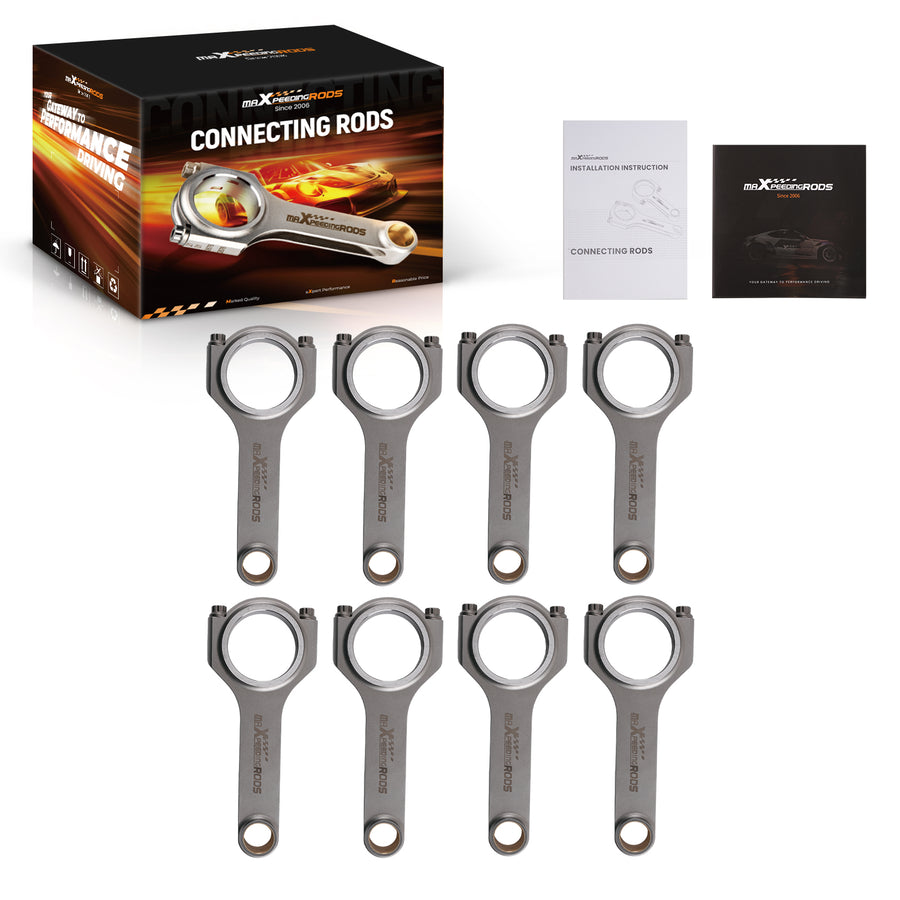

• Quantity: Sold as a set of 8
• Package Size: 28CM*20CM*17CM
