Compatible for Mercedes-Benz W176 W246 C117 X156 1.6T H Beam EN24 Racing Connecting Rods
SKU: CR-MER-16T-T
Contact us for a quote
Compatible Vehicles
Compatible for Mercedes Benz M270 DE16 1.6T engine
Fitment Details:
Engine: M270 DE16 LA R
75 kW:
2015–2018 compatible for Mercedes-Benz W176 A160
2015–on compatible for Mercedes-Benz W246 B160
90 kW:
2011–on compatible for Mercedes-Benz W246 B180
2012–2018 compatible for Mercedes-Benz W176 A180
2013–on compatible for Mercedes-Benz C117 CLA180
2015–on compatible for Mercedes-Benz X156 GLA180
Engine: M270 DE16 LA
2011–present compatible for Mercedes-Benz W246 B200
2012–2018 compatible for Mercedes-Benz W176 A200
2013–present compatible for Mercedes-Benz C117 CLA200
2014–present compatible for Mercedes-Benz X156 GLA200
Specification
TüV Certification Con Rods
Power: 800+hp per set

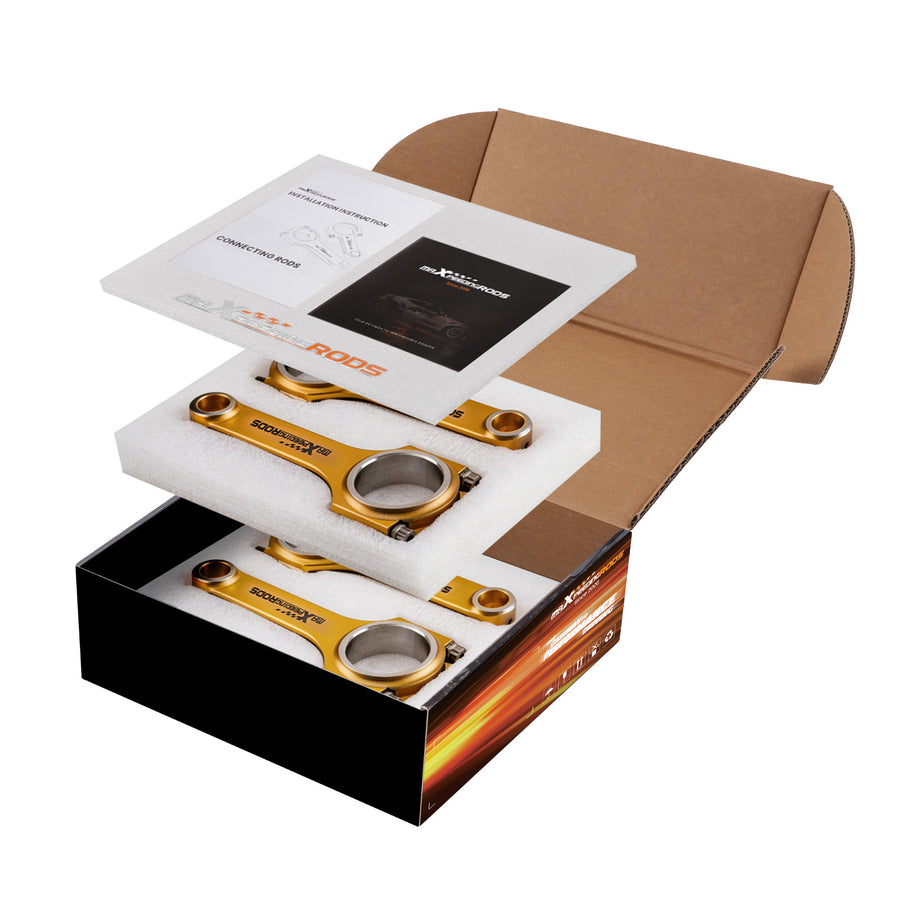

Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts (Note Extra cost for upgrading to ARP L19 bolts)
Material: Titanizing 4340 EN24 aircraft chrome moly quality steel for racing
Weight Tolerance: Balanced to +/- 1 gram in set
Warranty: one year warranty.
Dimensions
Center to center length: 152.2mm
Big end diameter: 45mm
Small end diameter: 20mm
Big end width: 20mm
Small end width: 20mm
Feature
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
Note
Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
