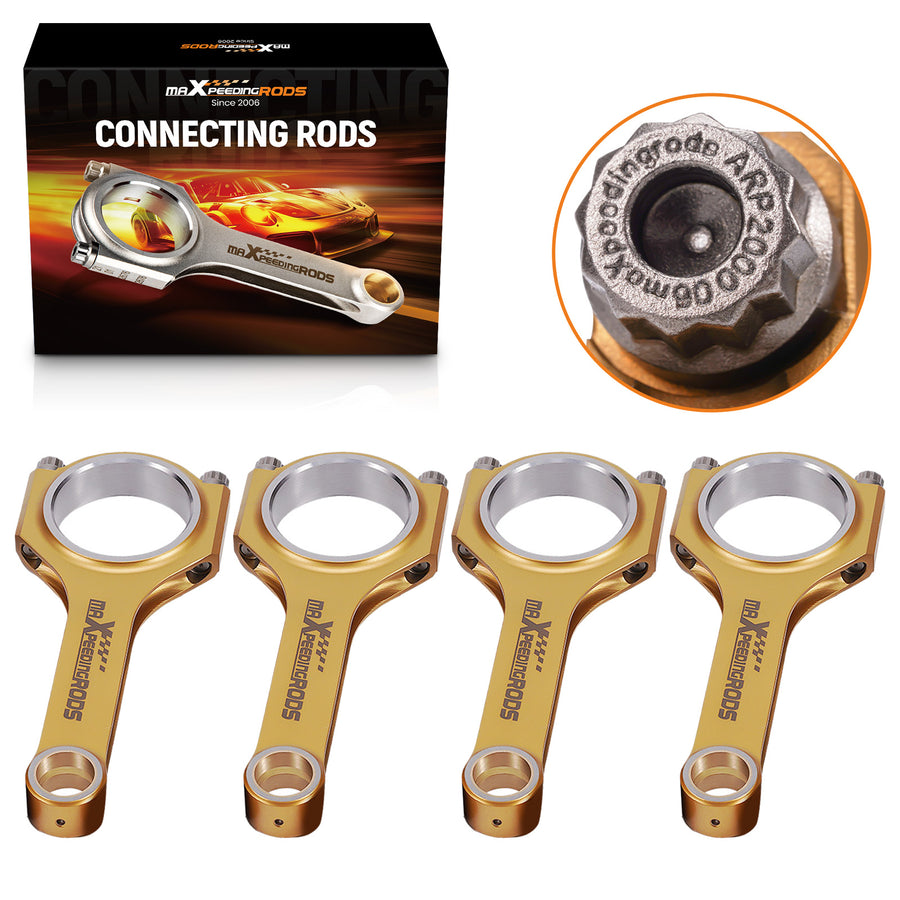

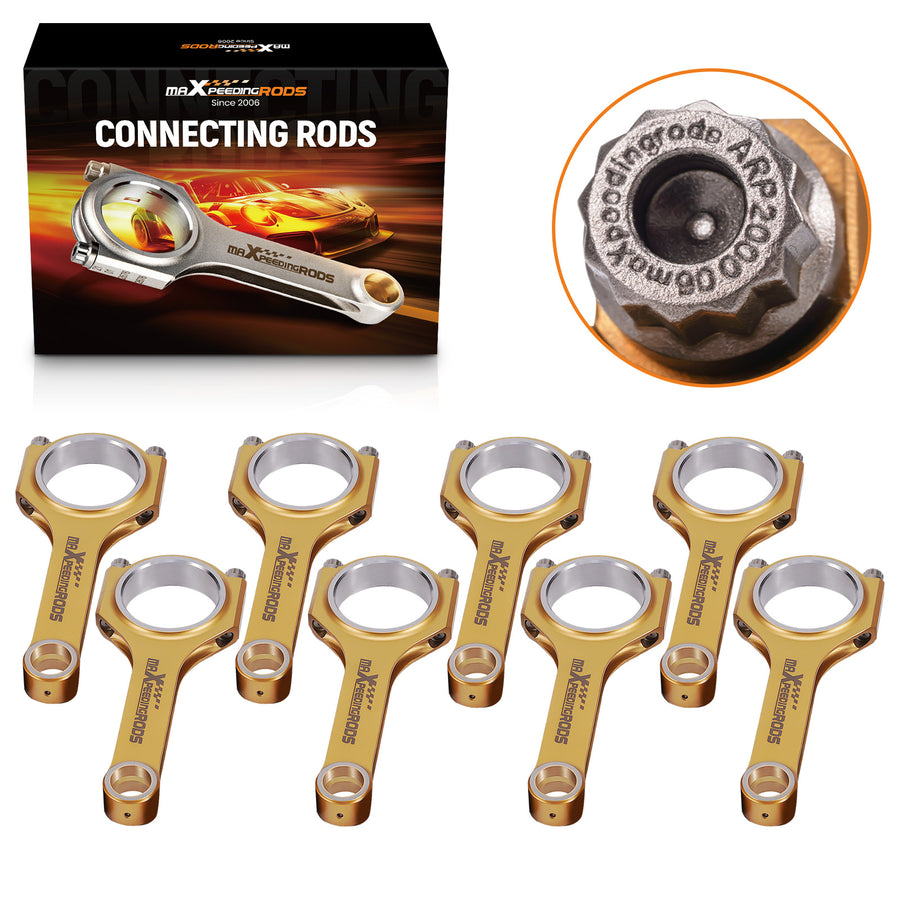

Compatible for Lexus RC RC-F GS-F L10 LC 500 5.0 L 2UR-GSE compatible for V8 ARP2000 4340 Connecting Rods

Compatible Vehicles

• Compatible for Lexus IS IS-F XE20 5.0 L 2UR-GSE V8 2005–2015
• compatible for Lexus RC RC-F 5.0 L 2UR-GSE V8 2014–Present
• compatible for LexusGS-F L10 5.0 L 2UR-GSE V8 2011–Present
• compatible for Lexus LC 500 5.0 L 2UR-GSE V8 (petrol) 2017–Present

Specification

• - TÜV Certification Con Rods
• - Type: Forged 4340 aircraft chrome moly quality steel for racing
• - H-beam Conrods Quantity: 8 Pieces a set
• - Bolts: Including Genuine 3/8" ARP 2000 bolts
• - Note: Extra cost for upgrading to ARP L19 bolts
• - Bolts Size: 3/8"
• - Tolerance: Balanced to +/- 1 gram in set
• - Piston Bolt Hole: +-4/1000mm
• - Power: 600hp ~ 800PS per set
• - Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
• - Top acceleration: 9000rpm
• - Warranty: one year warranty for any manufacture defect

Dimensions

• Centre to centre length: 144.3mm
• Big end diameter: 56mm
• Small end diameter: 22mm
• Big end width: xx
• Small end width: xx

Features

• - Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
• - Designed and processed by CNC machine.
• - All big and small ends are finished with SUNNEN honing machine
• - Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
• - 100% X-rayed, sonic tested and magnafluxed
• - Multi-stage heat treated
• - Shot peened to relieve stress
• - Come with the bronzed bushing suitable for the floating piston pin

Note

• - Professional installation is highly recommended (No Instruction Included)
• - Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
