Compatible Vehicles
- Compatible for Kia Optima 2011 2012 2013 2014 2015
- Note: New sway bar link is required for SX trim
Introduction
T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.
Specification
- Damping adjustable: Available, 24 levels of rebound damping force
- Shock structure type: twin -tube
- Front top mount structure: Pillow ball
- Rear top mount structure: Standard rubber
- Camber adjustable: Not vailable
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 9.0 kg/mm(504 lbs/in)
- Spring Rate Rear: 7.5 kg/mm (420 lbs/in)
- Spring length Front: 190 mm
- Spring length Rear: 200 mm
- Spring Preload advised: 7-10 mm
- Colour: Black body with blue spring
Feature
- 1. Lowered height adjustment from 25-75mm which allow lower centre of gravity and also add a more aggressive stance
- 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
- 4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
- 5. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
- 6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
- 7. Upgraded spring --- more than 600,000 times continuously test to assure it's high tensile strength.
- 8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
- 9. With better damping setting,you will get better performance and comfort at the same time.
- 10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 11. Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts
- 12. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
- 13. Clean room assembled---maintain higher level of accuracy and reliability.
- 14. Upgraded damper oil---make damping more stable and smooth in wide temperature range.

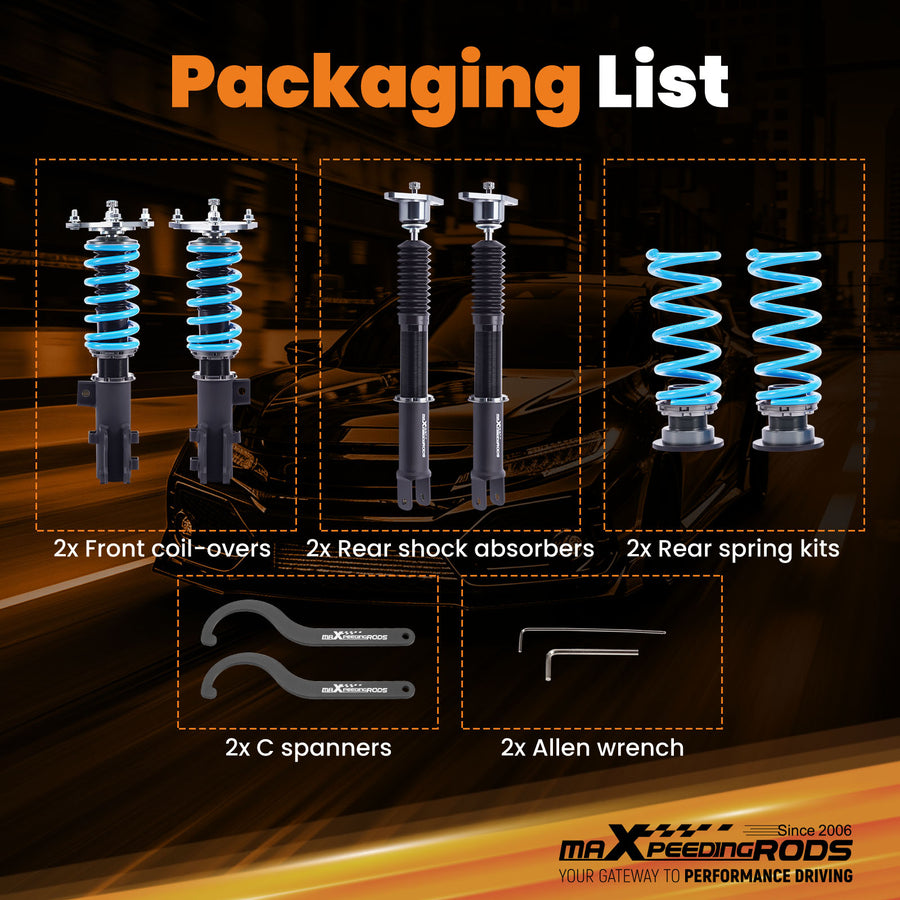

Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x Allen wrench
- 2x C spanners
- 1x sticker
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
