Compatible for Hyundai Terracan 2902ccm 150HP 110KW (Diesel) 2001-2006
compatible for Hyundai Terracan 2902ccm 163HP 120KW (Diesel) 2003-2006
Specification
Turbo Model:KHF5-2B, RHF5
Engine Code:J3 CR
Cooling Type: Water+Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 360 Degrees
Horsepower: Up to 163HP
Turbo Type:Individual
Universal Fitment:No
Finish:Polished
Condition: 100% Brand New

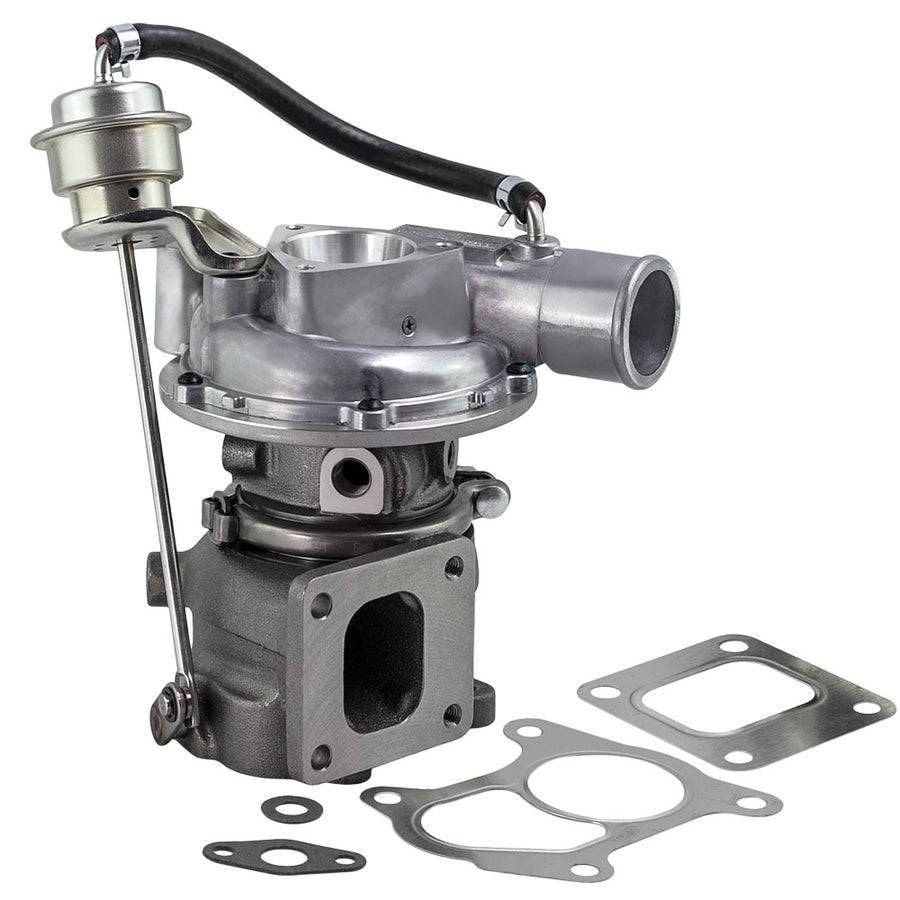

Accessories: You will receive the parts exactly as shown in the picture above
Package Size:30x28x24 cm
Package Weight:6380g
Feature
* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminium with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Package included
1xTurbocharger
2xFlange gaskets
2xOil/Water port gaskets
1xManual
1xBrochure
1xSticker
Note
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
