Compatible Vehicles
- 2005-2014 compatible for Ford Mustang S-197
- 2005-2014 compatible for Ford Mustang GT S-197
Introduction
-B3 series(also called -SLC) based on -B2 series(also called -SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Specification
- Top mount: Front camber plate
- Damping: 24 levels rebound damping adjustable
- Front spring rate: 8kg/mm (448 lbs/in)
- Rear spring rate: 6kg/mm (336 lbs/in)
- Adjustable height: lowering 1-3 inch
- Shock type: Twin tube
- Spring Preload: 7-10 mm
- Colour: red body with black spring
Dimension
- Package dimension : 71*51*21
- Weight: 27420g
Feature
- 1. Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance.
- 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
- 3.Camber plate top mounts help to eliminate the need for a separate camber kit.
- 4.Twin-Tube structure allows sufficient stroke within the shock absorber.
- 5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
- 6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
- 7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
- 8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
- 9.Steel shock bodies with special surface treatment to improve the durability.
- 10. Full rebuildable

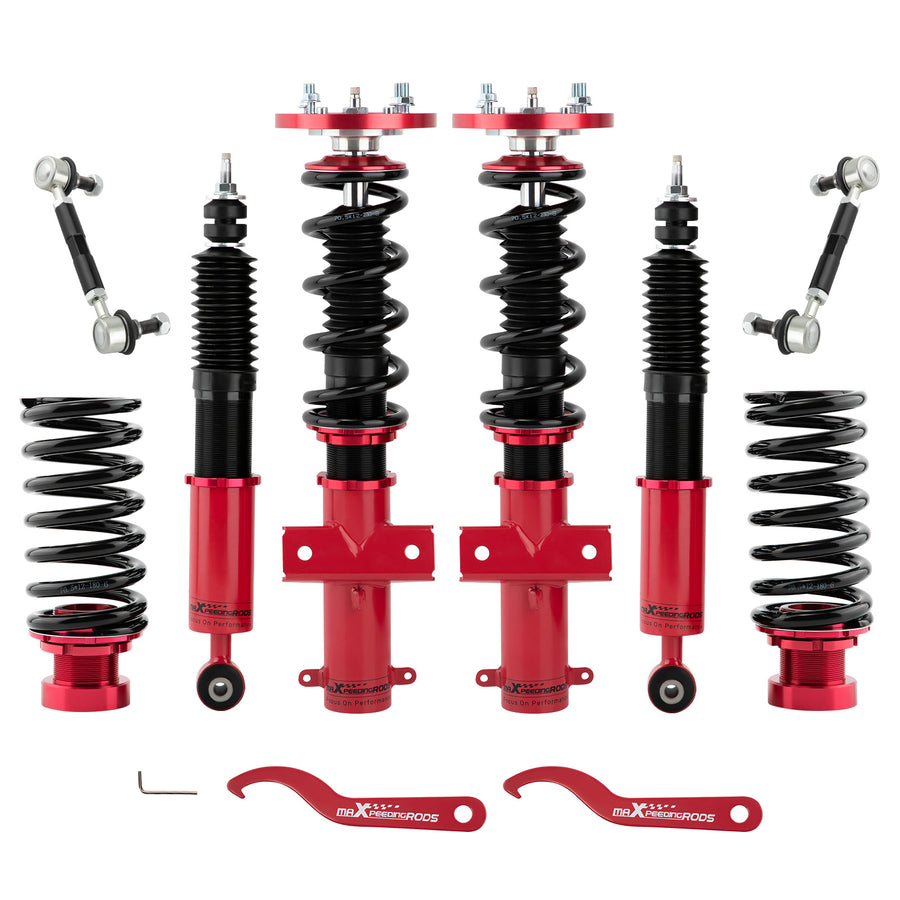

Package included

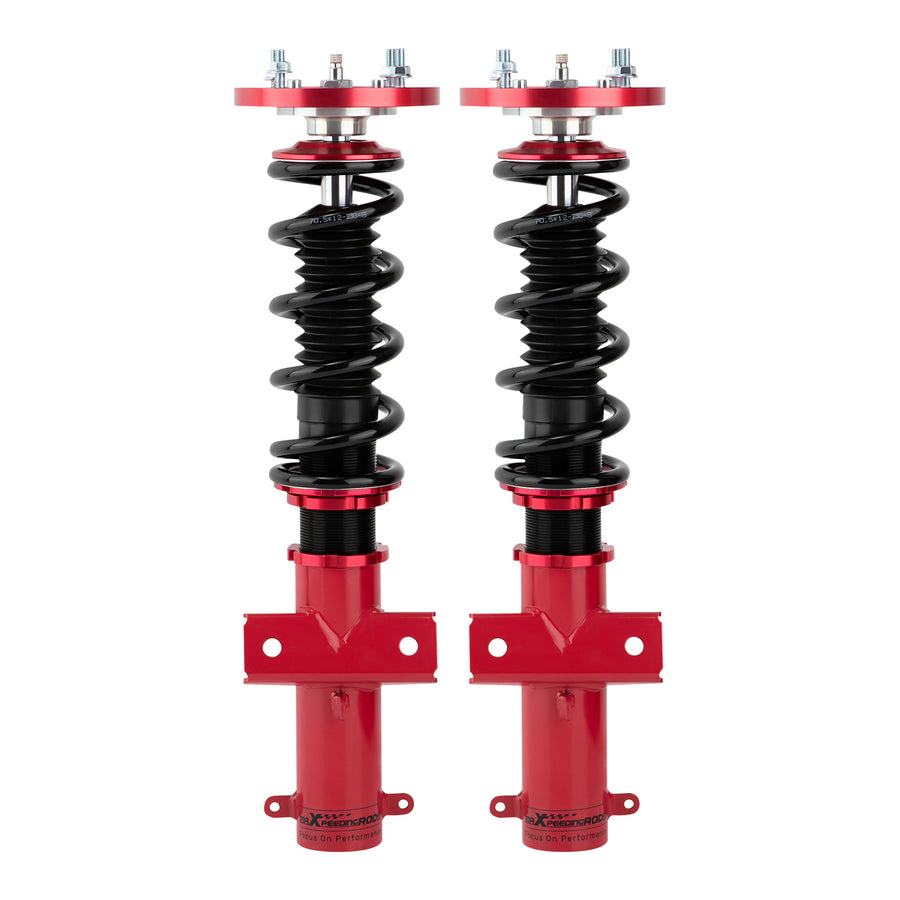

- Front complete coilover assembly

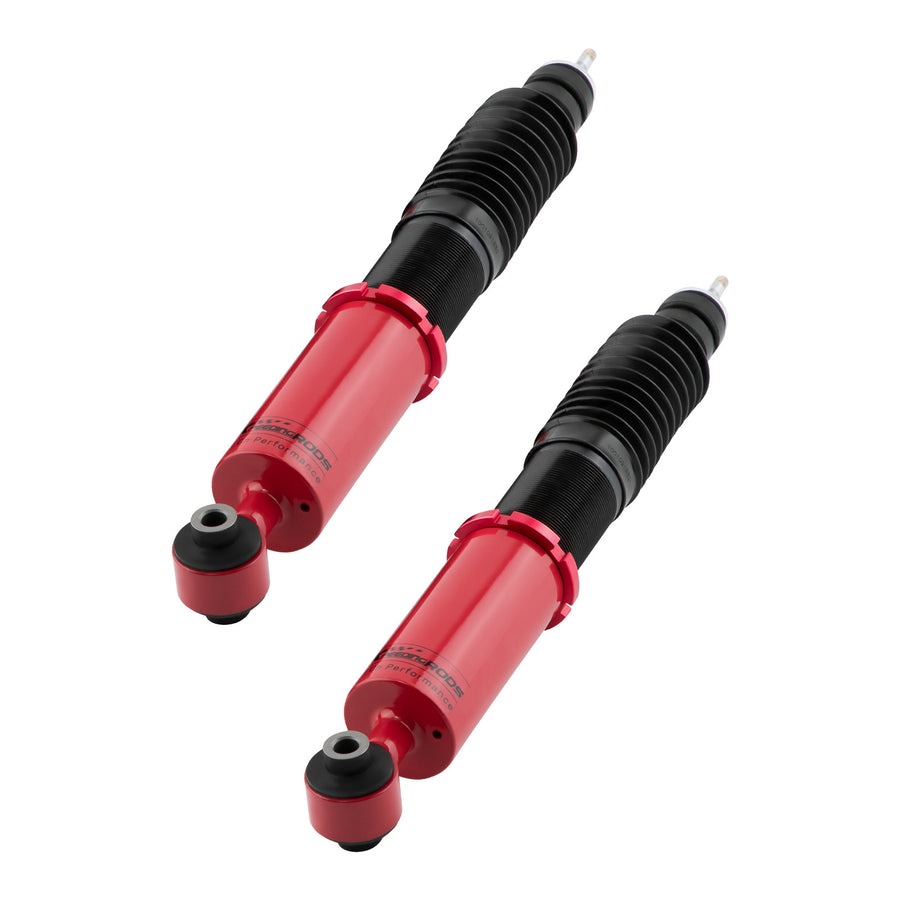

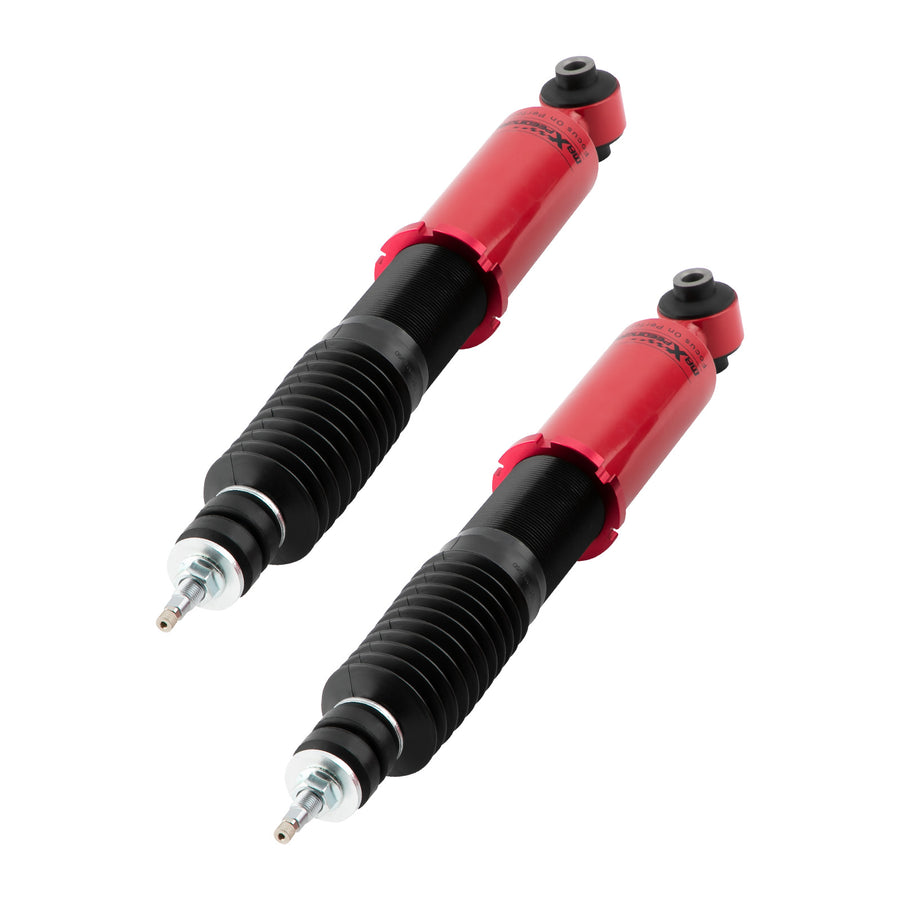

- Rear springs and spring adjusters and shocks
- A pair of front drop links
- A pair wrench for height adjustment
Note
NOT compatible for Shelby for GT500 Models
