Compatible Vehicles
- Compatible for Dodge for Caliber (excluding compatible for SRT-4 )2007-2012
- compatible for Jeep Compass (MK) Compatible for FWD 2008-2017
- compatible for Jeep Compass (MK) 4WD (without Off Road Package) 2008-2017
- compatible for Jeep Patriot (MK) Compatible for FWD 2008-2010
Introduction
T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.
Specification
- Damping adjustable: Available, 24 levels of rebound damping force
- Shock structure type: twin -tube
- Front top mount structure: Pillow ball with camber plate
- Rear top mount structure: OE top mount required
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (556 lbs/in)
- Spring rate Rear: 8 kg/mm (448 lbs/in)
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 180 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm
- Colour: Black body with blue spring
- Warranty: one year warranty for any manufacturing defect
Dimension
- Package size: 64*50*20 cm
- Weight: 22700 g
Feature
- 1. Lowered height adjustment from 25-75mm which allows a lower centre of gravity and also adds a more aggressive stance
- 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

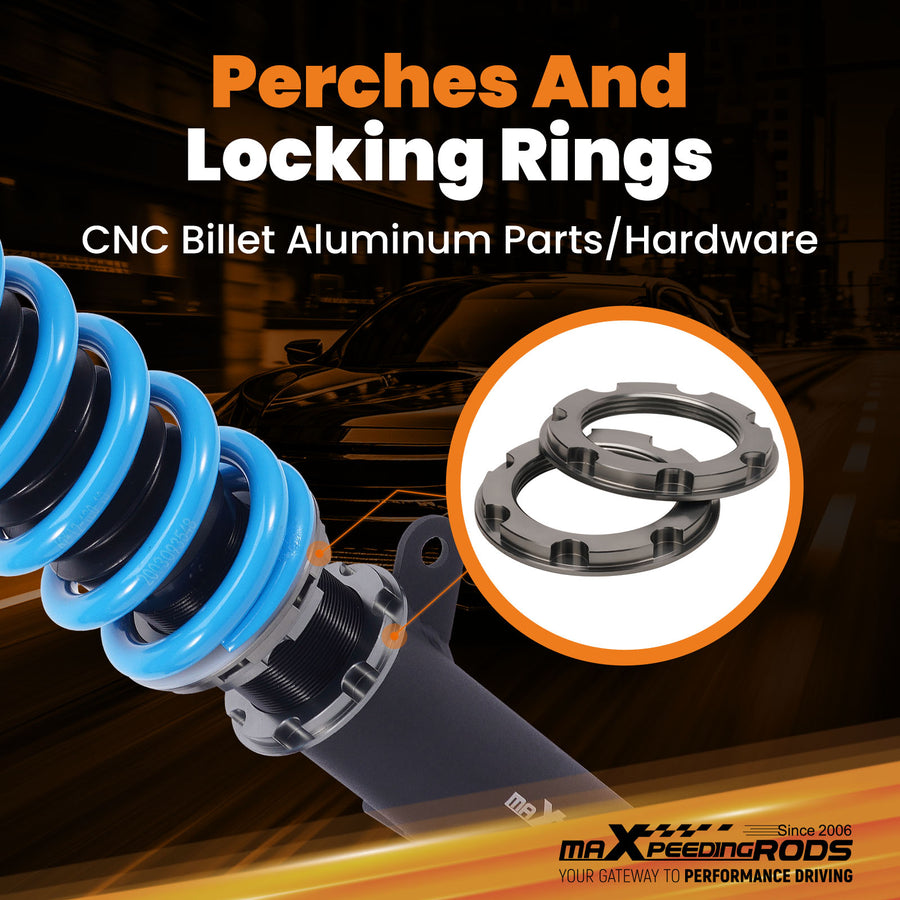

- 4. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
- 5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

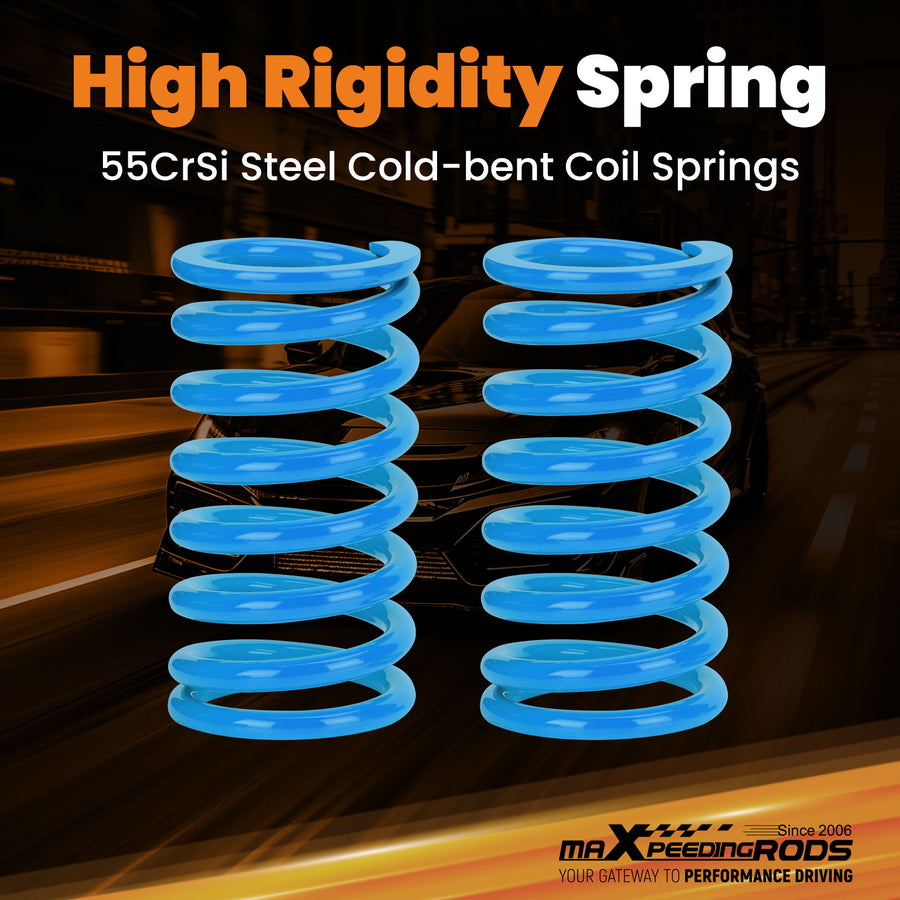

- 6. Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.
- 7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
- 8. With a better-damping setting, you will get better performance and comfort at the same time.
- 9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 10. Anti-corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts
- 11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
- 12. Clean room assembled---maintain a higher level of accuracy and reliability.
- 13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.

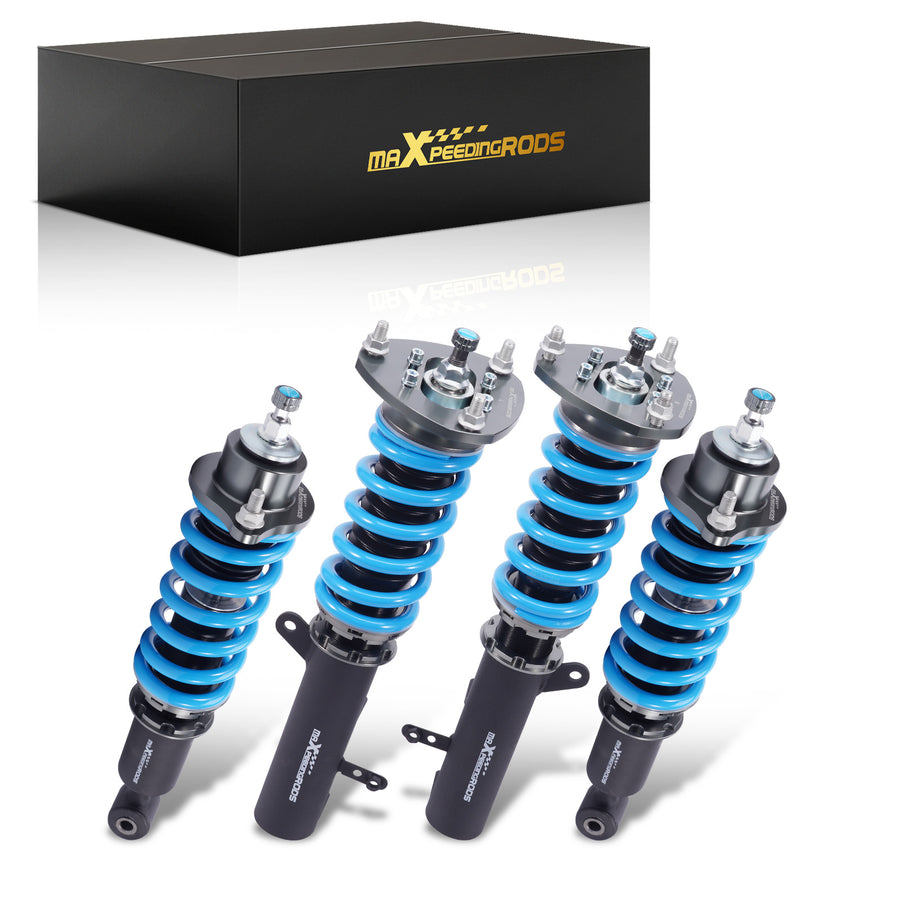

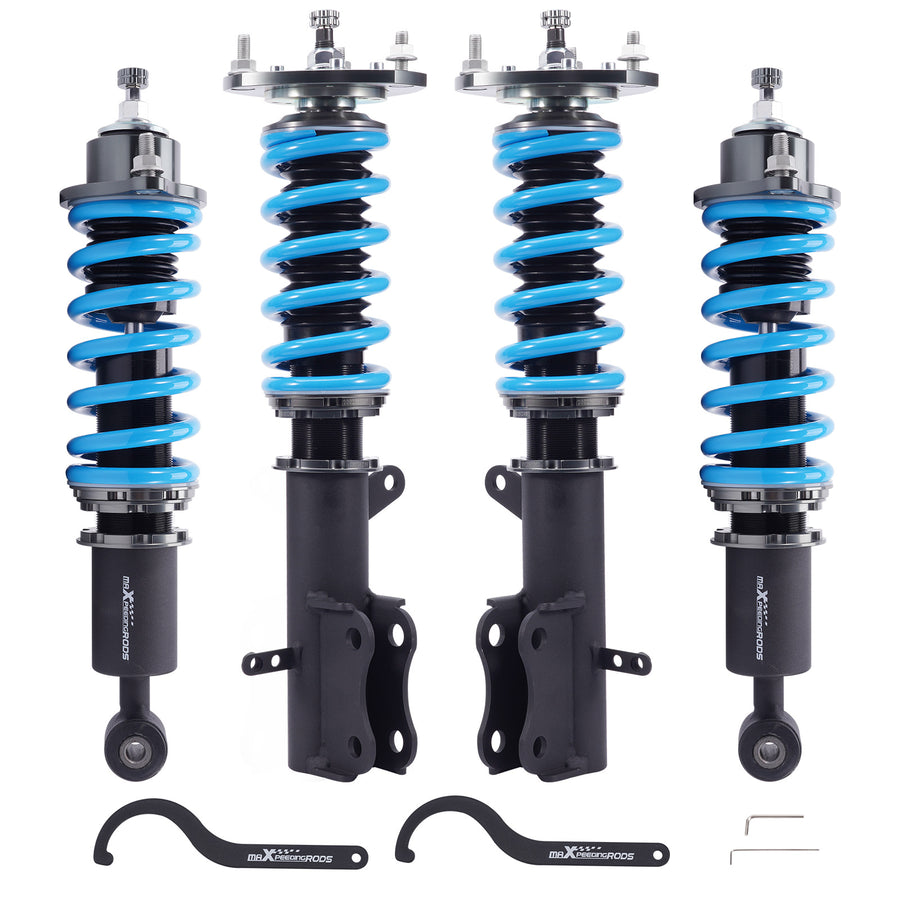

Package included
- 2 x Front coil-overs
- 2 x Rear coil-overs
- 2 x Allen wrench
- 2 x C spanners
