Compatible Vehicles
- Compatible for BMW 5 (E39) (1995-2003)RWD notchback
- model:525 i，530 i，540 i， 520 d，520 i，523 i，525 td，525 tds，528 i 525 d，530 d，535 i
- Note: Not for Wagon or M5 Models.
- Will not fit Self Leveling/Air suspension model.
- Front OE top mounts need to be modified, add spacer on the shaft.
Introduction
' B1 series is ideal for those who want to change the old worn out strut but improve handling at same time. It features with height adjustable and maintain the OE ride quality to the greatest extent.
Specification
- Top mounts: Front and rear OE top mounts required
- Damping: non-adjustable
- Spring rate Front: 6 kg/mm (356 lbs/in)
- Spring rate Rear: 2.5 kg/mm (140 lbs/in)
- Spring length Front: 140mm
- Spring length Rear: 355mm
- Adjustable height: lowering 35mm-75mm
- Coilover overall length Front: 380mm-530mm
- Coilover overall length Rear: 455mm-655mm
- Shock type: Twin tube
- Spring Preload: No
- Colour: blue
Dimension
- Size: 71*51*21 cm
- Weight: 22700g
Feature
- Twin-Tube structure allows sufficient stroke within the shock absorber.
- Height can be adjusted with coilovers installed on the vehicle.
- High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
- Height Adjustment tools included.
- Steel front shock bodies with special surface treatment to improve the durability.
Package included

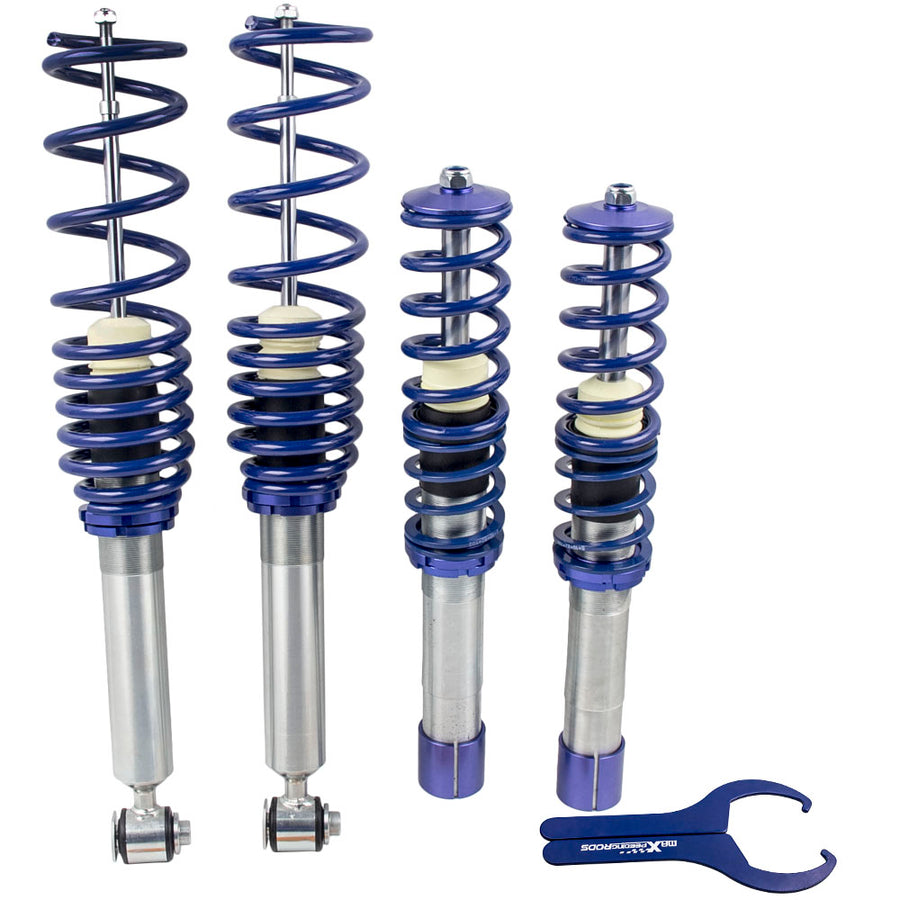

Product included: springs and shocks for front and rear, no top mounts included
