Coilovers Suspension Kits compatible for Mitsubishi Lancer LS Sedan 2002-06 2.0L Adj Damper lowering kit

Compatible Vehicles

• Compatible for MITSUBISHI LANCER ES CS6A compatible for FWD 2002-2006
• compatible for MITSUBISHI LANCER OZ RALLY CS6A compatible for FWD 2002-2006
• compatible for MITSUBISHI LANCER RALLIART CS7A compatible for FWD 2004-2006

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Specification

• Top mount: front camber plate; rear rubber
• Damping: 24 levels rebound damping adjustable
• Spring rate Front: 7 kg/mm (392 lbs/in)
• Spring rate Rear: 6 kg/mm (336 lbs/in)
• Spring length Front: 200mm
• Spring length Rear: 160mm
• Coilover overall length Front: 430mm-515mm
• Coilover overall length Rear: 390mm-430mm
• Adjustable height: Yes lowering 1" to 3"
• Spring Preload: 7-10 mm
• Shock type：Twin tube
• Colour: gold body with black spring

Dimension

• Package dimension : 64*50*20
• Weight: 23280g

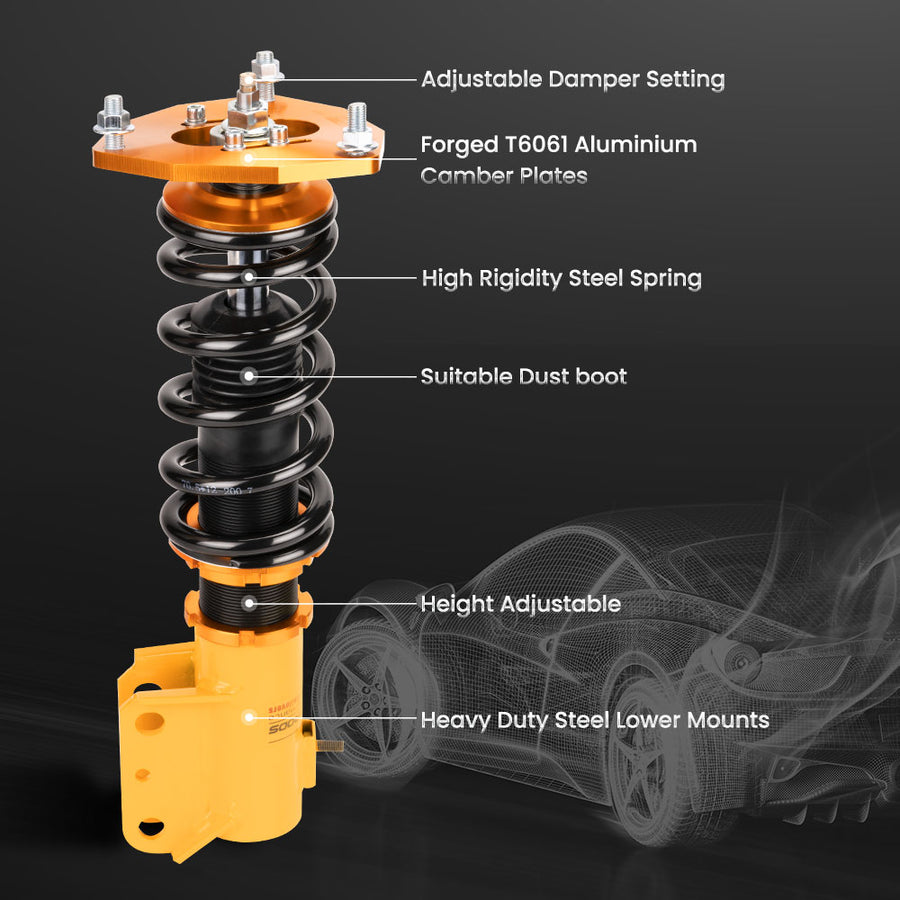

Feature

• 1. Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance.
• 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
• 3.Camber plate top mounts help to eliminate the need for a separate camber kit.

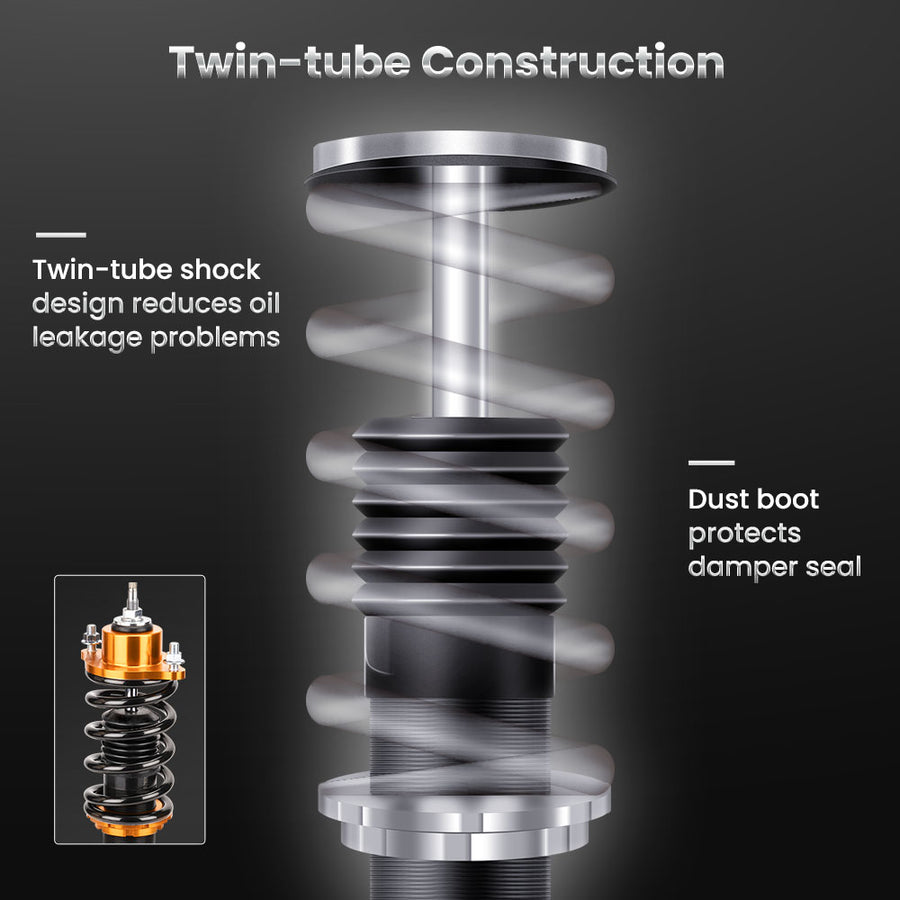

• 4.Twin-Tube structure allows sufficient stroke within the shock absorber.
• 5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
• 6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
• 7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

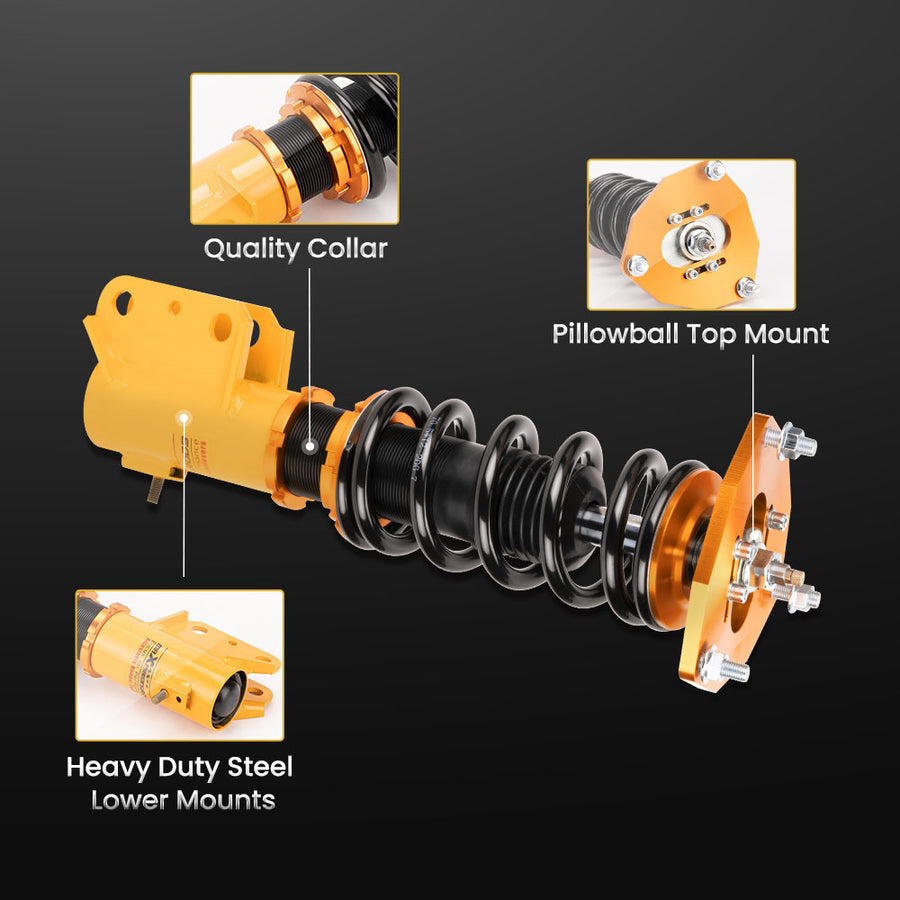

• 8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
• 9.Steel shock bodies with special surface treatment to improve the durability.
• 10. Full rebuildable

Package included

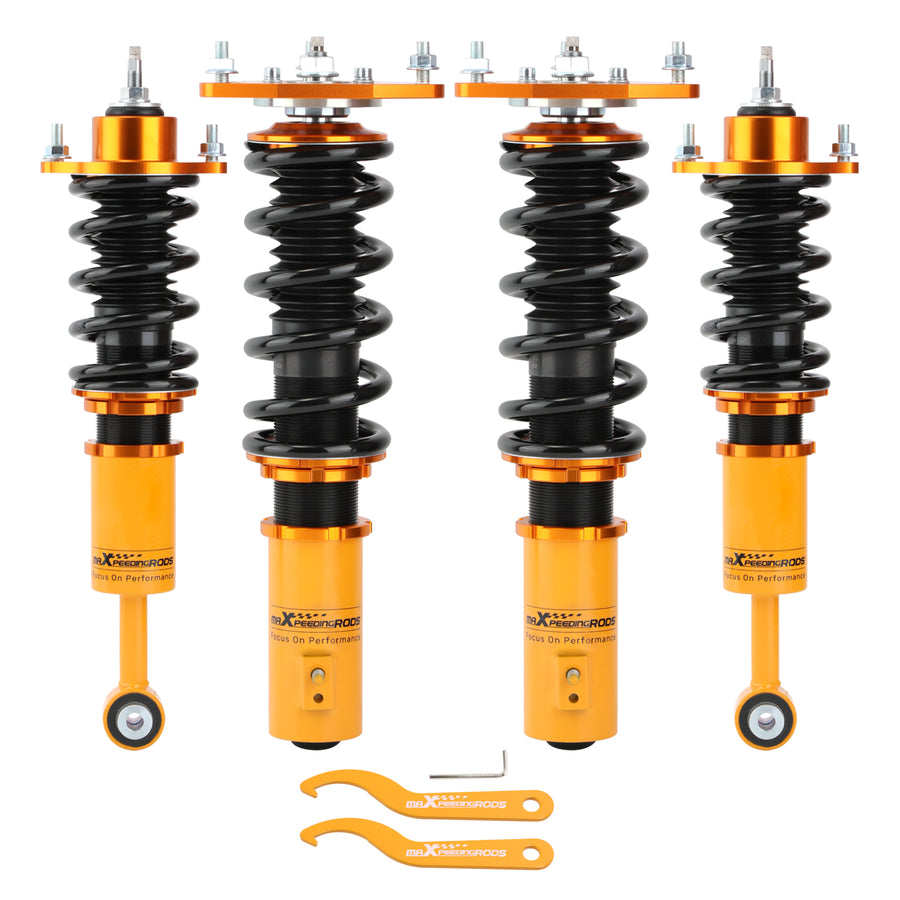

• Complete coilovers assembly 2 front and 2 rear
• A pair wrench for height adjustment
