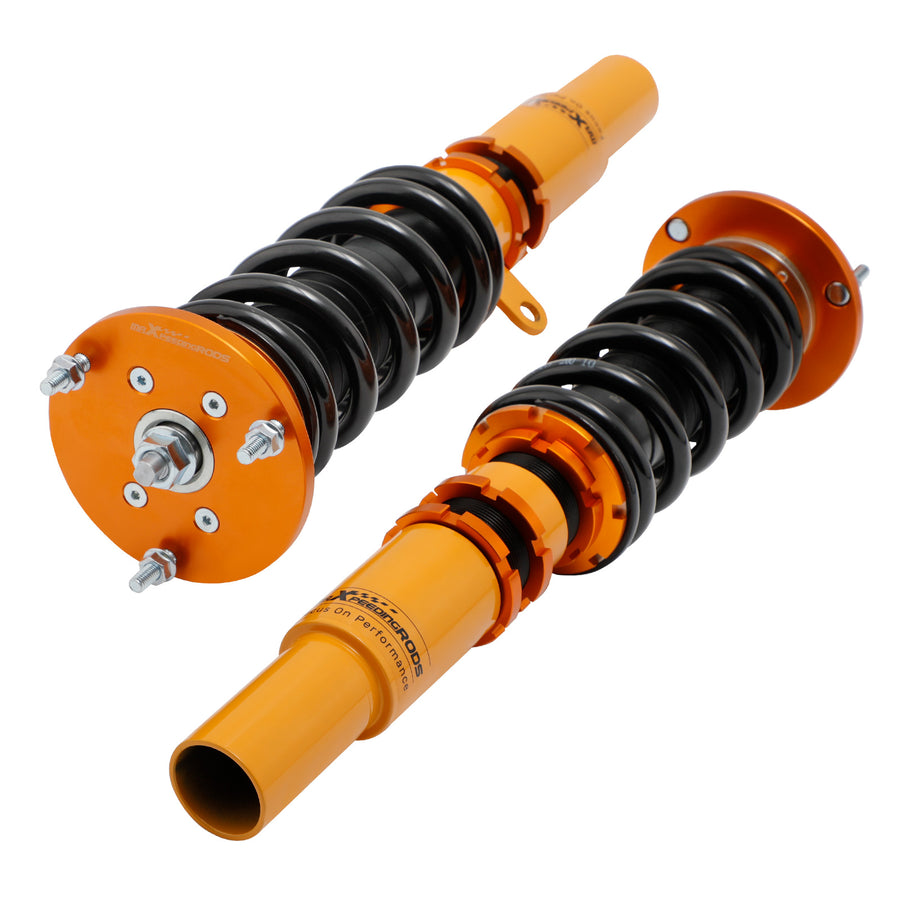

Coilovers Suspension Compatible For BMW 3 Touring (E91) (2004-2012) shock Absorber Strut lowering kit

Compatible Vehicles

• Compatible for BMW 3 (E90) (2004-2011) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 318d, 320d, 325d, 330d, 335d.
• Compatible for BMW 3 Touring (E91) (2004-2012) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 320d, 325d, 330d, 335d.
• Note:
• 1) This product fit RWD vehicle only!
• 2) We suggest adding washers to avoid the engine bar and drilling the rear OE shock top mount upper part a little bigger to a diameter of 12mm.

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Specification

• Top mounts: front - pillow ball top mounts
• rear - OE top mounts required
• Damping: not available
• Spring rate Front: 10 kg/mm (560 lbs/in)
• Spring rate Rear: 8 kg/mm (448 lbs/in)
• Spring length Front: 200mm
• Spring length Rear: 180mm
• Adjustable height: lowering 1-3inch
• Coilover overall length Front: 485mm-520mm
• Coilover overall length Rear: 500mm-570mm
• Shock type: Twin tube
• Spring Preload: 7-10 mm
• Colour: gold

Dimension

• Weight: 25040g
• size: 71*51*21 cm

Feature

• 1. Lowered height adjustment from 1''-3'' which allow lower centre of gravity and also add a more aggressive stance
• 2. Twin-Tube structure allows sufficient stroke within the shock absorber
• 3. Separate height adjustment does not affect damper stroke

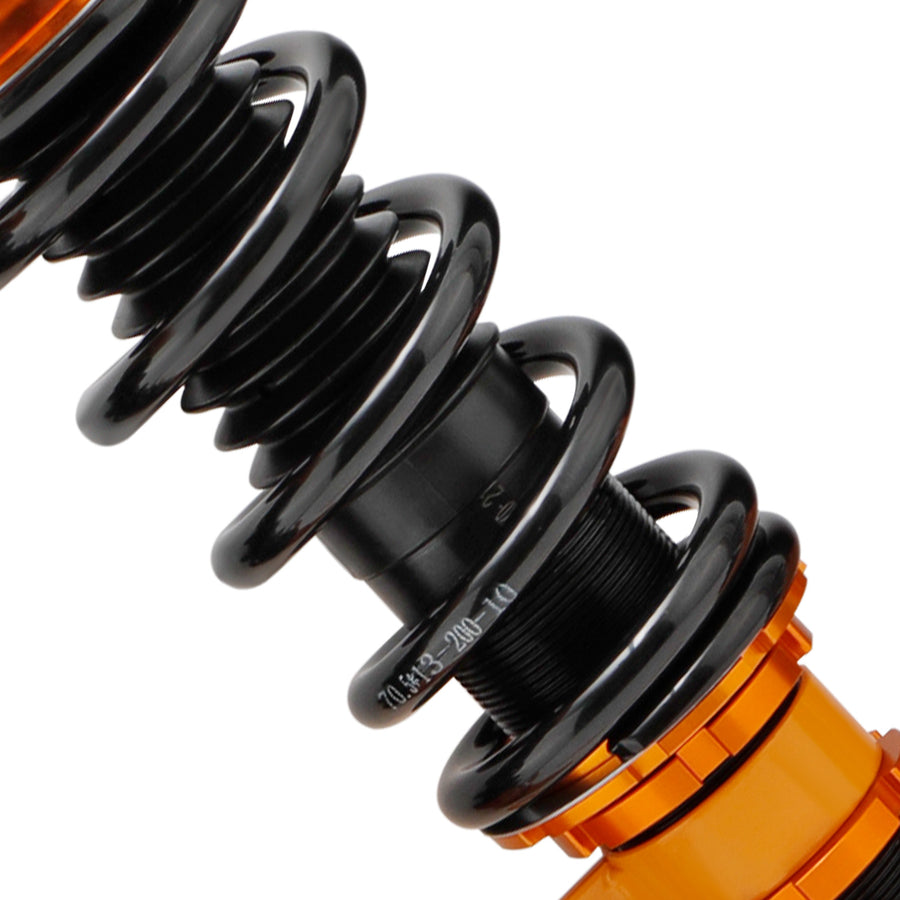

• 4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
• 5. Height adjustment tools included

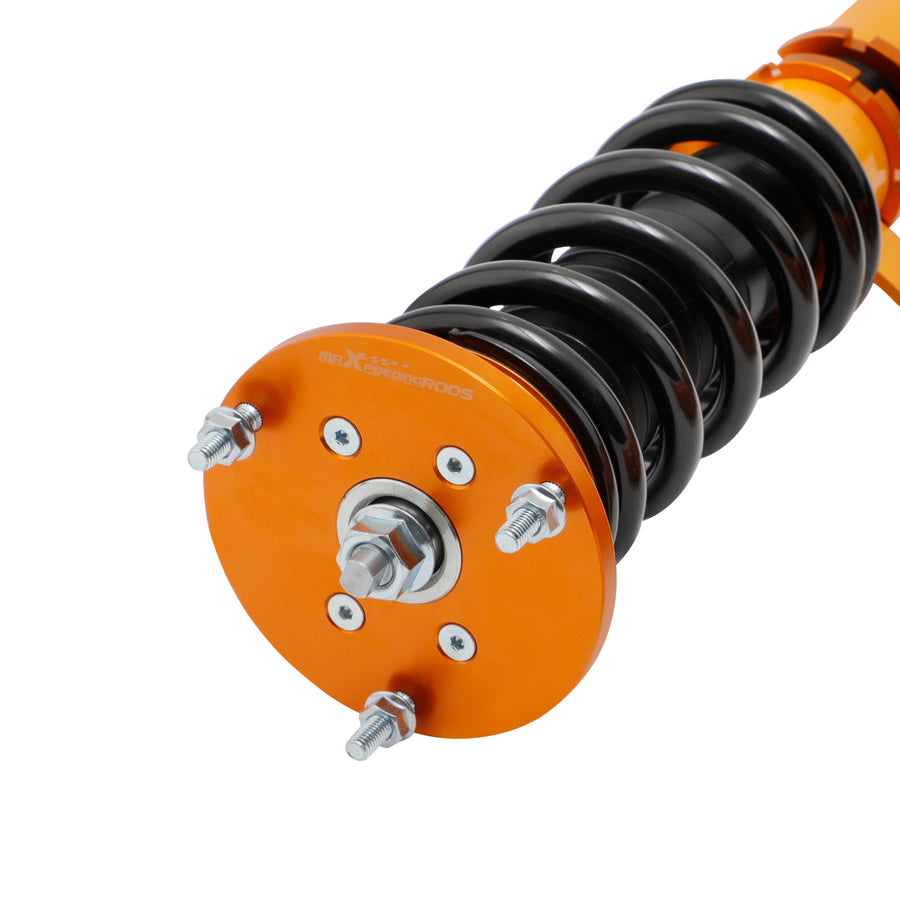

• 6. Pillow ball top mount - It improves the steering feel and response
• 7. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
• 8. Full rebuildable
• 9. Steel shock bodies with special surface treatment to improve the durability.

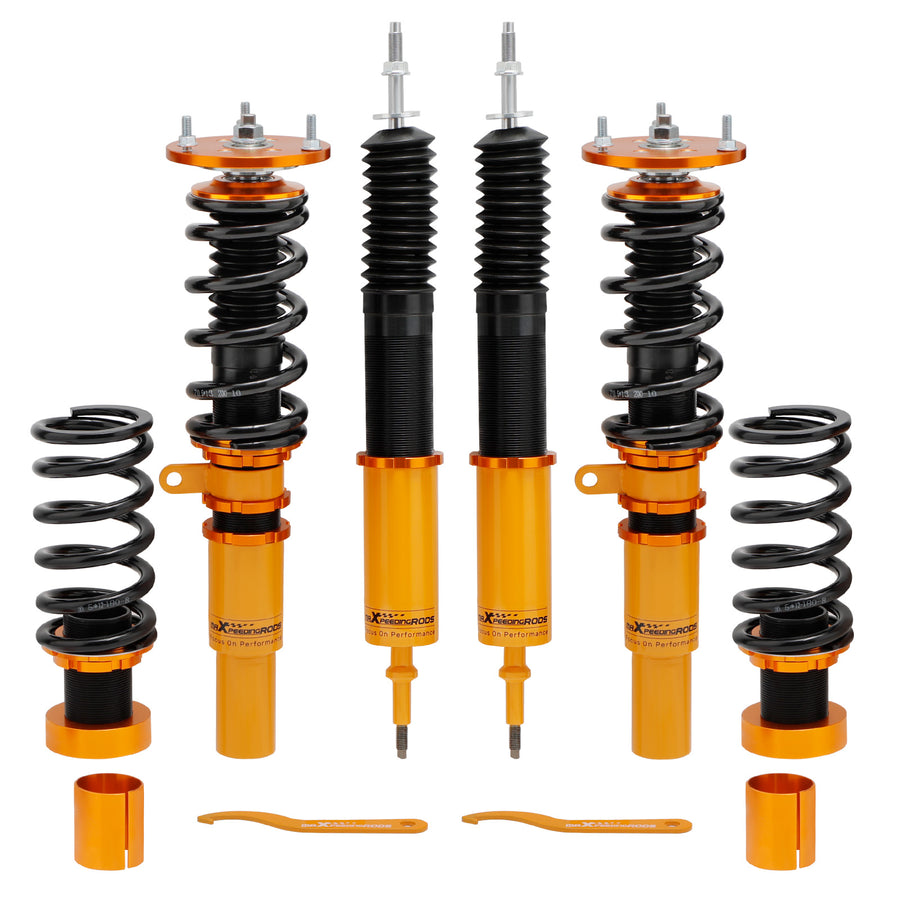

Package included

• Complete coilovers for 2 front and 2 rear
• a pair wrench for height adjustment
