Compatible Vehicles
- Compatible for Mitsubishi Lancer Evolution VII （EVO 7) CT9A 2001-2003
- compatible for Mitsubishi Lancer Evolution VIII （EVO 8) CT9A 2003-2005
- compatible for Mitsubishi Lancer Evolution Evolution IX （EVO 9) CT9A 2005-2007
- compatible for Mitsubishi Lancer Evolution IX WAGON CT9W 2006-2007
Introduction
MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Specification
- Top mount: Front camber plate；rear pillow ball
- Damping: 24 levels rebound damping adjustable
- Spring rate Front: 9 kg/mm (504 lbs/in)
- Spring rate Rear: 7 kg/mm (392 lbs/in)
- Spring length Front: 190mm
- Spring length Rear: 220mm
- Adjustable height: lowering 1-3 inch
- Front coilover length: 415mm-505mm
- Rear coilover length: 495mm-560mm
- Shock type: Twin tube
- Spring Preload: 7-10 mm
- Colour: gold body with black spring
Dimension
- Package dimension : 63*51*21
- Weight: 27180g
Feature
- 1. Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance.
- 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

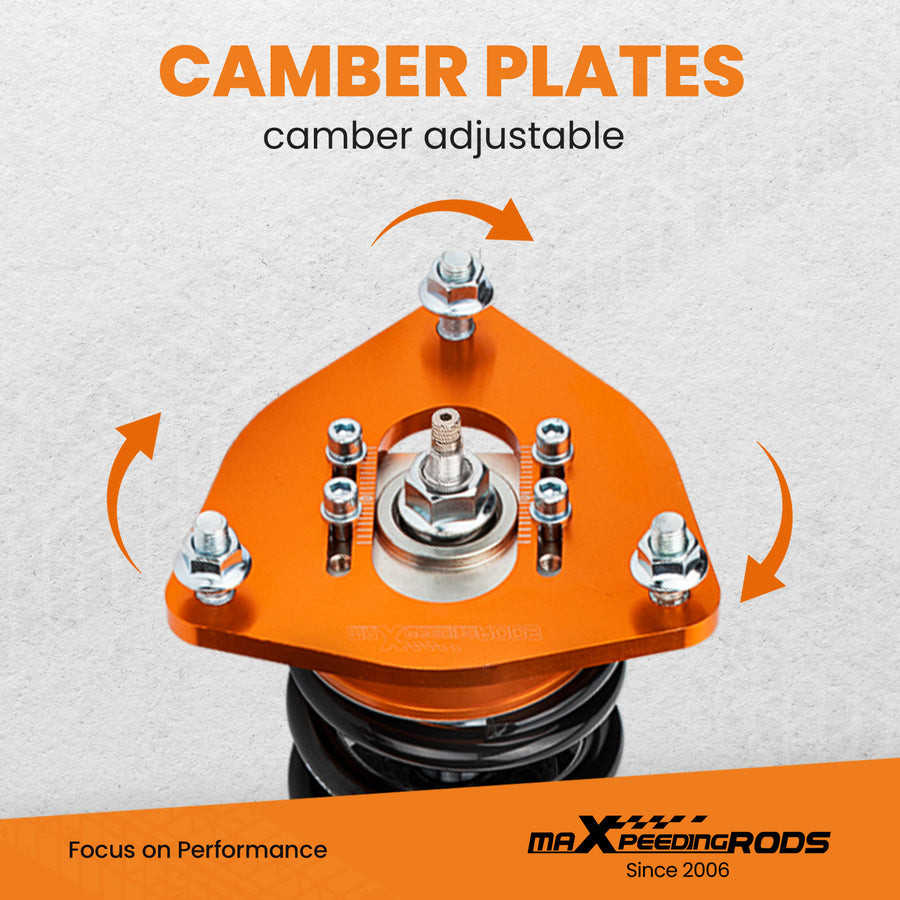

- 3.Camber plate top mounts help to eliminate the need for a separate camber kit.
- 4.Twin-Tube structure allows sufficient stroke within the shock absorber.
- 5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
- 6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
- 7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
- 8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
- 9.Steel shock bodies with special surface treatment to improve the durability.
- 10. Full rebuildable
Package included

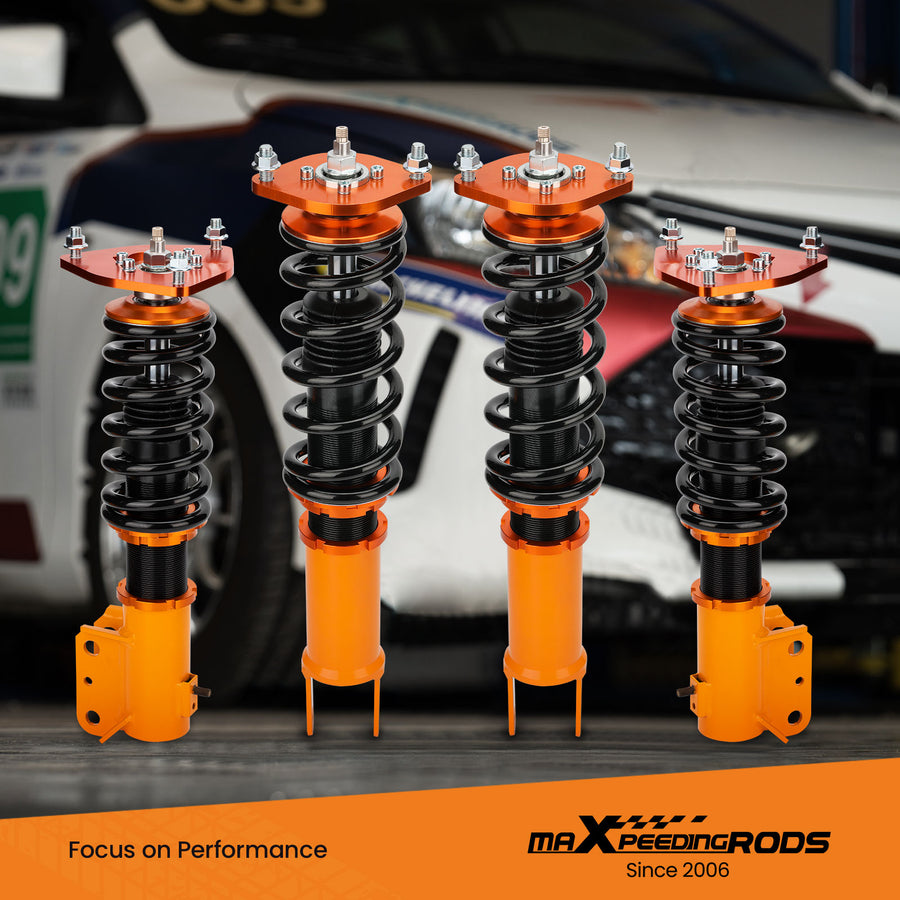

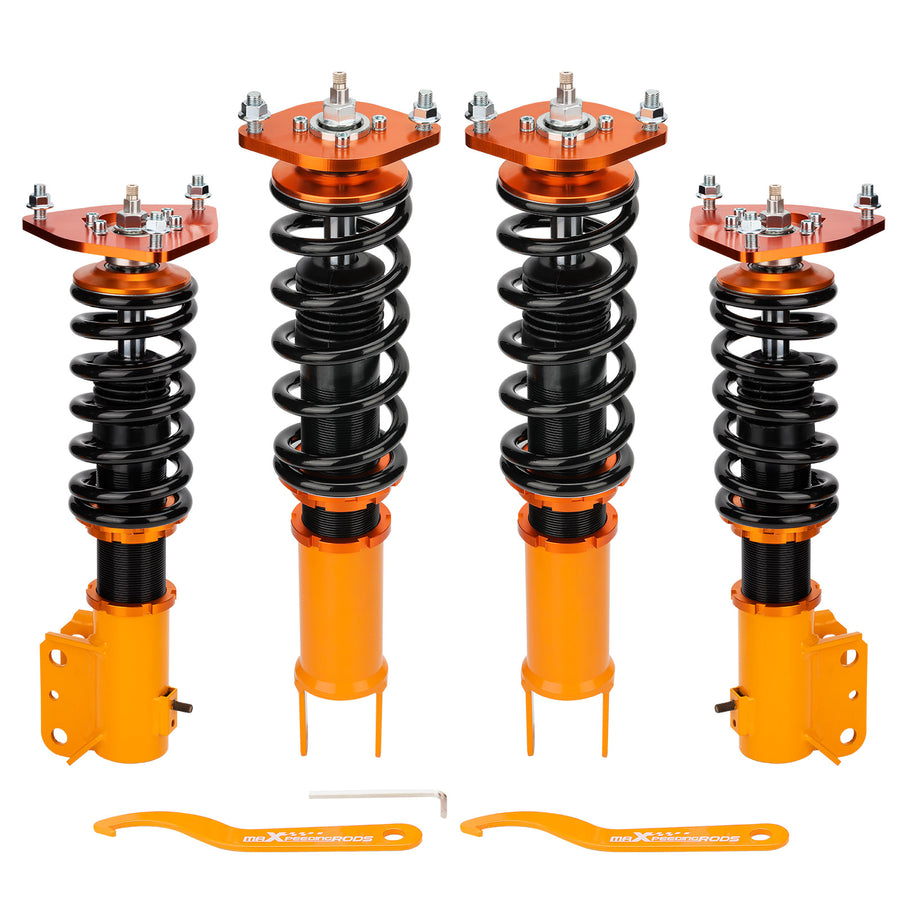

- Front and rear complete coilover assembly
- A pair wrench for height adjustment
