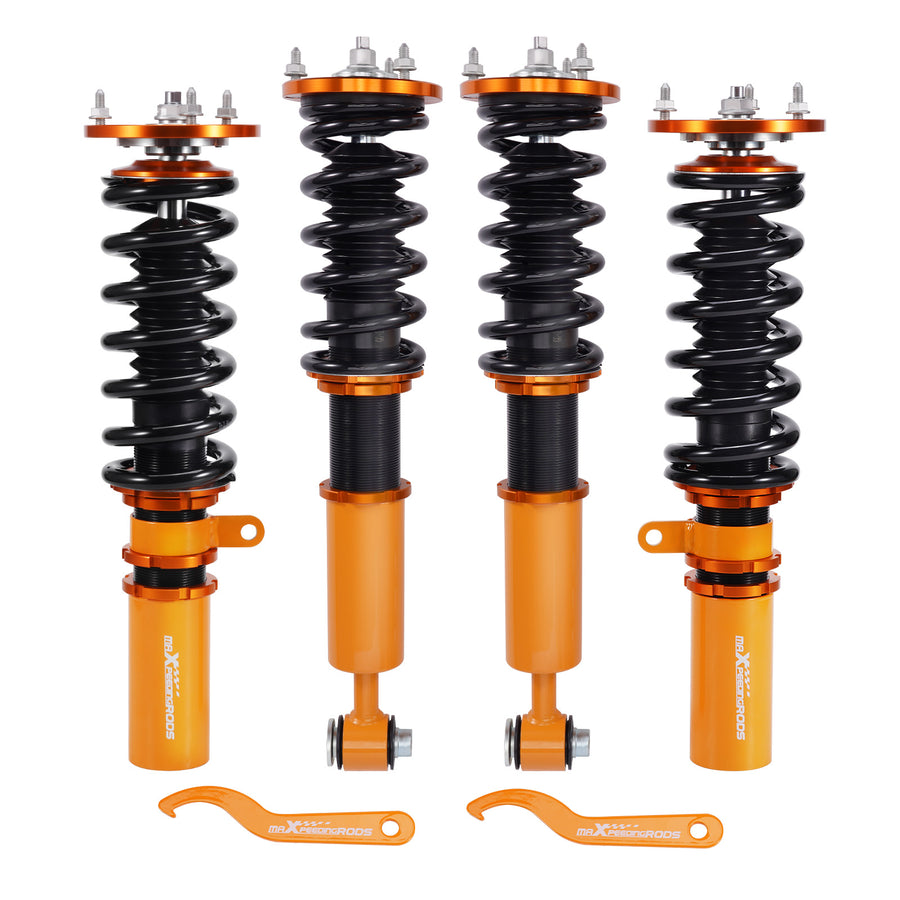

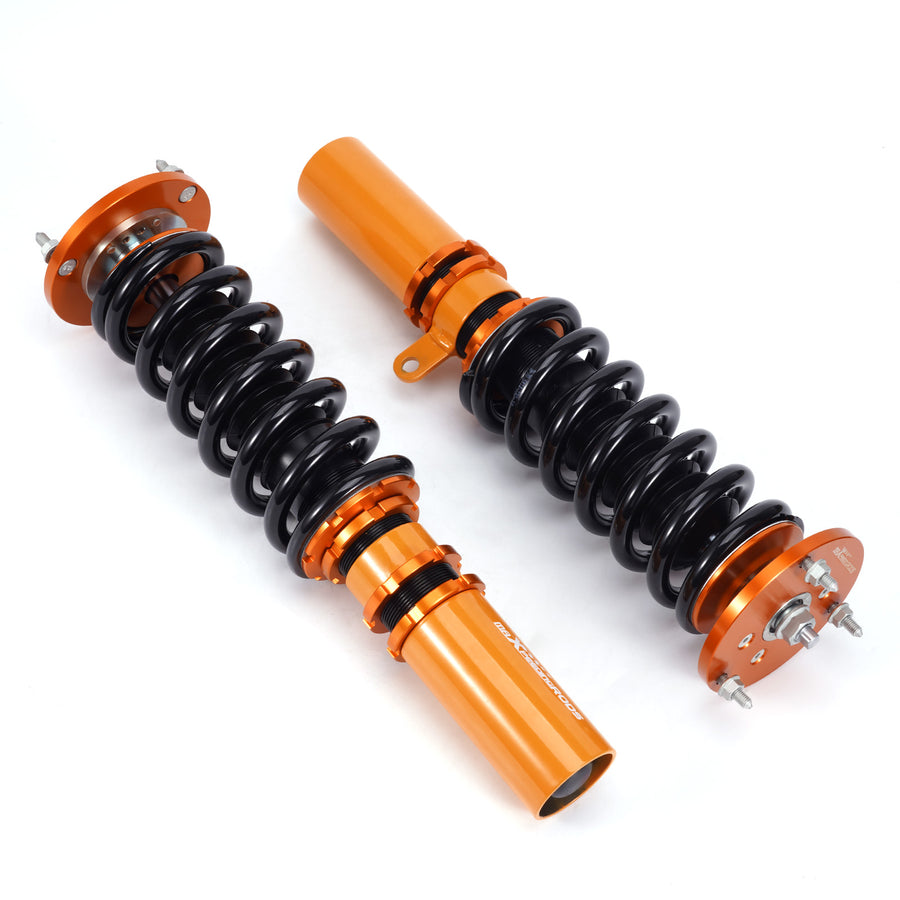

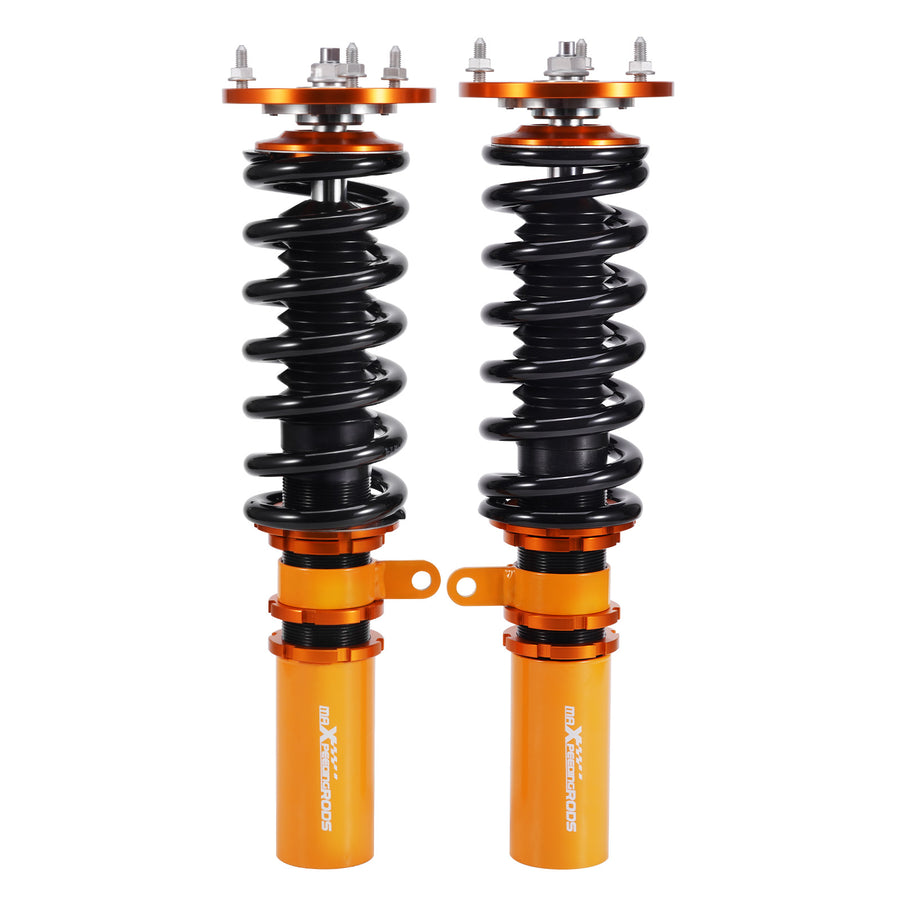

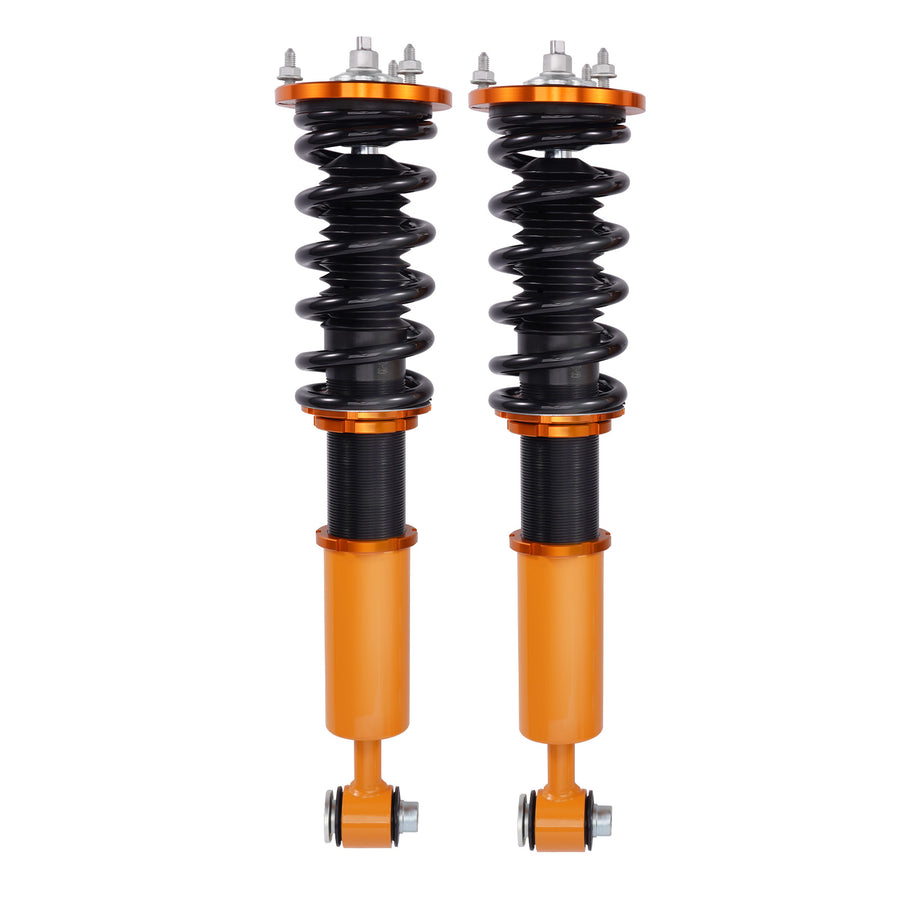

Coilovers Shock Struts compatible for BMW 5 Series E60 Sedan 2004-2010 523 525 528 530 RWD

Compatible Vehicles

• Compatible for BMW 5 series E60 2004-2010 Sedan RWD
• model: 520i,525i,528i,530i,535i,545i,550i,520d,525d,530d,535d
• Note: will not fit M models.

Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

Specification

• Damping adjustable: Not available
• Camber adjustable: Not available
• Front top mount: Pillow ball
• Rear top mount: Standard rubber
• Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
• Spring Rate Front: 10 kg/mm (560 lbs/in)
• Spring Rate Rear: 7 kg/mm (392 lbs/in)
• Front spring inner diameter: 70.5 mm
• Rear spring inner diameter: 70.5 mm
• Spring length Front: 230 mm
• Spring length Rear: 200 mm
• Spring Preload advised: 7-10 mm
• Colour: Golden body with black spring

Dimension

• Package size: 71*51*20 cm
• Weight: 27050 g

Feature

• 1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower centre of gravity and also add a more aggressive stance
• 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
• 3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
• 4. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
• 5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
• 6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
• 7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
• 8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
• 9. Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts

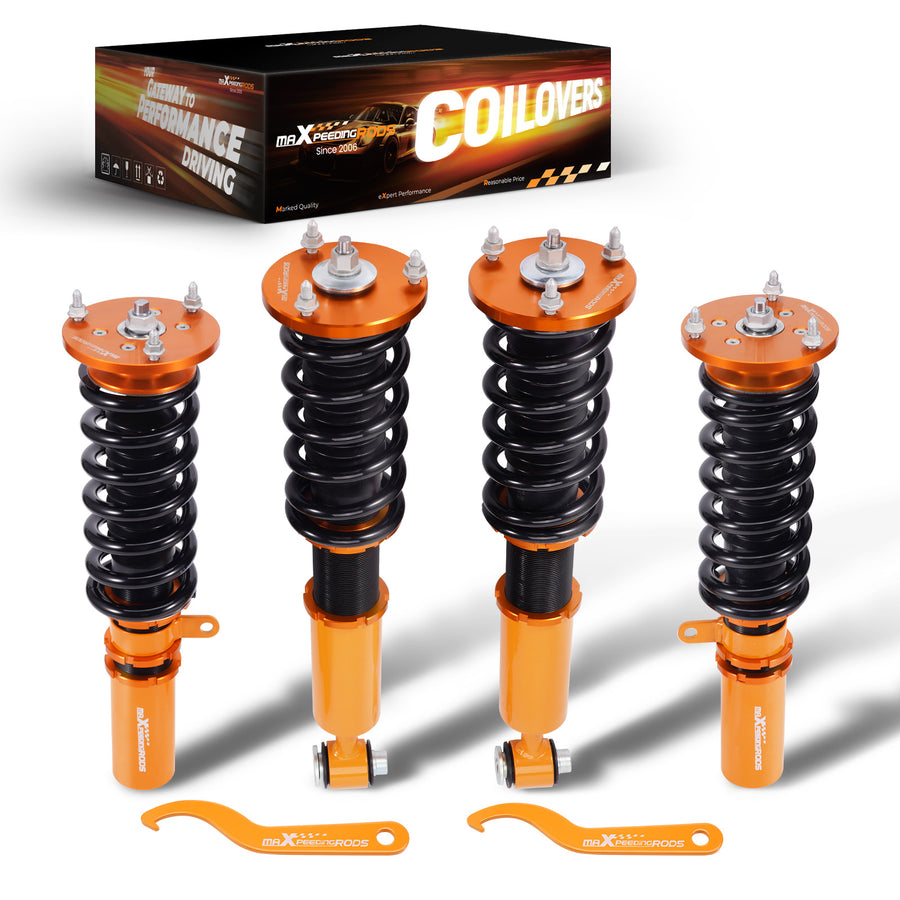

Package included

• Package included：
• 2x Front coil-overs
• 2x Rear coil-overs
• 2x C spanners

Notice

• Notice:
• 1. Installation Requirement: Use spacers to prevent movement of rubber boots when installing eye-type coilovers.
• 2. Regular Inspection: Rubber boots typically last 1-3 years, depending on factors such as vehicle weight, road conditions, climate, and driving habits. Inspect them every six months or during routine maintenance, and replace them immediately if any damage or signs of aging are observed.
• 3. Warranty Coverage Notice: Normal wear and tear on rubber components is not covered by warranty.
