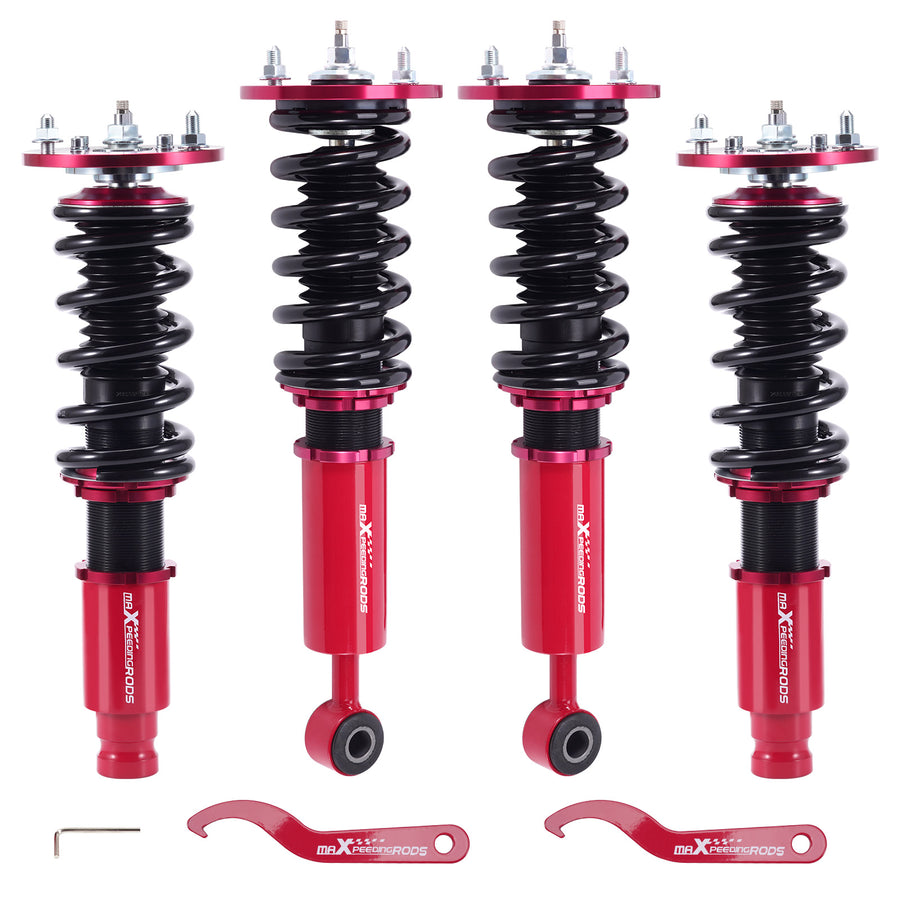

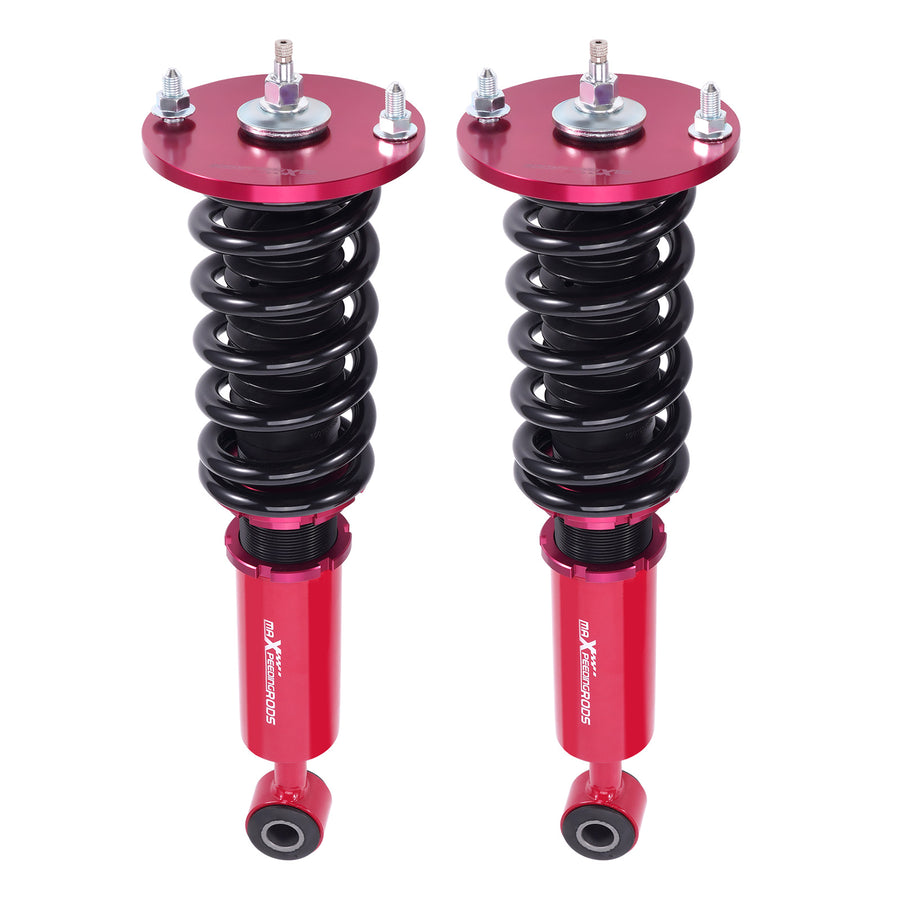

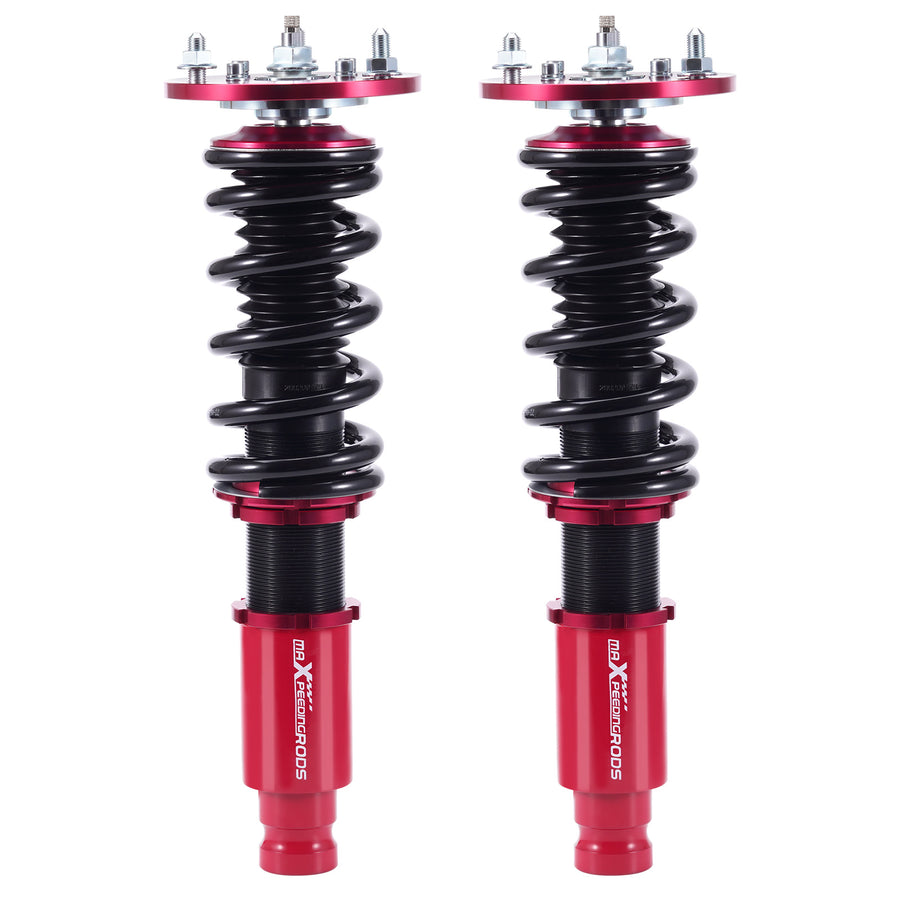

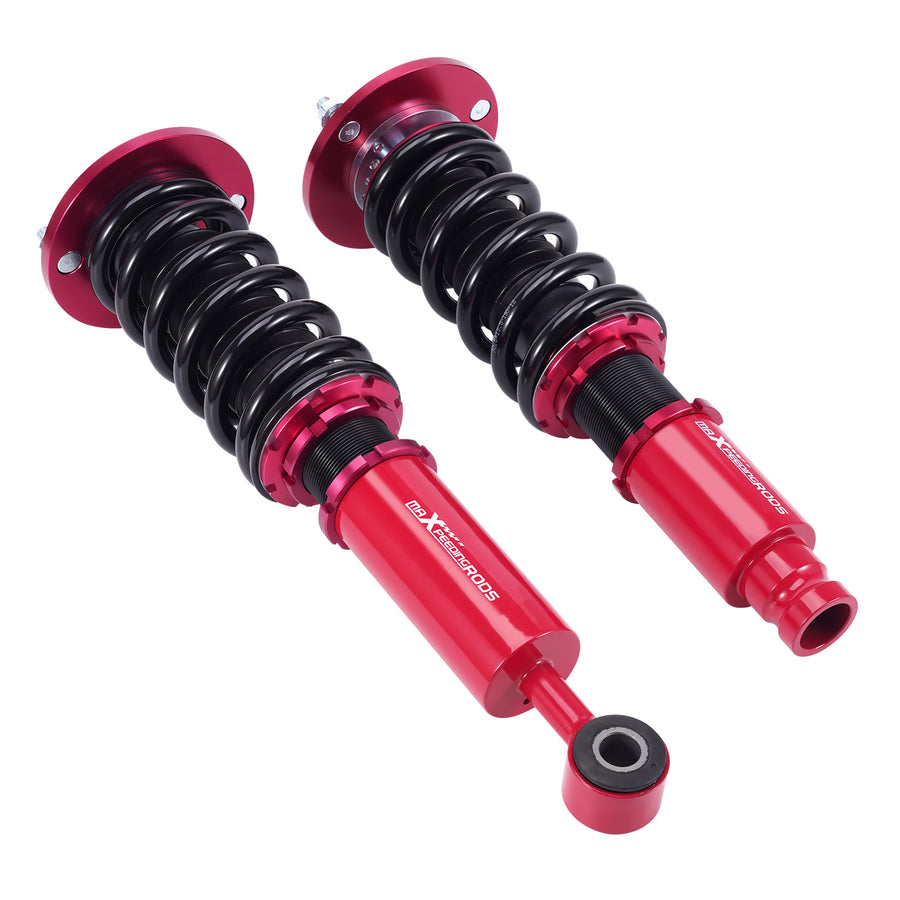

Coilovers Kits compatible for Mitsubishi Eclipse 95-99 2ND Gen Adj Damper 24 Levels Red lowering kit
SKU: CO-ECL-9599-R-LC-VH
Contact us for a quote
Compatible Vehicles
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D38A CONVERTIBLE, 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D33A 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D32A 4CYL/TURBO
Compatible for MITSUBISHI ECLIPSE 1995-1999USA D31A 4CYL/NON TURBO
Specification
Top mount: front camber plate; rear rubber
Damping: 24 levels rebound damping adjustable
Front Spring Rate: 12kg/mm (672 lbs/in)
Rear Spring Rate: 9kg/mm (504lbs/in)
Spring length Front: 190mm
Spring length Rear: 190mm
Coilover overall length Front: 445mm-495mm
Coilover overall length Rear: 485mm-575mm
Adjustable height: Yes lowering 1" to 3"
Spring Preload: 7-10 mm
Shock type：Twin tube
Colour: red body with black spring
Dimension
Package dimension : 63*51*21
Weight: 25260g
Feature
1. Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3.Camber plate top mounts help to eliminate the need for a separate camber kit.
4.Twin-Tube structure allows sufficient stroke within the shock absorber.
5.Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6.Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
7.High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
8.Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
9.Steel shock bodies with special surface treatment to improve the durability.
