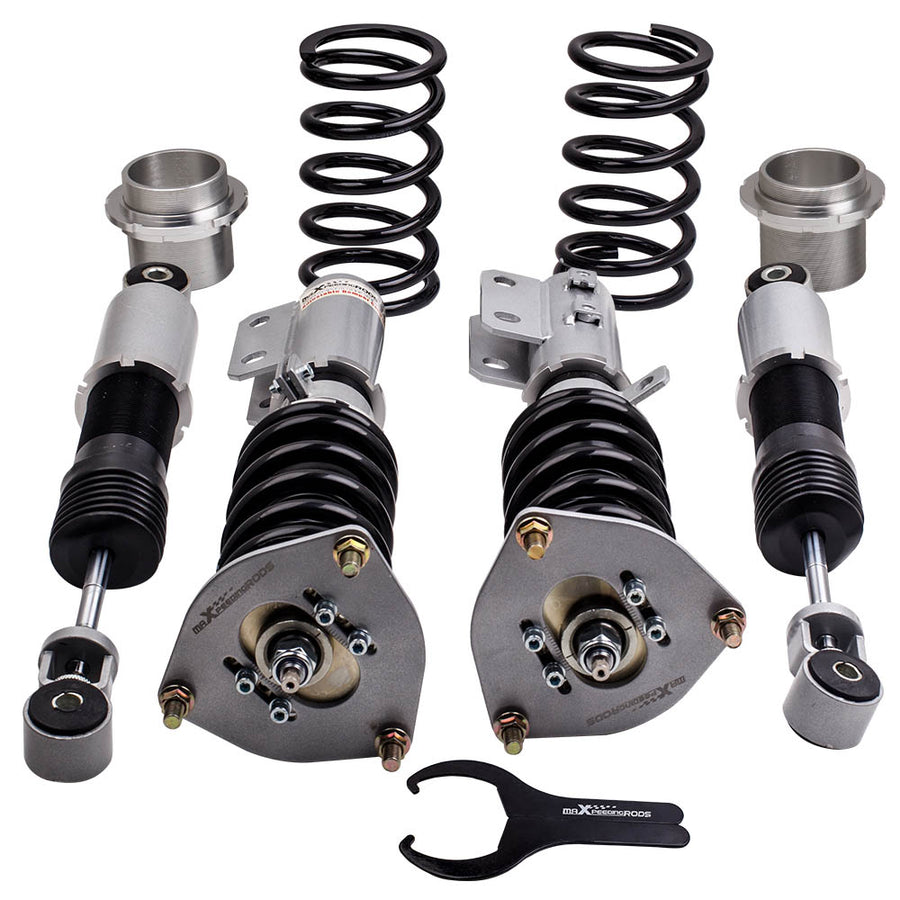

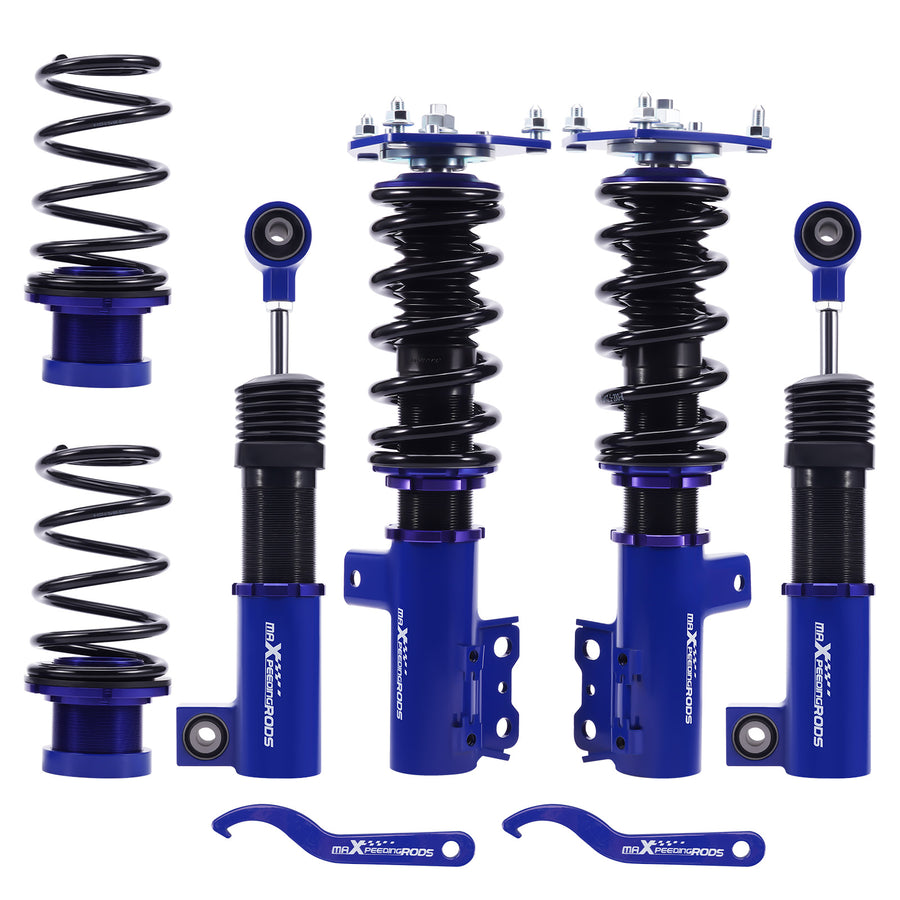

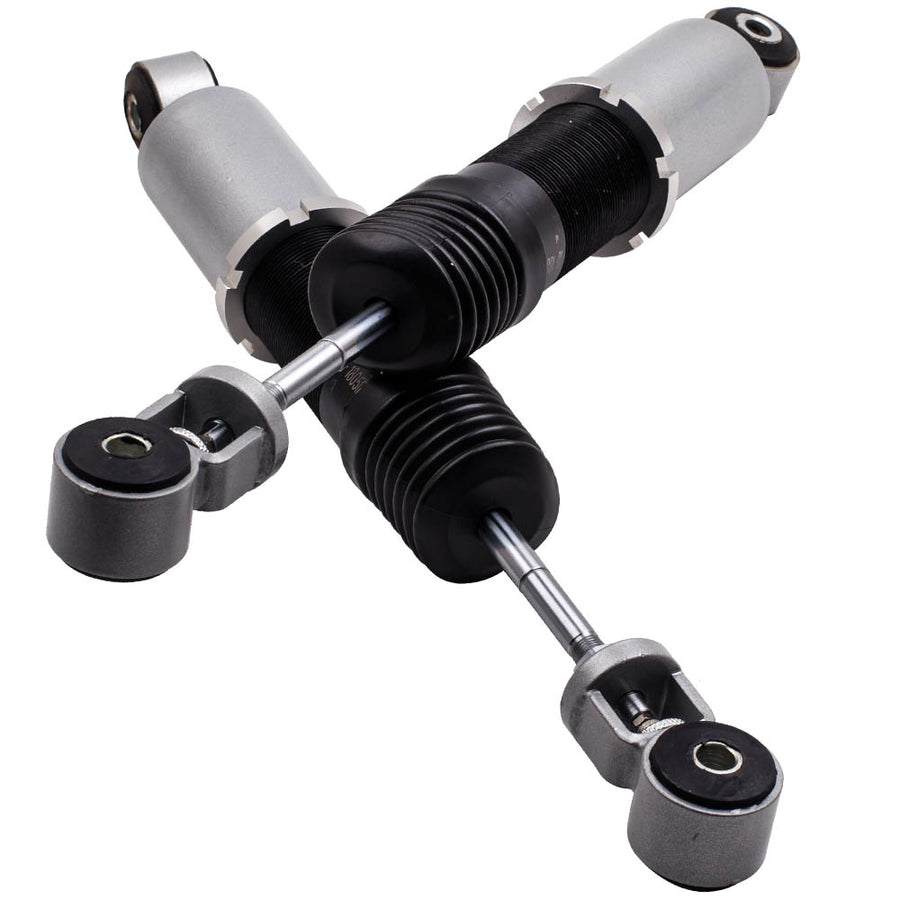

Coilovers Kits compatible for Hyundai Veloster (FS) 1.6L 2012-2018 24-Way adjustable Damper lowering kit

Compatible Vehicles

• Compatible for Hyundai Veloster (FS) 2012-2018

Introduction

-B3 series(also called -SLC) based on -B2 series(also called -SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Specification

• Top mounts: front pillow ball top mount with camber plate
• rear no top mounts included
• Damping: 24 levels rebound damping adjustable
• Spring rate: front 8kg/mm rear 6kg/mm
• Adjustable height: Yes lowering 1" to 3"
• Shock type: Twin tube
• Spring Preload: 7-10 mm
• Colour: grey

Dimension

• Weight: 24520g
• size: 63*51*21 cm

Feature

• 1. Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance
• 2. Twin-Tube structure allows sufficient stroke within the shock absorber.
• 3. Separate height adjustment does not affect damper stroke.

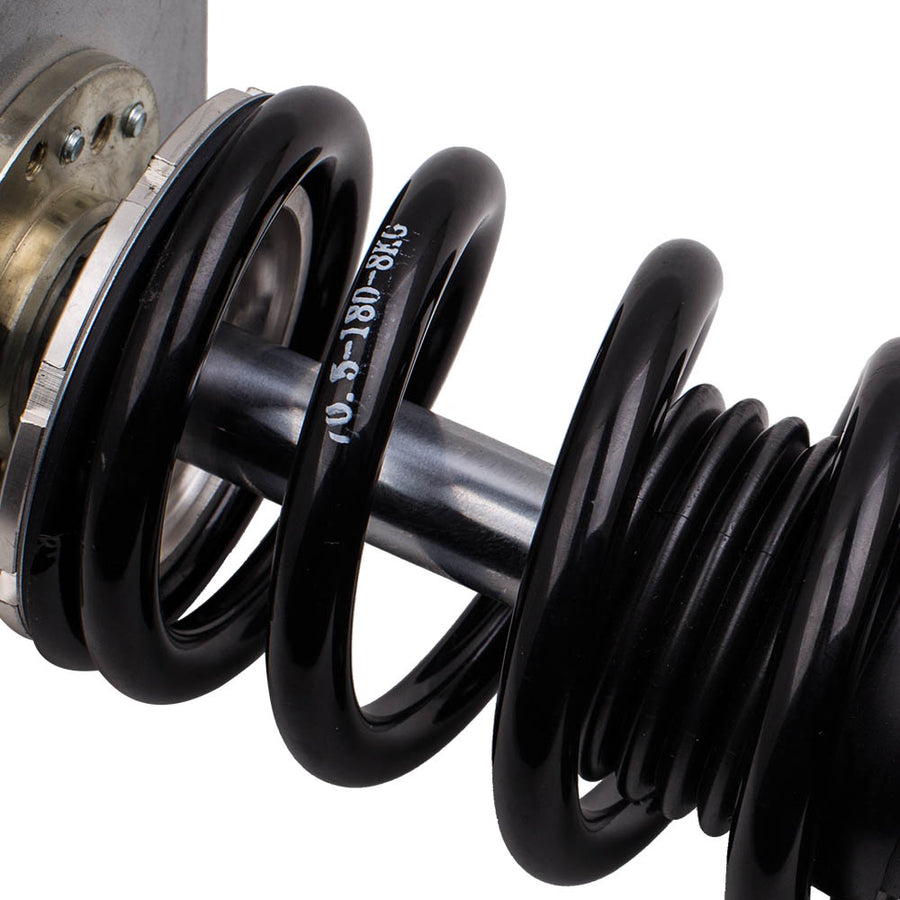

• 4. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
• 5. Height Adjustment tools included.

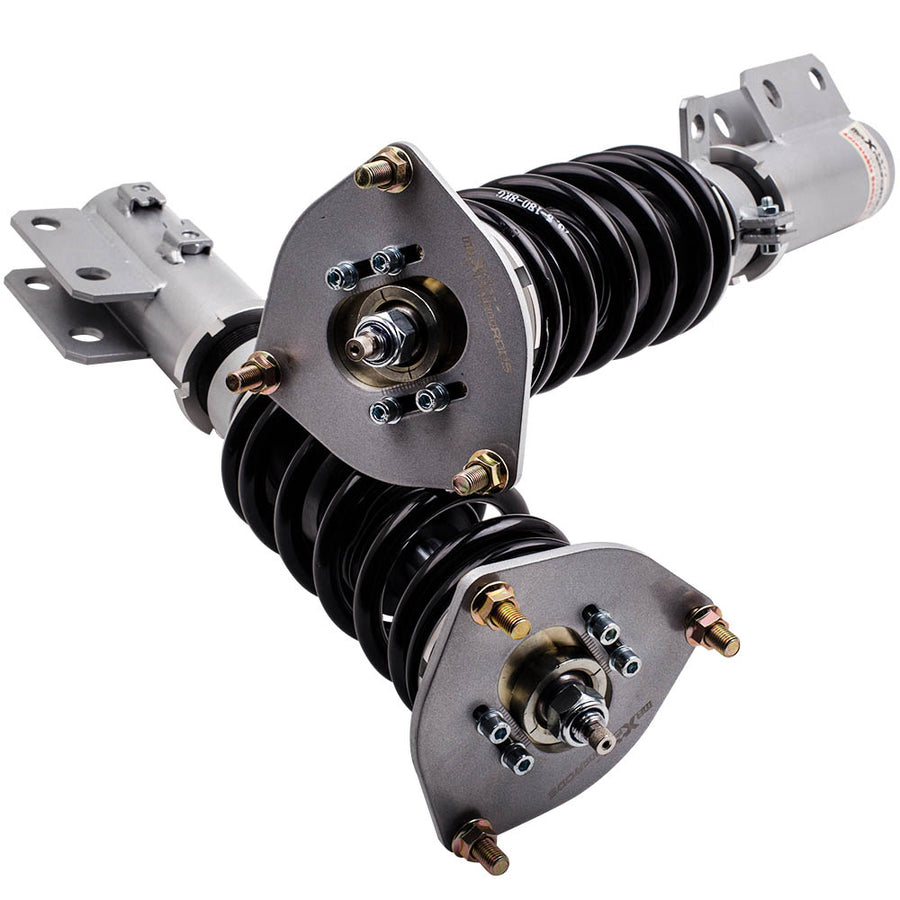

• 6. Camber plate top mounts help to eliminate the need for a separate camber kit.
• 7. Pillow ball top mount - It improves the steering feel and response.
• 8. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
• 9. Full rebuildable.
• 10. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Package included

• Complete coilovers 2 front and 2 rear
• a pair wrench for height adjustment
