Compatible Vehicles
- For S14 Silvia 1994-1998 (Japan Market)
- for S14 200SX BASE MODEL/ LE 1994-1998 (Europe / Australia/ New Zealand Market)
- for S14 240SX BASE MODEL/ LE/SE 1995-1998 (USA Market)
- Note: Don't compatible for Nissan 200SX SE /SE-R
Specification

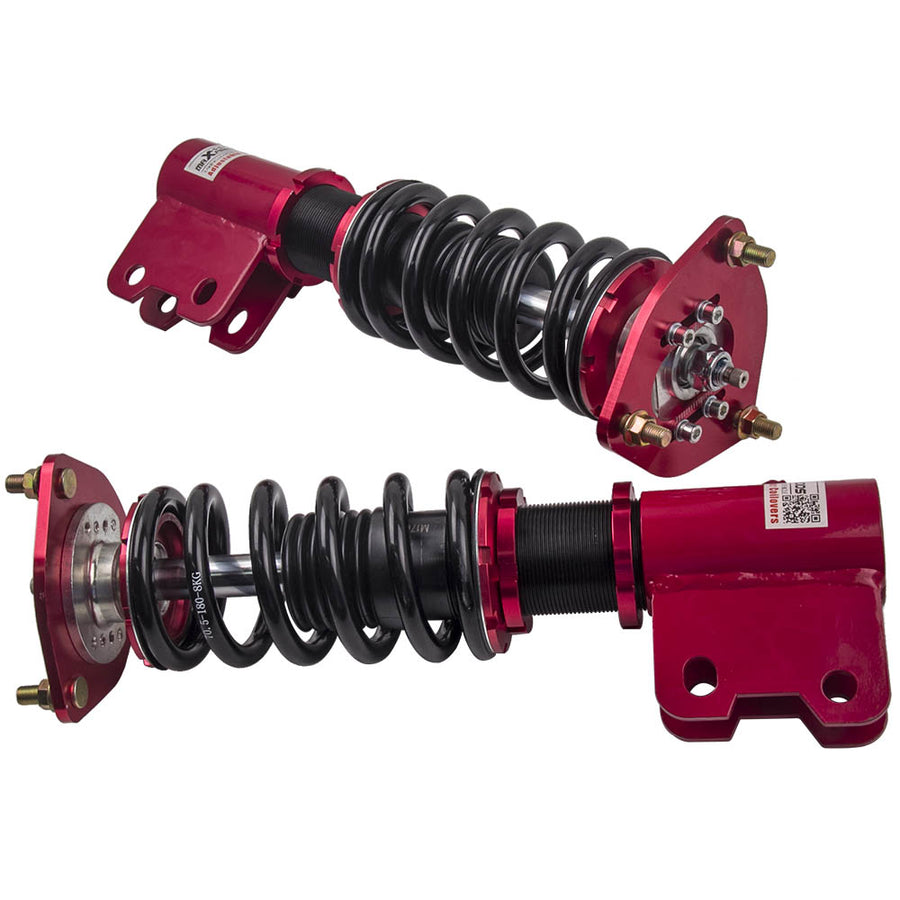

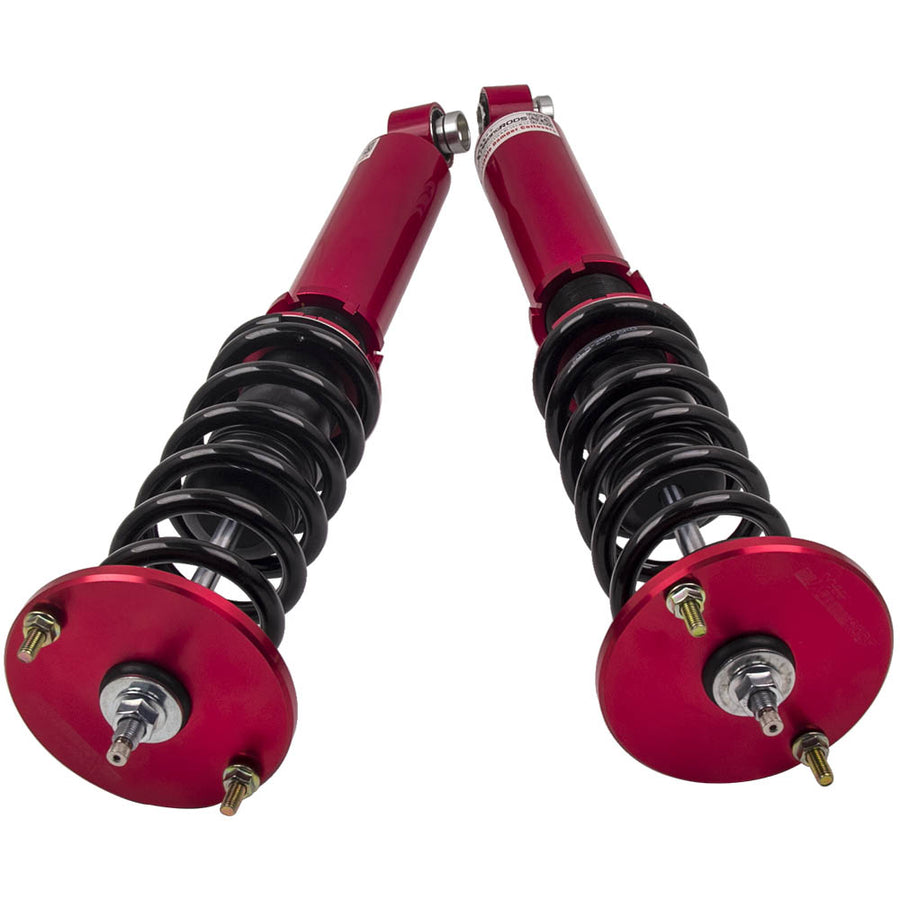

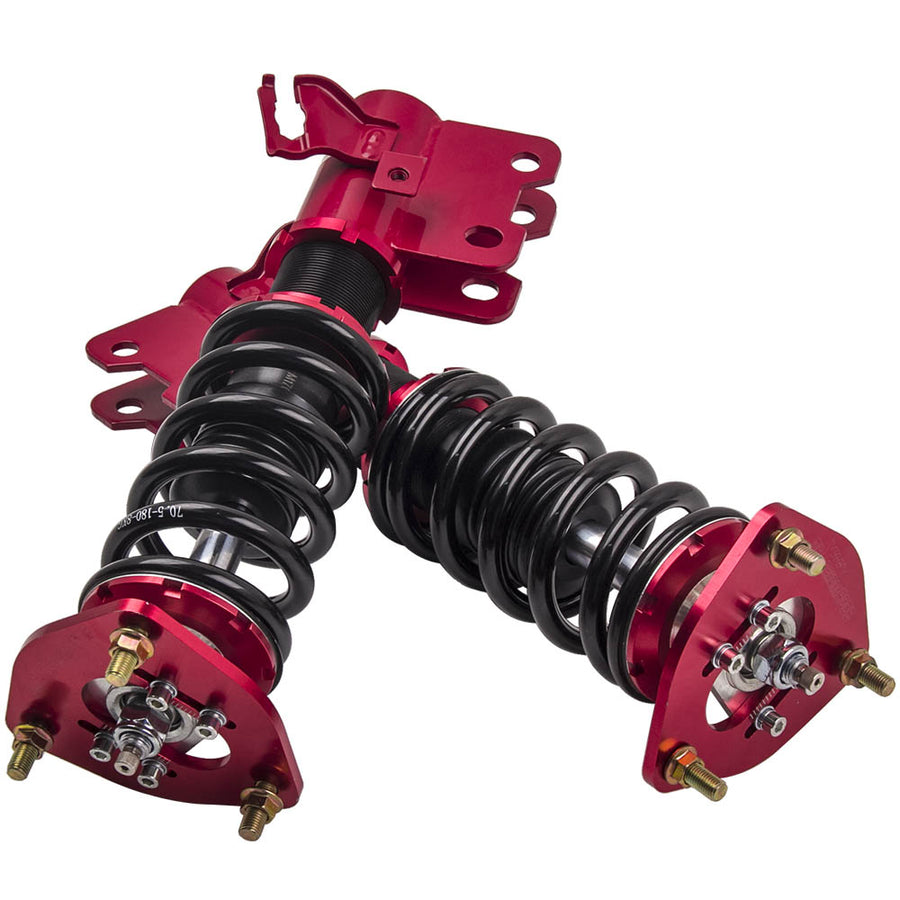

- Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear
- Damping: 24 levels rebound damping adjustable
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Spring length Front: 180mm
- Spring length Rear: 255mm
- Adjustable height: lowering 1-3 inch
- Coilover overall length Front: 420mm-470mm
- Coilover overall length Rear: 550mm-700mm
- Shock type: Twin tube.
- Spring Preload: 7-10 mm.
- Colour: red.
Dimension
- Gross weight: 26.06kg
- Package size: 71*51*21cm
Feature
- 1. Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance.
- 2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)
- 3.Pillow ball top mount - It improves the steering feel and response.（Only Front )
- 4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (Only Rear)
- 5. Twin-Tube structure allows sufficient stroke within the shock absorber.
- 6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
- 7. Separate height adjustment does not affect damper stroke.
- 8. Height can be adjusted with coilovers installed on the vehicle.
- 9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
- 10. Height Adjustment tools included.
- 11. Full rebuildable.
- 12.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Package included

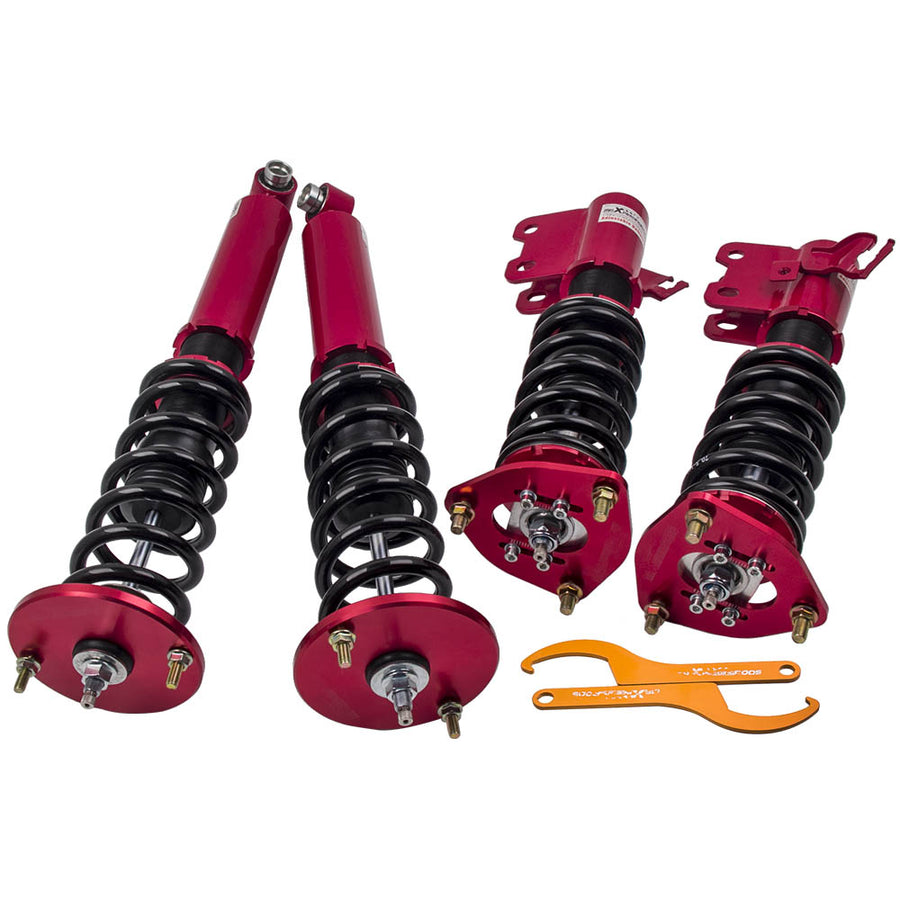

Product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.
