Compatible Vehicles
- Compatible for Nissan Cube (Z12) 2009-2014
Introduction
MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.
Specification
- Front top mount: Pillow ball
- Rear top mounts: OE top mount required
- Damping adjustable: Available, 24 levels of rebound damping force
- Shock structure type: twin -tube
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

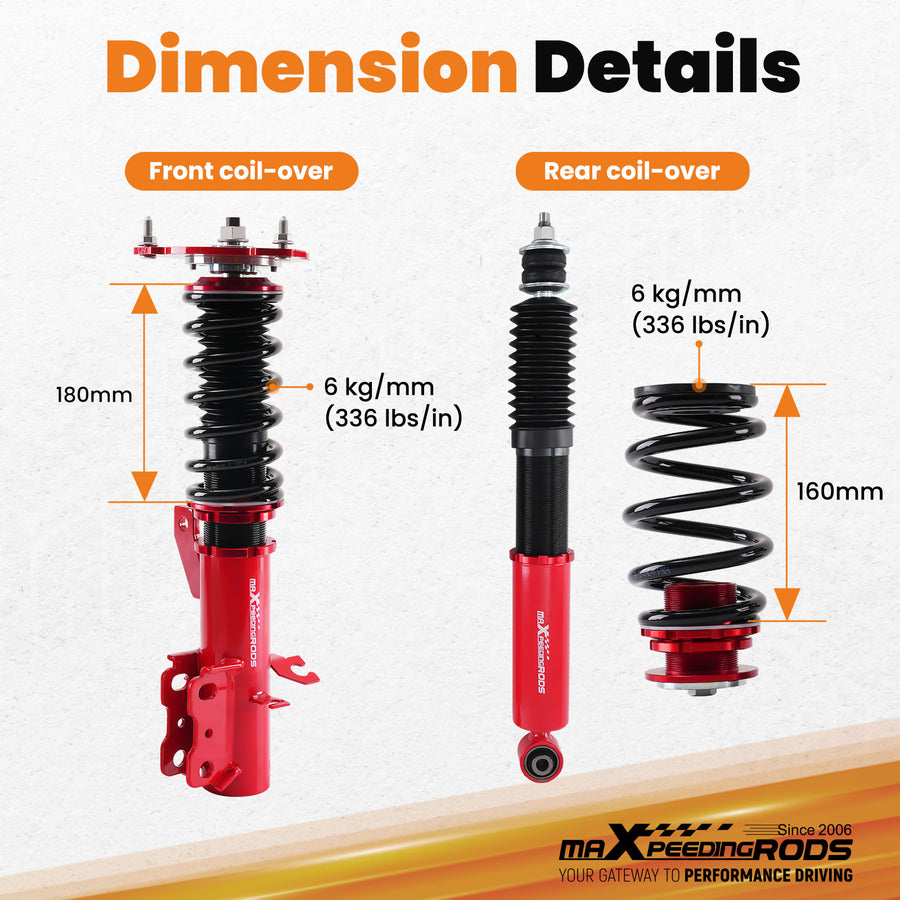

- Spring Rate Front: 6 kg/mm (336 lbs/in)
- Spring Rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62-105-62 mm
- Spring length Front: 180 mm
- Spring length Rear:160 mm
- Colour: Red body with black spring
Dimension
- Package size : 71.4*50.6*19.8 cm
- Weight: 25250 g

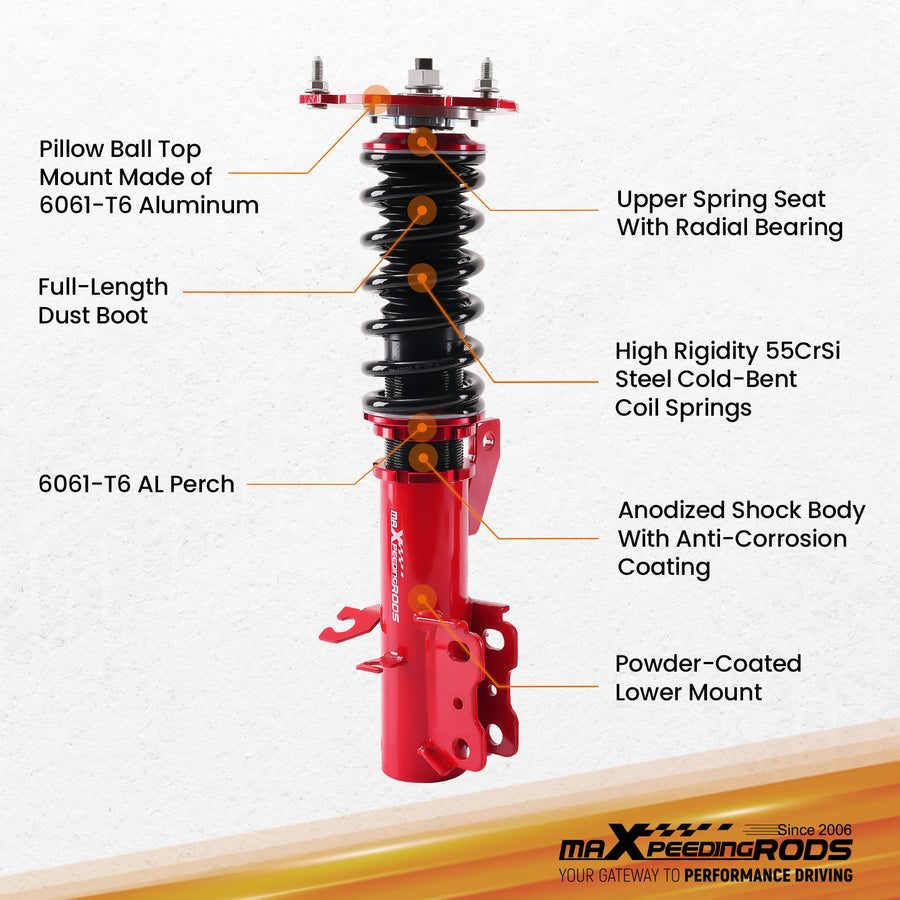

Feature
- 1. Lowered height adjustment from 25-75mm which allows a lower centre of gravity and also adds a more aggressive stance
- 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
- 4. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
- 5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
- 6. Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.
- 7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
- 8. With a better-damping setting, you will get better performance and comfort at the same time.
- 9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 10. Anti-corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts
- 11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
- 12. Clean room assembled---maintain a higher level of accuracy and reliability.
- 13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.

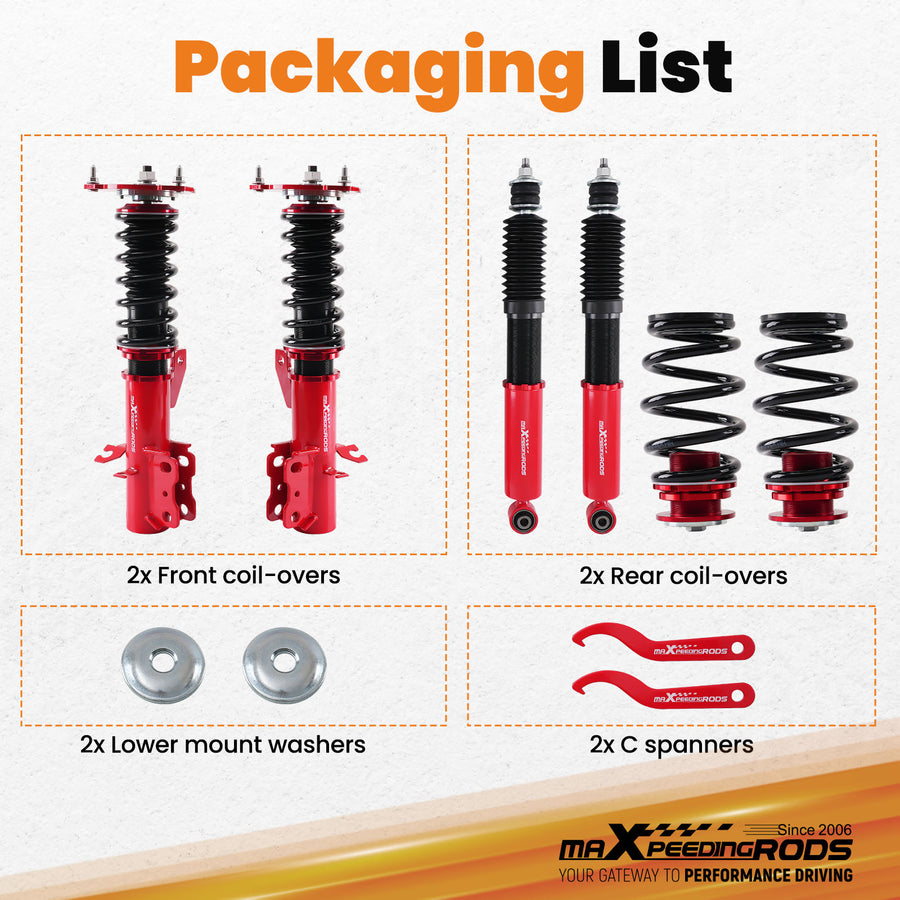

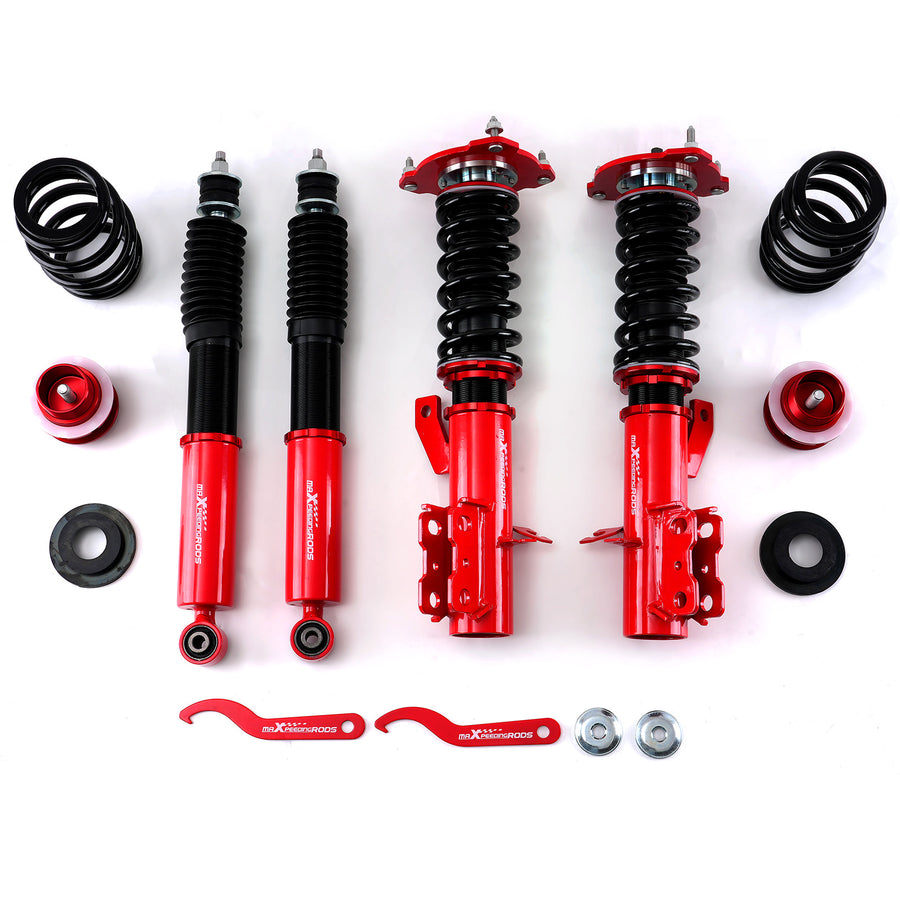

Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x C spanners
- 1x sticker
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
