Coilover Suspension Kits compatible for Subaru Legacy 05-09 BL BP Adjustable Height Shocks lowering kit

Compatible Vehicles

• Compatible for Subaru Legacy 2005-2009 (USA) BL9 BP9
• compatible for Subaru Legacy B4 2003.05-2009.04JPN BLE BL5
• compatible for Subaru Legacy TOURING WAGON 2003.05-2009.04JPN BP5 BPE

Specification

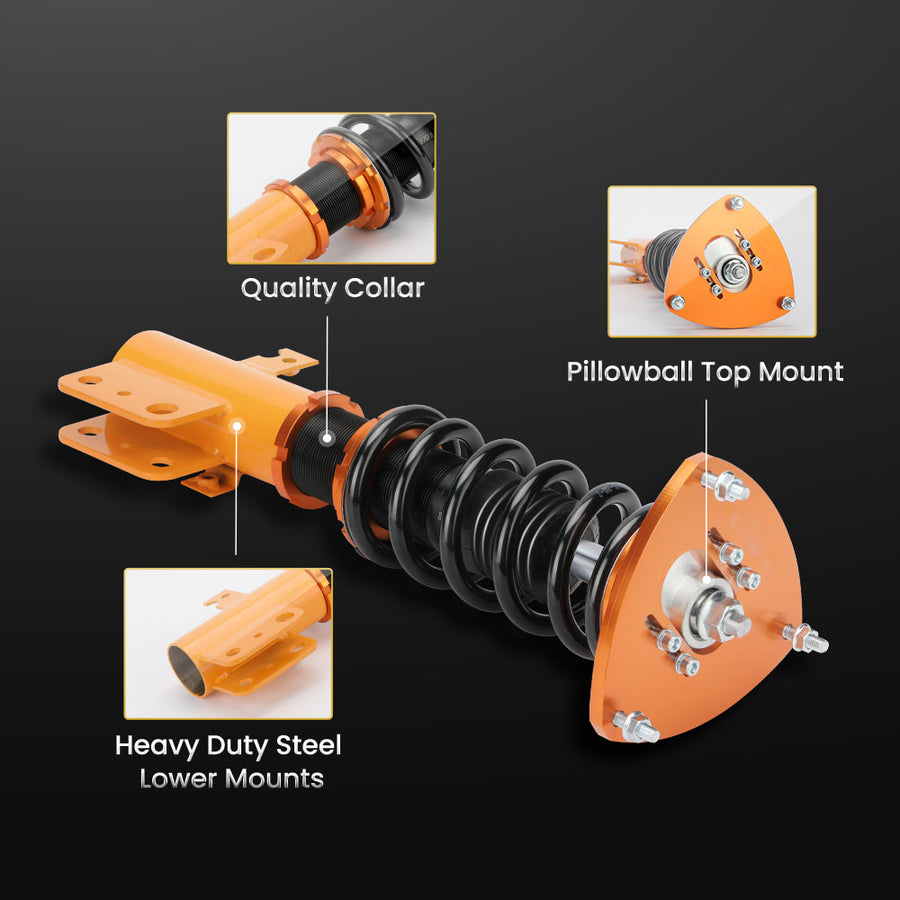

• Top mounts: Front pillow ball top mount with camber plate
• Damping: Not available

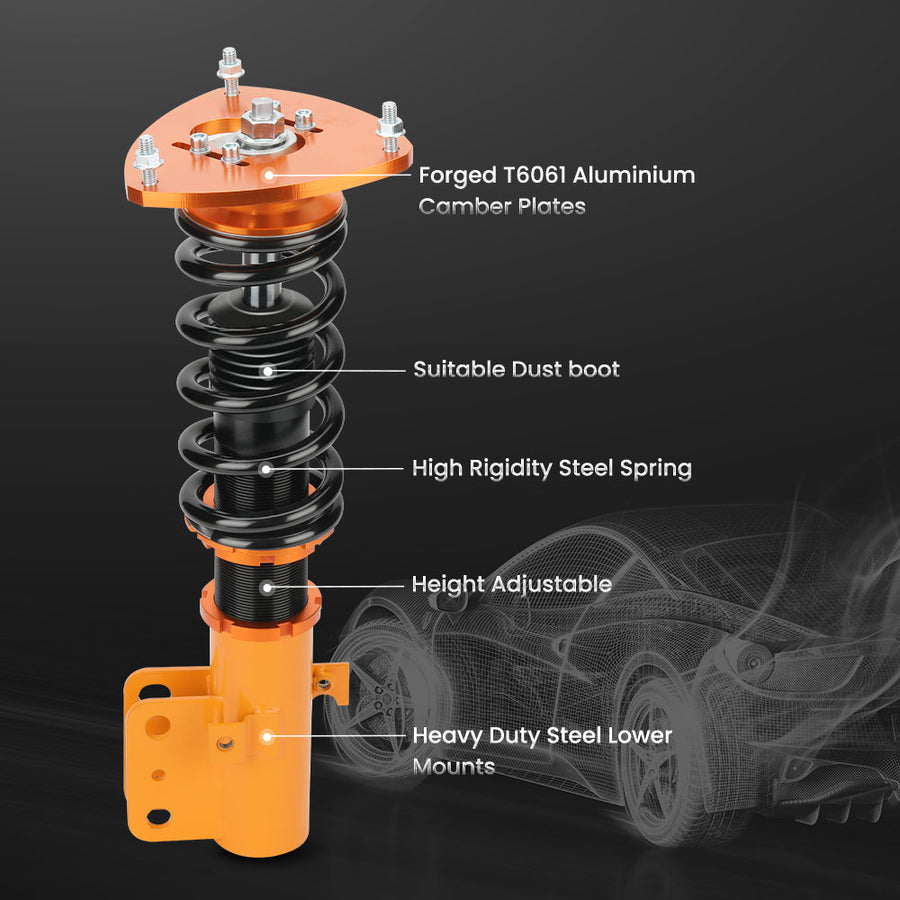

• Adjustable camber plate: Front only
• Spring rate Front: 7 kg/mm (392 lbs/in)
• Spring rate Rear: 12 kg/mm (672 lbs/in)
• Spring length Front: 200mm
• Spring length Rear: 190mm
• Adjustable height: lowering 1-3 inch
• Coilover overall length Front: 460mm-550mm
• Coilover overall length Rear: 400mm-450mm
• Shock type: Twin tube
• Spring Preload: 7-10 mm
• Colour: Gold

Dimension

• Size: 63*51*21 cm
• Weight: 25.8 kg

Feature

• Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance
• Camber plate top mounts help to eliminate the need for a separate camber kit.
• Pillow ball top mount - It improves the steering feel and response.
• Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
• Twin-Tube structure allows sufficient stroke within the shock absorber.
• Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
• Separate height adjustment does not affect damper stroke.
• Height can be adjusted with coilovers installed on the vehicle.
• High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
• Height Adjustment tools included.
• Full rebuildable.

Package included

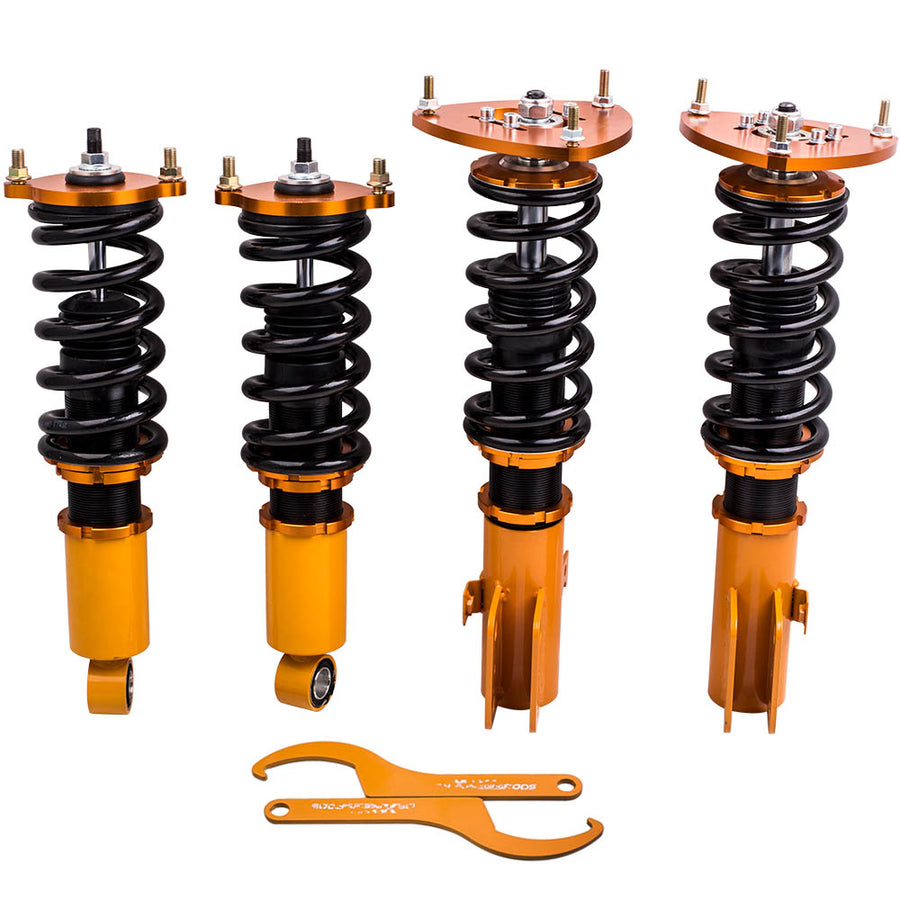

• Complete coilover assembly kit for front and rear
• A pair wrench for height adjustment
