Coilover Suspension Kits compatible for BMW Z4 (E85) 2002-2008 Adj. Damper Shock 4pcs lowering kit

Compatible Vehicles

• Compatible for BMW Z4 Roadster (E85) (2003-2009) 2.0 i,3.0 i,2.5 i,3.0 si, 2.2 i,2.5 si
• compatible for BMW Z4 Coupe (E86) (2006-2009) 3.0 si

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob on the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Specification

• Front top mounts: pillow ball top mounts
• Rear : rubber top mounts
• Damping: 24 levels rebound damping adjustable
• Spring rate Front: 10 kg/mm (560 lbs/in)
• Spring rate Rear: 8kg/mm (448 lbs/in)
• Spring length Front: 180mm
• Spring length Rear: 170mm
• Adjustable height: lowering 1-3inch
• Coilover overall length Front: 360mm-495mm
• Coilover overall length Rear: 485mm-585mm
• Shock type: Twin tube
• Spring Preload: 7-10 mm
• Colour: gold

Dimension

• Weight: 25100g
• size: 70*50*19cm

Feature

• 1. Lowered height adjustment from 1''-3'' which allow lower centre of gravity and also add a more aggressive stance
• 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
• 3. Twin-Tube structure allows sufficient stroke within the shock absorber
• 4. Separate height adjustment does not affect damper stroke
• 5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
• 6. Height Adjustment tools included

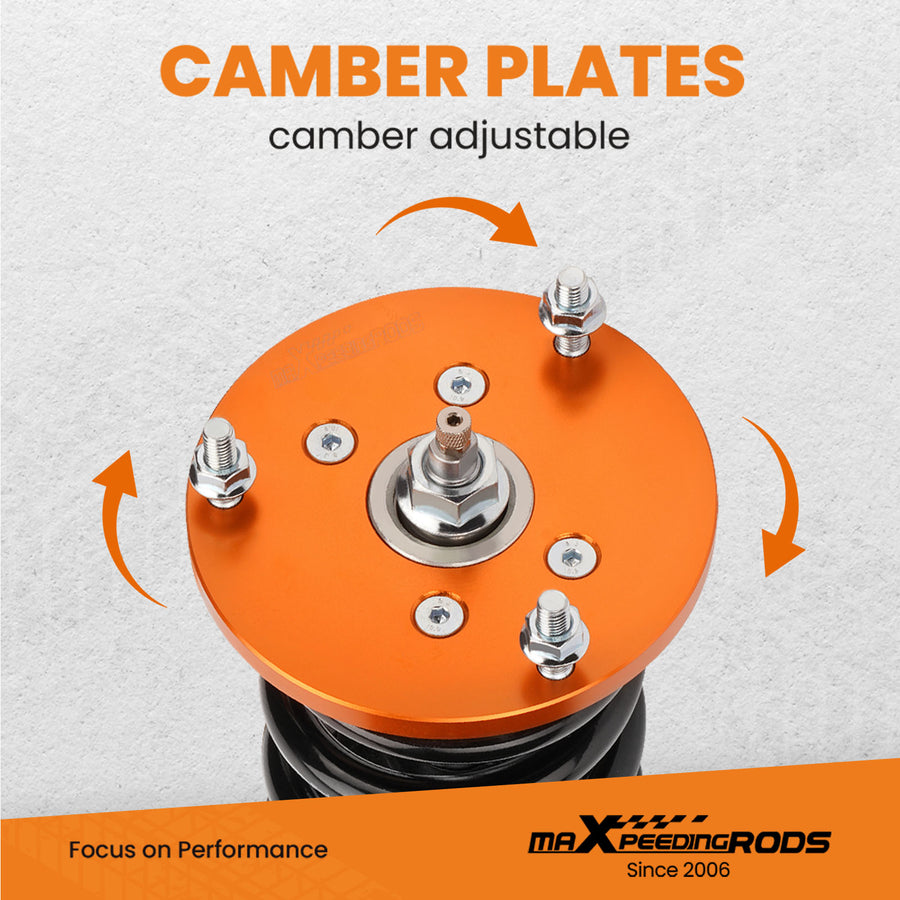

• 7. Camber plate top mounts help to eliminate the need for a separate camber kit
• 8. Pillow ball top mount - It improves the steering feel and response
• 9. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
• 10.Full rebuildable

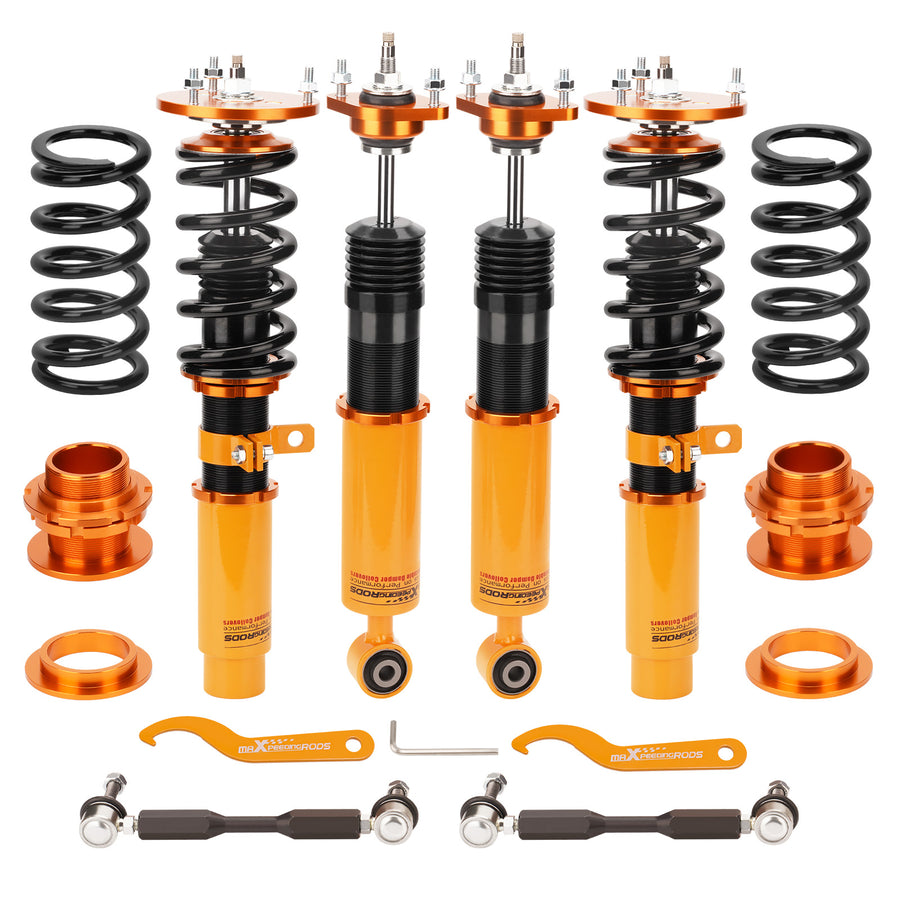

Package included

• Coilovers for 2 front and 2 rear
• a pair of drop links
• a pair wrench for height adjustment
