Compatible Vehicles
- Compatible for Lexus LS460/460L(USF40,USF41)2007-2016 RWD
- Note: Will not Fit AWD or Model with air suspension
Introduction
MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.
Specification
- Top mounts: rubber top mounts
- Damping: non-adjustable
- Spring rate Front: 12 kg/mm (672 lbs/in)
- Spring rate Rear: 8kg/mm (448 lbs/in)
- Spring length Front: 230mm
- Spring length Rear: 230mm
- Adjustable height: lowering 1-3inch
- Coilover overall length Front: 570mm-680mm
- Coilover overall length Rear: 570mm-690mm
- Shock type: Twin tube
- Spring preload: 7-10 mm
- Colour: gold
Dimension
- Weight: 26580g
- size: 71*51*21 cm

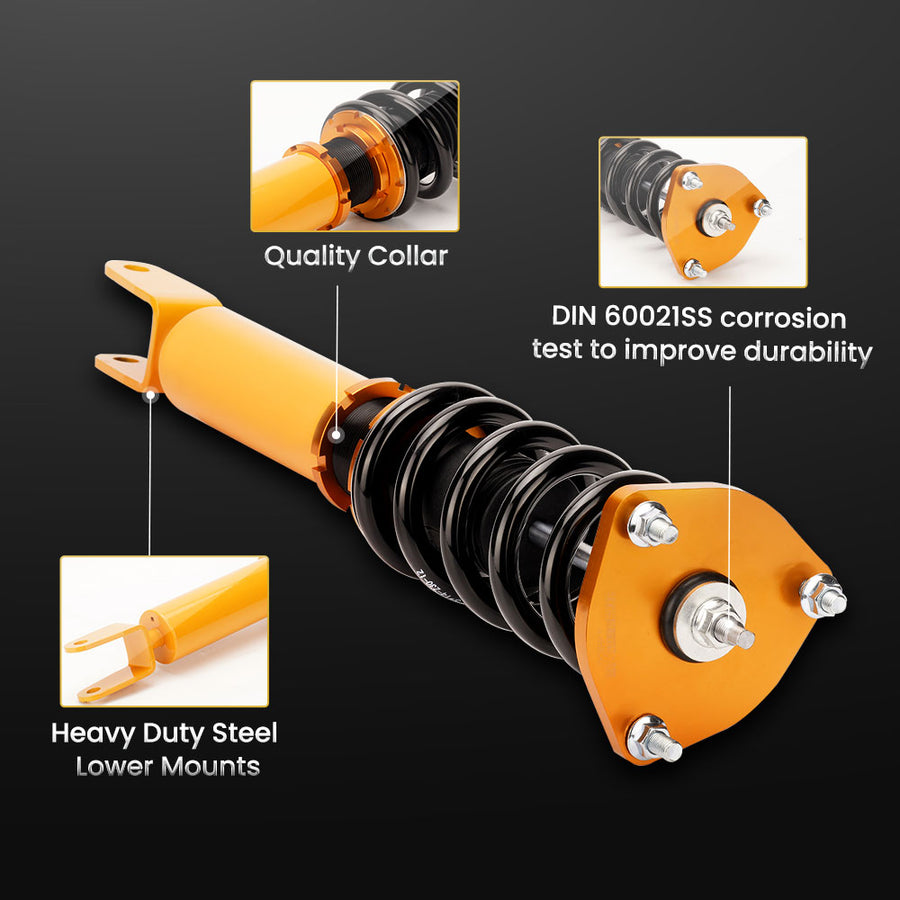

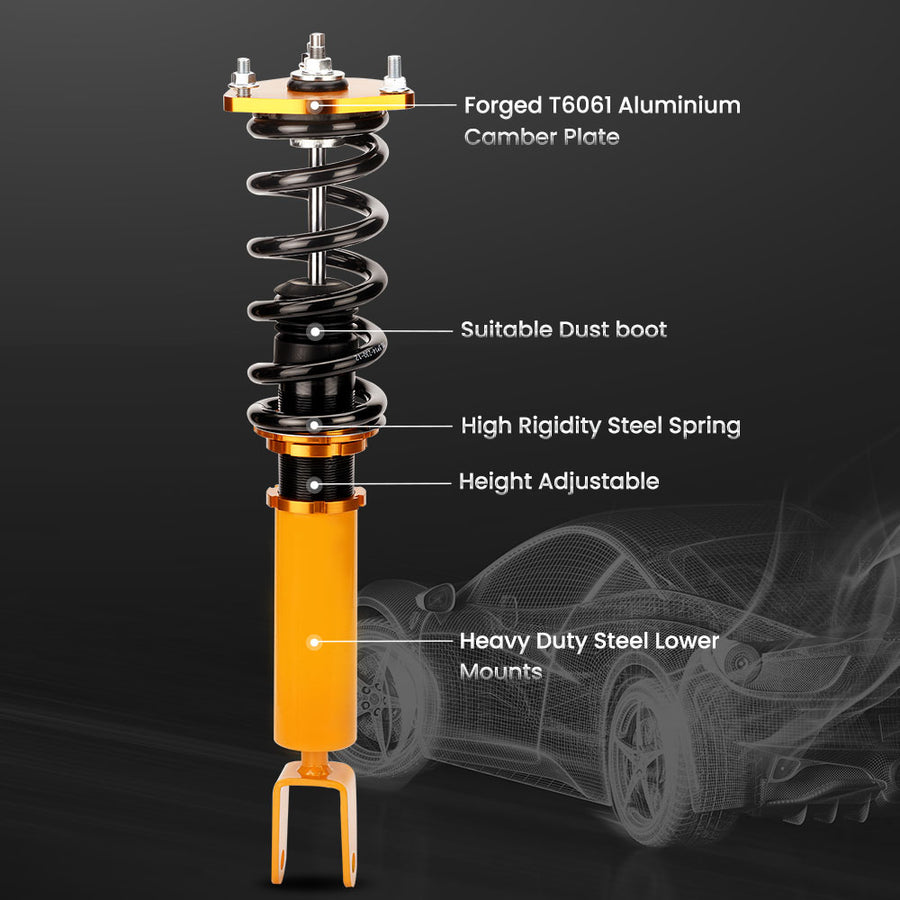

Feature
- 1. Lowered height adjustment from 1''-3'' which allow lower centre of gravity and also add a more aggressive stance

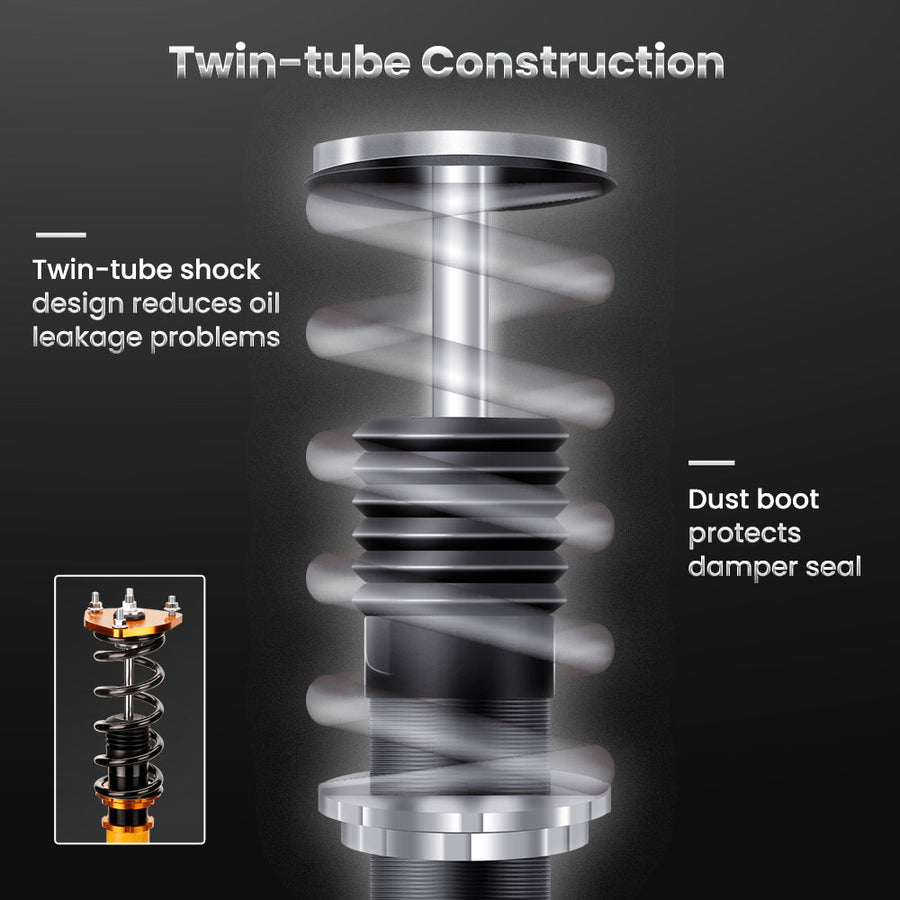

- 2. Twin-Tube structure allows sufficient stroke within the shock absorber
- 3. Separate height adjustment does not affect damper stroke
- 4. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
- 5. Height Adjustment tools included
- 6. Camber plate top mounts help to eliminate the need for a separate camber kit
- 7. Pillow ball top mount - It improves the steering feel and response
- 8. Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
- 9. Full rebuildable
Package included

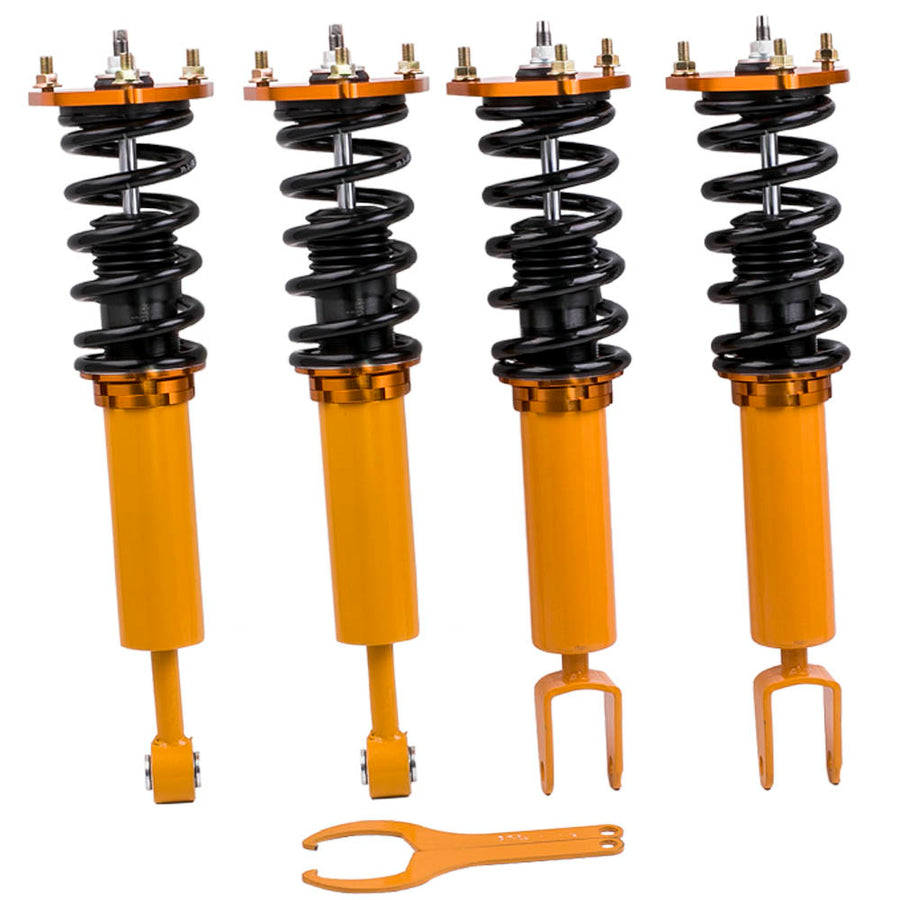

- Complete coilovers for 2 front and 2 rear
- a pair wrench for height adjustment
