Compatible Vehicles
- Engine：2.9-l six-cylinder (2.9 TFSI)
- Manufacturer model series Construction period.
- Output: 324 kW (440 hp) at 5650–6600 rpm, torque: 550 Nm at 1750–5500 rpm
- compatible for Porsche Panamera II since 11/2016
- compatible for Porsche Cayenne III since 08/2017
- compatible for Porsche Macan since 08/2019
- Power: 331 kW (450 hp) at 5700-6700 / min, torque: 600 Nm at 1900-5000 / min
- compatible for Audi RS4 B9 since 11/2017
- compatible for Audi RS5 F5 since 06/2017
- engine：3.0-l six-cylinder (3.0 TFSI)
- Output: 243 kW (330 hp) at 5400-6400 / min, torque: 450 Nm at 1340-4900 / min
- Output: 250 kW (340 hp) at 5000–6400 rpm, torque: 500 Nm at 1370–4500 rpm
- compatible for Audi A6 C8 since 01/2019
- compatible for Audi A6 allroad four C8 since 09/2019
- compatible for Audi A7 C8 since 02/2018
- compatible for Audi A8 D5 since 09/2017
- compatible for Audi Q7 since 09/2019
- compatible for Audi Q8 since 02/2019
- Output: 250 kW (340 hp) at 5300-6400 / min, torque: 450 Nm at 1340-5300 / min
- compatible for Volkswagen VW Touareg III from 04/2018
- Output: 260 kW (354 hp) at 5400-6400 / min, torque: 500 Nm at 1370-4500 / min
- compatible for Audi S4 B9 since 11/2016
- compatible for Audi S5 F5 since 07/2016
- compatible for Audi SQ5 FY since 06/2017
- compatible for Porsche Macan since 12/2018
Specification
- E24 size：22MM
- wrench size：32MM
- screw extraction bit size ：200MM
- crankshaft locking pin size ：75MM，14MM*1.5
- Crankshaft and Balancer Shaft Fixing Pin size：90MM，8MM*1.25
- Material: 45# carbon steel
Feature

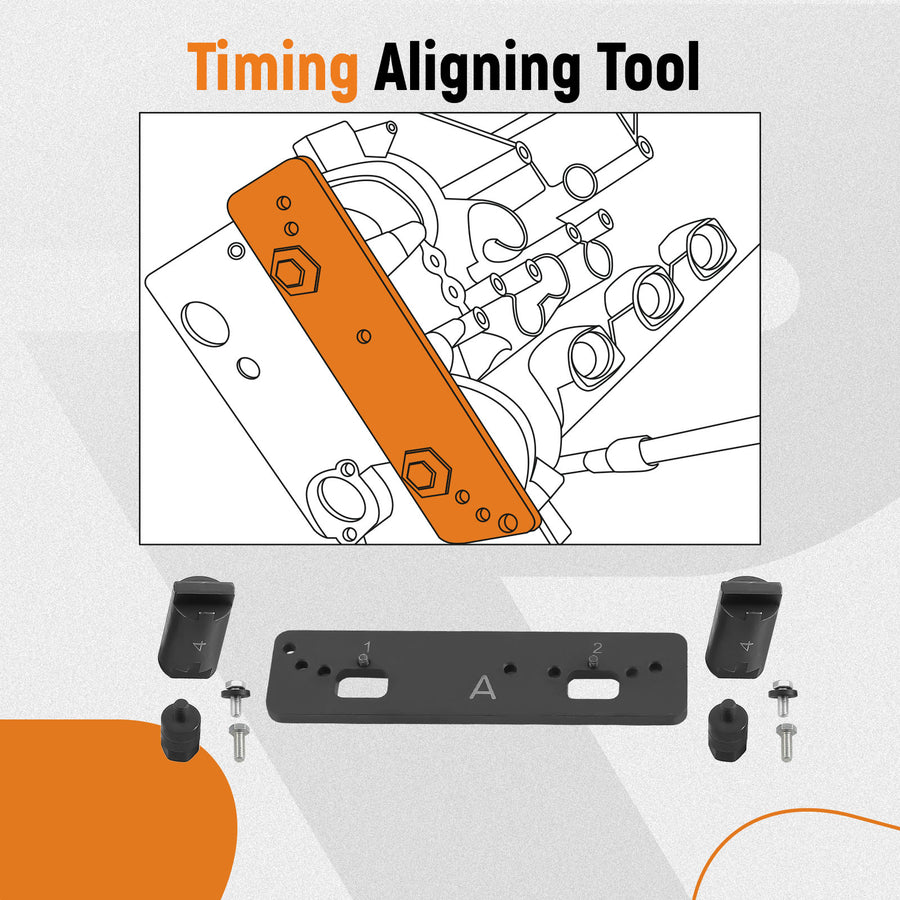

- Application: When disassembling and installing the timing chain of the camshaft, it is necessary to use the camshaft locking fixture T40331 to secure the camshaft in place. This specialised tool is used for cylinder banks 1 and 2 simultaneously.
- Scope: Camshaft Alignment Timing Tool compatible with compatible for Audi A4 2016 > 6 cylinder. Direct injection engine 3.0L TFSI 4V engine EA 839, compatible with compatible for Porsche 3.0T 2.9T hybrid version, etc.

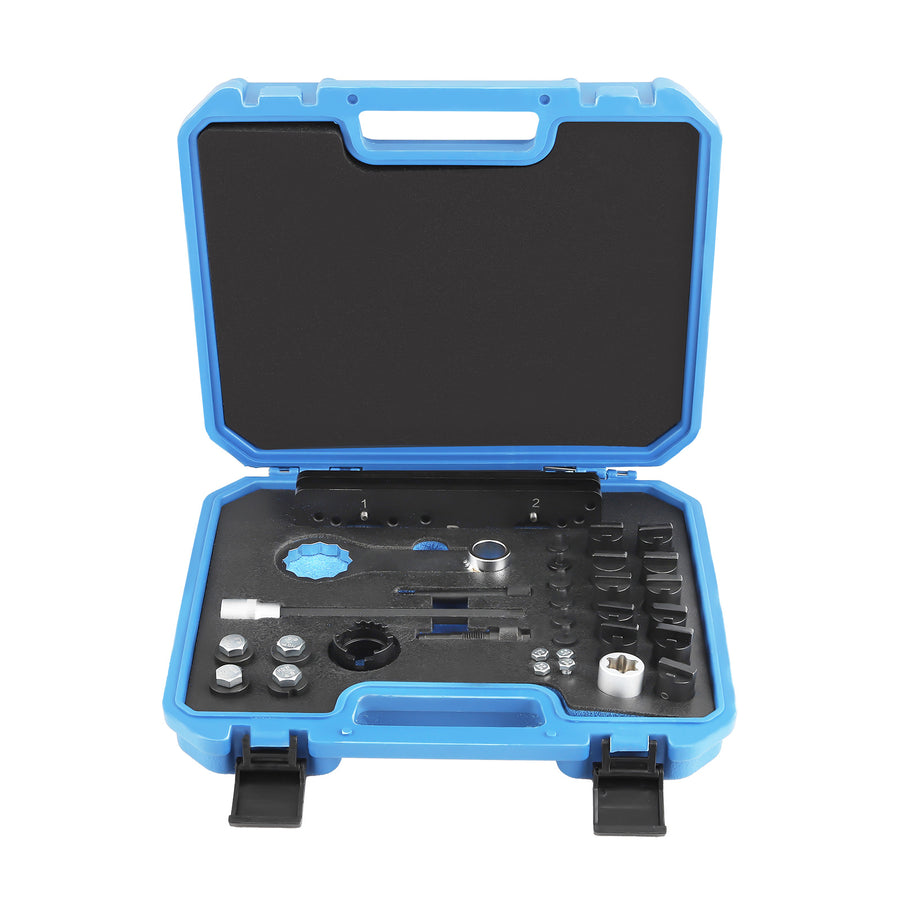

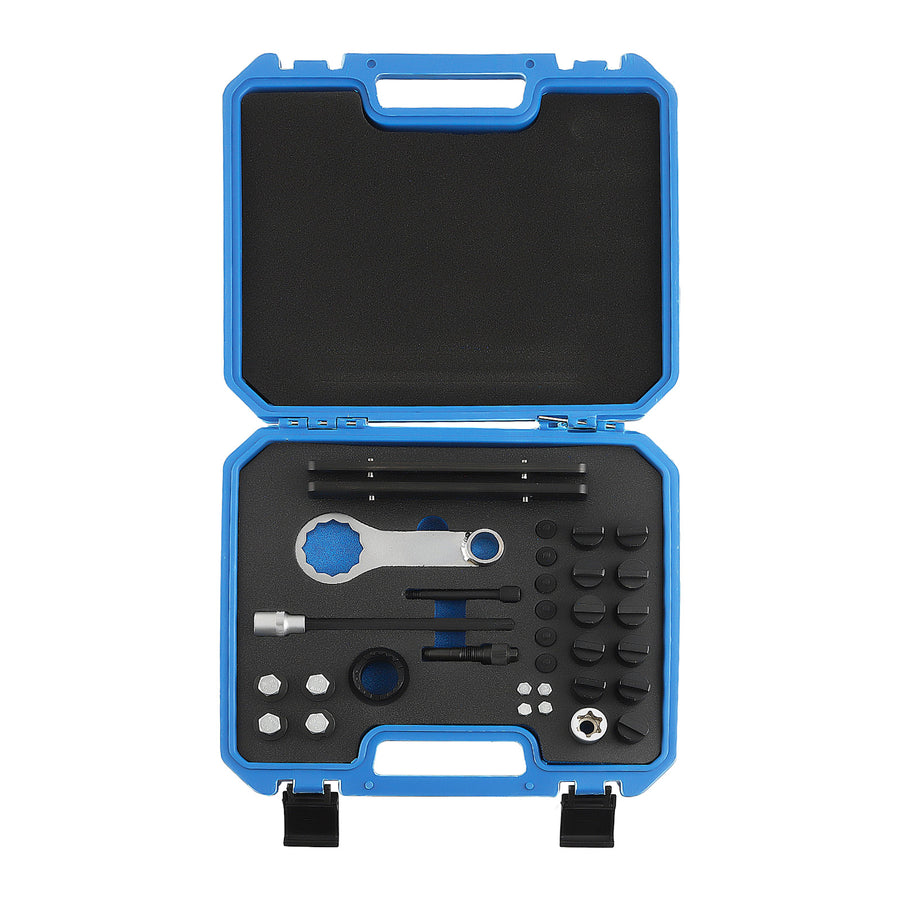

Package included
- Camshaft aligning toolT40331（23 pcs）
- wrenchT90002*1
- screw extraction bit T40382*1
- E24 Socket Camshaft Sprocket Adjust Tool*2
- crankshaft locking pin*1
- Crankshaft and Balancer Shaft Fixing Pin*1
- (As shown in the figure）
Note
Measurement errors may occur, please refer to actual measurements.
OE/Part number
T40331,T90002,T40382,T90001
