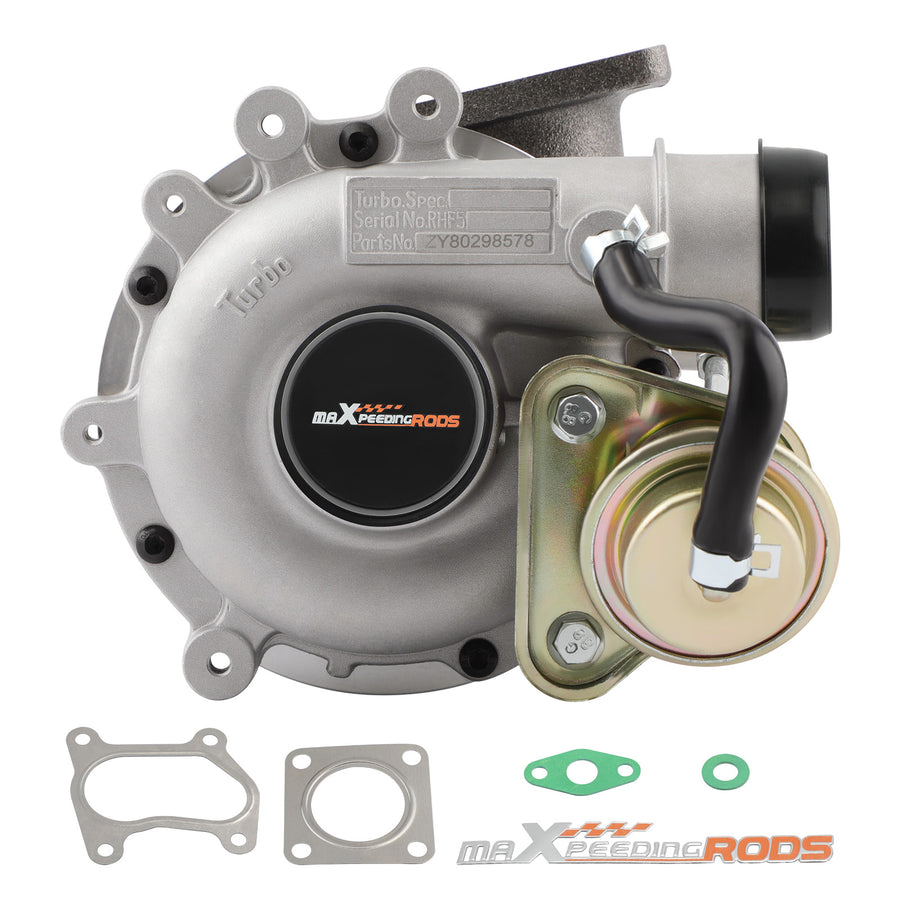

Billet Turbocharger RHF5 VJ26 VJ33 WL84 compatible for Mazda Bravo / B2500 / 2.5 L VA430013

Compatible Vehicles

• Compatible for Ford Ranger 2.5L D HS 1999-2006
• compatible for Ford Ranger Double Cab 2.5L D WLT 2004-
• Compatible for Ford Ranger Double Cab 2.5L D J97A 1999-2003
• compatible for Mazda B2500 2.5L 115 J97A 1996-
• Compatible for Ford Courier WL-T 2.5L Diesel
• compatible for Mazda Bravo WL-T 2.5L Diesel

Specification

• Turbo Model: RHF5
• Engine:J97A, 115 J97A, WLT
• Compressor Wheel Diameter: 36.3/52.4mm
• Compressor Trim：48.0
• Turbine Wheel Diameter: 40/42.7mm
• Turbine Trim：87.8
• Cooling Type: Water and Oil Cooled
• Bearing Type: Journal Bearing
• Thrust Bearing: 360 Degrees
• Horsepower:  Up to 109HP
• Turbo Type: Individual
• Universal Fitment: No
• Finish:Matte
• Condition: 100% Brand New
• Accessories: You will get exactly as shown in the picture above
• Package Weight：6150g
• Package Size：22*24*27cm

Feature

• *Product Material
• 1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
• 2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
• 3. Compressor housing：ZL104 aluminium with lightweight
• 4. Billet compressor wheel：forged full-machined billet aluminium compressor wheels with a larger horsepower range and better boost response
• *Product Performance
• 1. OEM fitment turbo with upgraded material and performance
• 2. Excellent high temperature resistance，high efficiency and thermal stability
• 3. Rich experience in turbo production and own factory
• 4. High-Speed oil seal ring and Precision clearance
• * Technology Advantage:
• 1. 100% balancing Test by TURBOTECHNICS VSR3
• 2. G3-min-Flow VNT Turbo testing
• 3. Advanced Actuator Tester/Programmer

Package included

• 1x Turbocharger
• 2x Flange gaskets
• 2x Oil feed/drain gaskets
• 1x Manual
• 1x Brochure
• 1x Sticker

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)

OE/Part number

• WL84,WL85,XN349G348AB,WL84.13.700,WL8413700，VJ26,VJ33,
• VA430013,VB430013,VC430013,VD430013,VE430013,VF430013,
• VA430089, VB430089, VC430089,VD430089,VI430089,
• VA430090, VB430090, VC430090,VD430090,VE430090,VF430090
