Billet Turbo compatible for charger compatible for Nissan Safari compatible for Patrol 4.2L TD42 TD42T1 GU GQ Y61 Y60 TD

Compatible Vehicles

• Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines
• *Note:
• 1. Please confirm that there is enough space in your car to install this turbo before purchasing.
• 2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Specification

• Exhaust Inlet Flange: T3 4 bolt Flange
• Exhaust Outlet Flange: V-Band Flange (ID/OD: 2.5"/3.1")
• Turbine Side:
• Turbine Trim: 74.2
• Turbine A/R: 0.63
• Turbine Inducer: 64.8mm
• Turbine Exducer: 55.8mm
• Turbine exhaust outlet : 79mm
• Turbine exhaust inlet: 44.7mm（length）/85.8mm（width）
• Compressor Side:
• Compressor Trim: 48.1
• Compressor A/R: 0.5
• Compressor Inducer: 52.7mm
• Compressor Exducer: 76mm
• Compressor outlet:78 mm
• Compressor inlet:51.5 mm
• Oil Inlet: M12*1.25 & 2*M8*1.25
• Oil Outlet: 2*M8*1.25
• Bearing: Journal Bearing
• Cooling Type: Oil Cooled
• Wastegate：With Wastegate
• Thrust Bearings: 270 Degrees
• Horsepower: 420 HP
• Actuator: 1-1.7 Bar
• Turbo Type: Individual
• Universal Fitment: Yes
• Finish:Polished
• Condition: 100% Brand New
• Accessories: You will get exactly as shown as picture above
• Package Size:30x 28x 24 cm
• Package Weight: 9180g

Feature

• 1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases thermal stability and reliability.
• 2. Turbine Wheel: K419 alloy - H temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
• 3. Billet Compressor Wheel: Forged billet aluminium CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
• 4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

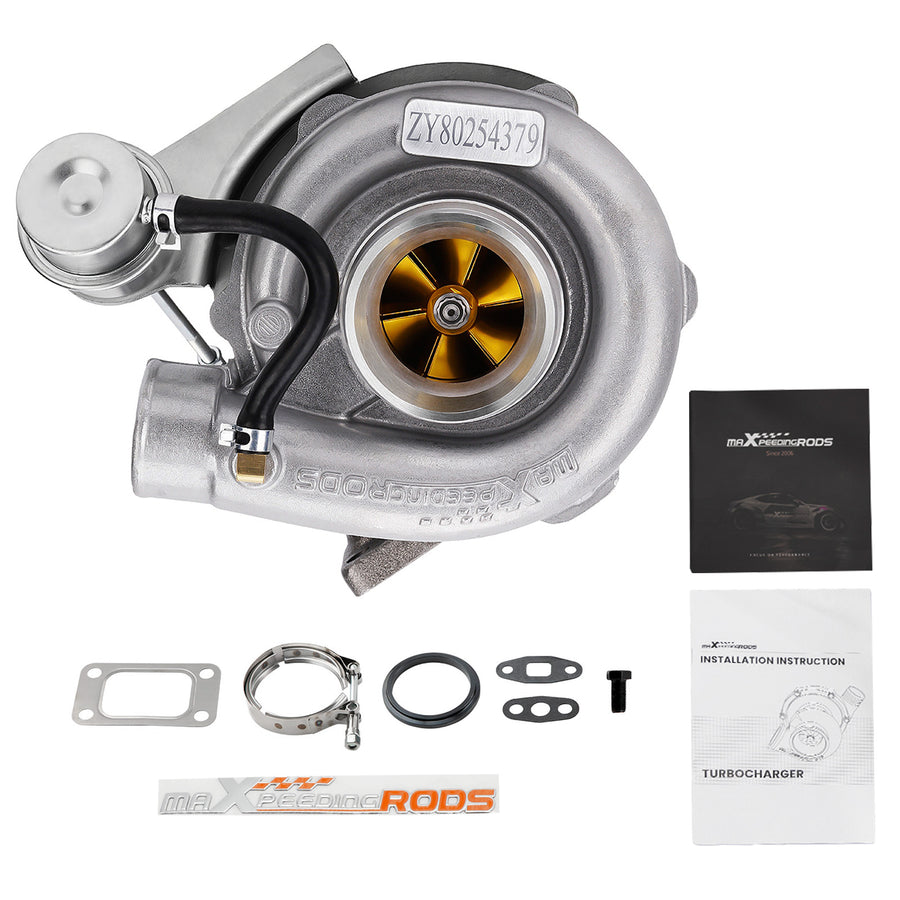

Package included

• 1x Turbocharger
• 1x Flange gasket
• 1x Vband Clamp
• 1x Adapter
• 2x Oil port gaskets
• 1x Bolt
• 1x Manual
• 1x Brochure
• 1x Sticker

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
