Billet T3 V-Band GT3582 GT35 A/R 0.7 A/R 0.63 Turbo Up to 600HP Oil Line Kit

Compatible Vehicles

• Perfect for all 4/6 cylinder and 2.5L-6.0L engines
• Capable of Boosting Horse Power up to 600HP
• *Note:
• 1. Please confirm that there is enough space in your car to install this turbo before purchasing.
• 2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Features

• *Product Material
• 1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
• 2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
• 3. Compressor housing: ZL104 aluminium with lightweight
• 4. Billet Compressor Wheel: Forged billet aluminium CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
• 5. Appearance upgrade
• (1) Turbine outlet V-BAND: Easy installation
• (2) Anti-surge compressor housing: Increase air intake
• (3) New compressor wheel design

Note

• * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
• * Make sure the oil drain line is lower than the turbo itself.
• * Gasoline car must install a water cooling device to avoid overheating.
• * Ensure exhaust outlet are well sealed by welding
• * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
• * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
• * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
• Notice
• All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
• <div

Condition

100% Brand New

Exhaust Inlet Flange

T3 Flange

Exhaust Outlet Flange

V-Band

Turbine Trim

84.2

Turbine A/R

0.63

Turbine Inducer Diameter

68mm

Turbine Exducer Diameter

62.4mm

Compressor Trim

56.9

Compressor A/R

0.7

Compressor Inducer Diameter

61.5mm

Compressor Exducer Diameter

• 81.5mm
• Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size

2.5 inch (63.6mm)

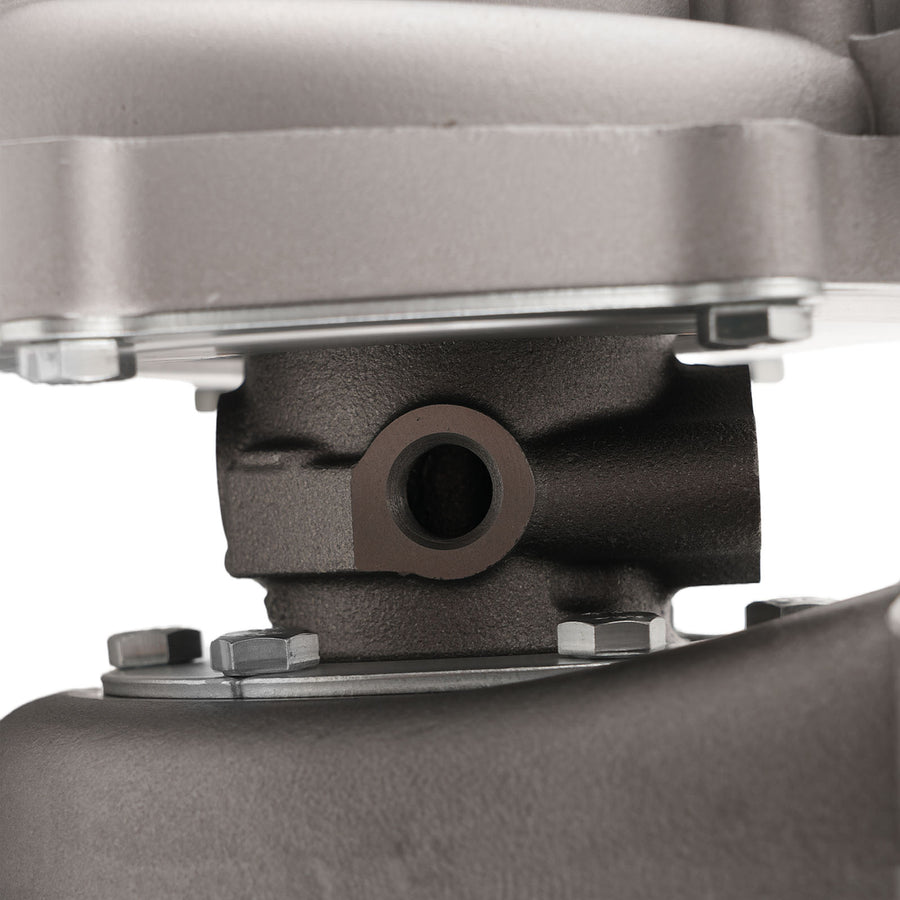

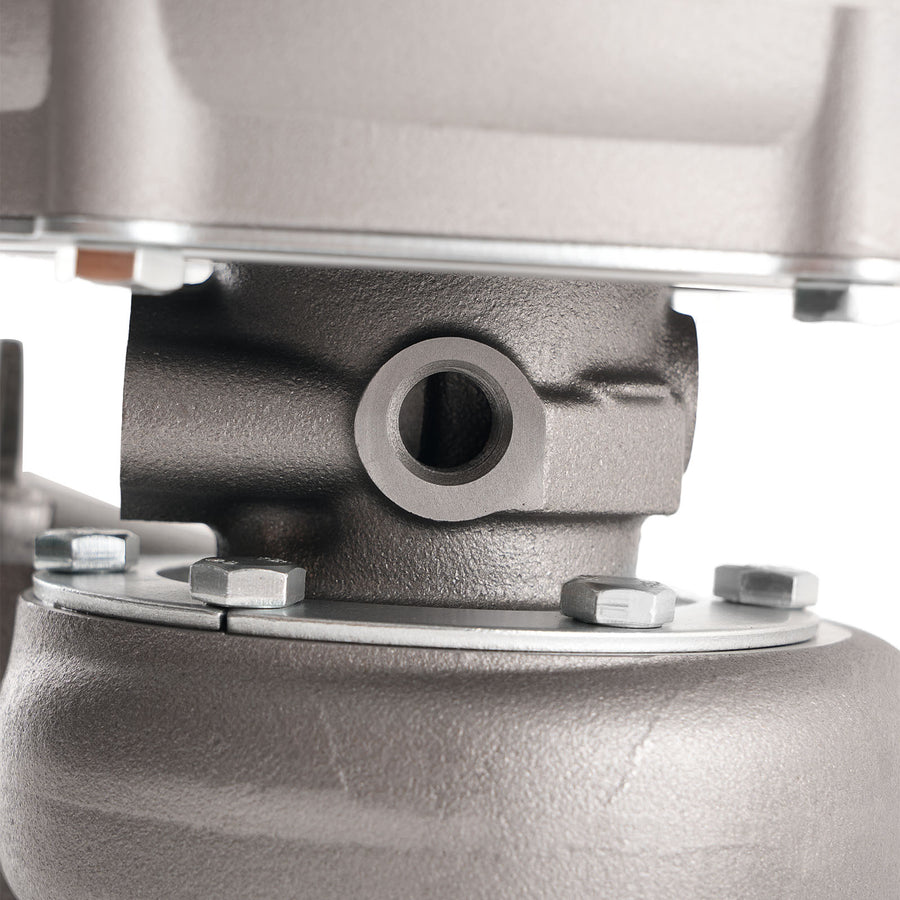

Bearing Type

Floating/Journal Bearing

Thrust bearing

270 degree

Cooling Type

Water + Oil Cooling

Horse Power

Up to 600HP

Turbo Type

Individual

Wastegate

W/O Wastegate

Oil Feed/Inlet

M10*7/16-24

Oil Drian/Outlet

M14.1 & 2*M8*1.25

Water Inlet/Outlet

M14* 1.5

Maximum PSI

22

Accessories

You will get exactly as shown as picture above

Pakage Size

26 x 25 x 23 cm

Pakage Weight

8350g

Turbo Oil Return / Feeding Line Kit

• Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the Turbocharger to the oil pan.
• The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.

Turbo Oil returen /Feeding line kit

• * Stainless Steel Braided
• * Includes complete install kit
• * It helps circulate oil from the Turbocharger to the oil pan.
• * The kit provides a anodized look
• * gives a best cooling on your turbo and long lasting life.
• * Oil Return Line :  Length: 600mm ||  AN10
• * Oil Feed Line :  Length: 1000mm || AN4 (7/16"-20) || 1/8npt

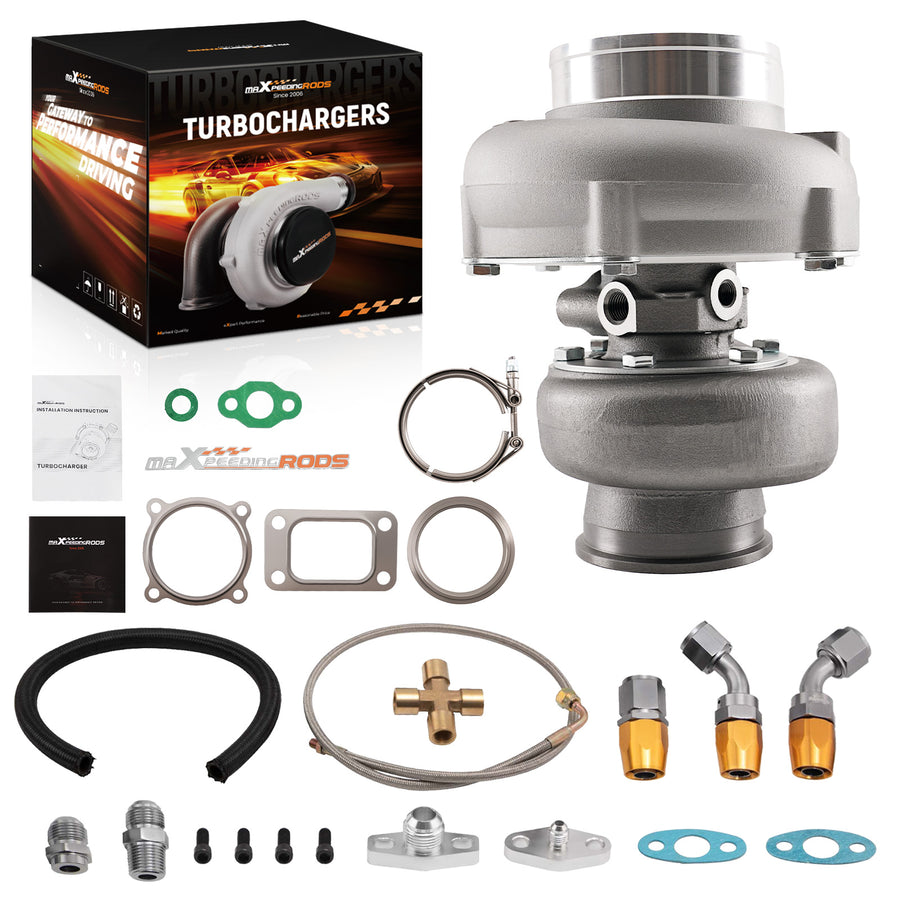

Package Included

• 1x Turbocharger
• 2x Flange gaskets
• 2x Oil feed/drain gaskets
• 1x V-Band flange adapter ring & Clamp
• 1x Oil Line Kit
• 1x Manual
• 1x Brochure
• 1x Sticker
