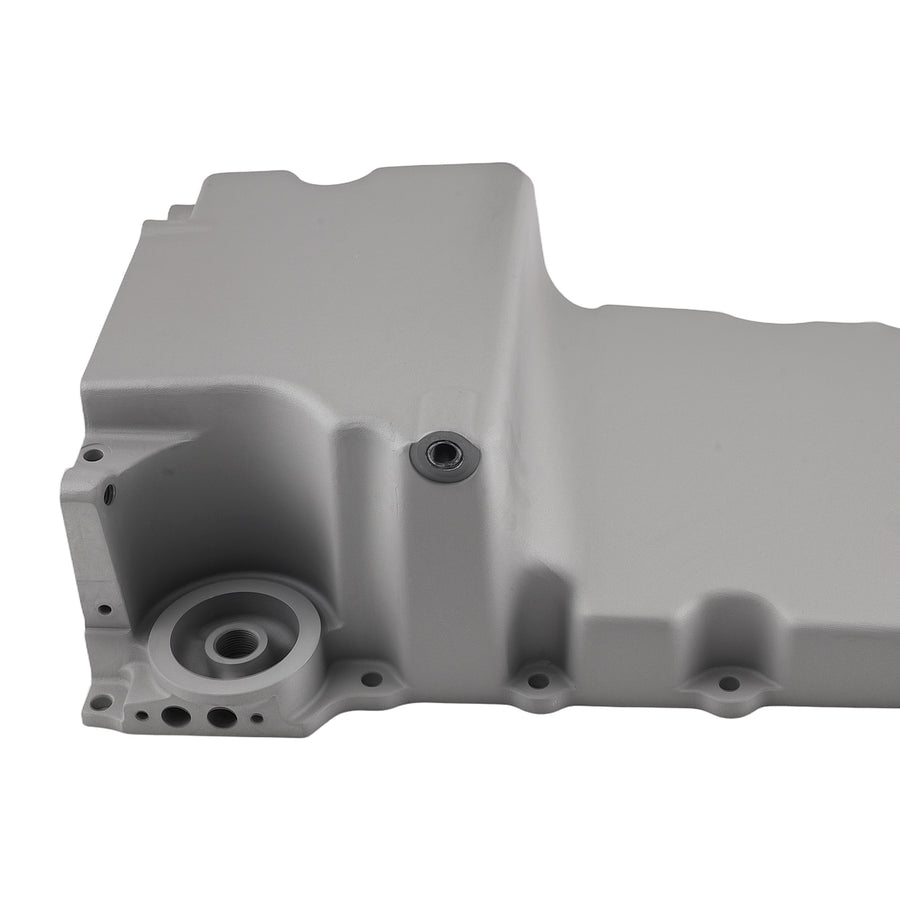

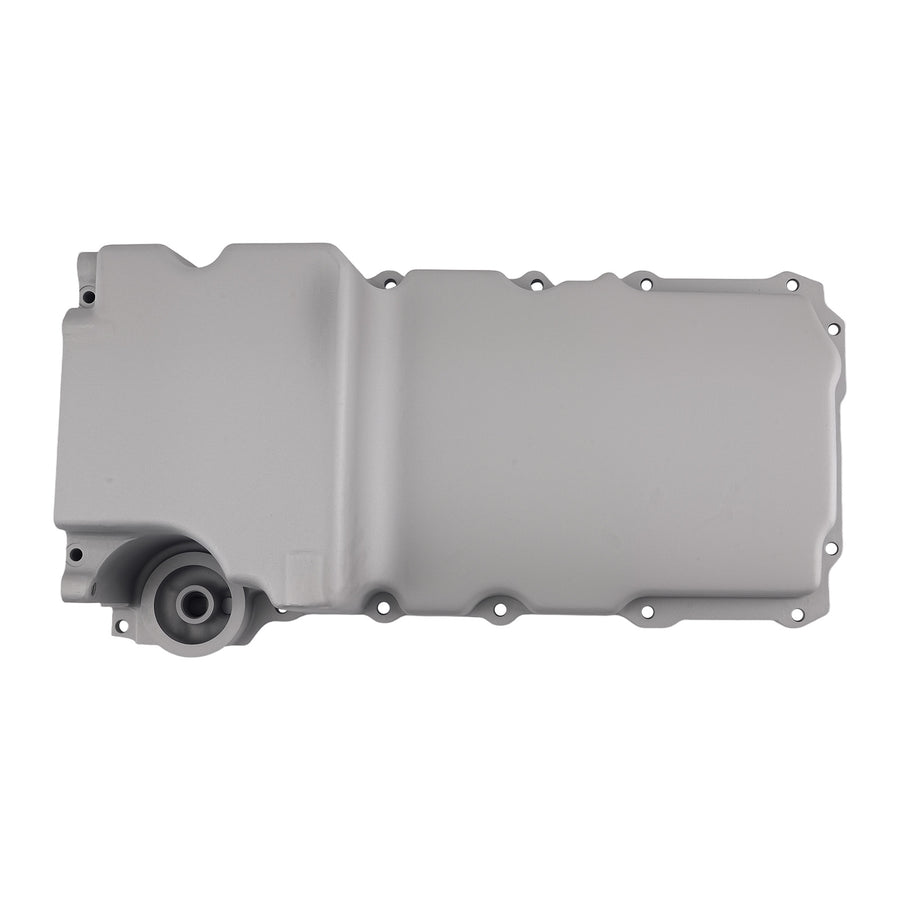

Aluminium Cast Oil Pan for LS Gen III IV 4.8L 5.3L 5.7L 6.0L 6.2L Engine

Compatible Vehicles

• For LS Gen III and GEN IV V8 LS1 LS2 LS3 LS6 LSX 4.8L, 5.3L, 5.7L, 6.0L, 6.2L Engine
• For 1955-1987 compatible for GM/ Muscle Car/ Classic Car/ Trucks

Specification

• Condition: 100% New
• Sump Location: Rear
• Material: Aluminium Cast
• Oil Pan Finish: Natural
• Fitment Type: Direct Replacement
• Gasket or Seal Included：Yes
• Drain Plug Included：Yes
• Drain Thread Size：M14×1.5mm
• Installation Hardware Included：Yes
• Bolt Hole Quantity：17
• Sump Type：Wet
• Capacity: 5.50 QT
• Crank Shaft Wiper Included：Yes
• Oil Level Sensor Port：No
• Pickup Included：Yes
• Windage Tray Included：Yes
• Dipstick Port：Yes
• Engine Oil Cooler Return Fitting：Yes
• Kick Out Type Pan：No

Feature

• 1.This is a high quality aftermarket parts.
• 2.This product comes with best after-sales service.

Package included

• 1* Oil Pan
• 1* Oil Pan Gasket
• 1* Sump Baffle
• 1* Pick-up Tube
• 1* Sump Plug
• 1* Oil Filter Stud
• 1* Oil Passage Cover
• 1* Oil Passage Gasket
• 1* O-ring
• 23* Bolts
• Showing as the picture

Note

• 1.No instruction included.
• 2.Professional installation is highly recommended.
• 3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
• 4.Engine location may need to be adjusted (up/down or fore/aft) for proper clearance

OE/Part number

302-1
