Air Suspension Spring Bag compatible for Volvo 3098608 for Firestone W01-358-6897

Compatible Vehicles

• Volvo 3098608 for Firestone W01-358-6897

Specification

• Top plate screw (nut) teeth: 3/8-16UNF
• Screw (nut) teeth of the bottom cover plate: 1/2-13UNC
• Air hole/air inlet: 1/4 NPT
• Top plate diameter: 160mm / 6.3inch
• Diameter of the bottom cover: 160mm / 6.3inch
• Dsign height: 217mm / 8.5inch
• Intern Jounce Bumper: Not Included
• Quantity: 1 Piece
• Condition: Brand New
• Material: Natural rubber
• Package Length, width and height: 38*37*36cm/15*14.6*14.2 inch
• Package Wight: 4.95 Kg/11 LBS

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.

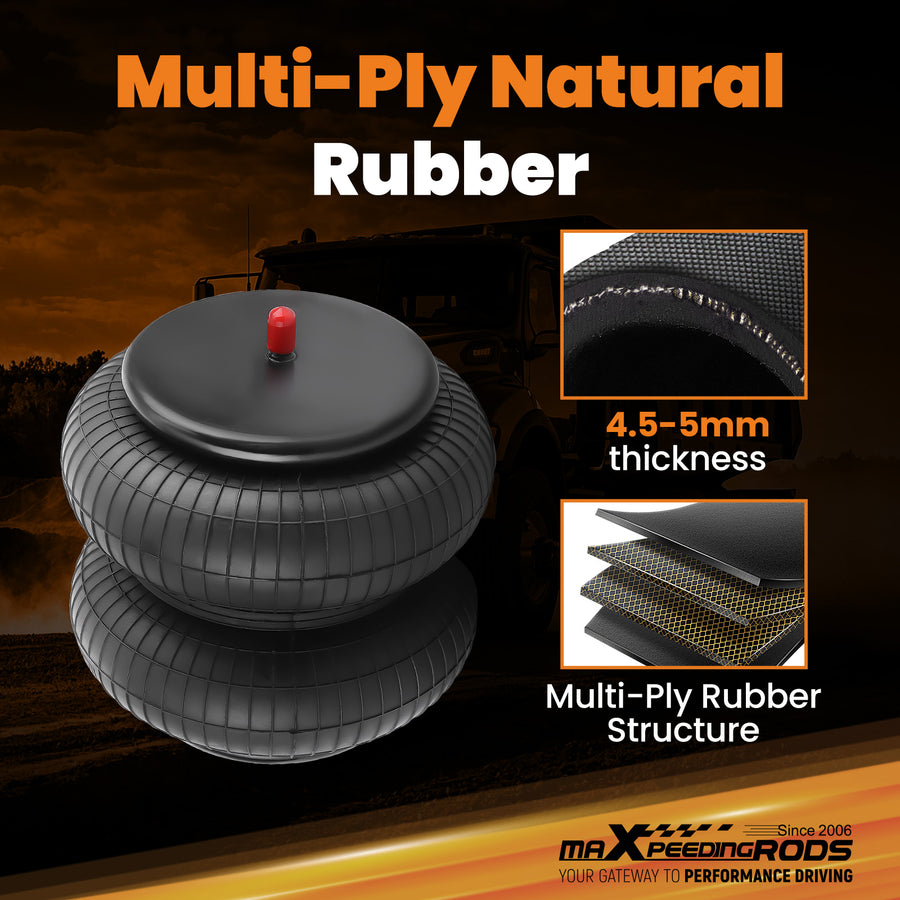

• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-358-6897
• replacement for ContiTech FD 200 19 505, 64517, FD200-19505
• replacement for Goodyear 2B9229, 2B9-229
• compatible for Volvo 3098608
• Other parts number:
• fit for Triangle 4505, 6325
• for Watson & Chalin AS-0058, W01W206897
• for Brake & Wheel: M3528
• for Neway G2296897500
• for Ridewell 1003586897C
• for IHC 2601750C1, 2B9-490
