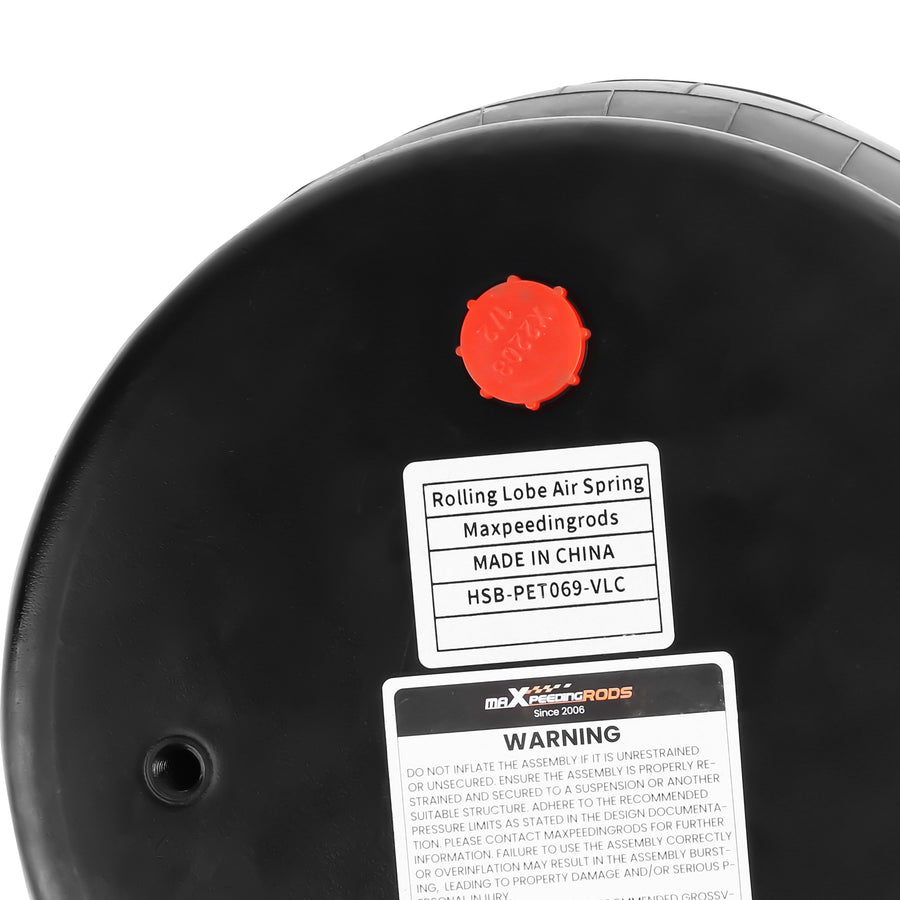

Air Suspension Spring Bag compatible for Peterbilt 1R12-069 for Goodyear W01-358-9069

Compatible Vehicles

• Peterbilt 1R12-069 for Goodyear W01-358-9069

Specification

• Top plate screw (nut) teeth: 2 x 3/8-16UNC
• The screw centre distance of the top cover plate: 157.5mm / 6.2 inch
• Screw (nut) teeth of the bottom cover plate: 3/8-16UNC
• Air hole/air inlet: 1/2-14 NPT
• Top plate diameter: 231mm / 9.1inch
• Diameter of the bottom cover: 240 mm / 9.4inch
• Stroke: from 190mm/7.5inch to 457mm/18inch
• Intern Jounce Bumper: Included
• Condition: Brand New
• Quantity: 1 Piece
• Material: Natural rubber
• Package Length, width and height: 36*36*31cm/14.2*14.2*12.2 inch
• Package Wight: 7.6 Kg/16.8 LBS

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.
• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-358-9069, W01-703-8812, W01-703-8813, W01-703-8814
• replacement for ContiTech 65990, 910-14P577, 910-14 P 312
• replacement for Goodyear 1R121204, 1R12-1204, 1R12-069
• replacement for Navistar 554764Cl
• compatible for Volvo 85101145
• compatible for Peterbilt 03-01649, 03-02038, 03-02456, 03-04759, 03-06746, 03-07112,03-10042
• Other parts number:
• Compatible for Hendrickson S-13031
• for Triangle 8312
• compatible for Kenworth C81-6022, C811003
• for Dayton 352-9069
• for SAF Holland 57009069
• for Watson & Chalin AS-0077
• for Ridewell 1003589069C
• for Neway 57009069
• for TRP AS90690
• Compatible for Taurus 6362
• for Road Choice AS9069
