Air Suspension Bellows + Compressor Kit compatible for Mercedes-Benz Sprinter 06-22 4000kg

Compatible Vehicles

• Compatible for Mercedes-Benz Sprinter 2006-2020 Single rear wheel RWD and compatible for FWD

Specification

• Condition: Brand New
• Placement on Vehicle: Rear left and right
• Charge: 8818 LBS / 4000 KG
• Package Length, width and height: 740*280*220mm
• Package Wight: 15.1KG
• Air spring---
• Stroke: 140mm
• Max. Extended: 230mm
• Min. Compressed: 90mm
• Operating Pressure : ≤2.0Mpa
• Temperature range：≤+70°C , ≥-40°C/ (≥ -40°F/≤ 158°F)
• Air pump---
• Power: 150W
• Output Voltage: 12V
• Maximum current: 10A
• Maximum Working Voltage: 10bar（1MPa ）
• Package includes (the picture shows):
• 2x Air spring
• 2x Top mounting bracket
• 2x Top fixed slider
• 2x Top fixed slider bracket
• 2x Bottom mounting bracket
• 1x Air suspension compressor

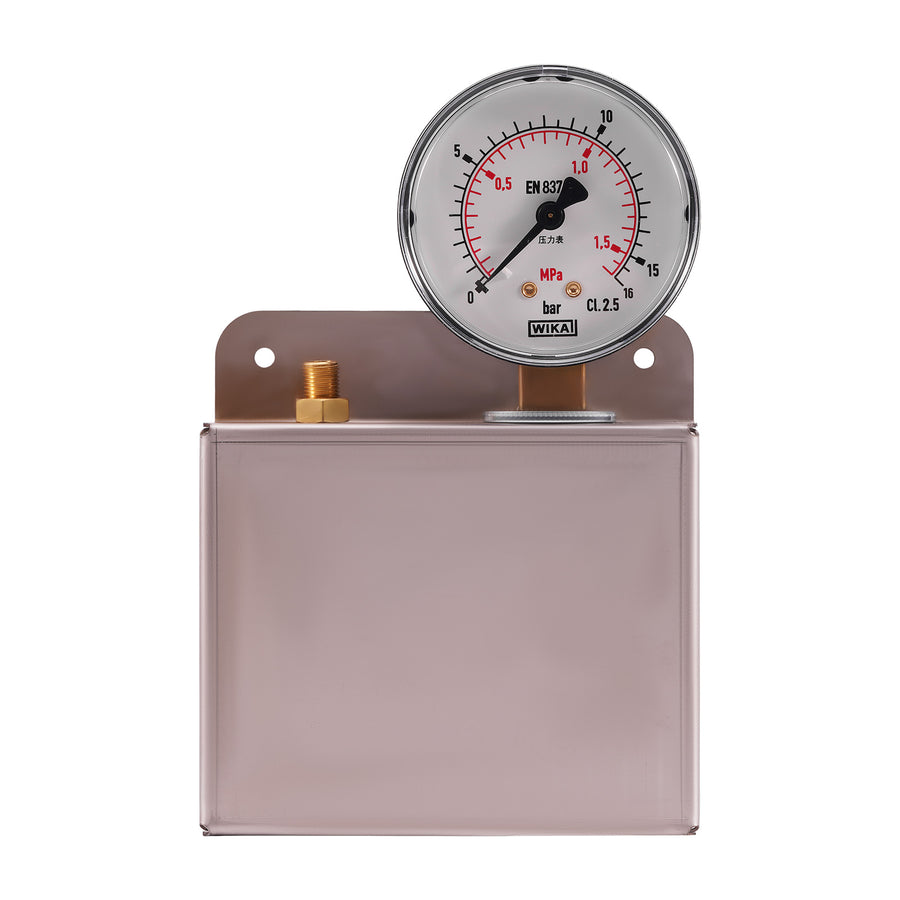

• 1x Installation box & Barometer Air nozzle
• 4x Air fitting
• 1x Air line
• Mounting bolts and gaskets
• Warranty: One Year for any manufacturing defect

Feature

• 1、Stress Test Over 5,000,000 Times：Durable and Safe
• 2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
• 3、Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
• 4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
• 5、Use high-quality steel with high load-bearing capacity and long life.
• 6、Excellent and practical bolt-on installation.
• 7、Safe carrying capacity and stability
• 8、Restore the original ride height and improve ride quality
• 9、Ensure our driving comfort and reduce tyre wear.
