Air Suspension Bag for Goodyear 1R12-092 for Firestone W01-358-9082

Compatible Vehicles

• Goodyear 1R12-092 for Firestone W01-358-9082

Specification

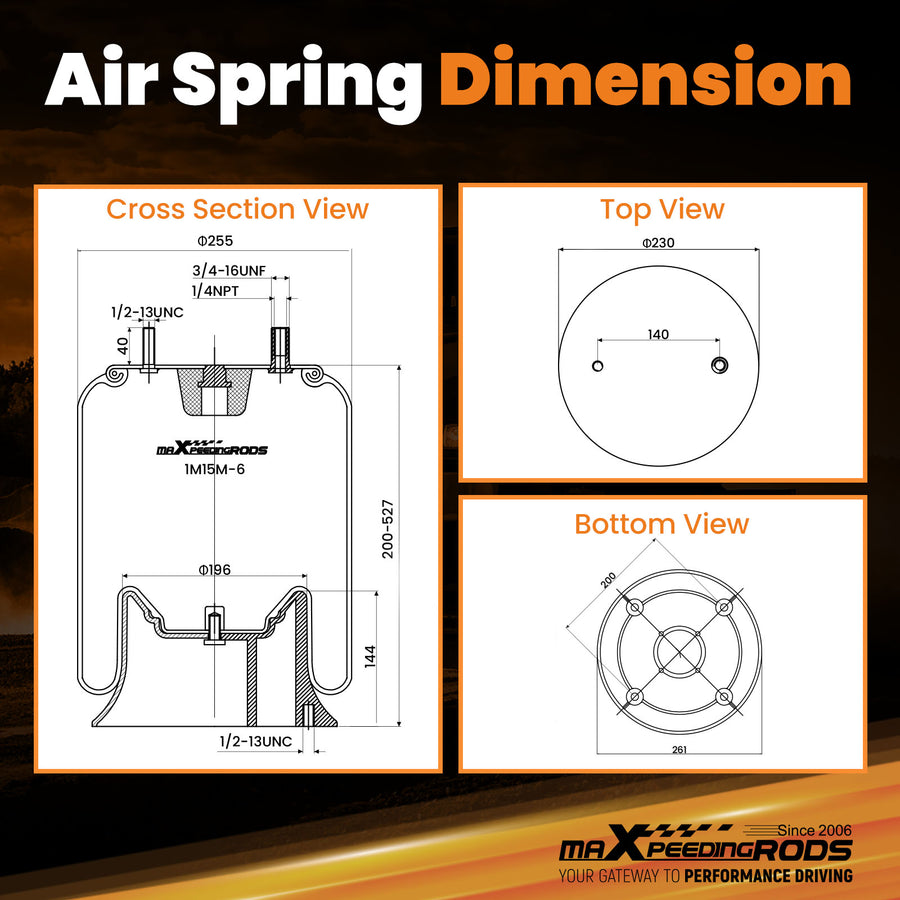

• Top plate screw (nut) teeth: 3/4-16UNF & 1/2-13UNC
• The screw centre distance of the top cover plate: 157.5 mm / 5.5inch
• Screw (nut) teeth of the bottom cover plate: 1/2-13UNC
• Air hole/air inlet: 1/4 NPT
• Top plate diameter: 230mm / 9inch
• Diameter of the bottom cover: 261mm / 10.3inch
• Stroke: from 200mm/7.9inch to 527mm/20.7inch
• Condition: Brand New
• Material: Natural rubber
• Spring Type: Rolling Lobe
• Package Length, width and height: 42*38*36cm/16.7*14.9*14.3 inch
• Package Wight: 8.3 Kg/10.4LBS

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.

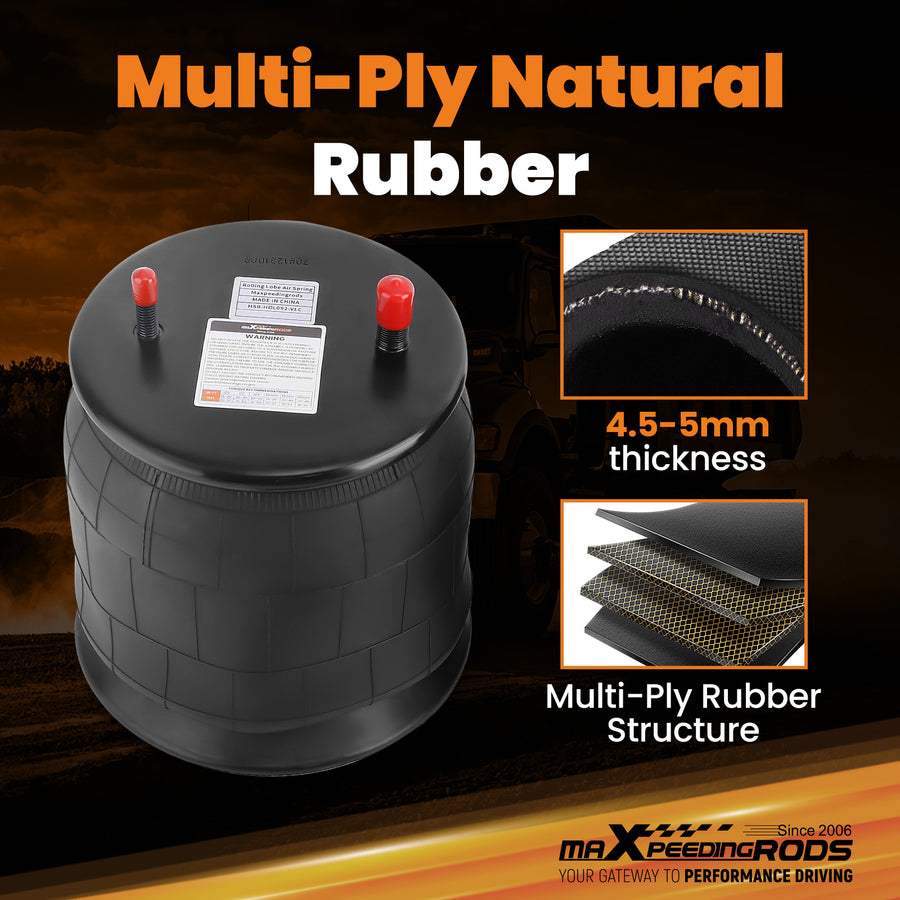

• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-358-9082
• Replacement for ContiTech 910-16P310
• Replacement for Goodyear 1R12-092,1R12-093,1R12-509
• compatible for Volvo 3130491
• compatible for Hendrickson 35614-7,S11651,B2066,B-12514-007
• Replacement for SAF Holland 90044200,90044647,90557006,90557027,90557033,90557037,90557054,90557075
• Other parts number：
• fit for Navistar/Fleetrite 517559C9，for Triangle 3310，for Hutchens H-9630-01，for Ridewell 1003589082C，for Airtech 132302,34156-05KPP，for Watson & Chalin AS-0011，for Dayton 352-9082，Compatible for Taurus KR506-9082，for Neway 90557006,90557027,90557037,90557054,90557075，for Primeride AS PR9M16 9082，for R&S Truck 1090217，for Reyco 12882-01，for Loadguard SC2035,SC2762，for Kwik Loc/Todco CP-3281,CP-5125,CP-5152，for FleetPride AS9082.
