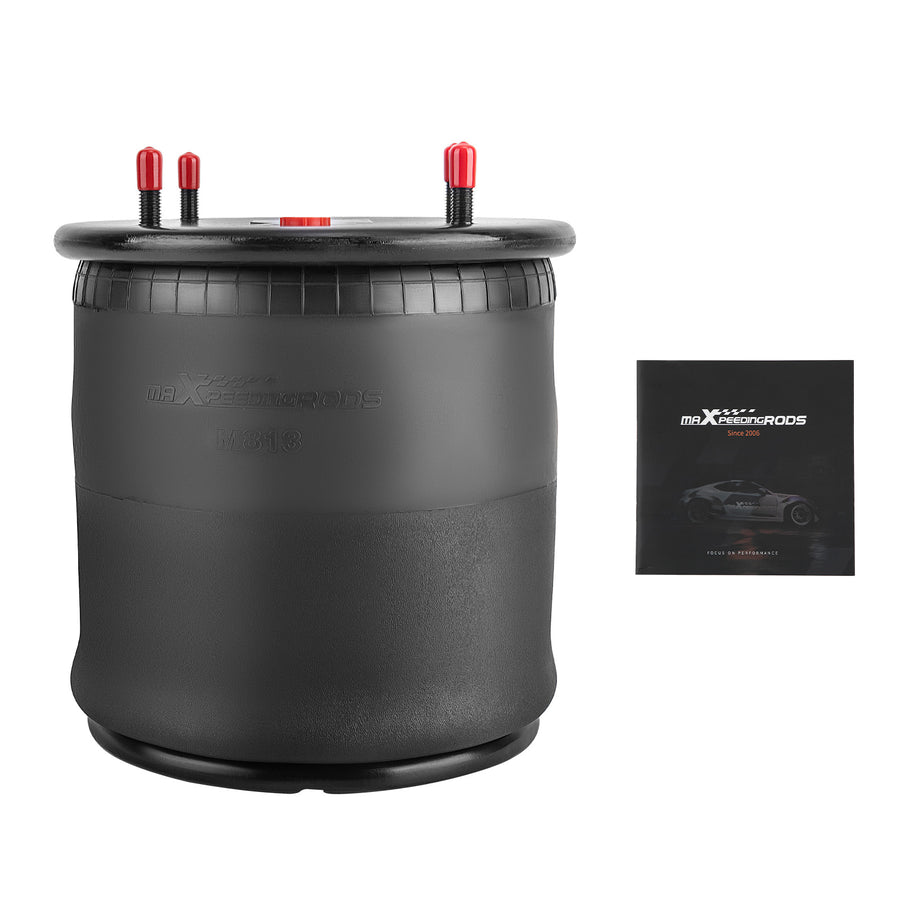

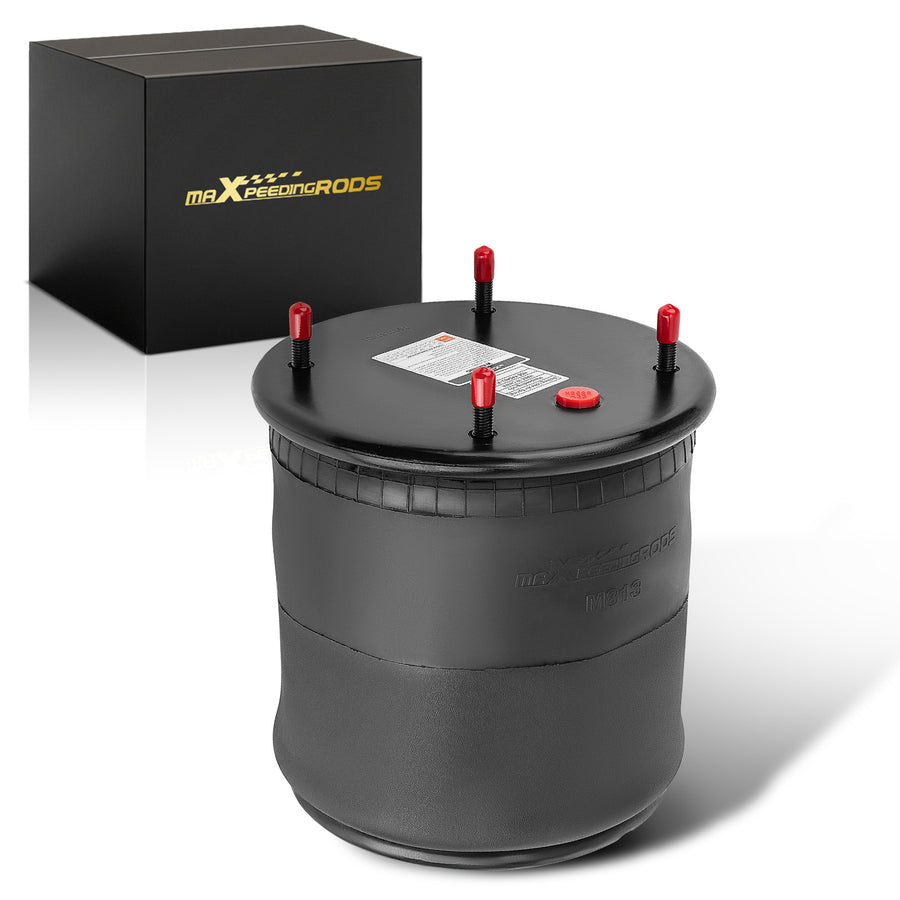

Air Suspension Bag for Firestone W01-M58-6364 for Goodyear 1R14-705

Compatible Vehicles

• Firestone W01-M58-6364 for Goodyear 1R14-705

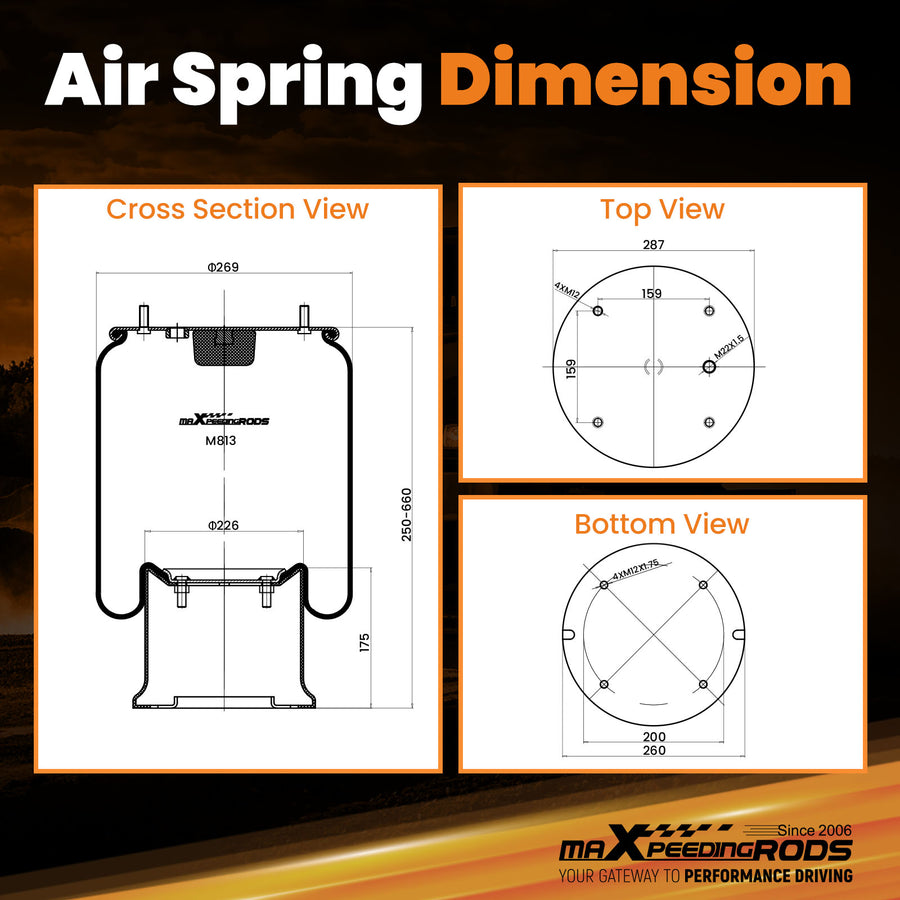

Specification

• Top plate screw (nut) teeth: M12
• The screw centre distance of the top cover plate: 159 mm / 6.26 inch
• Screw (nut) teeth of the bottom cover plate: M14x1.75
• Air hole/air inlet: M22x1.5
• Top plate diameter: 287 mm / 11.3 inch
• Diameter of the bottom cover: 260 mm / 10.24 inch
• Stroke: from 250 mm/ 9.84 inch to 25.98 inch / 660 mm
• Intern Jounce Bumper: No
• Quantity: 1 Piece
• Condition: Brand New
• Material: Natural rubber
• Piston Material: SPHC Steel
• Package Length, width and height: 45*37*37 cm/17.72*14.57*14.57 inch
• Package Wight: 16.8 Kg/37 LBS

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.

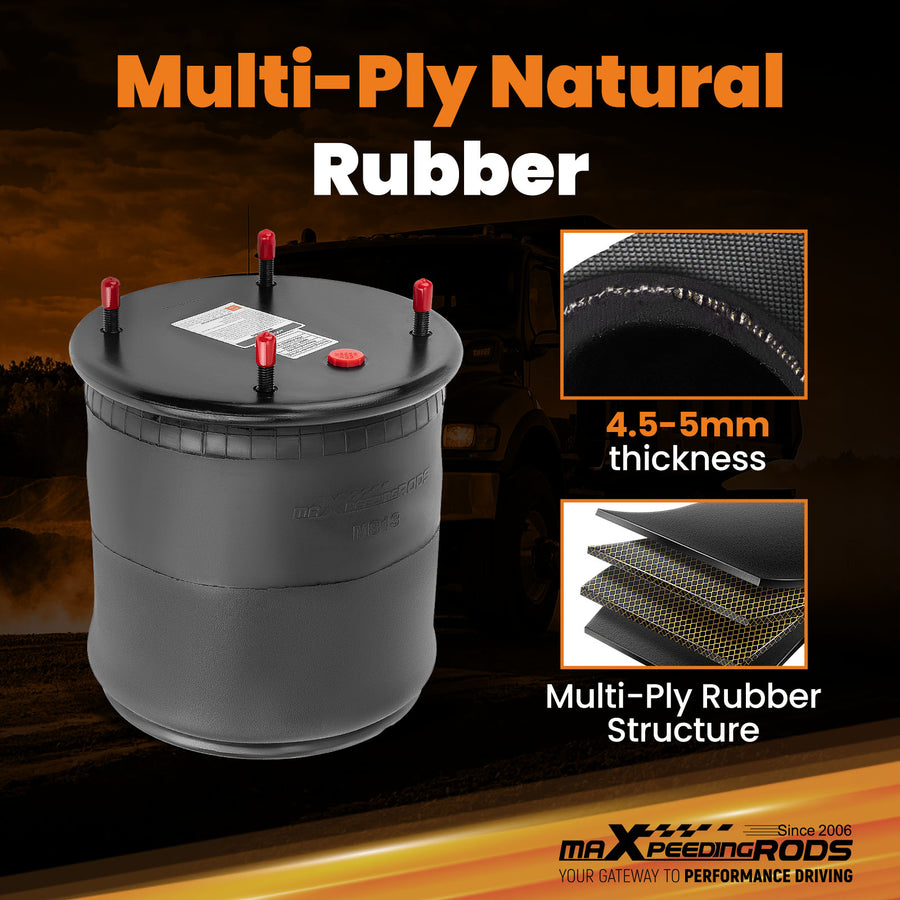

• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-M58-6364, 1T19L-11,1T19L11,1T19LB-12, 1T19LB12, C01-M58-1163,W01-M58-6339,C01-M58-1164
• replacement for ContiTech 813 MB,813MB,67193
• replacement for Goodyear 1R14-705,1R14705,1R14705,566-28-3-547,56628 3547,5662835471R14-857,1R14857,1R14857,66-28-3500,566 28 3500,566283500
• replacement for Dunlop FR: D13B19, D13B02,00985A-AP,00985AAP,00985AAP
• Other parts number:
• Compatible for Hendrickson: 505 859, 505 859/01,505 859 01,50585901,785 170,785170
• for Airtech: 130102, 3813C
• for Blacktech: RML7924C
• for CF Gomma: 87408, 1T19E-2, 1T19E2
• for Fabio: 34813-50C,3481350C, 400793
• for Neotec: ABM 740 33A45, ABM74033A45
• for Phoenix: 1D28B-2, 1D28B 2
• for Primeride: 5813AP03,5813AP03,1R14-705,1R14-857,566-28-3-547,566-28-3500
• for Springride: 1R14-705,566-28-3-547
• Compatible for Taurus: KR622-26,KR62226
• for Vibracoustic: V1D28B-2,V1D28B2
• for Sampa: SP 55813-K,SP55813-K,SP55813K,SP55813K
• for Granning: 15634
• for Kässbohrer: 4.731.030.000,.4731030000
• for Paul NFZ: P2700MB0813
• compatible for Renault: 5 000 790692,5000790692
• for SAF-Holland: 2923 AR 211,AR 212,AR 213,AR 413,2.229.0003.00,2229 0003 00,2229000300,2923 R 112,R 113,R 142,R 143,2.229.0003.00,2 229000300,2229000300,2.229.0010.00,2229001000,2229001000,2923 AR 211/AR 212/AR 213,AR 413,2.229.2103.00,2229210300,2229210300,2923 AR 211,AR 212,AR213,AR 413,2.229.2403.00,2 229 240300,2229240300,2923 AR 211,AR 212,AR 213,AR 413,2.229.2603.00,2 229 2603 00
• for Trailor: 0036158E, 65023482
• for Weweler: US07345, US87408
• for SAF-Holland: 2923
• for Scania: 1723269
• for Meritor: 21215633
