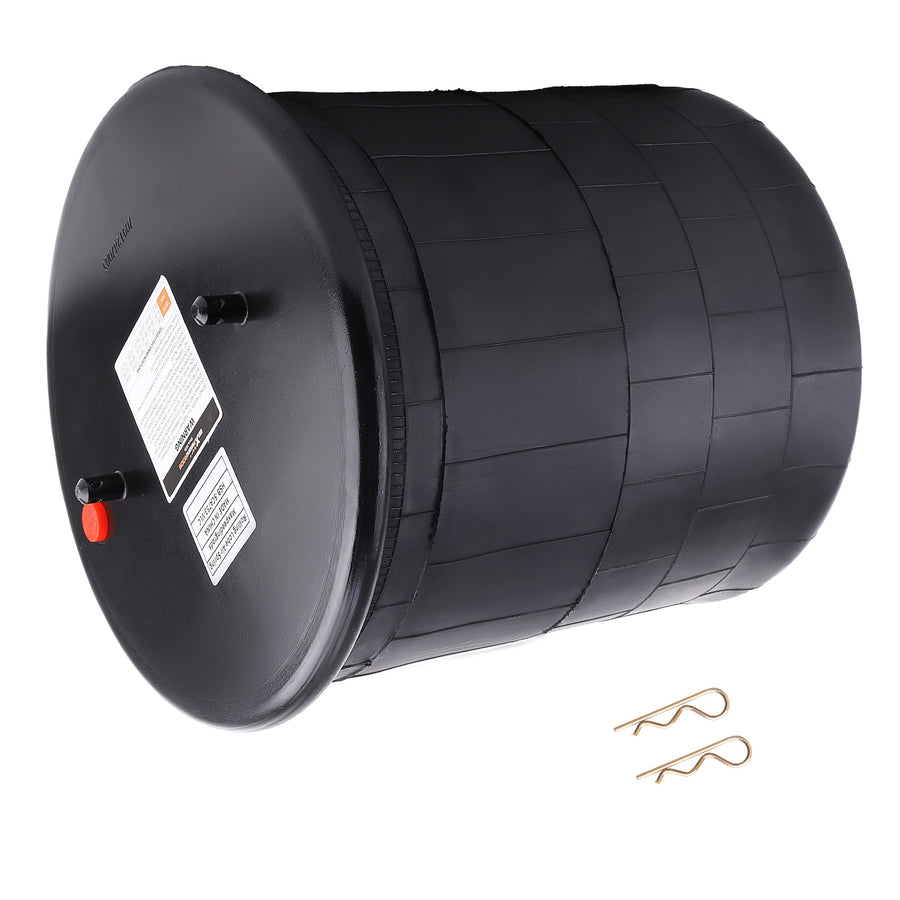

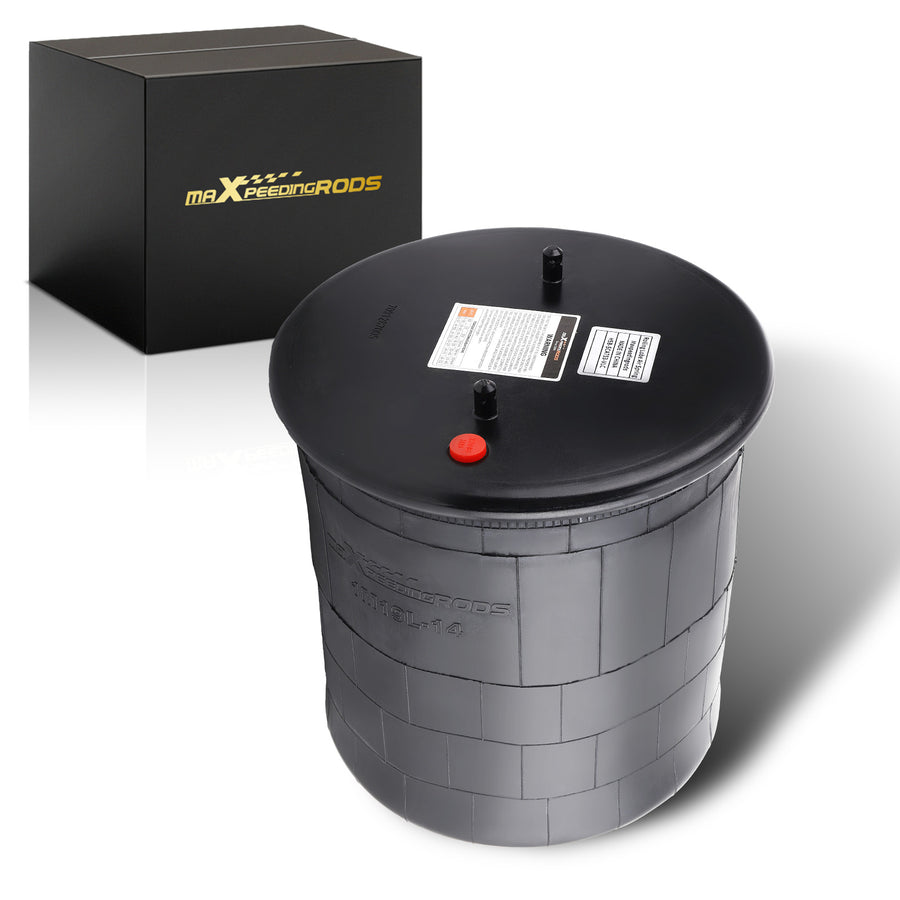

Air Spring Bellow Bag for Firestone W01-095-0500 for Goodyear 1R14-753

Compatible Vehicles

• Firestone W01-095-0500 for Goodyear 1R14-753

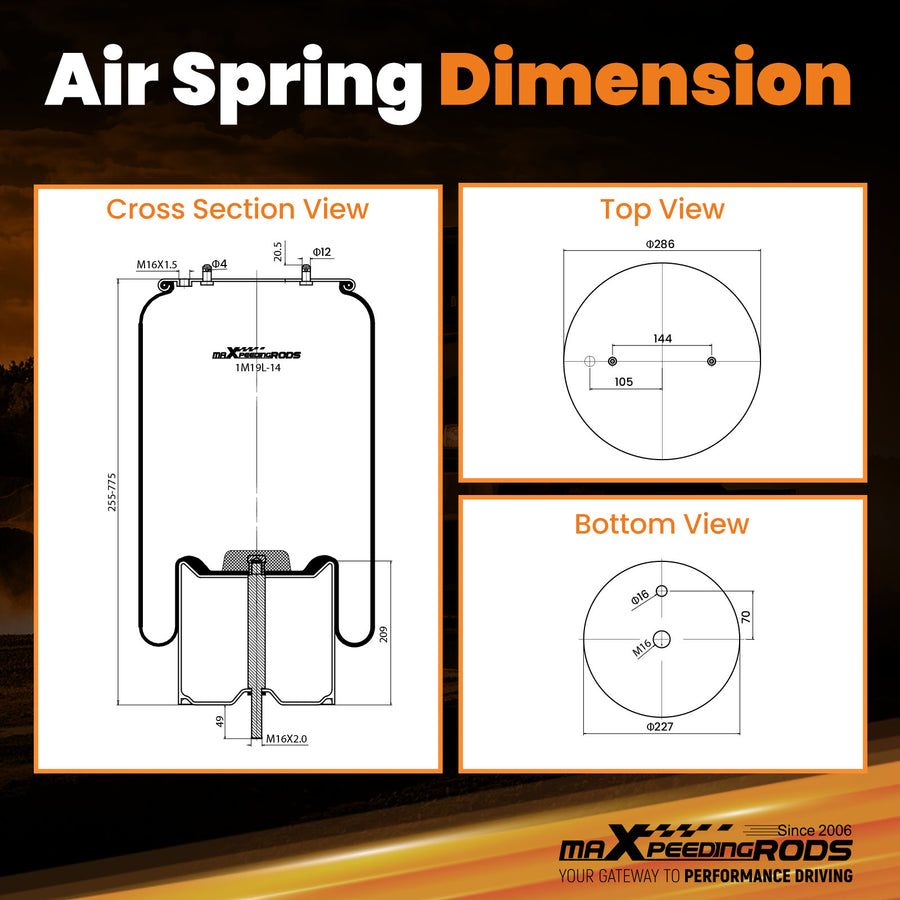

Specification

• The centre distance of the top cover plate:144mm / 5.7 inch
• Screw (nut) teeth of the bottom cover plate: M16
• Air hole/air inlet: M16x1.5
• Top plate diameter: 286mm / 11.3 inch
• Diameter of the bottom cover: 227mm / 8.9 inch
• Stroke: from 255mm/ 10 inch to 775mm/ 29.7 inch

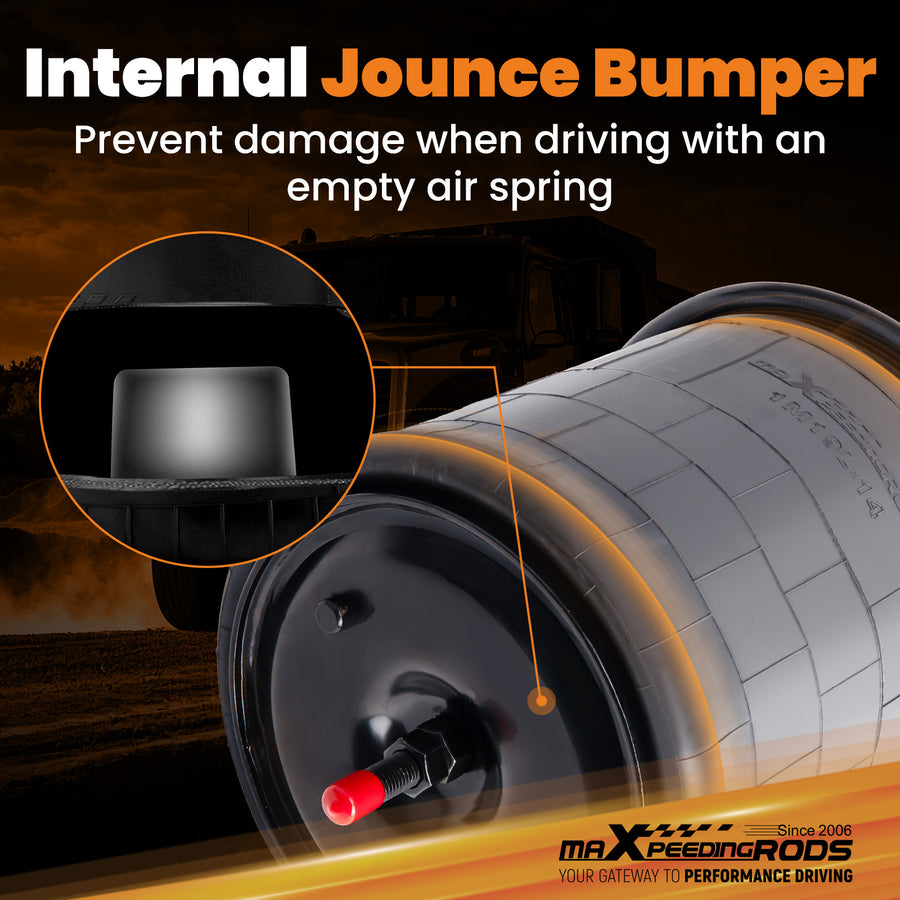

• Intern Jounce Bumper: Included
• Quantity: 1 Piece
• Condition: Brand New
• Material: Natural rubber
• Piston Material: SPHC Steel
• Package Length, width and height: 45*38*37 cm/17.7*15*14.6 inch
• Package Wight: 16 Kg/35 LBS

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.

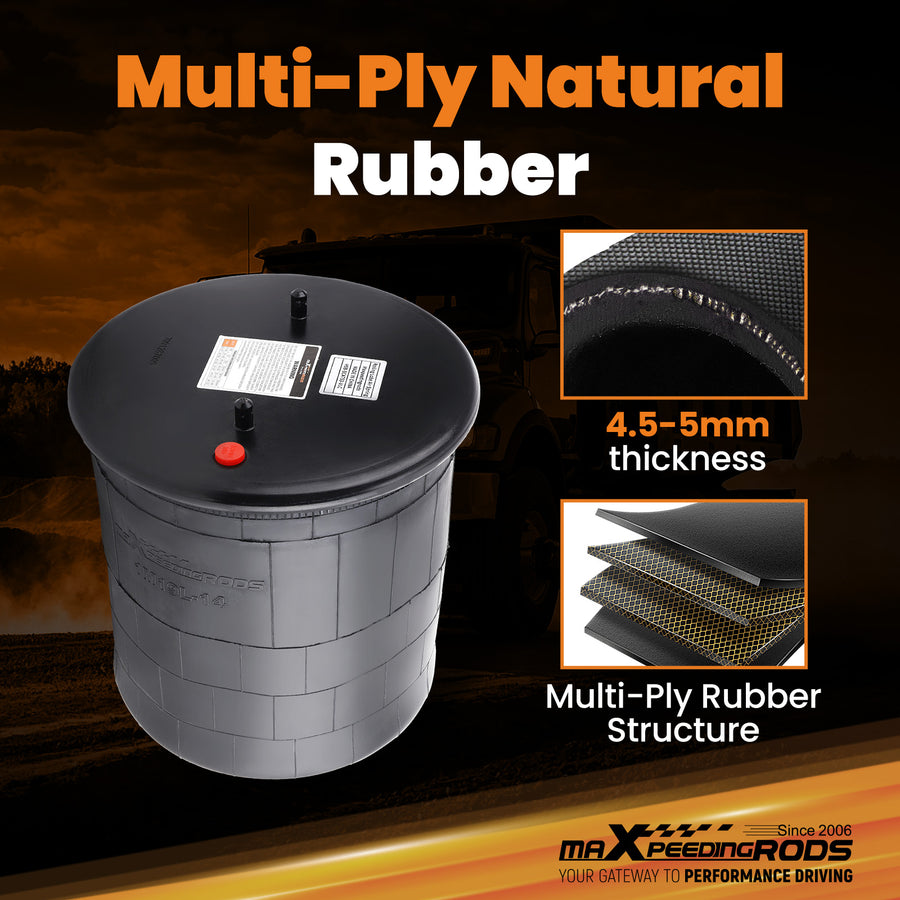

• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-095-0500, W01-M58-9881, 1T19LJ-14, 1T19LJ14, 1T19LLJ-14, 1T19LLJ14, 1T19LAJ-14,1T19LAJ14, 1T19L SERIES CO1-M58-1160
• replacement for Goodyear 1R14-753, 566-28-3-522, 566283522
• replacement for ContiTech 4913NP02, 67254
• replacement for Dunlop: D14B42, 00937A-AP, 00937AAP
• Other parts number:
• for Airtech: 132122, 136352, 34913C
• for Blacktech: RML75024C
• for CF Gomma: 206201, 1T19E-93
• for Gart: 282.1.600, 2821600, 282.1.606, 2821606, C282/H, C282H, D287/H, D287H
• for Neotec: ABM77133K55
• for Phoenix: 1D28H-16, 1D28H16
• for Primeride: 54913AP02, 1R14-753, 566-28-3-522
• for Springride: 1R14-753, 566283522
• for Vibracoustic: V1D28H-16, V1D28H16
• for Scania: 1379392, 1440294, 1543691
