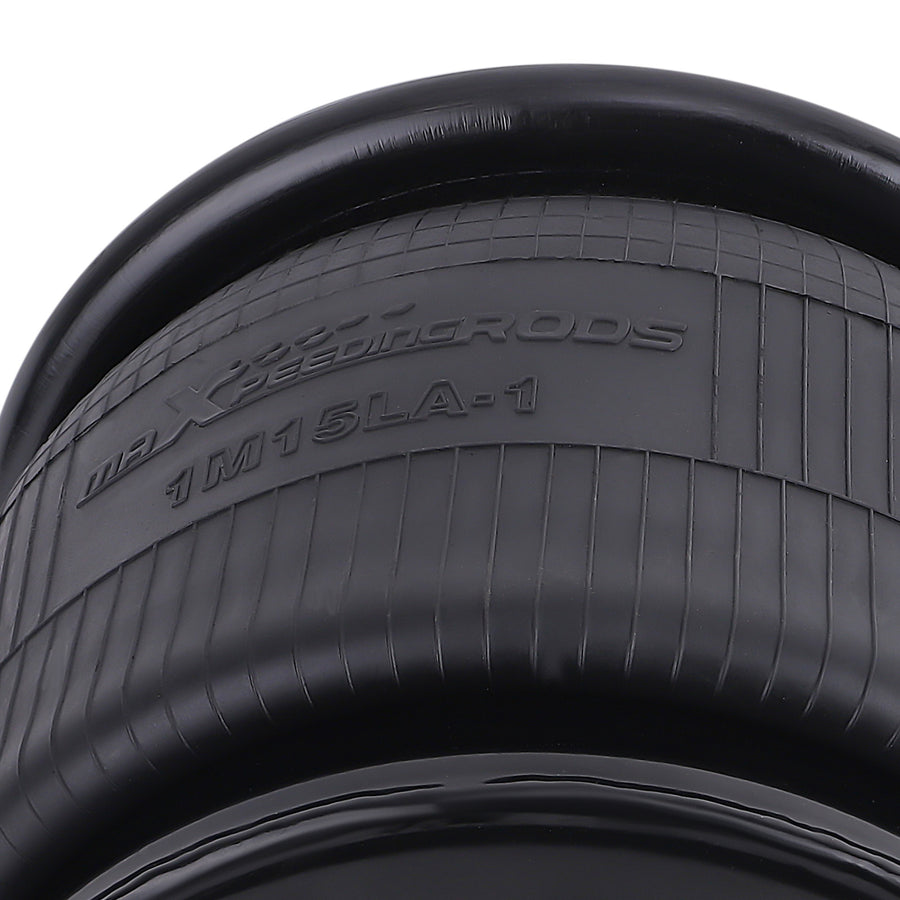

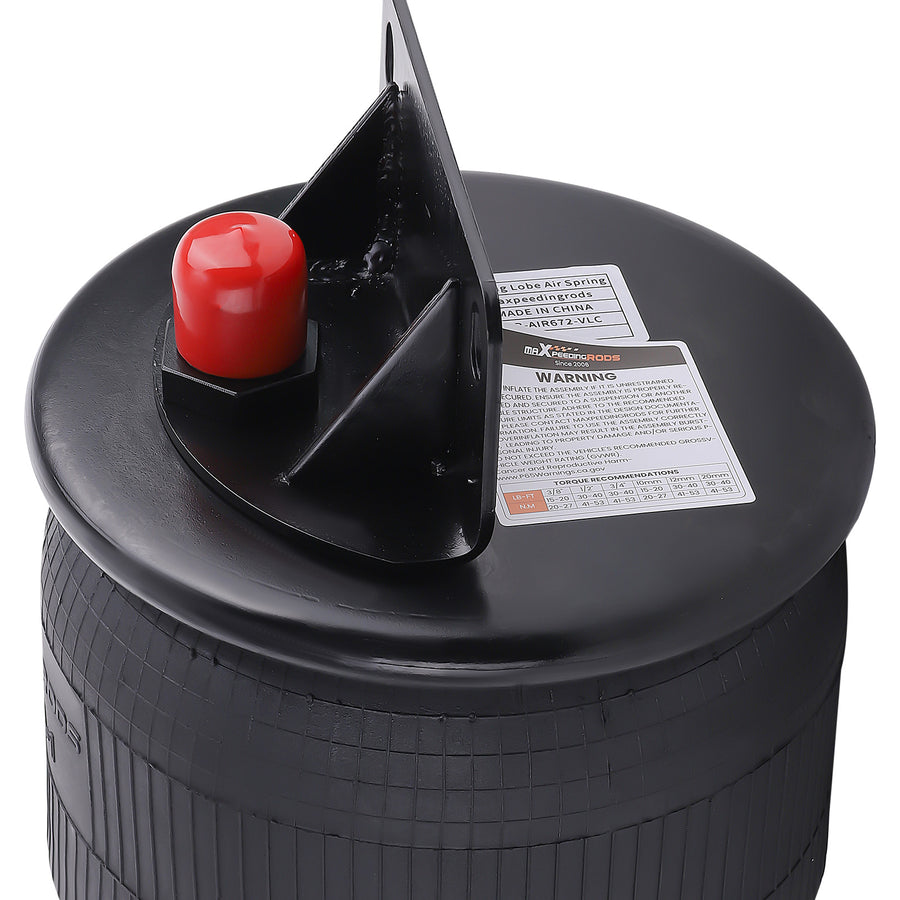

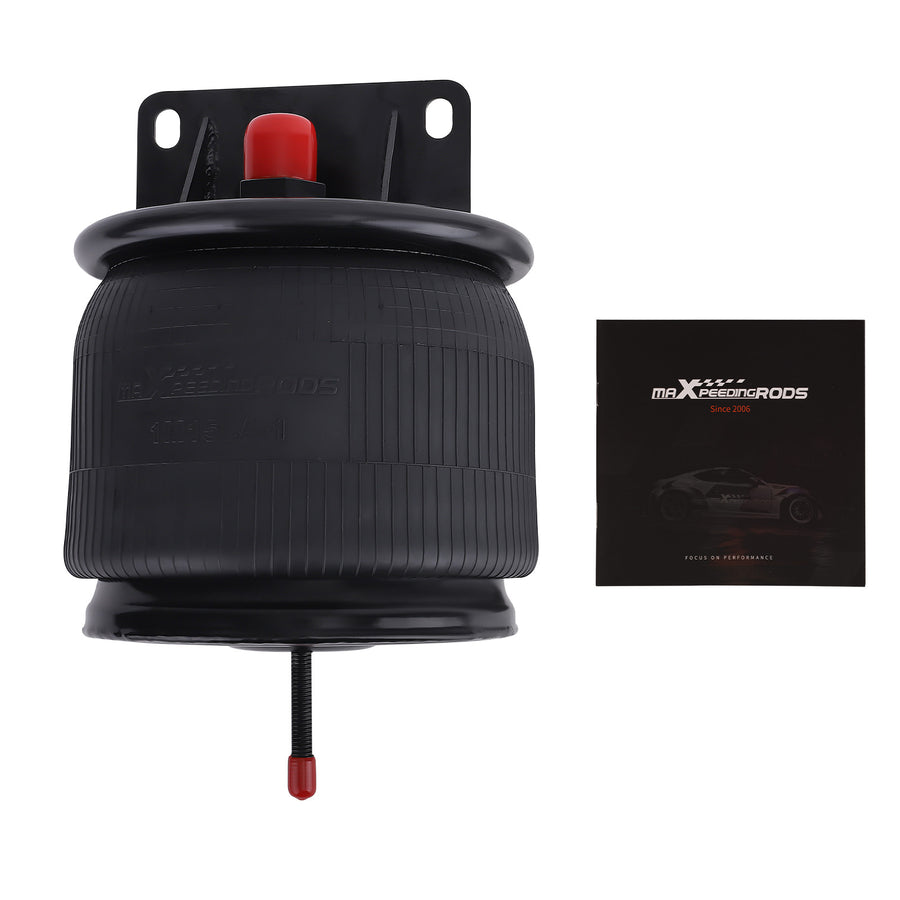

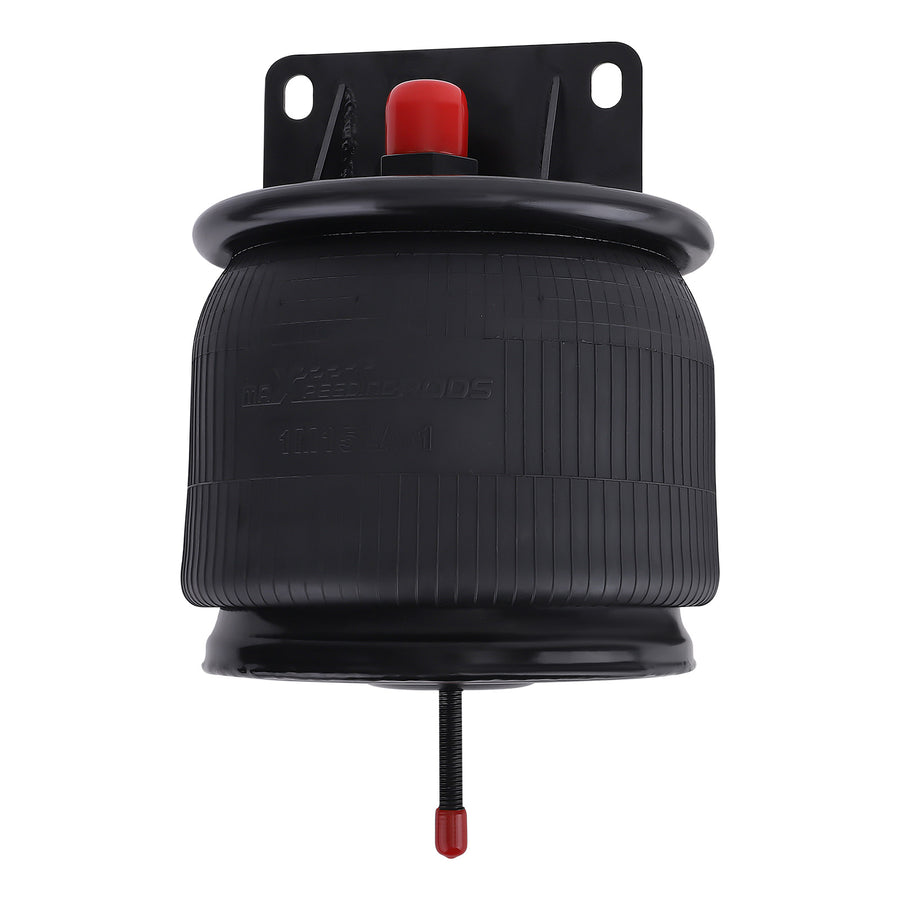

Air Bellow Spring Bag compatible for Kenworth K30322 K303-22 for Goodyear 1R11-221

Compatible Vehicles

• Kenworth K30322 K303-22 for Goodyear 1R11-221

Specification

• The bracket hole centre distance: 139.8mm / 5.5 inch
• Screw (nut) teeth of the bottom cover plate: 1/2-13UNC
• Air hole/air inlet: 1 5/16-12UNF
• Top plate diameter: 231mm / 9.1inch
• Diameter of the bottom cover: 212mm / 8.3inch
• Stroke: from 99mm/3.9inch to 279mm/11inch
• Intern Jounce Bumper: Not Included
• Quantity: 1 Piece
• Condition: Brand New
• Material: Natural rubber
• Piston Material: SPHC Steel
• Package Length, width and height: 46*33*32cm/18.1*13*12.6inch
• Package Wight: 8.6Kg/19.1 LBS

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.
• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-358-9622
• replacement for ContiTech 65367, 68359, 99-9P537
• replacement for Goodyear 1R11221, 1R11-221, 1R11280, 1R11-280,566223021
• compatible for Kenworth K30322, K303-22, K-303-22
• Other parts number:
• fit for Triangle AS-8477, 8537, 8576
• Compatible for Taurus 6368, AS-8755
• for Automann 1DK20G-9622X
• for TRP AS96221
