Compatible Vehicles
- BMW E46 3-Series Models 98-06 Suspension Struts lowering kit
Note
- Not for Xi/xd 4 wheel drive, not for M3 model either
- Specifications
Front top mounts
Pillow ball top mount with camber plate
Rear top mounts
Pillow ball top mounts
Damping
24 levels rebound damping adjustable
Spring rate Front
8 kg/mm (448 lbs/in)
Spring rate Rear
7 kg/mm (392 lbs/in)
Spring length Front
180mm
Spring length Rear
183mm
Coilover overall length Front
440-470mm
Coilover overall length Rear
450-535mm
Shock type
Twin tube
Spring Preload
7-10 mm
Warranty
- One year warranty for any manufacturing defect

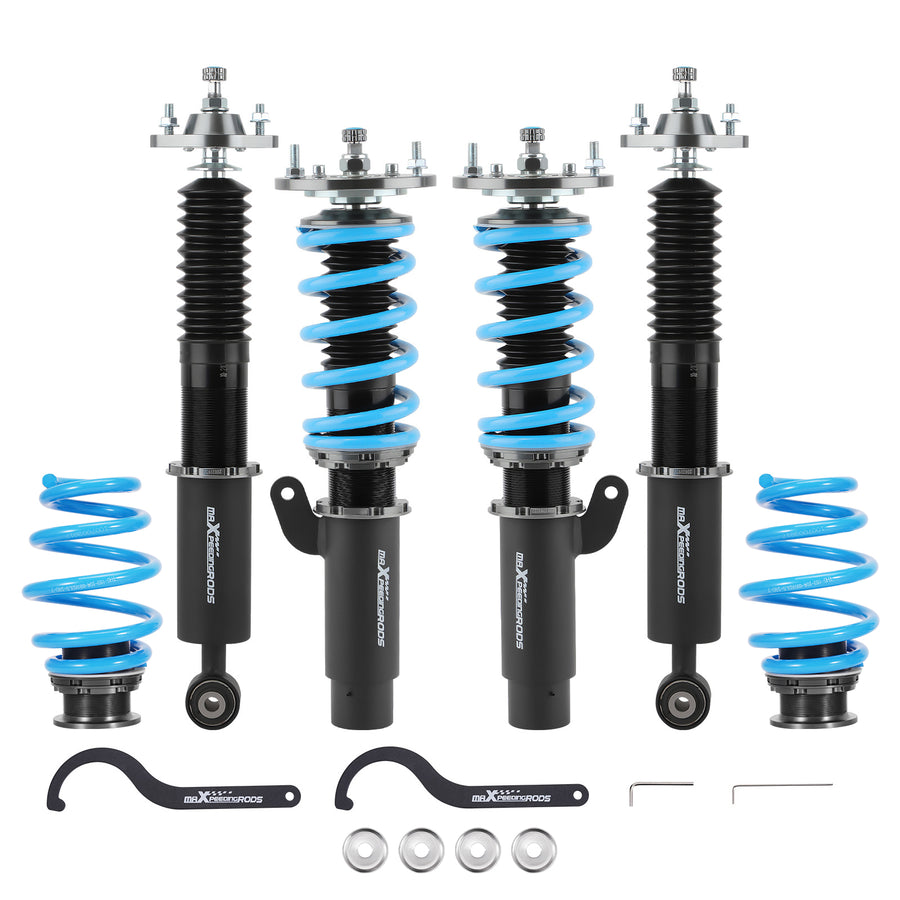

- Package included
- complete coilover kit
- 2 front and 2 rear
- a pair wrench
- Dimension
weight
25360g
size
- 63*51*21 cm
- Feature
- 1. Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance
- 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.
- 4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
- 5. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
- 6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
- 7. Upgraded spring --- more than 600,000 times continuously test to assure it’s high tensile strength.
- 8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
- 9. With better damping setting, you will get better performance and comfort at the same time.
- 10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 11. Corrosion Finish - Anodized Aluminium and Powder Coated Carbon Steel Parts
- 12. Test for the best---All parts were tested on our professional machine before assembled and tested by our professional racers on road.
- 13. Clean room assembled---maintain higher level of accuracy and reliability.
- 14. Upgraded damper oil---make damping more stable and smoother in wide temperature range.
- Note
- Caution: OE shims need to be installed on the rear eye bolt bushings.
- Notice
- All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
